JVC  KS-DR3005D

DR Series 5-Channel 1000W Max Power, Class-D Car Amplifier

Item #45810

Condition:   Brand New

0
❮ ❯
1 / 5
Product Highlights
  • 1000W max power
  • Class-D amplifier
  • 5-channel
  • Clear, strong audio
  • Easy to install
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
0 Review

$276.10

Reg. Price $439.95  Save $163.85
Add to Cart
Out of Stock Check out other products listed below
Or call us at 310-526-8635 and our expert tech-support would be happy to suggest alternative products for you!
Or email at customerservice@onlinecarstereo.com
JVC Authorized Dealer

Available alternative products:

Huge Saving on Other items:

JVC Banner

JVC KS-DR3005D - DR Series 1000W Peak Power Handling, 5-Channel Car Amplifier, Class-D

We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •5-Channel amplifier
  • •4 Self-tapping screws (length 13/16")
  • •Instruction Manual
  • •Limited Warranty (US)
  • •Warranty Card (Australia/New Zealand)
  • •Owner's Manual
Offers Excellent Sound Reproduction and Flexibility

The JVC KS-DR3005D is a 5-channel car amplifier designed to deliver powerful and high-quality audio performance in your vehicle's sound system. With its compact design and versatile features, this amplifier offers excellent sound reproduction and flexibility.

Combination of Speakers and Subwoofers

The KS-DR3005D provides a maximum power output of 1000 watts RMS, allowing you to drive a combination of speakers and subwoofers with ease. It features five channels, enabling you to connect and power a complete audio setup, including front and rear speakers as well as a subwoofer.

Efficient Power Utilization

Equipped with Class D amplifier technology, the KS-DR3005D delivers efficient power utilization, minimizing heat generation and maximizing power output. This efficient design ensures that your amplifier operates optimally while minimizing power consumption. The amplifier includes adjustable crossover filters, allowing you to customize the frequency response and optimize the sound reproduction for your specific speaker setup.

Bass Boost and Input Sensitivity

It also features bass boost and input sensitivity control for further fine-tuning of the audio output. The KS-DR3005D incorporates protection features such as thermal overload protection and short circuit protection to safeguard against potential damage to the amplifier and connected speakers. This helps ensure the longevity and reliability of your audio system.

  • Maximum Power : 1000 Watts
  • Low Frequency Response : 50-200 Hz
  • High Frequency Response : 50-200 Hz
  • Number of Channels : 5
  • Frequency Response : 5-30000 Hz
  • Built In Crossovers : Yes
  • Channel Separation : Yes
  • Amplifier Class : D
  • Fuse Rating : 60 A
  • XP750-SE OFFER : Yes
Features:
  • Overview: The KS-DR3005D Class-D 5-channel power amplifier is designed to drive two pairs of speakers and one or two subwoofers in your vehicle. The DR-series amplifiers feature toroidal transformers to provide a stable power supply, a copper plate for the ground, and speaker-level inputs for ease of installation.
  • 4-Way Protection: The amplifier features protection circuitry that will shut down the unit if any of the following four conditions
  • Thermal: the operating temperature of the amp gets too high
  • Short Circuit: there is a short circuit on one of the speaker wires
  • Overload: the impedance of the connected load is too low
  • DC Offset: direct current is detected on the speaker wires

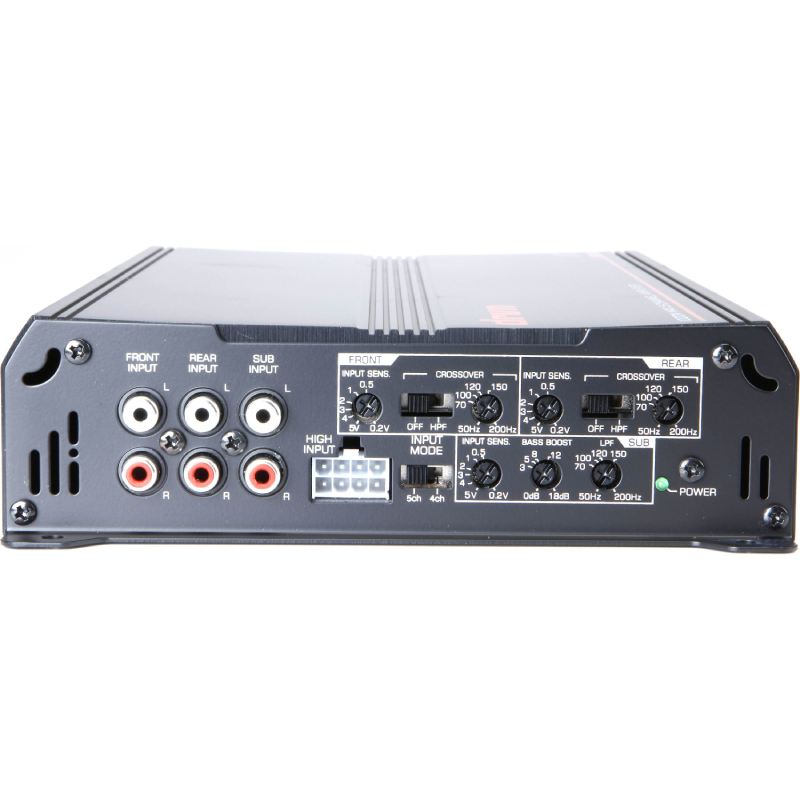

  • Controls: The KS-DR3005D has controls mounted on one end of the amplifier. Separate controls are provided for the front channels (1+2) ,rear channels (3+4), and the sub channel (5). The controls include:
  • Input Sensitivity: Using these rotary controls, you can set the input sensitivity to match the line-output level of the connected head unit. The input sensitivity range is 0.2V to 5.0V.
  • Input Mode: You can select the input mode for the sub channel. If there is a dedicated input connection for channel 5, the switch should be placed in the 5ch position. If you will be feeding the sub channel with the rear input signal (channels 3-4), the switch goes in the 4ch position.
  • Crossovers: The amp has a separate crossovers for the front, rear, and sub channels. There are 2-way switches for the front and rear channels that yet you independently set the crossovers to HP (high-pass) or Off (full-range). If set to HP, you can vary the crossover frequency between 50 and 200 Hz. The crossover slopes are 12 dB/octave. The sub channel has a constant low-pass filter with a variable cutoff frequency that can be set between 50 and 200 Hz. The LPF has an 18 dB/octave slope.
  • Bass Boost: The amplifier has a bass boost on the subwoofer channel centered at 45 Hz. The amount of boost can be set between 0 and +18 dB using this rotary control.

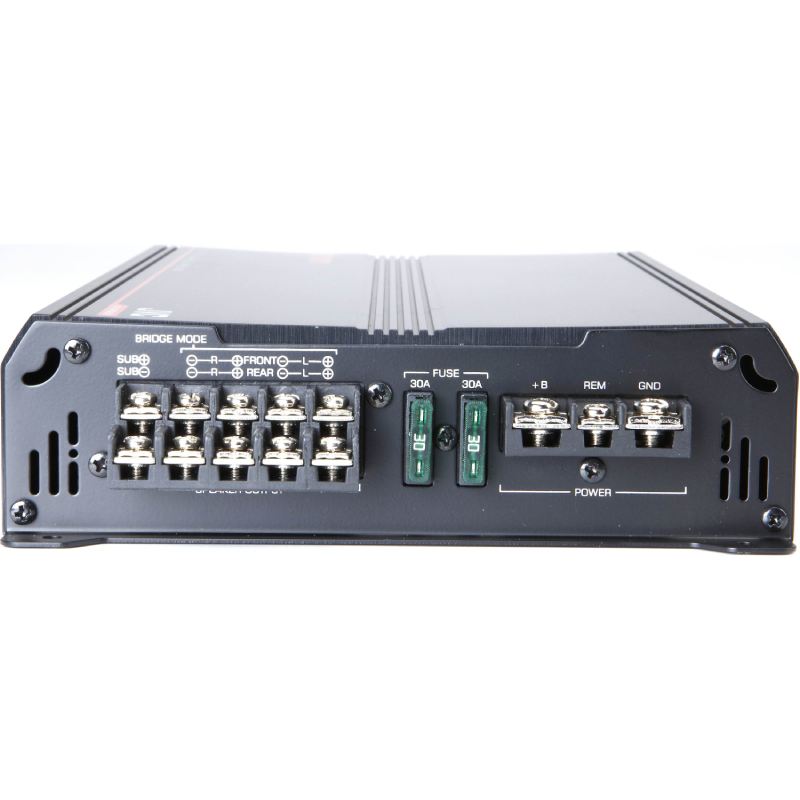

  • Terminals: The KS-DR3005D has power and speaker terminals on the end of the amplifier, opposite the controls. The screw terminals can be tightened/loosened with a slot head or Phillips head screwdriver (not supplied). Spade connectors are recommended. The input terminals are on the same side as the controls.
  • Input Signal: Three pairs of RCA jacks are provided for the front, rear, and sub line level input signals from the head unit. Also, there is an 8-pin connection for the supplied speaker level input harness.
  • Speaker Output: Five sets of screw speaker terminals are provided for connecting four speakers and a subwoofer, two speakers plus two subwoofers, or three subwoofers (minimum impedance 4 ohms for bridged 1-2 and 3-4 channels; 2 ohms minimum for sub channel). The terminals will accept up to 12-gauge wire.
  • Fuse: Two 30-amp ATC-type fuses are installed in the amp.
  • Power: Three screw terminals are provided for connecting the power, ground, and the remote turn-on lead. An 8-gauge amplifier wiring kit is recommended by the manufacturer.



Specifications:
  • Class-D Full Range 2-Ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
  • 4 ohm: 50 watts x 4 chan. + 200 watts x 1 chan. (subwoofer channel)
  • 2 ohm: 65 watts x 4 chan. + 300 watts x 1 chan. (subwoofer channel)
  • Bridged at 4 ohm: 130 watts x 2 chan.
  • Total power output: 1000 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) indicators
  • Auto Turn-on
  • 5/4/3 channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Frequency Response:
  • 4-channels: 5 - 30,000 Hz
  • Mono channel: 20 - 200 Hz
  • Variable high-pass filter: 50 - 200 Hz
  • Variable low-pass filter: 50 - 200 Hz
  • Variable Bass Boost: 0 to +18 dB bass boost
  • Fuse Rating: 30 A x 2



  • UPC: 046838073489
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Maximum Power : 1000 Watts
  • Low Frequency Response : 50-200 Hz
  • High Frequency Response : 50-200 Hz
  • Number of Channels : 5
  • Frequency Response : 5-30000 Hz
  • Built In Crossovers : Yes
  • Channel Separation : Yes
  • Amplifier Class : D
  • Fuse Rating : 60 A
  • XP750-SE OFFER : Yes
Features:
  • Overview: The KS-DR3005D Class-D 5-channel power amplifier is designed to drive two pairs of speakers and one or two subwoofers in your vehicle. The DR-series amplifiers feature toroidal transformers to provide a stable power supply, a copper plate for the ground, and speaker-level inputs for ease of installation.
  • 4-Way Protection: The amplifier features protection circuitry that will shut down the unit if any of the following four conditions
  • Thermal: the operating temperature of the amp gets too high
  • Short Circuit: there is a short circuit on one of the speaker wires
  • Overload: the impedance of the connected load is too low
  • DC Offset: direct current is detected on the speaker wires
  • Controls: The KS-DR3005D has controls mounted on one end of the amplifier. Separate controls are provided for the front channels (1+2) ,rear channels (3+4), and the sub channel (5). The controls include:
  • Input Sensitivity: Using these rotary controls, you can set the input sensitivity to match the line-output level of the connected head unit. The input sensitivity range is 0.2V to 5.0V.
  • Input Mode: You can select the input mode for the sub channel. If there is a dedicated input connection for channel 5, the switch should be placed in the 5ch position. If you will be feeding the sub channel with the rear input signal (channels 3-4), the switch goes in the 4ch position.
  • Crossovers: The amp has a separate crossovers for the front, rear, and sub channels. There are 2-way switches for the front and rear channels that yet you independently set the crossovers to HP (high-pass) or Off (full-range). If set to HP, you can vary the crossover frequency between 50 and 200 Hz. The crossover slopes are 12 dB/octave. The sub channel has a constant low-pass filter with a variable cutoff frequency that can be set between 50 and 200 Hz. The LPF has an 18 dB/octave slope.
  • Bass Boost: The amplifier has a bass boost on the subwoofer channel centered at 45 Hz. The amount of boost can be set between 0 and +18 dB using this rotary control.
  • Terminals: The KS-DR3005D has power and speaker terminals on the end of the amplifier, opposite the controls. The screw terminals can be tightened/loosened with a slot head or Phillips head screwdriver (not supplied). Spade connectors are recommended. The input terminals are on the same side as the controls.
  • Input Signal: Three pairs of RCA jacks are provided for the front, rear, and sub line level input signals from the head unit. Also, there is an 8-pin connection for the supplied speaker level input harness.
  • Speaker Output: Five sets of screw speaker terminals are provided for connecting four speakers and a subwoofer, two speakers plus two subwoofers, or three subwoofers (minimum impedance 4 ohms for bridged 1-2 and 3-4 channels; 2 ohms minimum for sub channel). The terminals will accept up to 12-gauge wire.
  • Fuse: Two 30-amp ATC-type fuses are installed in the amp.
  • Power: Three screw terminals are provided for connecting the power, ground, and the remote turn-on lead. An 8-gauge amplifier wiring kit is recommended by the manufacturer.



Specifications:
  • Class-D Full Range 2-Ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
  • 4 ohm: 50 watts x 4 chan. + 200 watts x 1 chan. (subwoofer channel)
  • 2 ohm: 65 watts x 4 chan. + 300 watts x 1 chan. (subwoofer channel)
  • Bridged at 4 ohm: 130 watts x 2 chan.
  • Total power output: 1000 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) indicators
  • Auto Turn-on
  • 5/4/3 channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Frequency Response:
  • 4-channels: 5 - 30,000 Hz
  • Mono channel: 20 - 200 Hz
  • Variable high-pass filter: 50 - 200 Hz
  • Variable low-pass filter: 50 - 200 Hz
  • Variable Bass Boost: 0 to +18 dB bass boost
  • Fuse Rating: 30 A x 2



  • UPC: 046838073489
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
