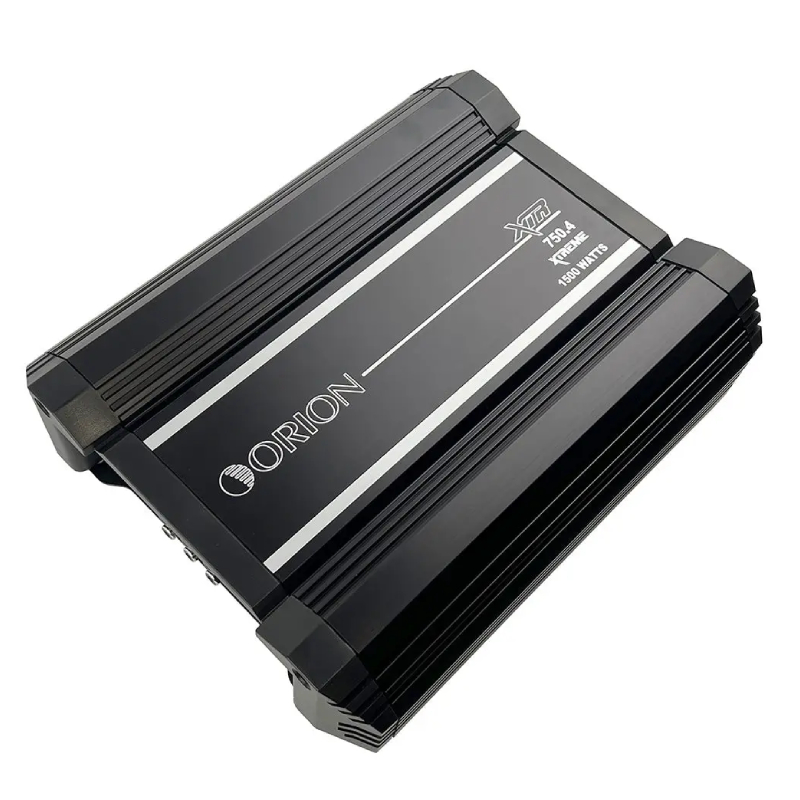

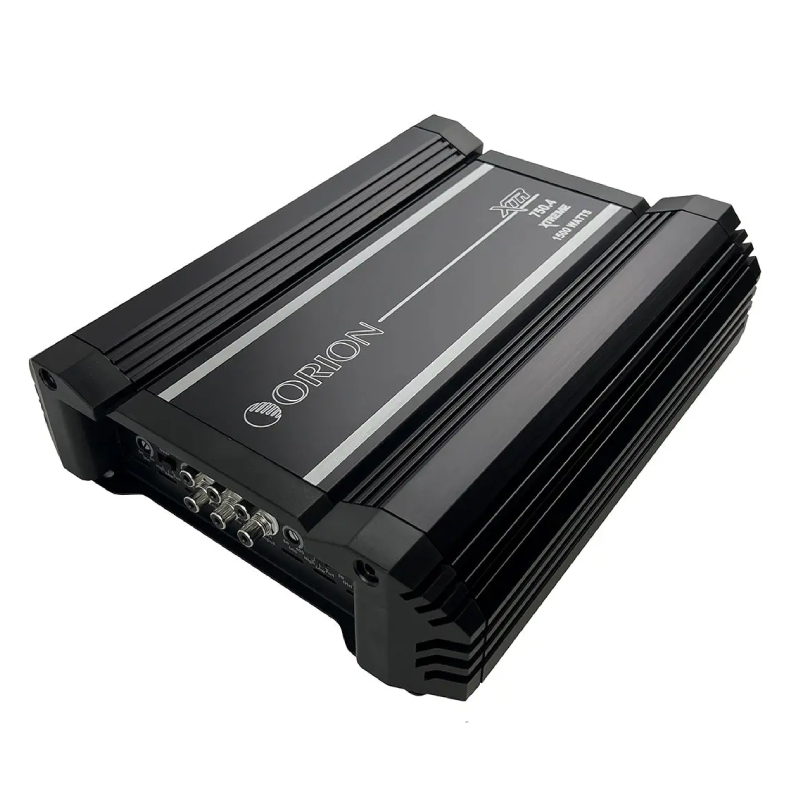

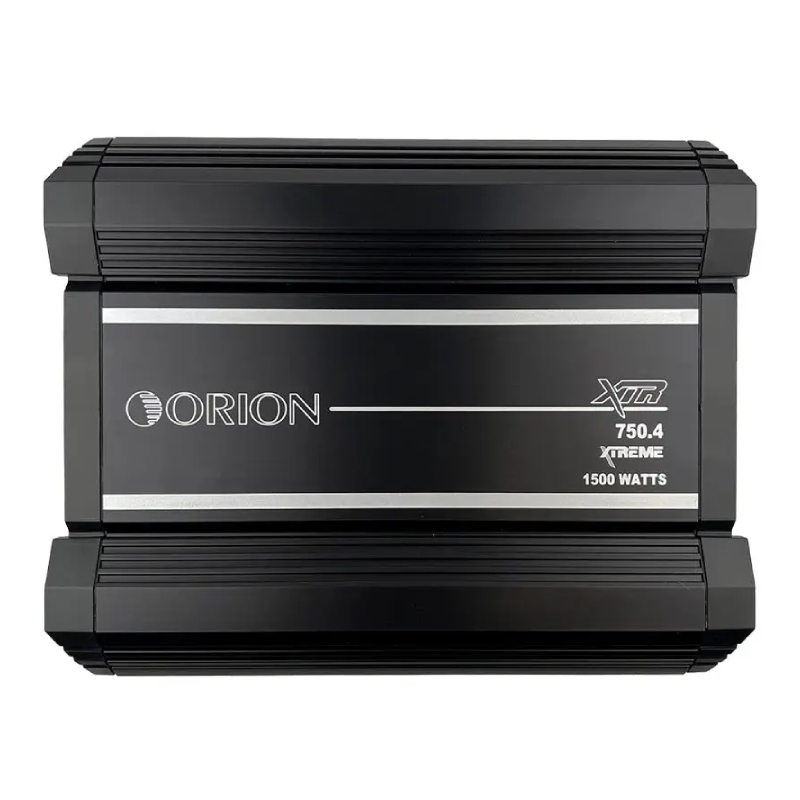

The XTR Series amplifiers from Orion are powerful perfect for the long time and new audiophiles. The XTR750.4 has a maximum music power of 3000 watts so you can be sure you will enjoy your sound while driving down the highway. It is housed in a sleek and simply designed heatsink and packed with extremely powerful punch that lives up to its windshiled sound cracking reputation.
- Maximum Power : 3000 Watts
- Low Frequency Response : 20 Hz
- High Frequency Response : 35000 Hz
- Number of Channels : 4
- Frequency Response : 20-35000 Hz
- Built In Crossovers : Yes
- RMS Power Range : 375 x 2 Watts
- RMS Power Output 4 Ohms Bridged: 375 Watts x 2
- Nominal Power Output 4 Ohms Bridged: 1500Watts
- MAX Music Power: 3000Watts
- Amplifier Efficiency: > 60% into 2 Ohms load at max . power
- Distortion at Rated Power: 0.05% THD+N
- Frequency Response: 20Hz to 35kHz +/- 1dB
- Linear Bandwidth: 20Hz to 65kHz +/- 3dB
- Damping Factor: > 100
- Input Sensitivity (rms): 200mV to 4V
- Supply Voltage Range: 9 to 16V
- Protection: Thermal, DC offset, reverse polarity, short protection, under-voltage, over-voltage

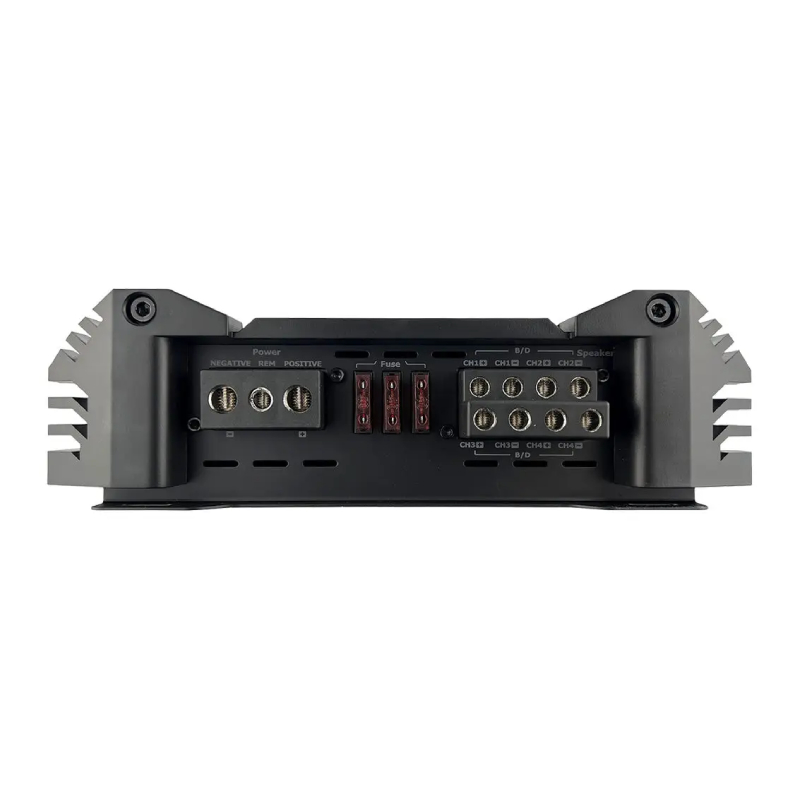

- Terminal Wire Gauge: Power 4 AWG, Remote 10 AWG, Ground 4 AWG, Speaker 10 AWG
- Input Impedance: 20k Ohms
- Balanced Line Inputs: Yes
- Power Output: 135 Watts RMS x 4 at 4 Ohms and < 1% THD+N
- Signal to Noise Ratio: >70 dBA (reference 1 Watt into 4 Ohms)
- Additional Power: 188 Watts RMS x 4 at 2 Ohms and < 1% THD+N

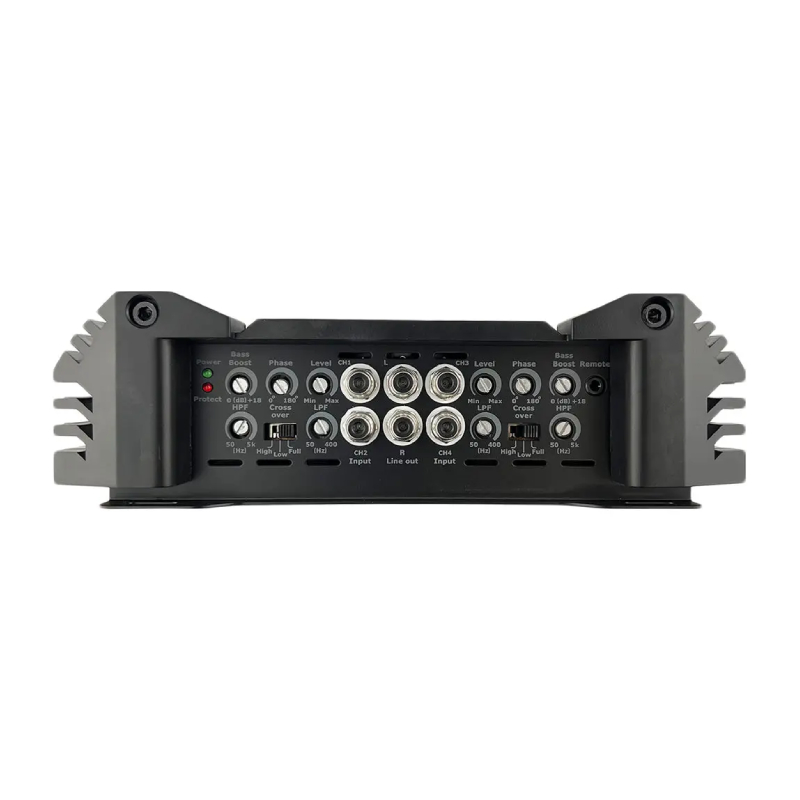

- High Pass Crossover: Continuously variable (50-5kHz)
- Low Pass Crossover: Continuously variable (50-400Hz)
- Phase shift control: 0° to 180°

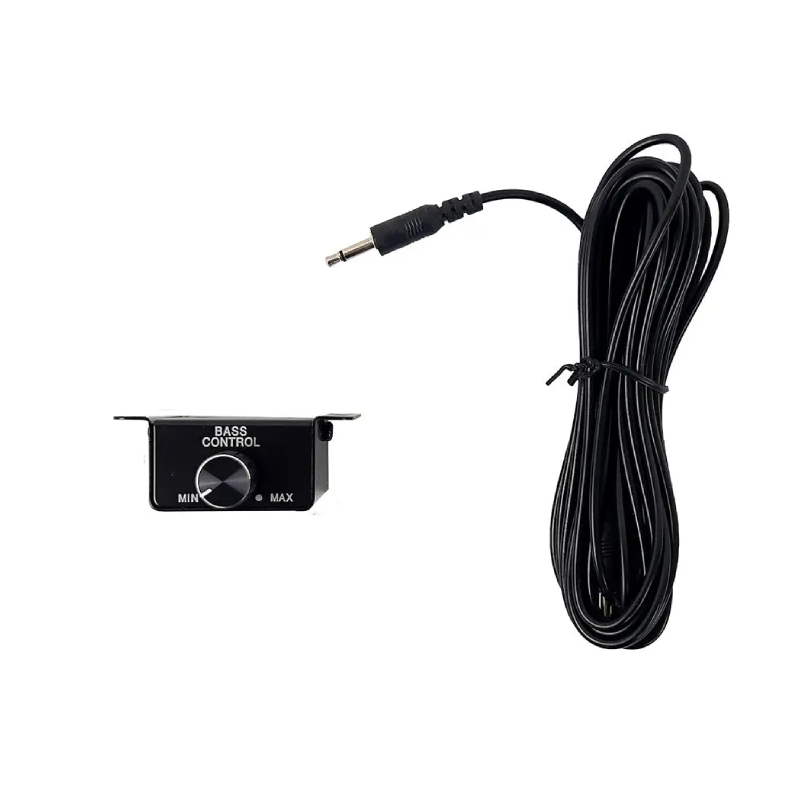

- Bass Boost: 0-18dB variable
- Dimensions (inches): 11.5 x 9.3 x 2.5
- UPC: 818550010567
- Weight: 13
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
