With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
Purpose-engineered and built for real marine duty, the MX-Series infinite-baffle subwoofers are designed to operate without a dedicated enclosure and are targeted towards moderate power applications.

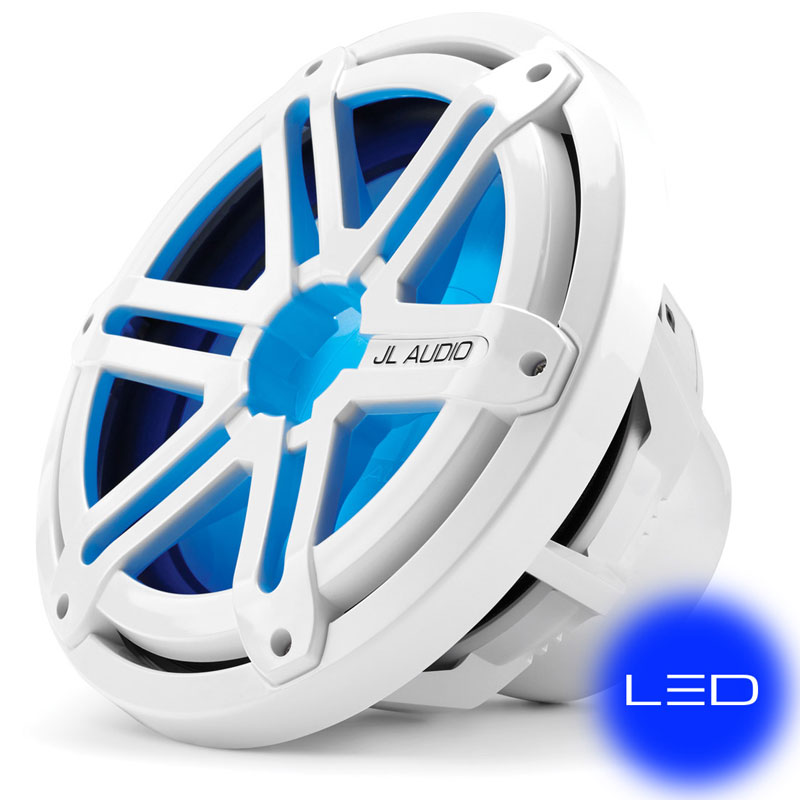

Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively blue glow, adding a dramatic visual experience to your high seas journey.
The MX10IB3 is best used with amplifier power in the 50W - 175W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a subwoofer driver that operates in a small sealed enclosure, select our M10W5, instead.
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
- Diameter : 10 Inch
- Color : White
| Product Features |
| Mechanical “Q” (Qms) |
11.751 |
| Effective Piston Area (Sd) |
50.68 sq in / 0.0327 sq m |
| Nominal Diameter |
10.0 in / 250 mm |
| Net Weight |
6.5 lb / 2.94 kg |
| Nominal Impedance (Znom) |
4 O |
| Motor Outer Diameter (D) |
5.29 in / 134 mm |
| Overall Diameter (A) |
10.75 in / 273 mm |
| Optimum Sealed Enclosure Volume |
2.5 cu ft / 70.8 L |
| Efficiency (1 W / 1 m)** |
87.23 dB SPL |
| Mounting Depth (E) |
5.12 in / 130 mm |
| Free Air Resonance (Fs) |
41.84 Hz |
| One-Way Linear Excursion (Xmax)* |
0.42 in / 11 mm |
| Electrical “Q” (Qes) |
0.806 |
| DC Resistance (Re) |
3.957 O |
| Equivalent Compliance (Vas) |
1.29 cu ft / 36.53 L |
| Infinite Baffle Use |
Yes (preferred) |
| Continuous Power Handling (RMS) |
175 W |
| Mounting Hole Diameter (B) |
8.875 in / 225 mm |
| Bolt Hole Circle Diameter (C) |
9.706 in / 247 mm |
| Driver Displacement |
0.04 cu ft / 1.13 L |
| Total Speaker “Q” (Qts) |
0.754 |
| Min. Sealed Enclosure Volume |
2.0 cu ft / 56.6 L (or larger) |
- UPC: 699440911023
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
