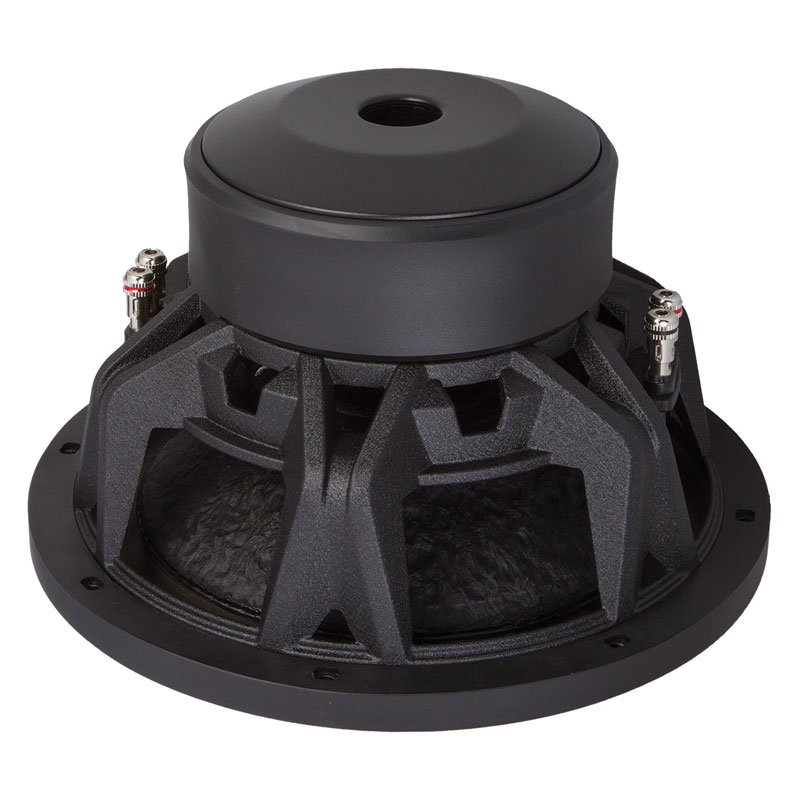

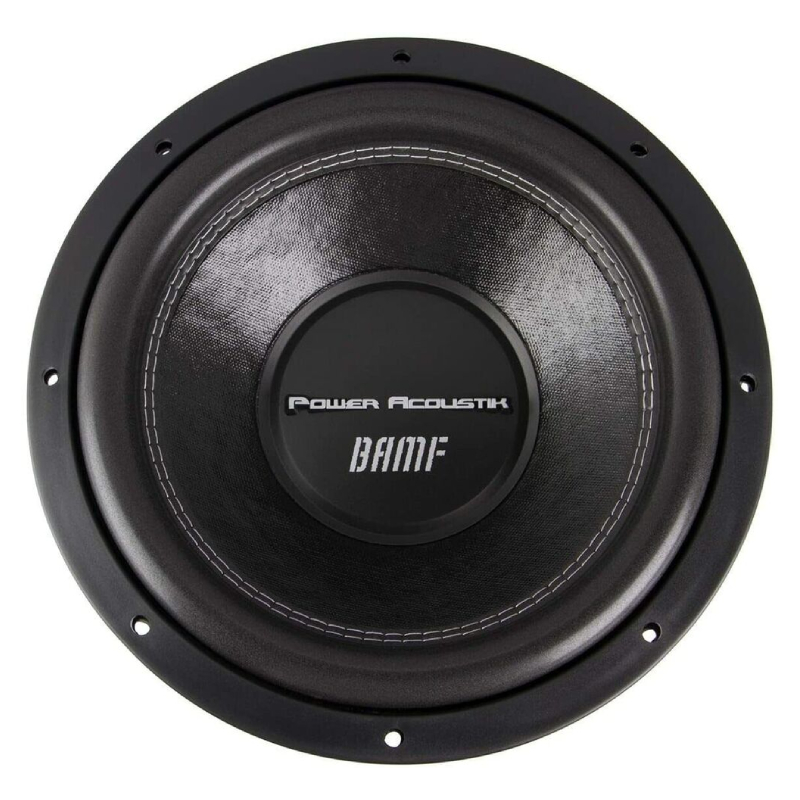

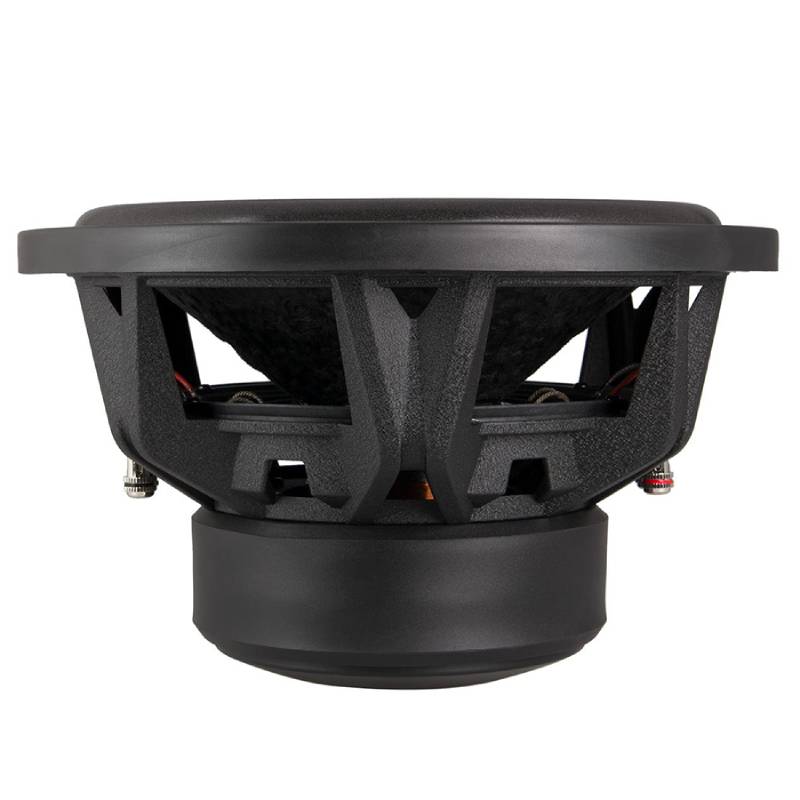

Power Acoustik BAMF-154 BAMF Series 15" 3800W Peak Power Handling 4 Ohm, Dual Voice Coil Component Car Subwoofer
We are a Power Acoustik authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 15" 3800W 4 Ohms, Dual Voice Coil Component Car Subwoofer
- • Owner's Manual
Unrivaled Performance And Precision Engineering
Experience the pinnacle of bass performance with our premium subwoofer, boasting an impressive max power handling of 3,800 Watts and RMS power handling of 1,900 Watts. Featuring a 3" dual 4Ω voice coil configuration and a substantial 272 oz motor volume, this powerhouse delivers exceptional efficiency at 86.40 (1w/1m). With a mounting depth of 8.00", it's designed to fit seamlessly into your audio setup. Achieve optimal sound quality in either a sealed enclosure of 2.00 ft³ or a ported enclosure of 4.00 ft³. Upgrade your sound system today with unrivaled performance and precision engineering.
Lasting Performance
Elevate your audio experience with our meticulously engineered subwoofer. Featuring an overcompensating motor structure for heightened magnetic strength, paired with a 12mm T-Yoke and top plate to enhance low-frequency dynamics. Keep things cool with a vented T-Yoke and frame, while the non-magnetic, non-resonate die-cast aluminum frame ensures optimal sound quality. Boost power handling with a 3” 4-layer voice coil and direct connect wire, reinforced by high-temperature tolerance adhesives for lasting performance.
Precision Engineering And Lasting Reliability
Unleash premium sound quality with our advanced subwoofer. Featuring a non-transfer spruce pulp cone with UV and chemical protection, alongside stitched and glued surround/cone joints for unmatched bonding strength. Enjoy extended performance with the polyether foam surround, UV protected for durability, and dual poly-cotton suspension for smooth bass response. Protect against damage with stitched voice coil leads, while the included 1-piece gasket/trim ring with concealed mounting holes ensures easy installation. Upgrade your sound system with precision engineering and lasting reliability.
- Diameter : 15 Inch
- Sensitivity : 86.4 dB
- Impedance : 4 Ohm
- Peak Power Handling : 3800 Watts
- Shallow Mount : No Inch
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 2 Cubic ft.
- Suggested Ported Box Volume : 4 Cubic ft.
- Mounting Depth : 8.00 Inches
- RMS Power Handling : 1900 Watts
Features:
- Overcompensating motor structure for increased magnetic strength
- 12mm T-Yoke & top plate to improve low-frequency dynamics
- Vented T-Yoke & frame to reduce voice coil heat build-up
- Non-magnetic non-resonate die-cast aluminum frame
- 3” 4-layer voice coil with direct connect wire increases power handling
- High-temperature tolerance adhesives resist thermal failure
- Non-transfer spruce pulp cone with UV & chemical protection
- Stitched and glued surround/cone joints for strongest bonding
- Extended excursion polyether foam surround with UV protection
- Dual poly-cotton suspension dampens violent accelerations
- Stitched voice coil leads prevent potential damage
- 1-piece gasket/trim ring with concealed mounting holes included
Specifications:
- Max Power Handling: 3,800 Watts
- RMS Power Handling: 1,900 Watts
- Efficiency (1w/1m): 86.40
- Voice Coil Configuration: 3" Dual 4Ω
- Motor Volume: 272 oz
- Mounting Depth: 8.00"
- Optimum Sealed Enclosure ft³: 2.00
- Optimum Ported Enclosure ft³: 4.00
Recommended Enclosure Specifications:
- Recommended Enclosure Type: Ported / Vented, Sealed
- Minimum Sealed Box Volume: 1.5 cubic feet
- Optimum Sealed Box Volume: 2 cubic feet
- Maximum Sealed Box Volume: 2.5 cubic feet
- Minimum Ported Box Volume: 3 cubic feet
- Optimum Ported Box Volume: 4 cubic feet
- Maximum Ported Box Volume: 5 cubic feet
- Top-Mount Depth (Mounting Depth): 8"
- Cutout Diameter: 13.875"
- Shallow Mount Installation: No
Electromechanical Parameters:
- Free-Air Resonance (Fs): 33.2 Hz
- Equivalent Compliance (Vas): 1.76 liters
- Total Speaker Q Value (Qts): 0.66
- Electrical Q Value (Qes): 0.77
- Electrical Resistance of Voice Coil (Re): 7.2 ohms
- Mechanical Q Value (Qms): 4.68
- UPC: 709483055780
- Weight: 25
