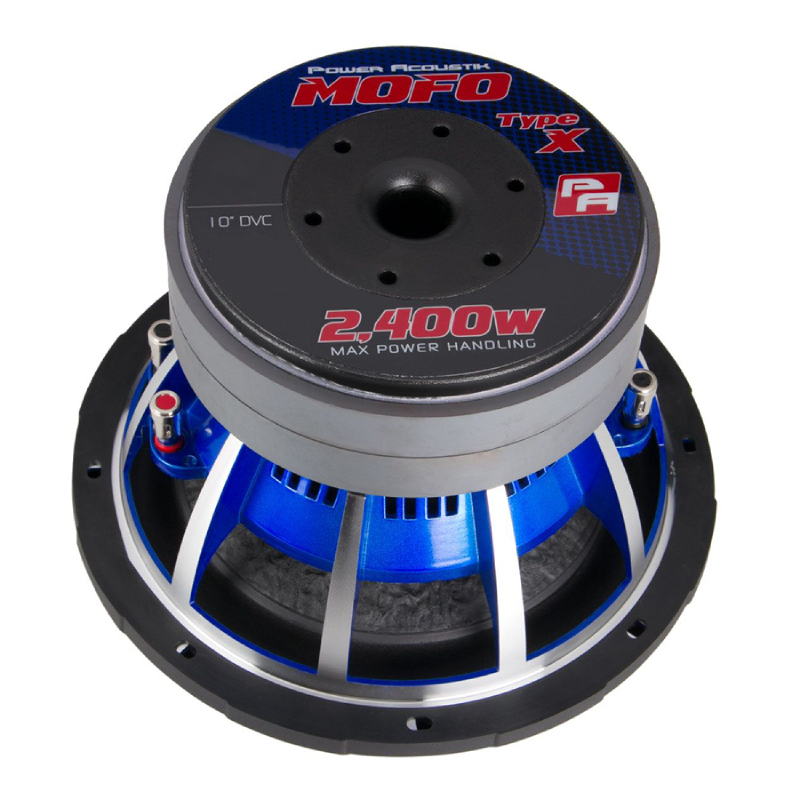

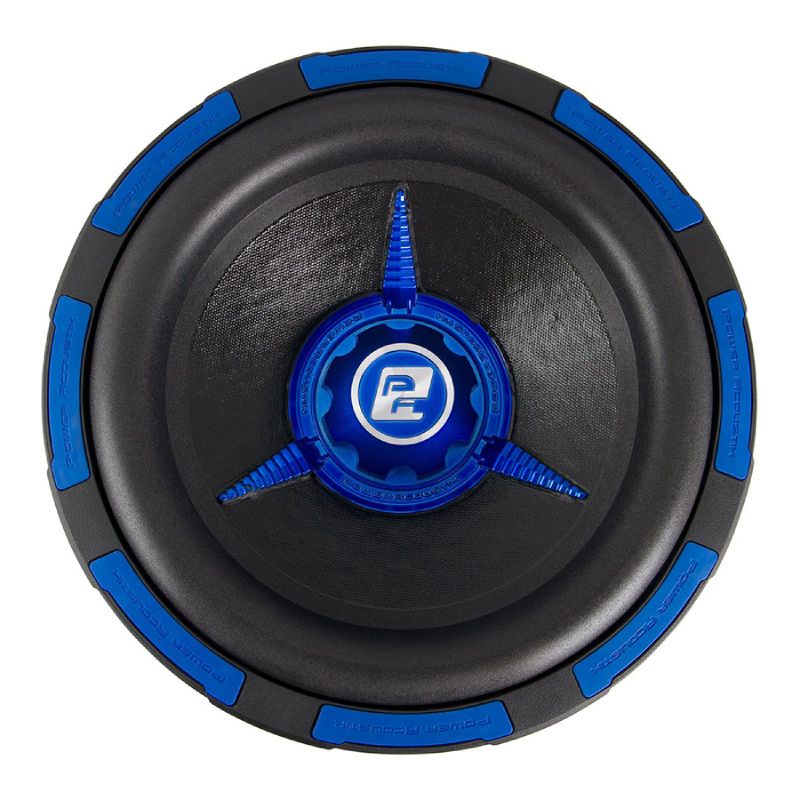

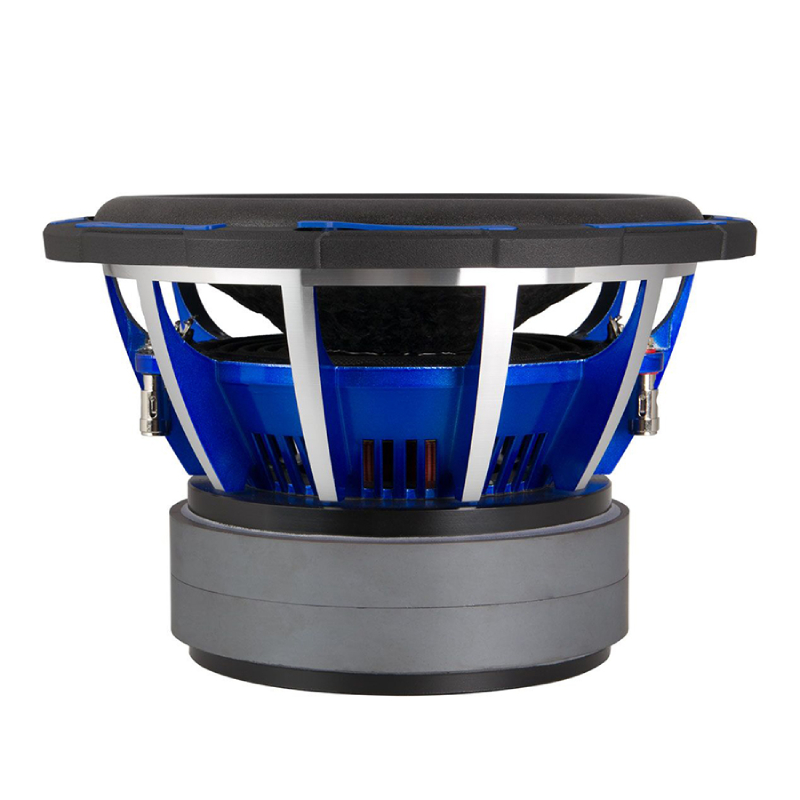

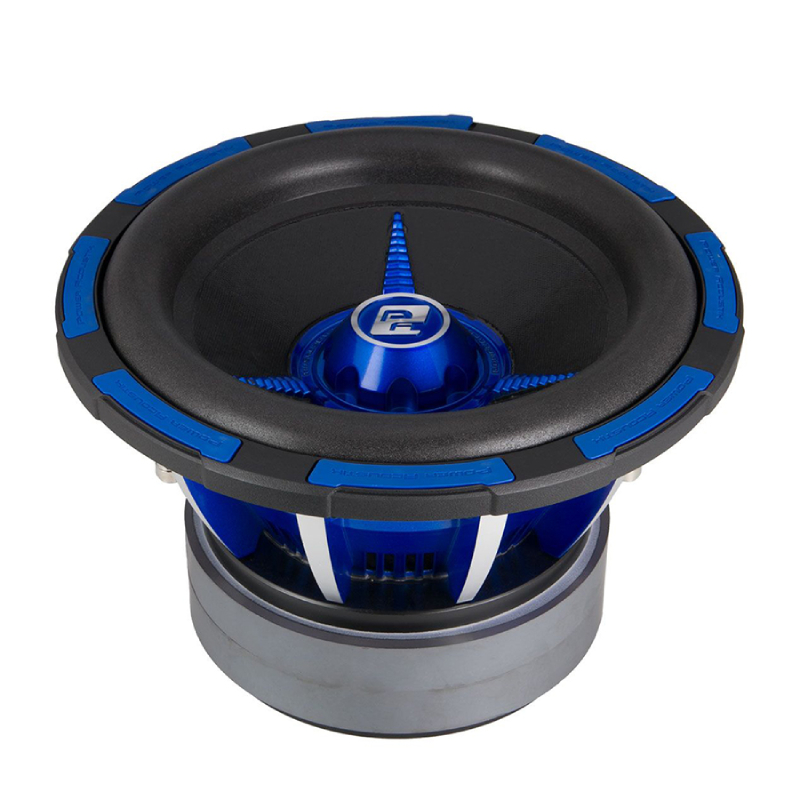

Power Acoustik MOFO-104X MOFO Type X Series 10" 2400W Peak Power Handling Dual 4 Ohm, Dual Voice Coil Component Car Subwoofer
We are a Power Acoustik authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Unleash Powerful, Clear Bass With Ease
Introducing the MOFO-104X: max power handling of 2,400W, RMS power handling of 1,200W, and efficient dual 4Ω voice coil configuration. With a compact 6.125" mounting depth, it's perfect for any car audio setup. Optimal performance in sealed (0.75 ft3) or ported (1.25 ft3) enclosures. Unleash powerful, clear bass with ease.
Ensure Lasting Performance
Elevate your audio game with our advanced subwoofer features: enhanced magnetic strength, improved low-frequency dynamics, reduced heat build-up, and efficient heat dissipation. Enjoy stability and increased power handling with a 2.5” 4-layer voice coil. Plus, our high-temperature adhesives and nickel-plated terminals ensure lasting performance and secure connections.
Seamless Setup Experience
Built to endure, our subwoofers feature a robust construction with UV and chemical protected spruce pulp cone and high-density polyether foam surround, ensuring longevity and reliability. Enjoy smooth and stable operation with dual poly-cotton suspension to dampen violent accelerations, while stitched voice coil leads enhance durability, preventing potential damage. Plus, installation is a breeze with the included 1-piece gasket/trim ring featuring concealed mounting holes, providing a seamless setup experience for our customers.
- Diameter : 10 Inch
- Sensitivity : 83.4 dB
- Impedance : 4 Ohm
- Peak Power Handling : 2400 Watts
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 0.75 Cubic ft.
- Suggested Ported Box Volume : 1.25 Cubic ft.
- Mounting Depth : 6.125 Inches
- RMS Power Handling : 1200 Watts
Features:
- Enhanced magnetic strength with overcompensated motor structure
- Improved low-frequency dynamics with 12mm T-yoke and top plate
- Reduced voice coil heat build-up through vented T-yoke and frame design
- Efficient heat dissipation and reinforcement with die-cast aluminum heat sink dust cap and fins
- Non-magnetic and non-resonant die-cast aluminum frame for stability
- Increased power handling with 2.5” 4-layer voice coil featuring large gauge wire
- High-temperature tolerance adhesives resist thermal failure for prolonged performance
- Convenient nickel-plated 8ga spring-loaded compression wire terminals for secure connections
- Durable construction with non-transfer spruce pulp cone with UV and chemical protection
- Long-lasting high-density polyether foam surround with UV and chemical protection
- Smooth and stable operation ensured by dual poly-cotton suspension to dampen violent accelerations
- Enhanced durability with stitched voice coil leads to prevent potential damage
- Easy installation with 1-piece gasket/trim ring featuring concealed mounting holes included.
Specifications:
- Model: MOFO-104X
- Max Power Handling: 2,400 Watts
- RMS Power Handling: 1,200 Watts
- Efficiency (1w/1m): 83.48 dB
- Voice Coil Configuration: Dual 4Ω, 2.50″
- Motor Volume: 288 oz
- Mounting Depth: 6.125″
- Optimum Sealed Enclosure ft3: 0.75
- Optimum Ported Enclosure ft3: 1.25
Recommended Enclosure Specifications:
- Recommended Enclosure Type: Ported / Vented or Sealed
- Optimum Sealed Box Volume: 0.75 cubic feet
- Optimum Ported Box Volume: 1.25 cubic feet
- Top-Mount Depth (Mounting Depth): 6.125"
- Cutout Diameter: 9.125"
- Shallow Mount Installation: No
Electromechanical Parameters:
- Free-Air Resonance (Fs): 29.63 Hz
- Equivalent Compliance (Vas): 0.896 liters
- Total Speaker Q Value (Qts): 0.42
- Electrical Q Value (Qes): 0.45
- Electrical Resistance of Voice Coil (Re): 7.24 ohms
- Mechanical Q Value (Qms): 5.06
- UPC: 709483054271
- Weight: 25
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
