Rockford Fosgate  PMX-8BB

Punch Marine Hide-Away AM/FM/WP Multi-Zone Digital Media Receiver

Item #48375

Condition:   Brand New

Product Highlights

  • Punch Marine Hide-Away Receiver
  • AM/FM/WP Multi-Zone
  • Digital Media Receiver

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$549.99

Reg. Price $649.99  Save $100.00
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate PMX-8BB Punch Marine Hide-Away AM/FM/WP Multi-Zone Digital Media Receiver


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

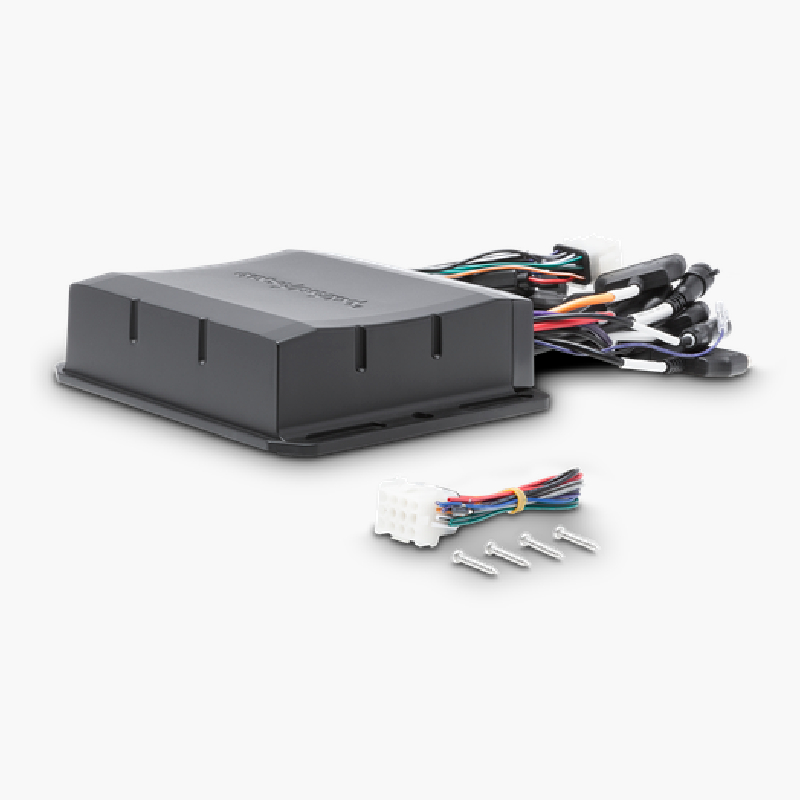

What's Inside?
  • • Hide-away marine receiver
  • • 4 Screws
  • • Intallation/Operation Manual

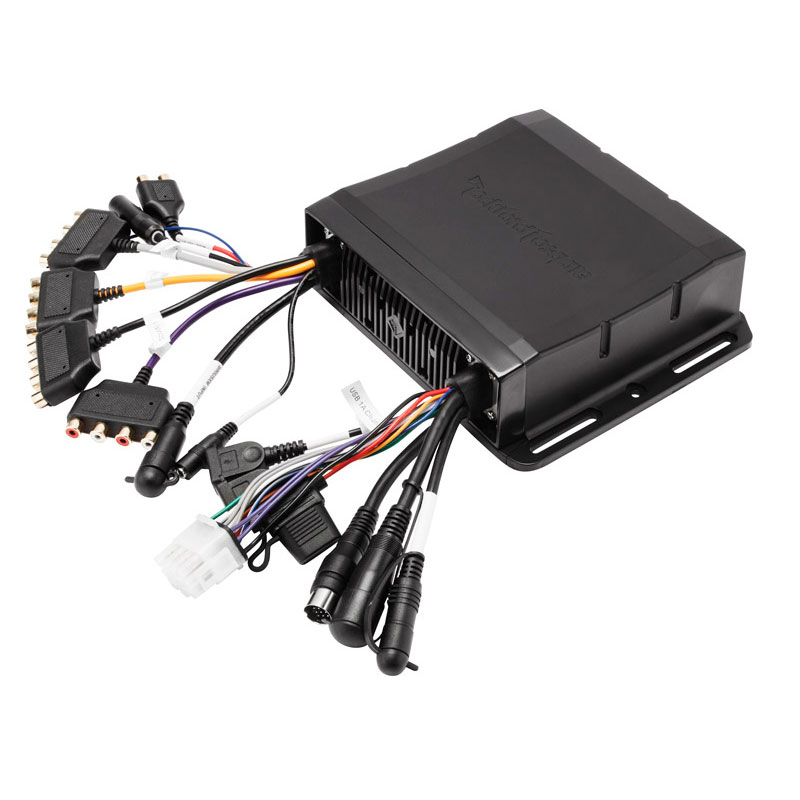

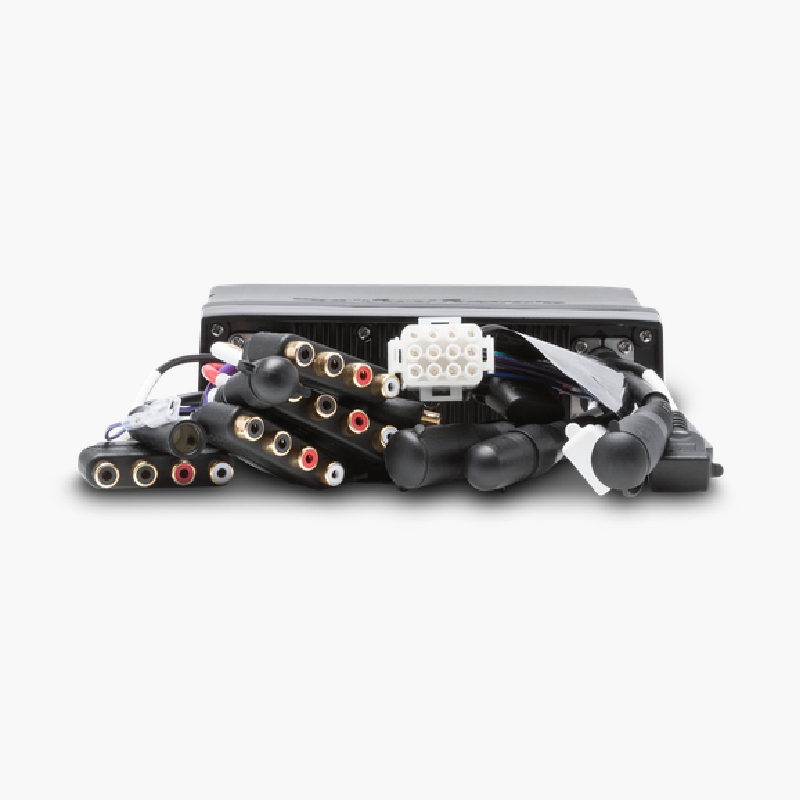

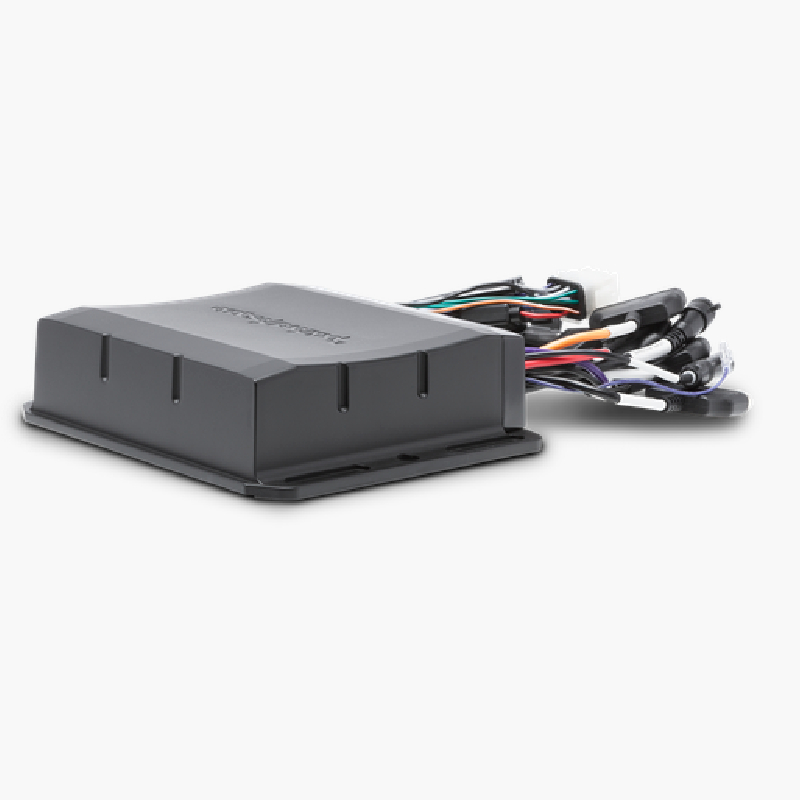

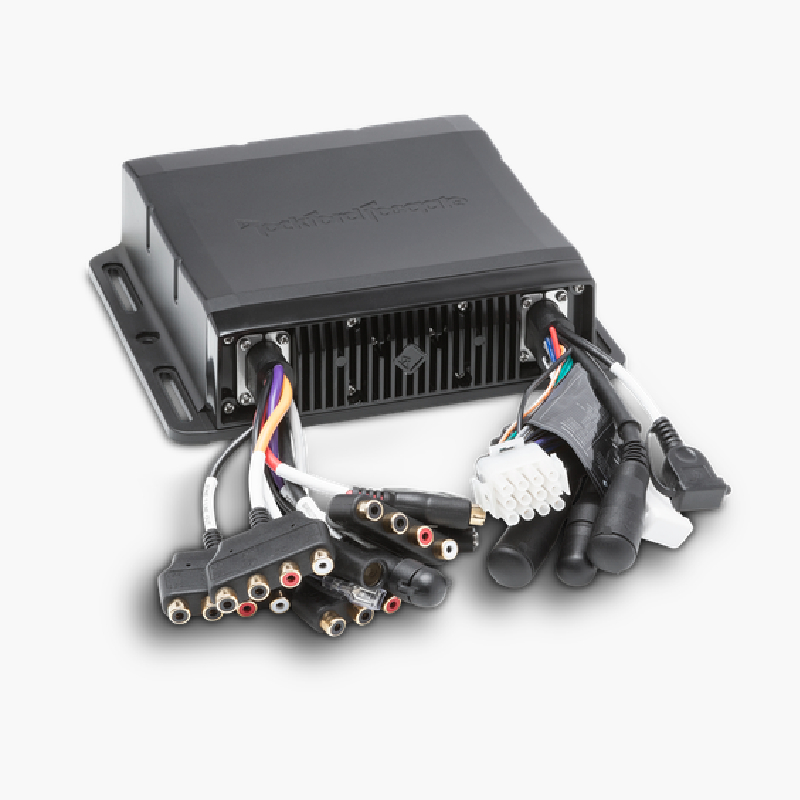

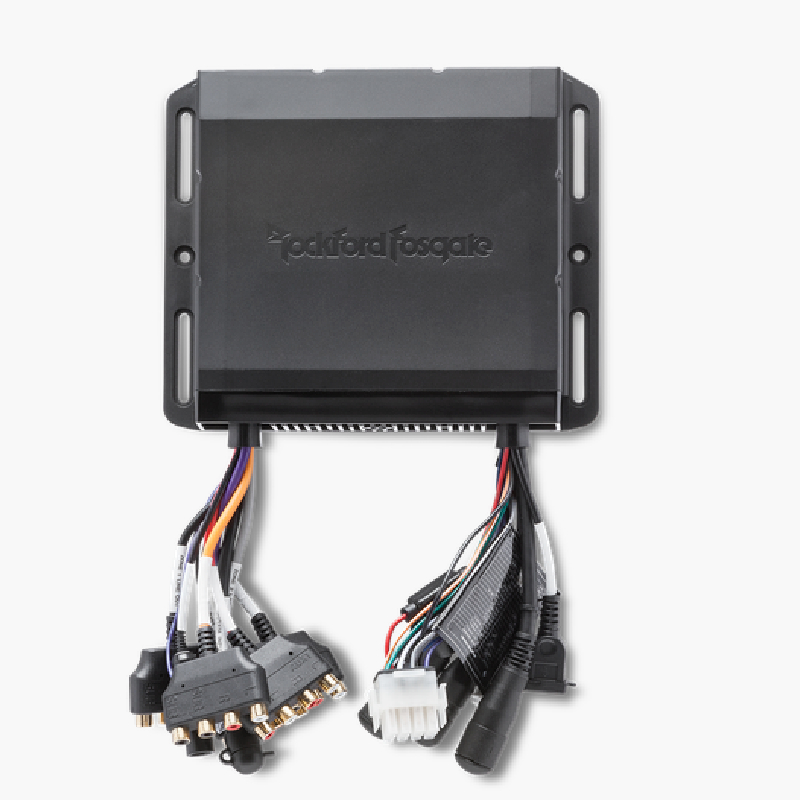

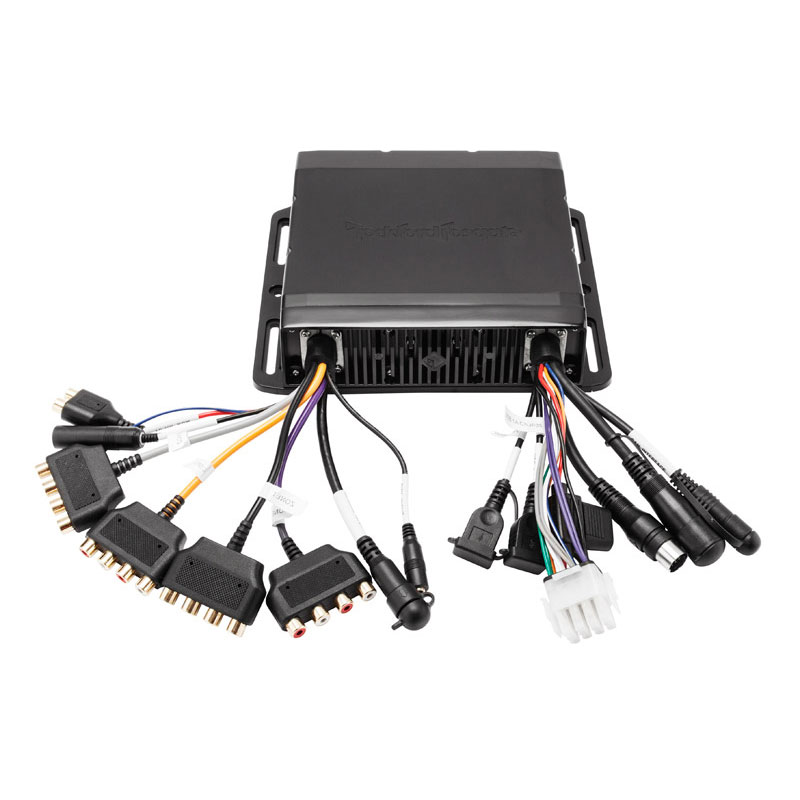

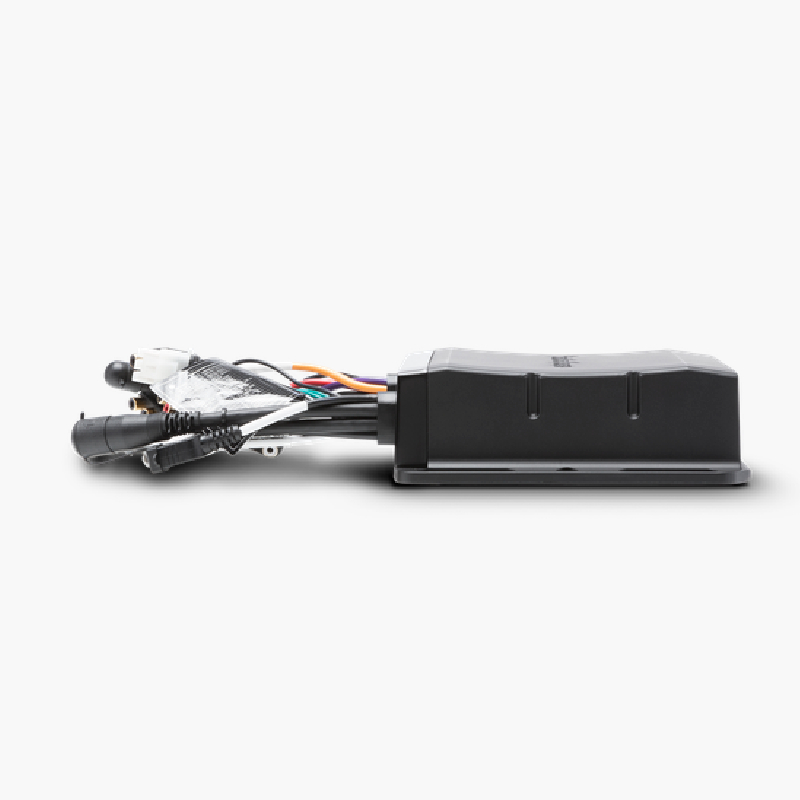

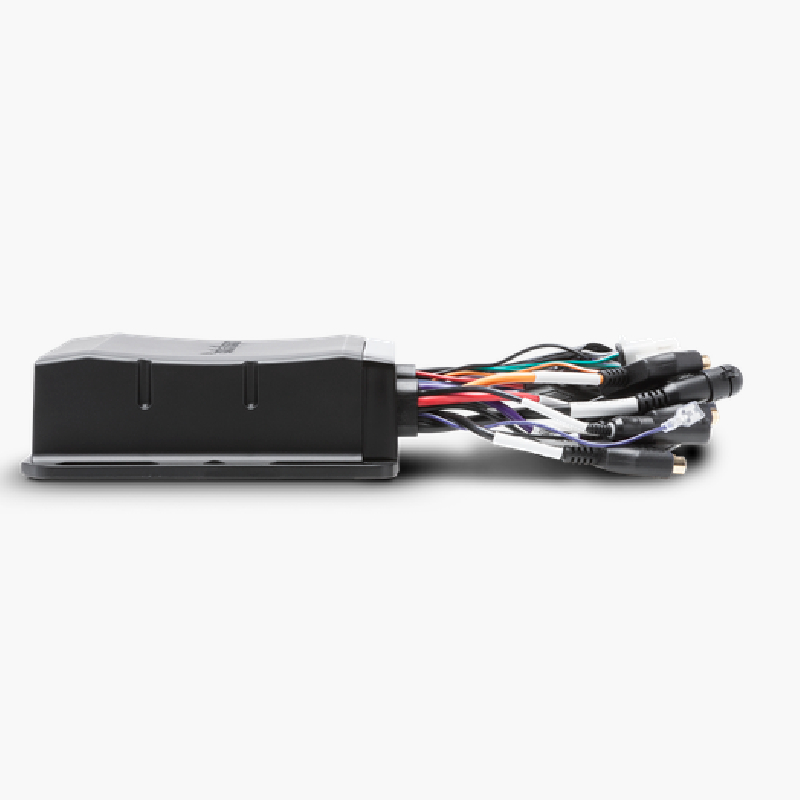

Hide-away Digital Media Receiver

Rockford Fosgate designed this hide-away PMX-8BB "black box” digital media receiver to work with their PMX-8DH controller. With this compact unit tucked away below and the PMX-8DH on your dash, you'll have a convenient, powerful system that will keep you and your crew entertained.

Easy to Pair

With built-in Bluetooth and simple, secure pairing, it's easy to make your smartphone the center of your marine media system. It works with your Apple or Android phone (see below) and lets you enjoy your stored music or listen to your favorite Pandora playlists. You can also tune in to terrestrial AM/FM or Weatherband radio channels.

Awesome Tuner

You can tune in to terrestrial AM/FM or Weatherband radio channels, or add a satellite radio tuner to enjoy SiriusXM's awesome programming when you're miles and miles offshore.

Four Listening Zones

The PMX-8BB lets you ontrol four separate zones on your vessel. Each zone includes selectable high-pass and low-pass filters, selectable (12 dB or 24 dB) crossover slopes, and dedicated DSP audio processors with independent 7-band EQs and Rockford Fosgate's Plus EQ. The built-in 4-channel amp delivers 25 watts RMS per channel.

Water-Resistant Receiver

The hideaway design keeps the PMX-8BB out of the elements, of course, but life on a boat is still a damp, humid existence. To ensure all-season reliability, Rockford equips this water-resistant receiver with a conformal coated circuit board, so it will keep rockin' for years to come. It sports an IPX5 rating for water intrusion, so it's protected against moisture or the occasional stray blast of water.

  • Bluetooth : Yes
  • Aux Input : Yes
  • MP3 Playback : Yes
  • WMA Playback : Yes
  • Rear USB Input : 2
  • Color : Black

Features:

  • utomotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
  • Bluetooth, A2DP only, AVRCP 1.4
  • Made for iPhone apple certified
  • Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
  • Simple secure pairing bluetooth profile for android & iOS
  • Display album art from connected iPhones on the radios display
  • 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
  • Folder browsing via BT connected iPhones
  • Internal power amplifier 4x50w 2 ohm stable
  • Selectable crossover slopes of 12dB or 24 dB for each independant zone
  • Selectable high pass and low pass crossover points for each independent zone
  • Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
  • Adjustable input gain for each source
  • Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
  • Integrated voltage gauge w/ low voltage alert
  • Wired remote ready (up to 3 remotes)
  • Rear aux-in (L/R)
  • External steering wheel remote control interface compatible
  • External trigger input to activate reverse camera mode
  • Wired illumination control
  • Optional CAN-BUS transceiver ready (PMX-CAN)
  • Rear USB with 1a charging (supports album art on USB connected iPhones)
  • Epoxy coated circuit board
  • Upgradeable Firmware and Bluetooth Software via USB
  • IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
  • CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
  • Compatible with a Multi-Function Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
  • *Antenna not included
  • 2-Year Warranty



Specifications:

  • Device Type: Digital-Media Black Box
  • Frequency Response: 20 Hz - 20 kHz
  • Operating Voltage: 10.5V - 16V
  • Remote Capacity: (see Compatibility Chart)
  • Power Output:
    • CEA-2006 Power Rating
    • 25W x 4 @ 4? RMS
    • ≤1.0% THD+N
  • Speaker Impedance: 2-Ohms
  • SPEAKER OUTPUTS: YES
  • Dimensions (HxWxD):
    • H 4.25" x W 8.3" x D 2.2" (108mm x 211mm x 56mm)
  • Fuse Rating: 15A
  • Clock (Yes/No): No
  • Speaker Outputs (Yes/No): Yes
  • Bluetooth® (Yes/No): Yes, 3.0+EDR, A2DP 1.3
  • SiriusXM-Ready® (Yes/No): Yes / Requires SXV300
  • Apple®/Android™ Compatible (Yes/No): Yes
  • Steering Wheel Control Ready (Yes/No): Yes
  • Pandora® Internet Radio (Yes/No): Yes
  • Pandora® Internet Radio (Yes/No): Yes
  • AUX Input (Yes/No): Yes
  • USB Charging (Yes/No): Yes
  • Frequency Range: 87.5 MHz - 107.9 MHz
  • Number Of Presets: 18 FM / 12 AM / 6 WB
  • Frequency Range: 530 kHz - 1710 kHz
  • Frequency Range: 162.40 - 162.55 (US & Canada)
  • Audio Format Compatibility: MP3 / WMA / FLAC
  • USB Version: 2.0
  • USB Capacity:
    • 32Gb max
    • 999 Folders max
    • 999 Songs max
  • USB Output Current: 1A
  • Made for iPod Models
    • iPod Touch (5th generation)
    • iPod Touch (4th generation)
    • iPod Nano (7th generation)
    • iPod Nano (6th generation)
  • Android Compatibility: Bluetooth® Only
  • Made for iPhone ModelsiPhone XS (pending)
    • iPhone XS Max
    • iPhone XR (pending)
    • iPhone X
    • iPhone 8
    • iPhone 8 Plus
    • iPhone 7
    • iPhone 7 Plus
    • iPhone 6s
    • iPhone 6s Plus
    • iPhone 6
    • iPhone 6 Plus
    • iPhone 5S
    • iPhone 5C
    • iPhone 5
    • iPhone 4
    • iPhone 4S
    • Phone 3GS
  • RCA Output Voltage: 4V
  • RCA Output Impedance: 500 Ohms
  • UPC: 780687344702
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
