Hands-Free Calling and Audio Streaming
Stay safe and obey local hands-free laws with built-in Bluetooth (HFP). Easily pair a Bluetooth enabled phone to the AVH-601EX without having to go through complicated settings. When a registered Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.

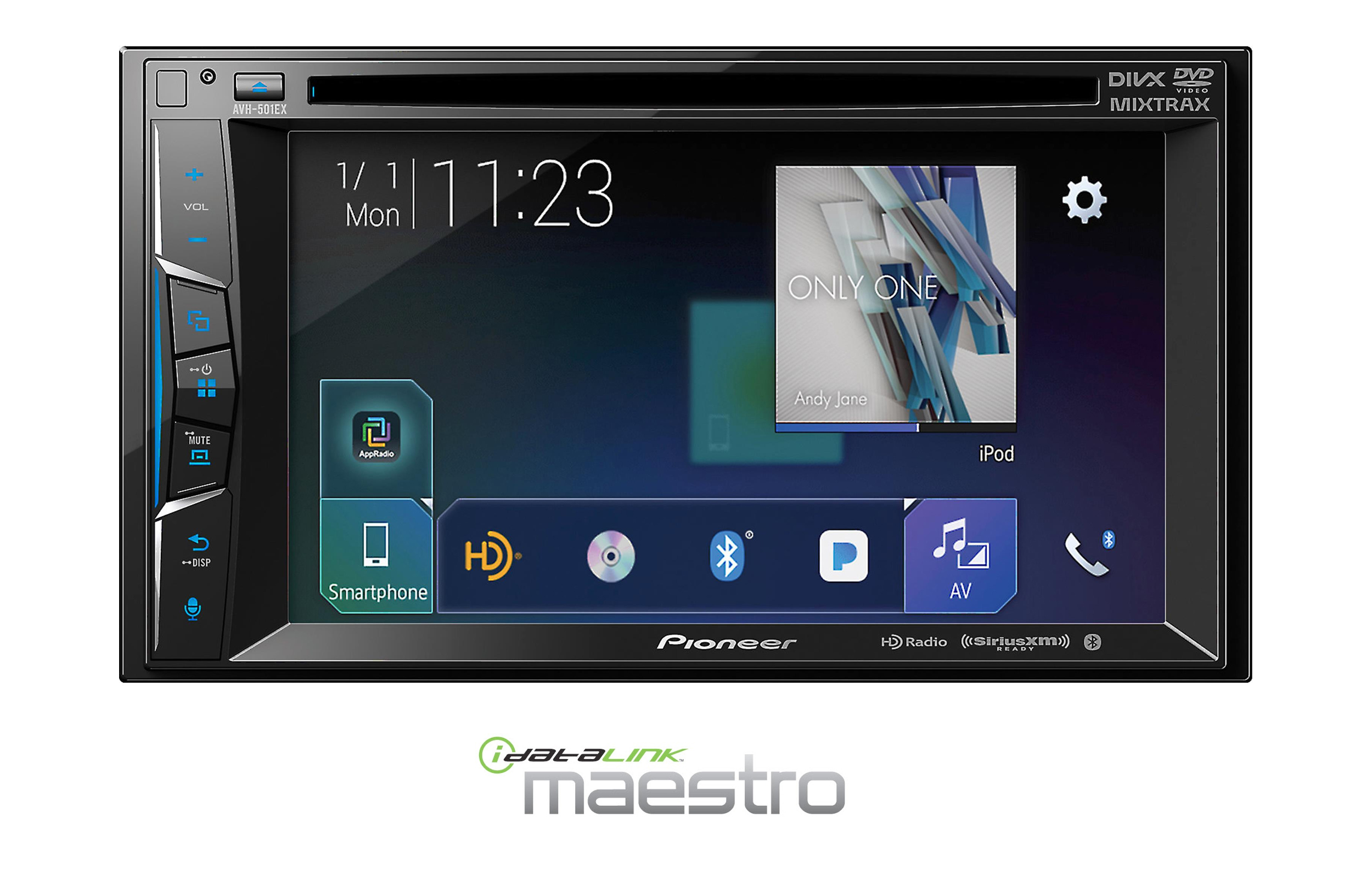

iDatalink Maestro
Keep your factory features and expand your level of in-vehicle connectivity with Pioneer NEX and iDatalink Maestro RR. When your AVH-501EX receiver is installed into a compatible vehicle using the iDatalink Maestro RR (sold separately), you’ll be able to enjoy the performance and features of the AVH-501EX receiver plus touchscreen control over key factory audio features.
- Maximum Power : 200 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- Remote Control : Yes
- Detachable Face : No
- RMS Power Output : 56 Watts
- Built-in EQ : Yes
- DIN : 2
- Display Size : 6.2 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Rear USB Input : 1
- Audio/Video Outputs : 1
- Color : Black
- Rear View Camera Input : Yes
General Features:
- Pioneer AVH-200EX In-Dash Receiver
- CEA-2006 compliant amplifier
- Peak: 50 watts x 4 channels
- RMS: 14 watts x 4 channels
- CD text information display
- 6.2" WVGA Touchscreen display
- MP3 ID3 Tag Display (Title/Artist/Album)
- AM/FM tuner with 18FM/6AM presets
Playback and Audio Features:
- CD/CD-R/RW, DVD/DVD-R/RW, MP3/WMA/AAC/WAV/MPEG-2/AVI/DivX/MPEG-1/MPEG-4 Playback*
- MP3/WMA/AAC/MP4/FLAC/JPEG/WMV Playback via USB
- Compatible with Apple iPhone 6/6+ and iOS 8 software
- 13-band graphic equalizer with selectable tone curves
- 3.5mm Rear A/V Auxiliary Input
- Rear USB Input
- Sets of 2V preamp outputs (front, rear and subwoofer)
Bluetooth Features:
- Built-in Bluetooth technology for hands-free talking and audio streaming
- Bluetooth version 3.0 +EDR certified
- Bluetooth Profiles Supported:
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- SSP: Secure Simple Profile
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- Works with most Bluetooth enabled cell phones
- Full time dual phone connection
- Includes an external wired microphone for clear, convenient, distortion-free talking
Expandability Options:
- Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
- Rear RCA Video Output: Used for connection to separate monitors and other devices
- Rear 3.5mm Audio/Video Input: Used for connecting video accessories
- UPC: 884938394734
- Weight: 5.01
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
