Alpine - HCE-C2600FD - High Dynamic Range (HDR) Multi View Front Camera -
Alpine HDR Multi View Front Camera
We are anAlpineauthorized dealer so you get up-to-date fully warrantied products. Shipping is free to the lower 48 states on everything you order!

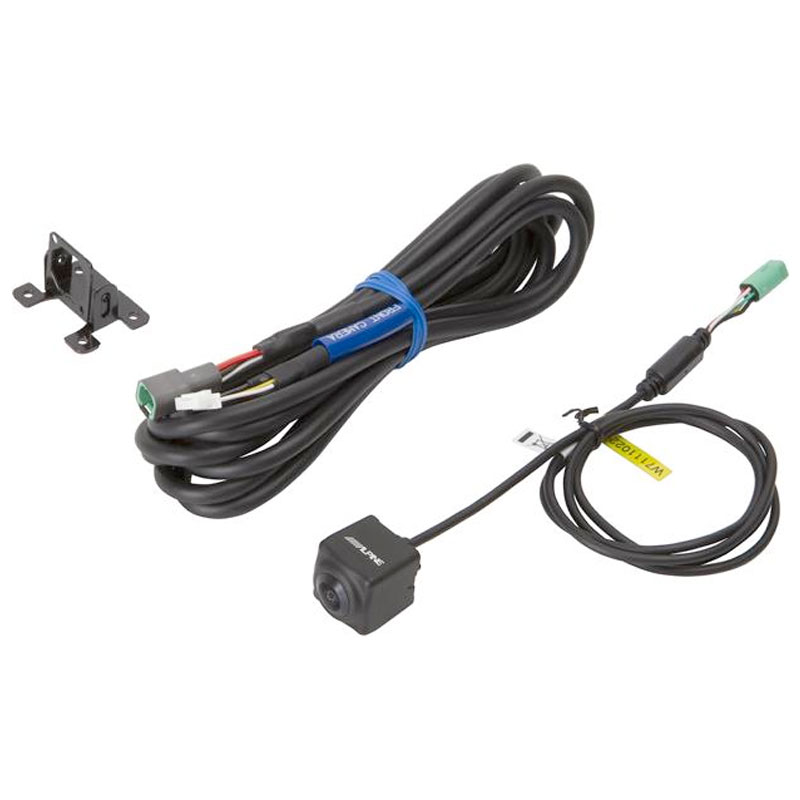

What's Inside?
- • Front-view camera (attached 39" harness terminated by 7-pin harness)
- • 10" Power/Video harness (with female 7-pin connector on one end and a male 6-pin connector on other end)
- • (2) Mounting bracket
- • (4) Machine screws
- • (4) Self-tapping screws
- • (5) Wire-clips
- •Owner's Manual

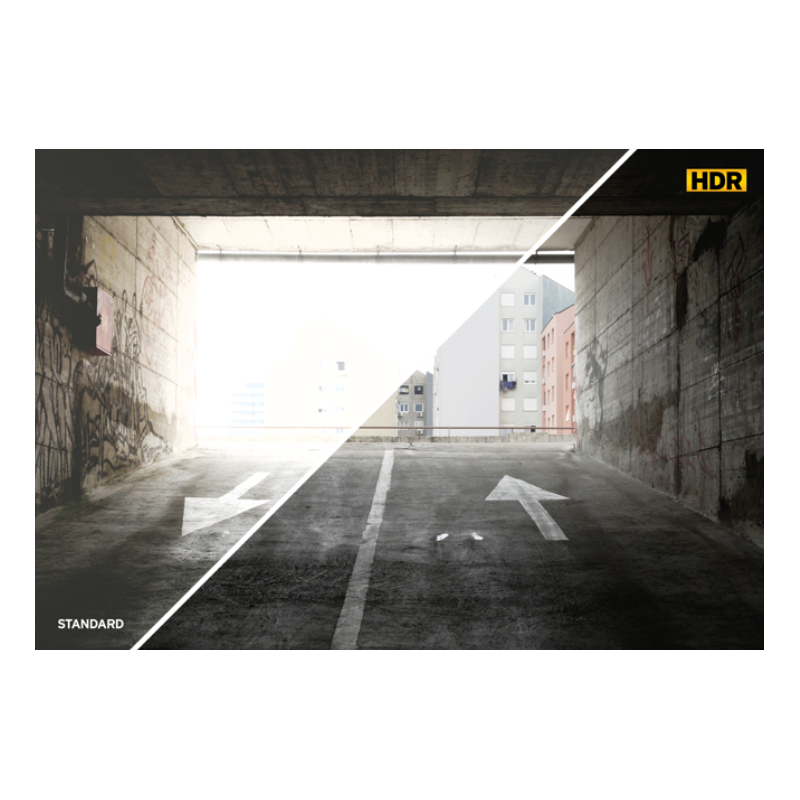

HDR TECHNOLOGY
The new High Dynamic Range (HDR) drive assist cameras have incredible image quality in varying levels of light. This new feature eliminates image wash-out common when going from areas of heavy shade into areas with bright sunlight.

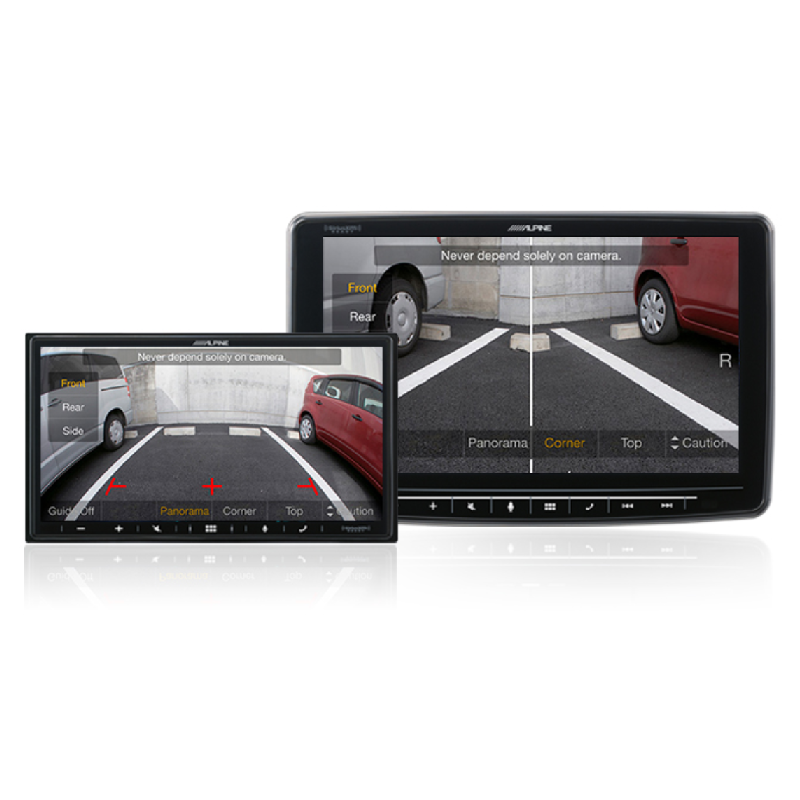

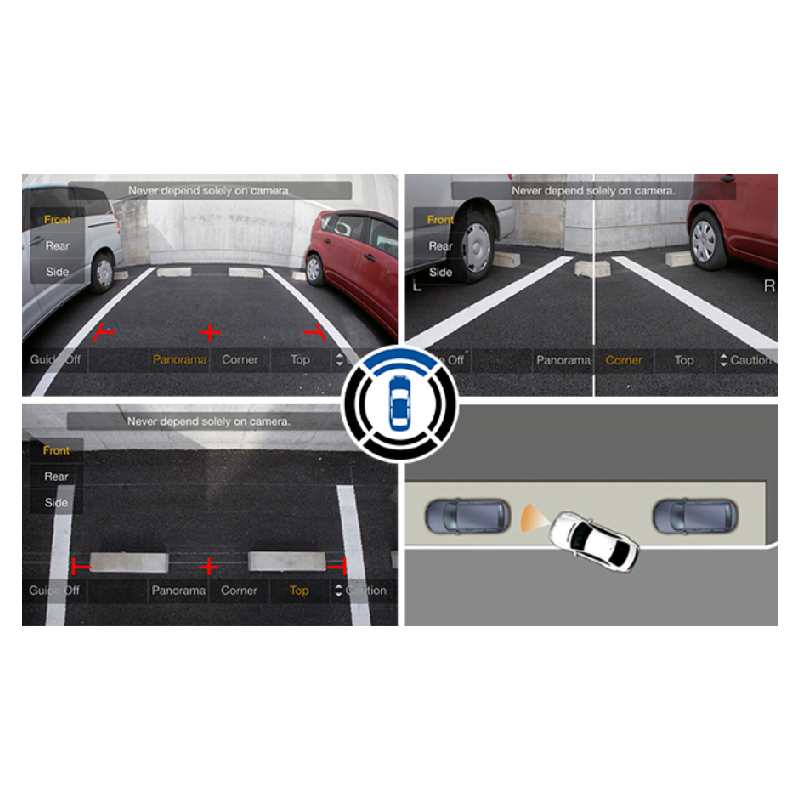

MULTIPLE VIEW OPTIONS
The HCE-C2600FD has three viewing modes to show obstacles on the sides and in front of your vehicle from different angles: Panorama Corner and Ground Views. The camera system includes automatic imaging functions such as metering and white balance adjustment for clearer viewing.
PAIR IT WITH AN ALPINE RECEIVER
The HCE-C2600FD is compatible solely with Alpine in-dash multimedia receivers. The direct connection ensures the highest picture quality day or night. If you're using the HCE-C2600FD along with an Alpine rear-view camera system you need to add the KCX-C250MC Multi-Camera Selector Interface (sold separately) to switch back and forth between the images from the various cameras.
EASY INSTALLATION

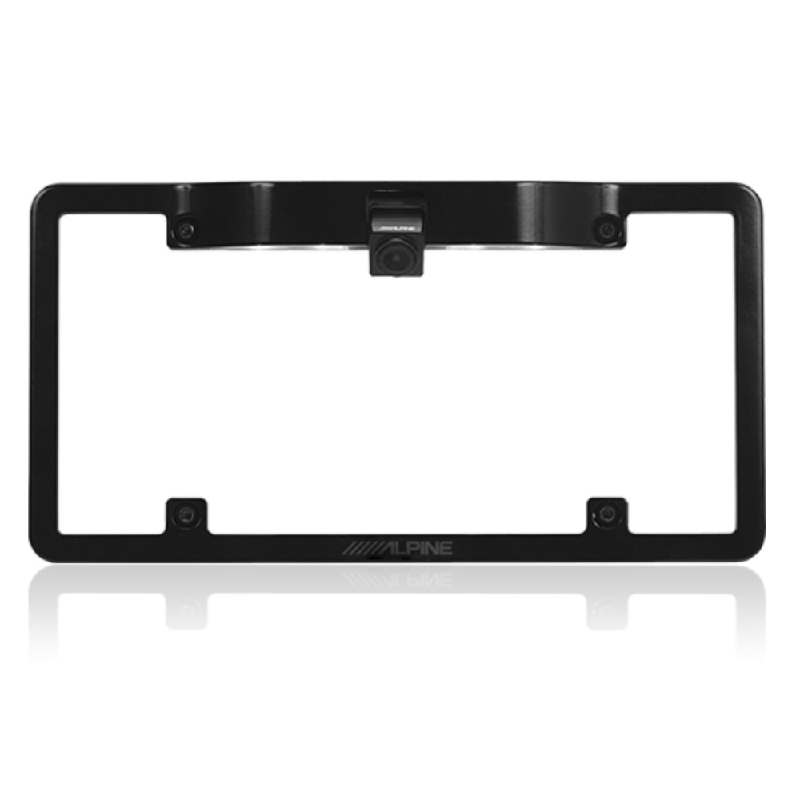

The HCE-C2600FD pairs perfectly with Alpine's License Plate Camera Mounting Kit (KTX-C10LP – sold separately). The KTX-C1OLP has a direct mount for the HCE-C1100 and a built-in LED light for extra brightness.
READY FOR RUGGED USE
The HCE-C2600FD is rated at IP68 (International Protection Rating) so it's protected from dust and water immersion up to one meter.
Features:
- High Dynamic Range (HDR) Front View Image
- Video Signal (NTSC) Output
- Selectable 4 view modes (Rear/Panorama/Corner/Ground) by select Alpine head units via Direct Connection and Multi-Camera Selector
- Normal Image Output
- Color CMOS Image Sensor
- Automatic Exposure Adjustment
- Automatic White Balance Adjustment
- Internal Synchronization
Specifications:
- Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable)
- Ground Type: Negative Ground
- Max. Power Consumption: 1.2W (6.0V)
- Output Image: Normal image, CVBS (NTSC Video signal), for 16:9 wide-screen
- Image Output Impedance: 75 Ohms (1Vp-p)
- Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 16:9
- Effective Number of Pixels: 1280 (horizontal) x 720 (vertical) approximately 1.2 Mega pixels
- Lens: Focal Length: f=1.27mm
- Lens: Brightness: F=1:1.8
- Angle of Field: Horizontal = 180° , Vertical = 70°
- S/N Ratio: 41 dB or more
- Resolution (Horizontal. Center Area): 330 TV Lines
- Operating Temperature: -30°C - +70°C
- Illumination Range: Approximatly 1.5Lx to 100kLx
Approximate Dimensions:
- Camera (Excluding Projection On The Rear): 0.93" x 0.93" x 1.03"
- Camera Cable Length: 1 Meter (3.3 Feet)
- Camera Extension Cable Length: 3 Meter (9.9 Feet)
- UPC: 793276040916
- Weight: 1
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
