JBL  Stage A3001AM

Stage Series 300W x 1 @2Ohms, 600W Max Power Class D Monoblock Car Amplifier

Item #51708

Condition:   Brand New

Product Highlights

  • 300W x 1 @ 2 Ohms
  • 600W Max Power
  • Class D Monoblock
  • Car Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$209.95

Reg. Price $259.00  Save $49.05
In Stock
In Stock

Only 1 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $19/mo with . Check your purchasing power

No Credit needed for Learn More


JBL Authorized Dealer

Huge Saving on Other items:


JBL Banner for Onlinecarstereo

JBL STAGE A3001AM Stage Series 300W x 1 @2Ohms, 600W Max Power Class D Monoblock Car Amplifier


We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Mono amplifier
  • • (4) 15A ATO fuses (2 installed)
  • • 12" Speaker-level input harness (5-pin Molex plug)
  • • (4) M4 x 30mm screws
  • • (4) Flat washers
  • • (4) Split-lock washers
  • • (4) 2-piece mounting spacers
  • • JBL decal
  • • Owner's Manual
STAGE-A3001
Value Engineered

TStage amplifier provides true JBL performance at an affordable price while now lacking the features needed to properly tune and optimize performance.

Compact footprint

With it becoming more and more difficult to find spacious locations for amplifier mounting, Stage has been developed in a small compact form factor to allow more location versatility.



STAGE-A3001
STAGE-A3001
Full On-Board Protection

Stage amplifier has on-board circuitry to protect them from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all four models to let you know when one of these conditions exists.

Reliability

JBL is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world-class experience that lasts and lasts.



STAGE-A3001
STAGE-A3001

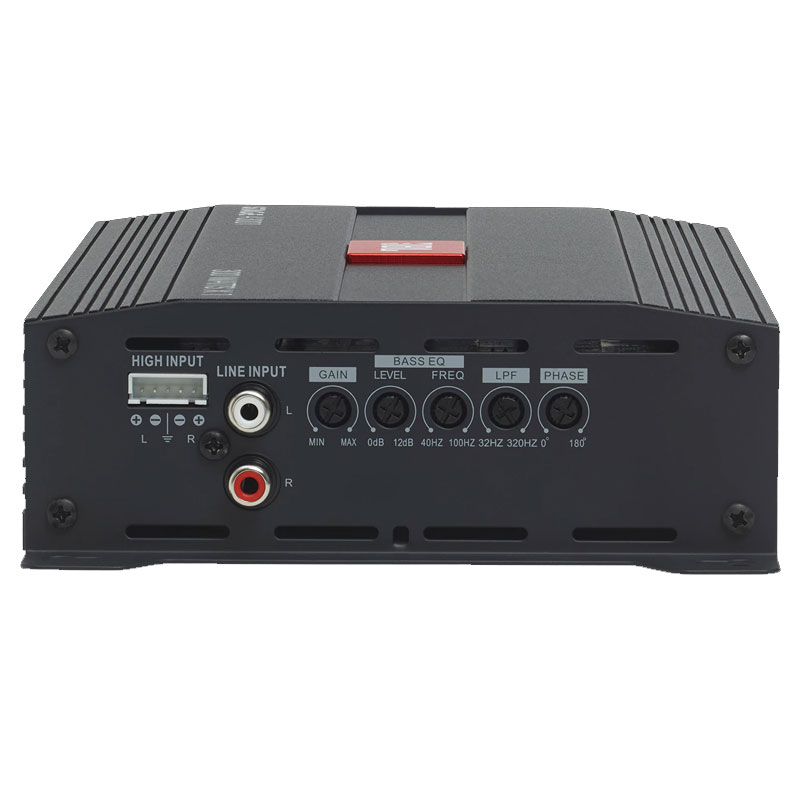

Input Level Control

When Low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 5.0Vrms. When High-level inputs are used, this control adjusts the input sensitivity between 0.5Vrms and 15Vrms.

Switchable bass EQ

This provides an available bass boost at 45Hz of 6dB or 12dB, serving as a great tool to optimize subwoofer and loudspeaker performance based on location and enclosure type.



STAGE-A3001
STAGE-A3001
Cool industrial design

Black with deep grooves, silver silkscreen, anodized JBL badge top-center with orange end panels and bottom.

Crossover mode switch

LPF crossover controls is switchable between 0dB to 12dB at 45Hz giving user ability to adjust sound to the environment and/or application.



STAGE-A3001
STAGE-A3001
Crossover control gives user additional fine tuning

Adjusts the crossover turnover frequency between 32Hz and 320Hz. (One knob for each stereo pair.)

Our Point of View

JBL believes that life is defined by what you experience. Music helps people have experiences that are more extraordinary, by fully immersing them in each moment. To help people have rich experiences, JBL creates full-on sound that draws people in and heightens the feeling. JBL is dedicated to delivering sound that elevates life.



STAGE-A3001
  • Maximum Power : 600 Watts
  • Low Frequency Response : 32-320 Hz
  • Number of Channels : 1
  • Frequency Response : 10-320 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 300x1 Watts
  • Channel Separation : No
  • Amplifier Class : D
  • Fuse Rating : 30 A
  • XP750-SE OFFER : Yes

Specifications:

  • Operating voltage 9 – 16V
  • RMS power @ 4 ohms N/A
  • RMS power @ 2 ohms 300W
  • RMS bridged power @ 4 ohms N/A
  • Total peak power 600W
  • Frequency response 10Hz – 320kHz @ -3dB
  • THD + N at rated power (20Hz – 20kHz) <1%
  • Line-in signal-to-noise ratio (reference to 1 watt) >75dB
  • Maximum high input signal level 12V
  • High input maximum sensitivity 0.5V
  • Maximum line input signal level 5V
  • Line input maximum sensitivity 0.2V
  • Quiescent current draw <1.5A
  • Fuse size 2 x 15A
  • Dimensions (H x W x L) 50 x 145 x 241.6mm
  • UPC: 050036346672
  • Weight: 4
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
