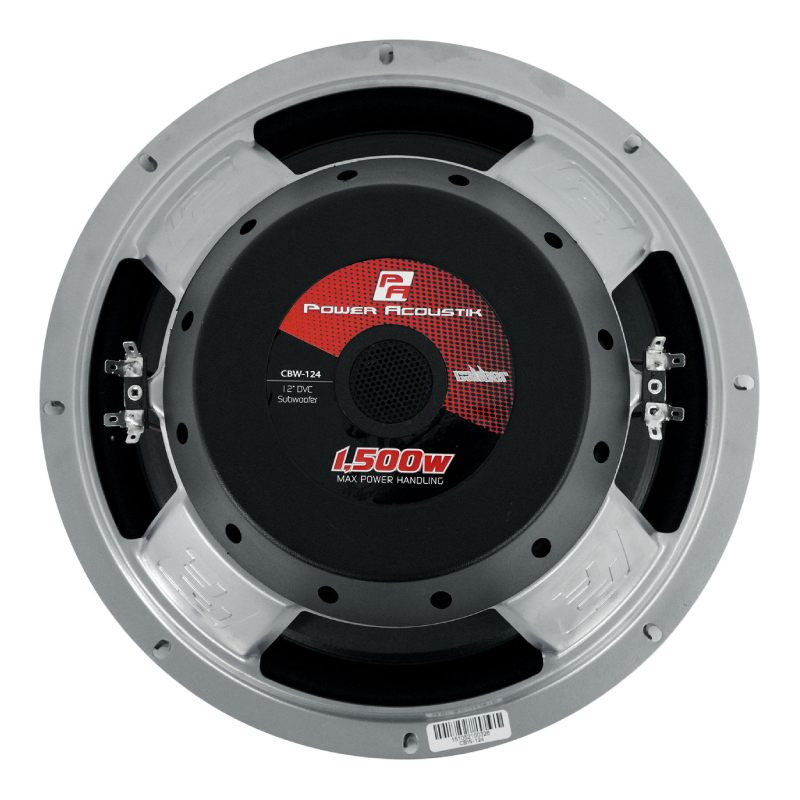

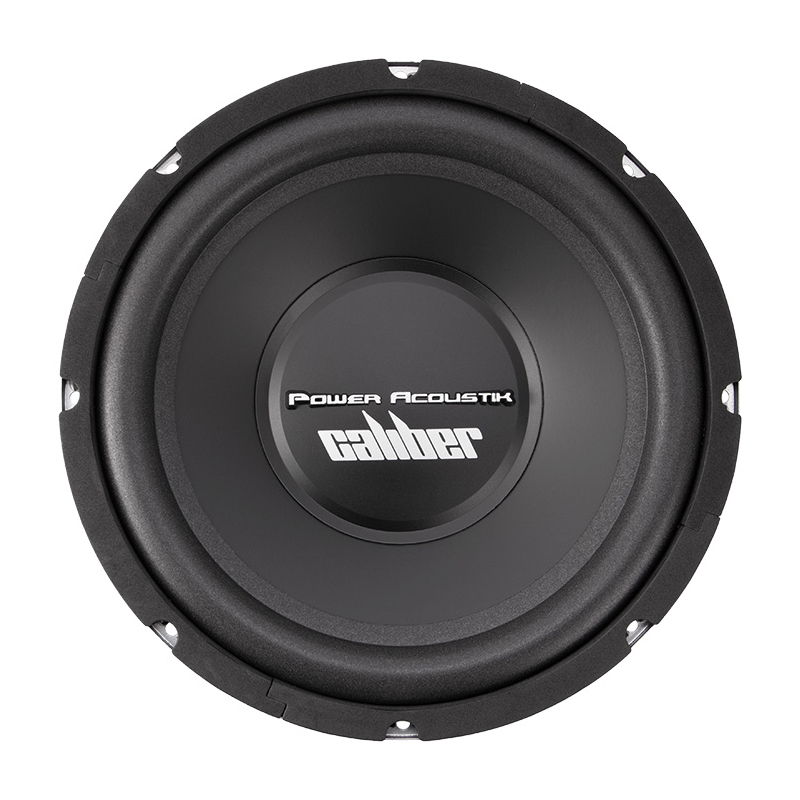

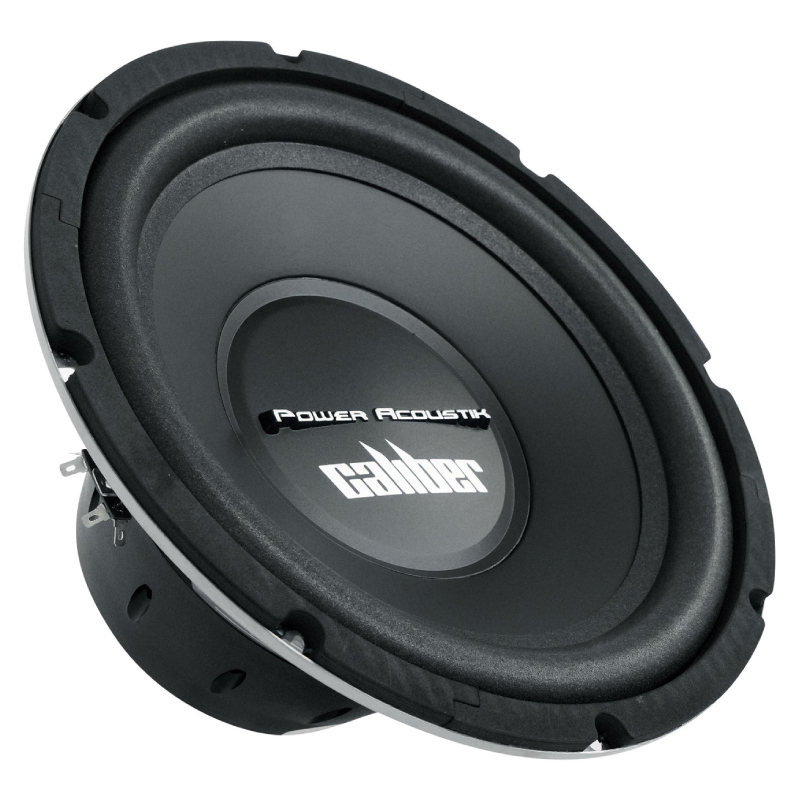

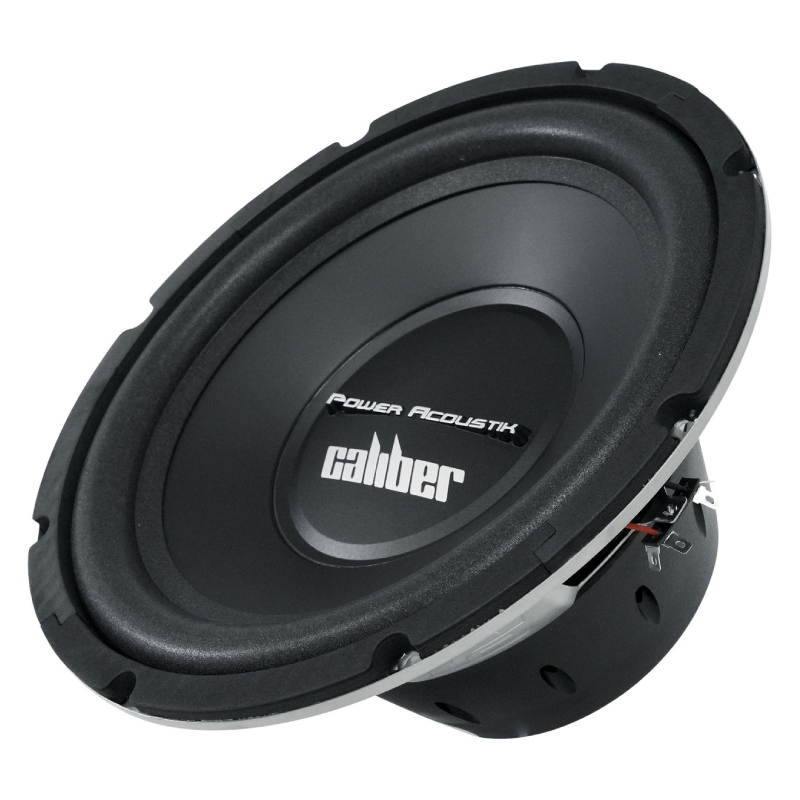

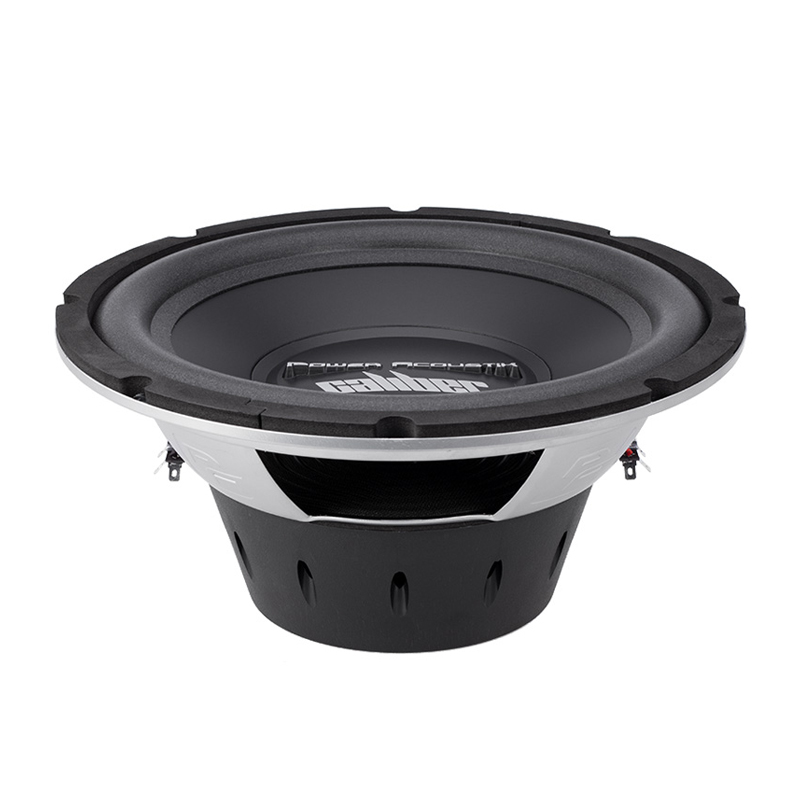

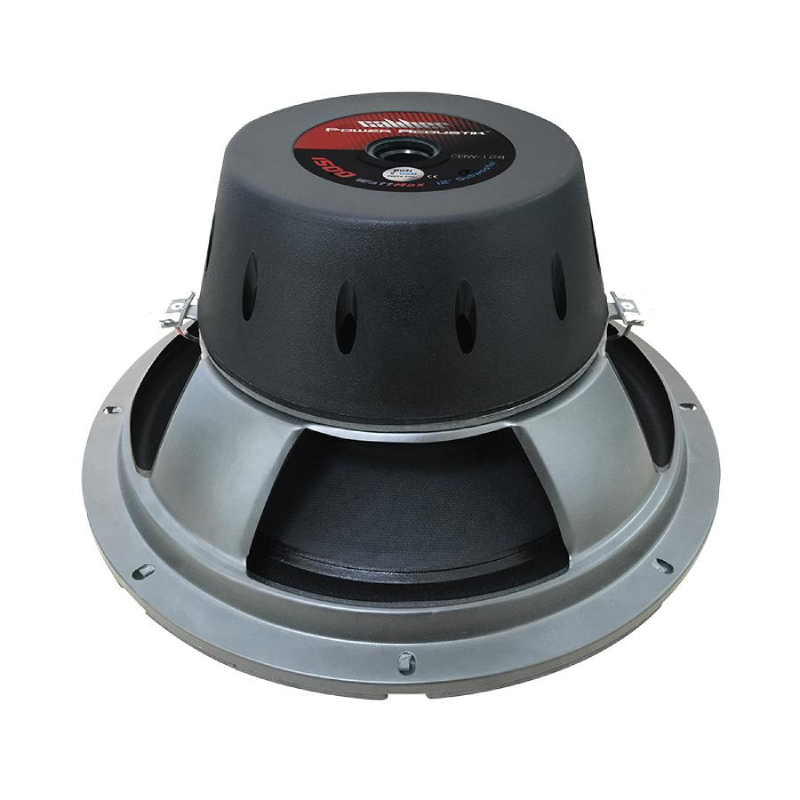

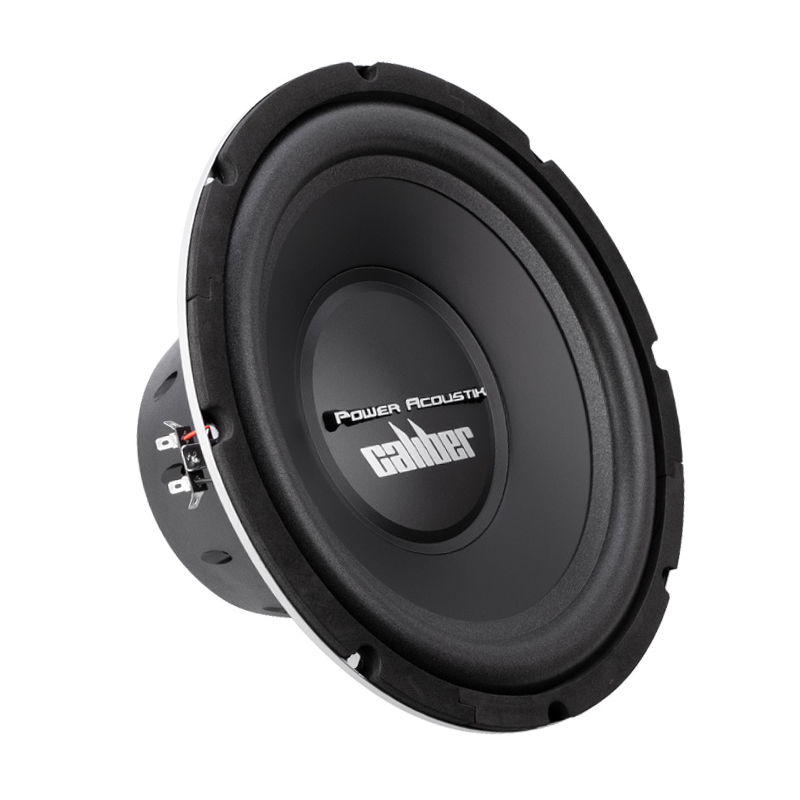

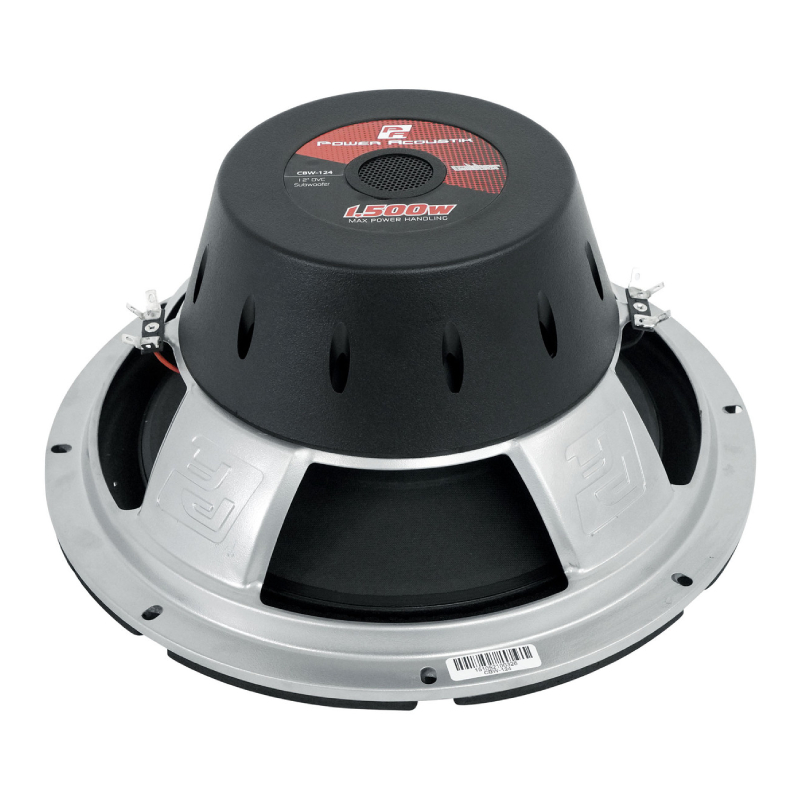

Power Acoustik CBW-124 Caliber Series 12" 1500W Peak Power Handling 4 Ohm, Dual Voice Coil Component Car Subwoofer
We are a Power Acoustik authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" 1500W 4 Ohm, Dual Voice Coil Component Car Subwoofer
- • Owner's Manual
Immersive Listening Experience
Introducing the CBW-124, engineered for premium audio performance. With a resonant frequency (Fs) of 34.6 Hz, QMS of 6.18, and an equivalent volume (Vas) of 2.93 ft³, this subwoofer delivers precise and deep bass response. Featuring a compliance (Cms) of 0.23 mm/N and a moving mass (Mms) of 92.9 g, it ensures accurate and controlled sound reproduction. With a maximum linear excursion (Xmax) of 6 mm and a maximum mechanical excursion (Xmech) of 18 mm, the CBW-124 can handle dynamic peaks with ease. With a QES of 0.677, it maintains optimal performance across various audio frequencies. Upgrade your sound system with the CBW-124 for an immersive listening experience.
High-Performance Subwoofer
Our versatile Dual Voice Coil (DVC) subwoofer features a DC Resistance (Re) of 3.5 Ω and an impedance of 4Ω. With a BL Product (BL) of 9.5 Tm, it delivers powerful and precise bass. Capable of handling a maximum power of 1,500W and RMS power of 500W, this subwoofer ensures robust performance. With an efficiency rating of 85.3 dB and an Efficiency Bandwidth Product (NO) of 9.5%, it offers optimal output efficiency across a wide frequency range. Elevate your audio experience with our high-performance subwoofer.
Long-Lasting Reliability
Enhance your audio with our subwoofer featuring an optimized motor structure for improved low bass dynamics. With a 6mm top plate and vented T-Yoke reducing voice coil heat, and a 1.50” 4-layer voice coil on a Kapton coil former for superior power handling. Nickel-plated quick-disconnect wire terminals ensure easy connectivity, while high-temperature tolerance adhesives resist thermal failure. The injection-molded polypropylene cone with foam surround and poly-cotton suspension dampen accelerations, and stitched voice coil leads prevent damage, ensuring long-lasting reliability.
- Diameter : 12 Inch
- Sensitivity : 81 dB
- Impedance : 4 Ohm
- Peak Power Handling : 1500 Watts
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1 Cubic ft.
- Suggested Ported Box Volume : 2 Cubic ft.
- Mounting Depth : 5.125 Inches
- RMS Power Handling : 500 Watts
Features:
- Optimized Motor Structure for Improved Low Bass Dynamics
- 6mm Top Plate & Vented T-Yoke Reduces Voice Coil Heat
- 1.50” 4-Layer Voice Coil on Kapton Coil Former
- Nickel-Plated Quick-Disconnect Wire Terminals
- High-Temperature Tolerance Adhesives Resist Thermal Failure
- Injection Molded Polypropylene Cone with Foam Surround
- Poly-Cotton Suspension Dampens Violent Accelerations
- Stitched Voice Coil Leads Prevent Potential Damage
Specifications:
- Model: CBW-124
- Resonant Frequency (Fs): 34.6 Hz
- QMS: 6.18
- Equivalent Volume (Vas): 2.93 ft³
- Compliance (Cms): 0.23 mm/N
- Moving Mass (Mms): 92.9 g
- Maximum Linear Excursion (Xmax): 6 mm
- Maximum Mechanical Excursion (Xmech): 18 mm
- QES: 0.677
- DC Resistance (Re): 3.5 Ω
- Impedance: Dual Voice Coil (DVC) 4Ω
- BL Product (BL): 9.5 Tm
- Max Power Handling: 1,500W
- RMS Power Handling: 500W
- Efficiency (1w/1m): 85.3 dB
- Efficiency Bandwidth Product (NO): 9.5 %
Recommended Enclosure Specifications:
- Recommended Enclosure Type: Ported / Vented, Sealed
- Minimum Sealed Box Volume: 1.00 cubic feet
- Optimum Sealed Box Volume: 1.00 cubic feet
- Maximum Sealed Box Volume: 1.00 cubic feet
- Minimum Ported Box Volume: 2.00 cubic feet
- Optimum Ported Box Volume: 2.00 cubic feet
- Maximum Ported Box Volume: 2.00 cubic feet
- Top-Mount Depth (Mounting Depth): 5.125"
- UPC: 709483059535
- Weight: 10
