Alpine  R-A60F

R-Series 100Wx4 RMS @2Ohm Class D 4-Channel Subwoofer Amplifier

Item #52835

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.


Huge Saving on Other items:


Brand Banner

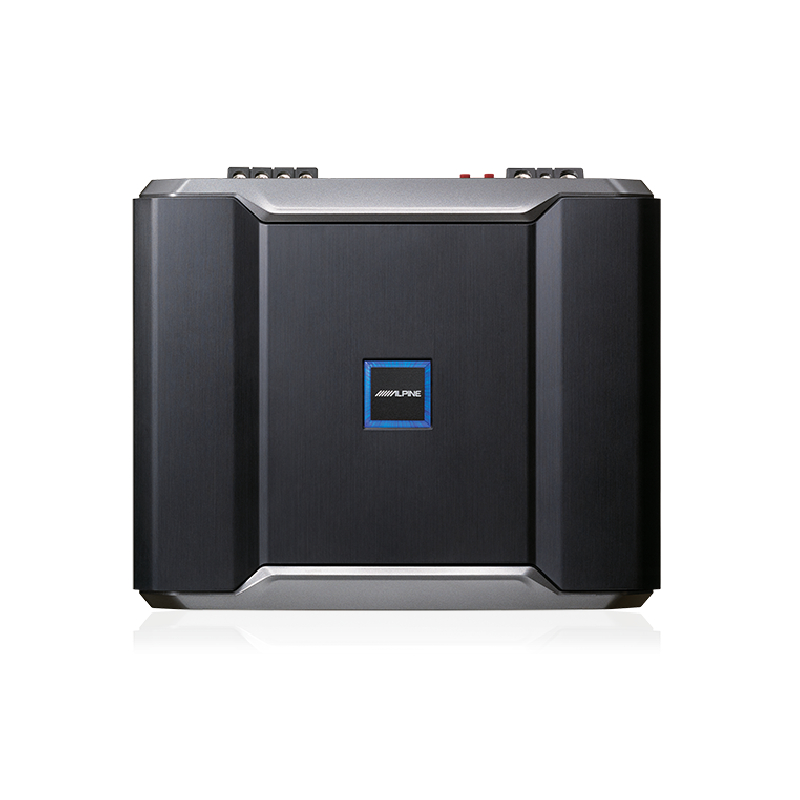

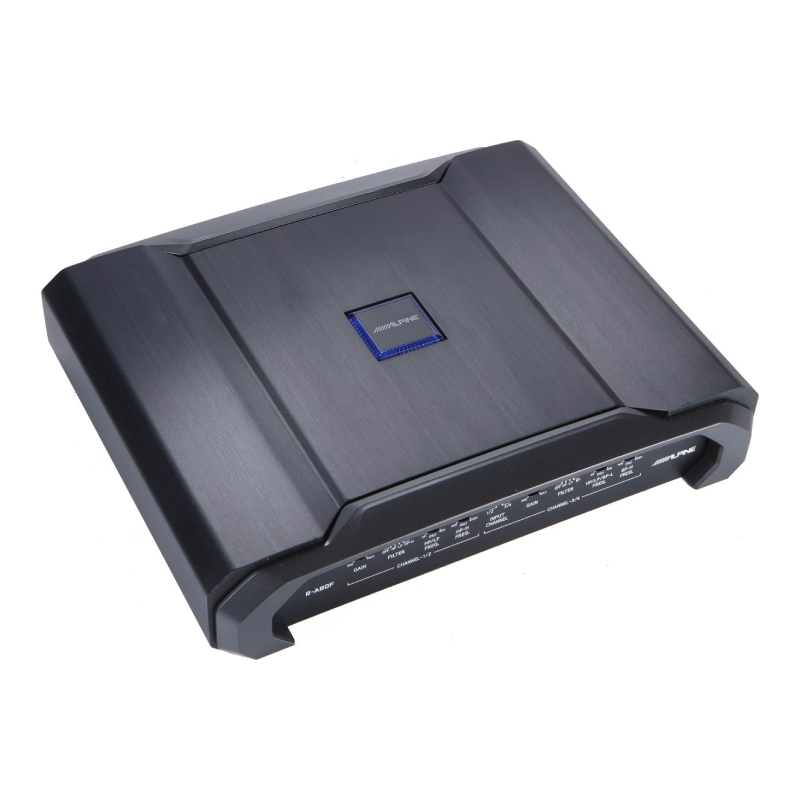

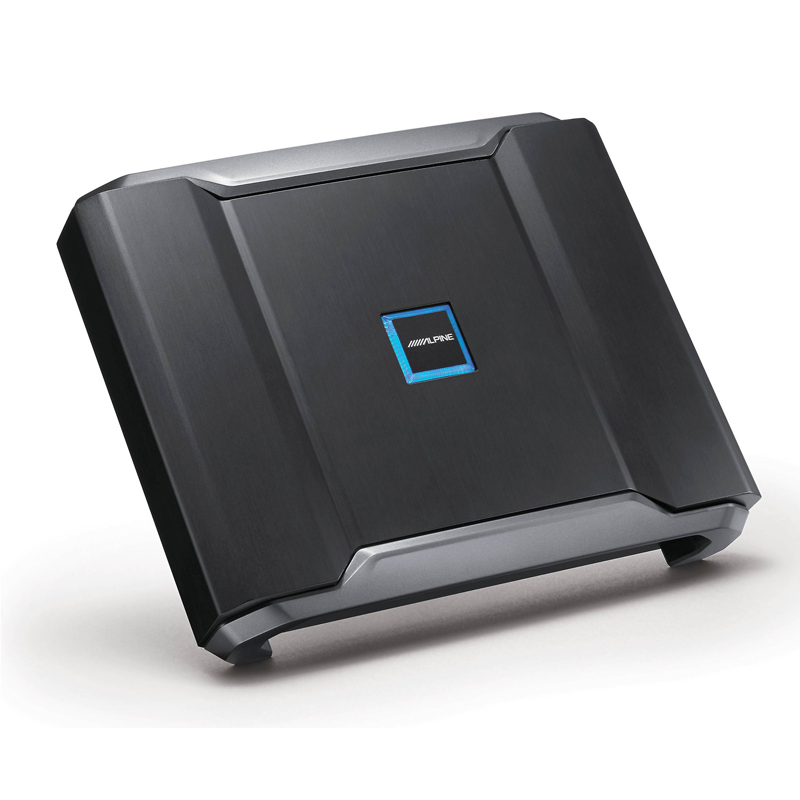

Alpine R-A60F R-Series 100Wx4 RMS @2Ohm Class D 4-Channel Subwoofer Amplifier


We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

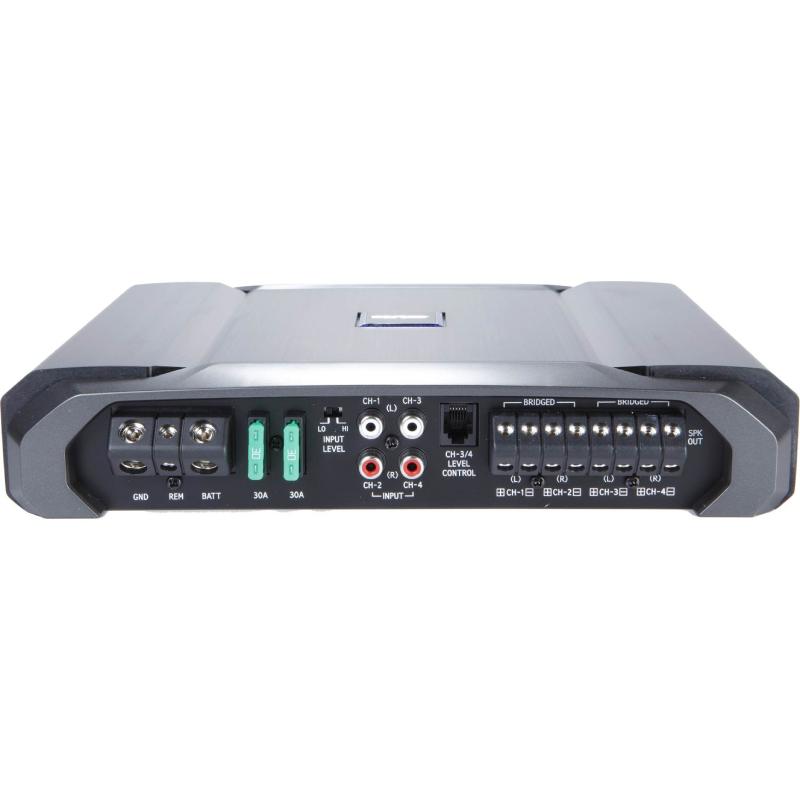

  • • 4-Channel amplifier
  • • (2) 30-amp ATO fuses (installed)
  • • (4) Mounting feet
  • • (4) 3/4" Screws
  • • (8) M2.5x5.5mm Machine screws
  • • 2mm Allen wrench
  • • 3mm Allen wrench
  • • Owner's manual (English/ French/ Spanish)
  • • Alpine Verification Certificate
  • • Warranty information
  • • Power supply note
  • • On-line product registration information
Full Range Amplifier

Are you looking for a full-range amplifier to power up your vehicle's audio system? Though there are lots of options out in the market, the Alpine R-A60F would still be an excellent upgrade from your car's stock amplifier. Made to perfectly match Alpine's R-Series subwoofers and speakers, you won't also have any problem pairing it with other car audio speakers or even your vehicle's stock speakers.

X-Series Amplifier

Borrowing from Alpine's flagship X-series amplifiers, all R-series amps, including the Alpine R-A60F, come with top-of-the-line transformers and capacitors to help them produce high-quality sound while having the durability to withstand the rigors of extended usage periods, especially at high volume levels. It also comes with Dual Sierra feedback circuitry, which minimizes distortion, resulting in a pristine sound quality.

Class-D Amplifier

Thanks to its Class-D amplifier design, the Alpine R-A60F can handle a power output of 100 Watts RMS at 4 ohms and 150 Watts at 2 ohms. When set to bridge mode, it can deliver 300 Watts of continuous power at 4 ohms.

Power Handling

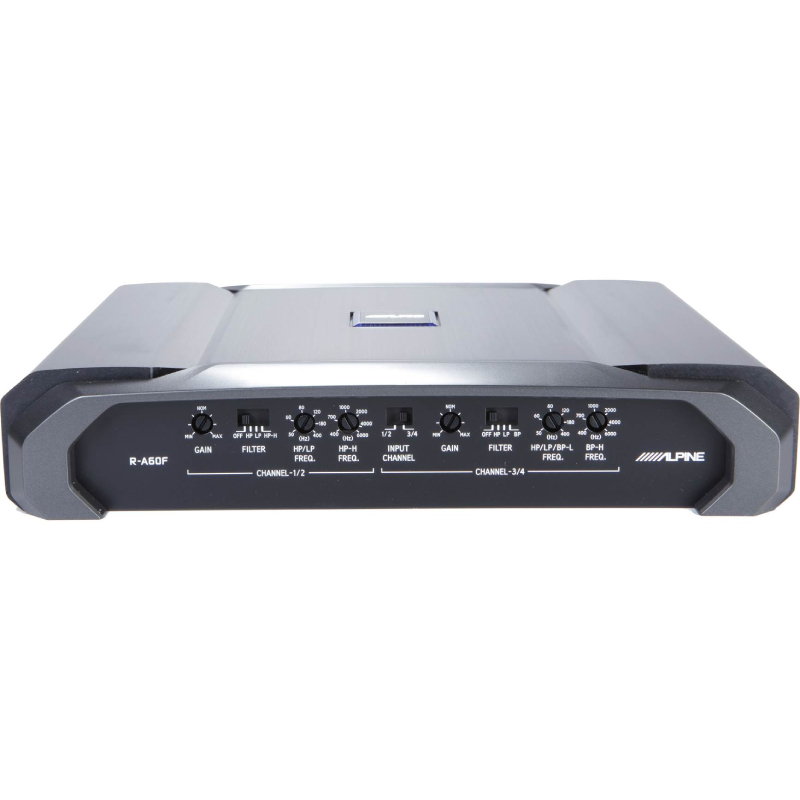

The Alpine R-A60F has a highly-extensive frequency response of 15 Hz up to 45 kHz, which is pretty impressive for its compact size. It also has high and low-pass filters to filter out unwanted frequencies and protect the speakers from getting damaged. Lastly, it comes with a bandpass filter, so you can have an active speaker setup without using any audio processors.

  • Low Frequency Response : 50-400 Hz
  • High Frequency Response : 50-6000 Hz
  • Number of Channels : 4
  • Frequency Response : 15-45000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 100x4 Watts
  • Channel Separation : Yes
  • RMS Power Range : Yes Watts
  • Amplifier Class : D
  • Fuse Rating : 60 A

Features:

  • Alpine’s Class D Amplifier Circuit with Dual Post-Filter Feedback Loops
  • CTA-2006-B Power Rating: 100W RMS x 4 (4ohm, 14.4V ≤ 1% THD+N); 150W RMS x 4 (2ohm, 14.4V≤ 1% THD+N)
  • Bridged: 300W x 2 (4ohm, 14.4V, ≤1% THD+N)
  • S/N ratio: >85dB (ref: 1W into 4 ohm), 106dB (at rated power)
  • THD+N ≤0.03% (ref: 1W into 4 ohm)
  • Frequency Response: 10Hz-45kHz (+/- 3dB)
  • Damping Factor >500



Specifications:

  • RMS Power Output (Watts x Channels): 100 x 4
  • Power at 2 Ohms (Watts x Channels): 150 x 4
  • Bridged Power (Watts x Channels): 300 x 2
  • Minimum Impedance Bridged: 4
  • Minimum Impedance Unbridged: 2
  • Minimum Impedance: 2
  • Best Frequency Response: 10-45k Hz
  • THD at Rated RMS Power: 1%
  • Signal to Noise Ratio: 85 dB
  • Input Voltage: 14.4v
  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 50-400 Hz
  • Low-Pass Slope (dB/octave): 12 dB/octave
  • High-Pass Crossover Frequency: 50 Hz - 6 kHz
  • High-Pass Slope (dB/octave): 12 dB/octave
  • Bass Boost: No
  • Fan Cooled: No
  • Fuse Rating: 60
  • Speaker Level Inputs: Yes
  • Preamp Outputs: No
  • Width (inches): 10-3/4
  • Height (inches): 2-1/8
  • Depth (inches): 10
  • Parts Warranty: 1 Year
  • UPC: 793276242778
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Wonderful sounding amp. I upgraded from the Alpine MRV entry level amplifiers and this was certainly a big upgrade in sound. Much cleaner, clearer and better attack. I also bought the matching mono amp that also shares these attributes.

    Ed
    8/13/2020

  • I got this to replace a very old amp that wasn't working properly any longer. I love the compact size of the class D amps! This one is about half the size of the old A/B amp with similar power ratings. The smaller size made for a nicer install on the back wall of a regular cab pickup. This is powering 4 old Boston Acoustics Pro series 6.5 component speakers. The amp was easy to connect to everything and easy to adjust the settings. The system sounds great! I am impressed with how much better the speakers sound!

    Joel Goldman
    10/11/2020

  • This 4-ch amp's power is insane. Got it paired with Type R speakers all around the car, and I don't even need to push it to make them scream loud. Sound quality is spot-on. Big thanks to the customer service for suggesting it to me!

    Alvin
    11/14/2023
