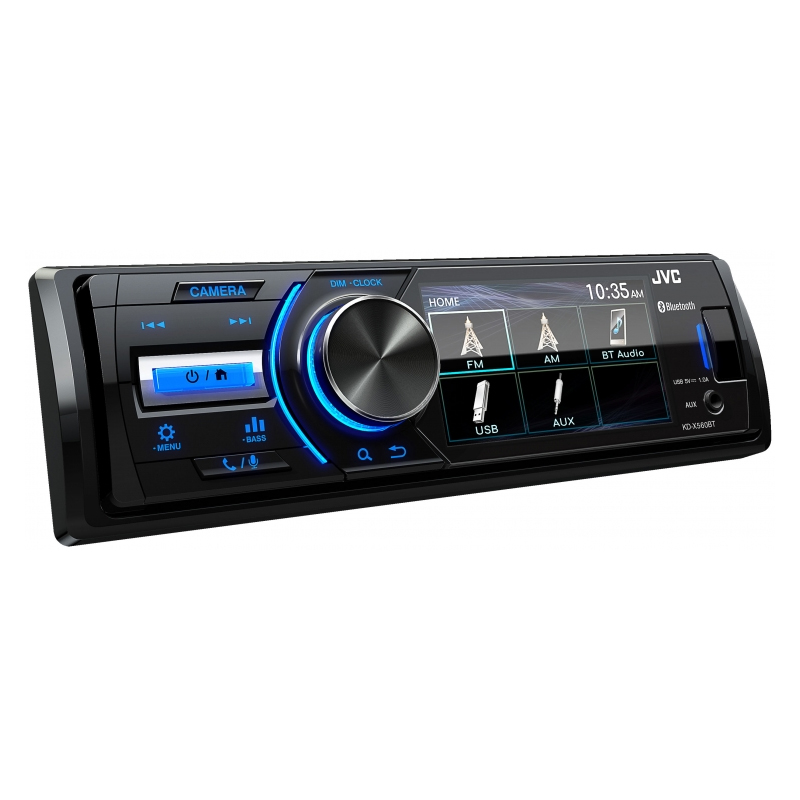

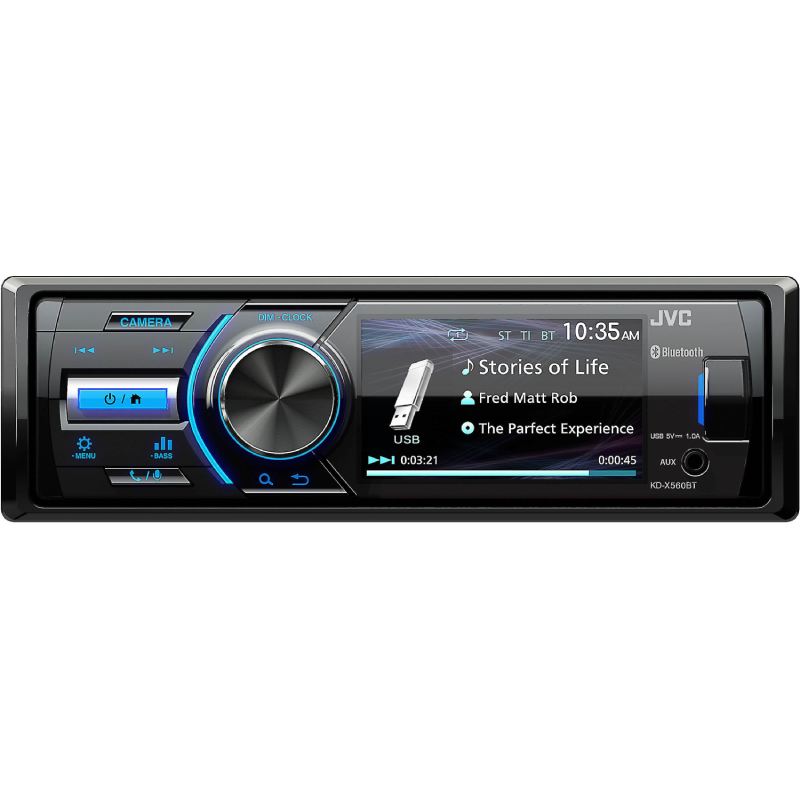

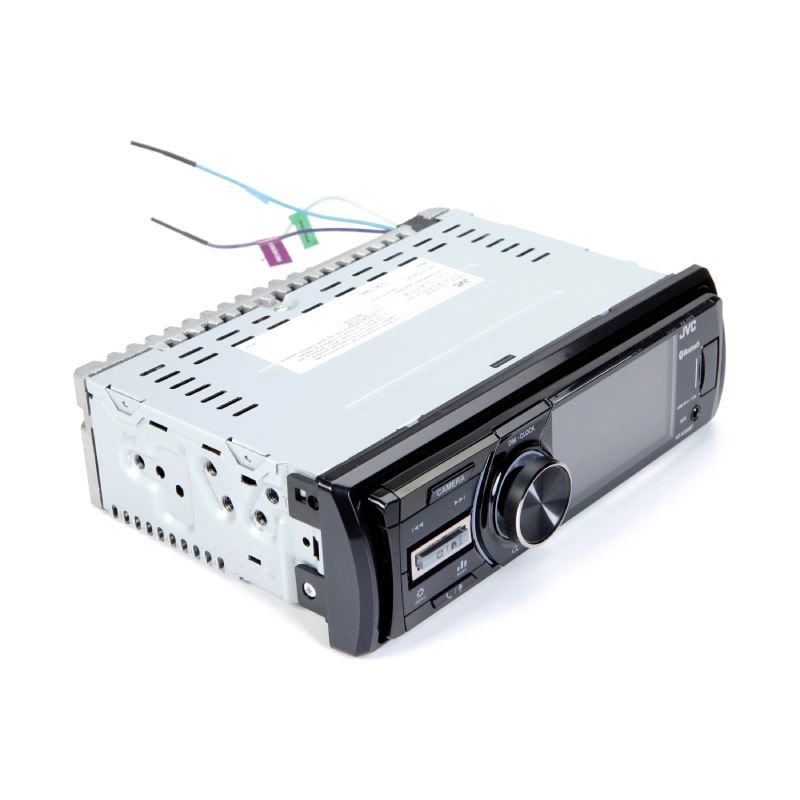

JVC  KD-X560BT

1-DIN 3.0" LCD Screen Marine/Powersports Digital Media Receiver with Built-In Bluetooth® and Steering Remote Control Ready (Does not play CDs)

Item #52907

Condition:   Brand New

1
❮ ❯
1 / 4
Product Highlights
  • 1-DIN Digital Media Receiver
  • 3.0" LCD Screen
  • Built-In Bluetooth®
  • Steering Remote Control Ready
  • Does not play CDs
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
SPRING SALE!

Get 10% OFF on this item! Use coupon code MARINE10

1 Review

$199.00

Reg. Price $219.95  Save $20.95
In Stock
In Stock

Only 4 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $18/mo with . Check your purchasing power

No Credit needed for . Learn More

Add to Cart
 Alert me on price change
We Price Match! Call Us! 310-526-8635
JVC Authorized Dealer

Huge Saving on Other items:

JVC Banner

JVC KD-X560BT 1-DIN Marine Digital Media Receiver 13-Band EQ

We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Digital media receiver (15A fuse)
  • •Face (attached)
  • &bullSleeve (installed);
  • •Trim ring
  • •Power harness Speaker harness
  • •Microphone w/ bracket (attached 10' cable
  • •6 Pan-head ISO-screws
  • •6 Counter-sunk ISO-screws
  • •2 Radio removal tools
  • •Trim-ring removal tool
  • • Owner's Maanual



Access Your Favorite Music Files

JVC packs a nifty 3" color screen into their marine-rated KD-X560BT digital media receiver for easy source control and for monitoring an optional rear-view cam. A front USB input makes it quick and easy to access your favorite music files, and built-in Bluetooth lets you stream music from your smartphone. When it comes to installation, JVC built the KD-X560BT with a chassis under 5" deep to fit more locations in your Jeep, convertible, or boat than your average DIN powersports receiver.

Conformal Coating to Protect This Radio's Electronic Circuits

The KD-X560BT sports three sets of preamp outputs so you'll have lots of options for building up your system with outboard amps and subs.JVC adds a conformal coating to protect this radio's electronic circuits from moisture to ensure your music can't be stopped, season after season.Backup cams are so handy, even in a boat or UTV. JVC equips this receiver with a rear-view camera input so you can add a view of what's behind you with an optional camera (not included).

  • Maximum Power : 50x4 Watts
  • Satellite Radio Ready : No
  • RMS Power Output : 22x4 Watts
  • DIN : 1
  • Bluetooth : Yes
  • Aux Input : Yes
  • MP3 Playback : Yes
  • WMA Playback : Yes
  • Front USB Input : 1

Monitor:

  • Screen Size: 3.0" 16:9 QVGA
  • Key Illumination Color: Blue
  • Dimmer: Yes (1/2/Off)
  • Multilingual Display: Yes[2]



Media Playback:

  • MP3 Compatible with Tag: Yes
  • WMA Compatible with Tag: Yes
  • WAV Compatible with Tag: Yes ( Up to 96kHz/24bit )
  • AAC Compatible with Tag: Yes
  • FLAC Compatible with Tag: Yes ( Up to 96kHz/24bit )
  • H.264 Compatible: Yes
  • MPEG 1/2 Compatible: Yes
  • MPEG 4 Compatible: Yes
  • AVI/MKV Compatible: Yes
  • JPEG File Playback: Yes
  • PNG File Playback: Yes
  • BMP File Playback: Yes



Bluetooth Control:

  • Built-in Bluetooth[1]: Yes (Version 3.0, Wired-Mic included)
  • Hands Free Call: Yes (HFP1.5 Wideband Speech)
  • Audio Streaming & Control (A2DP, AVRCP): Yes
  • Phone Book Access Profile (PBAP): Yes



iPod/iPhone Control:

  • iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))



USB:

  • USB Port: x 1 (High speed)
  • Position: Front
  • USB Power Supply: Yes (1.0A)



Radio Tuner:

  • Radio Broadcast Data System (RBDS): Yes
  • Preset Stations: 30 (FM:15,:AM:15)
  • FM Frequency Range: 87.9 - 107.9MHz



Audio:

  • Maximum Power Output (Front & Rear): 50W x 4
  • Full Bandwidth Power (Front & Rear): 21W x 4
  • EQ: Yes (13-Band Graphic EQ)
    • Preset EQ: Yes (9-Preset)
    • Bass Boost: Yes
  • High-Pass Filter/Low-Pass Filter: Yes/Yes



Inputs and Outputs:

  • Front AUX Input: Yes
  • Rear view camera Input: Yes

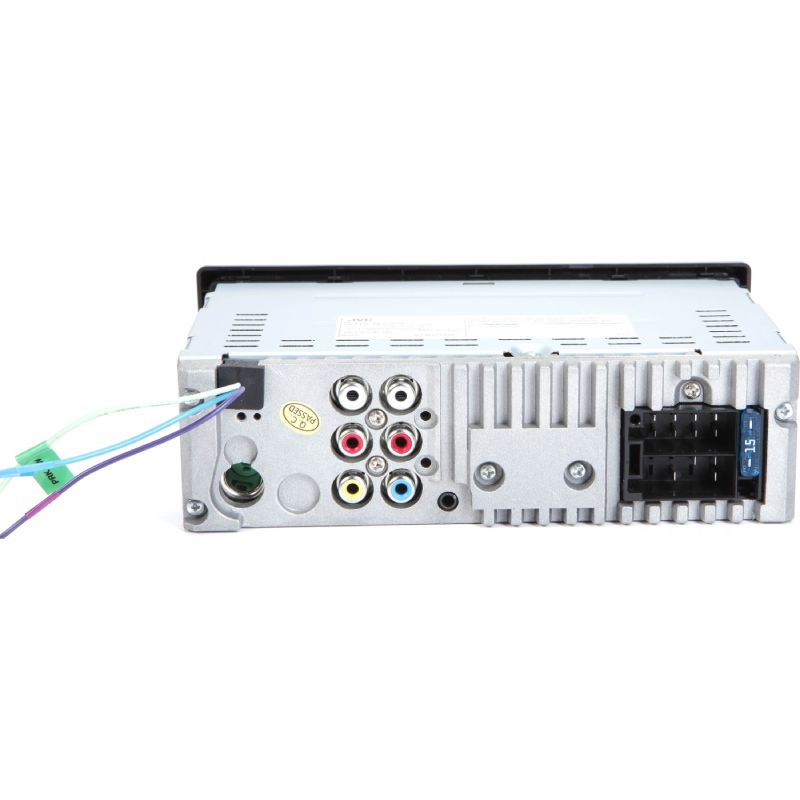

  • Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
  • Pre-output Level/Impedance: 2.0V / 10k ohms



General:

  • Wireless Remote Control: Ready (RM-RK258 required)
  • Steering Remote Control Ready: Yes
  • ISO Connector: Yes
  • Dimensions (W x H x D)
    • Installation Size: 7-3/16" x 2-1/16" x 4-5/8" (182 x 52 x 117 mm)
    • Weight: 1.65 lbs. (0.75kg)
    • Unit weight in individual package: 2.45 lbs. (1.11kg)
  • UPC: 046838079948
  • Weight: 3.01
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
