JL Audio M6-10IB-S-GmTi-i-4 M6 Series 10" 250W RMS 4 Ohm, Marine Subwoofer with LED Light, Gunmetal Sport Grille and Titanium Grille Insert
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" Marine subwoofer
- • Grille
- • (6) 1-1/2" Stainless-steel screws
- • (6) Stainless-steel flat washers
- • Owner's Manual
Free of the Burden
The JL Audio M6-10IB-S-GmTi-i-4 is a top-of-the-line 10-inch marine subwoofer designed to deliver exceptional bass performance in a marine environment. Engineered with precision and built to withstand harsh conditions, this subwoofer is perfect for enhancing your boat's audio system.
With a maximum power handling of 250 watts RMS power, the M6-10IB-S-GmTi-i-4 offers incredible bass output and depth. Its specially designed long-excursion woofer cone ensures accurate and powerful bass reproduction, providing an immersive listening experience.
Built for Real Marine Duty
The subwoofer's single 4-ohm voice coil configuration offers flexible wiring options and easy integration with various amplifiers. Its gunmetal sport grille and titanium grille insert adds a sleek and stylish look to your boat and protects the subwoofer from external damage.
Designed for marine use, the M6-10IB-S-GmTi-i-4 features a marine-grade synthetic fiber spider and a UV-resistant polymer basket to withstand the elements. Its IP66-rated construction ensures water and dust resistance, making it suitable for installation in exposed areas.
Superior Sound Quality
The JL Audio M6-10IB-S-GmTi-i-4 is a premium marine subwoofer that combines power, durability, and superior sound quality. Whether you're cruising on the water or enjoying your favorite tunes at the dock, this subwoofer will elevate your boating experience with a deep, impactful bass.
- Diameter : 10 Inch
- Sensitivity : 86.1 dB
- Impedance : 4 Ohm
- RMS Power Range : 250 Watts
- Color : White
- Mounting Depth : 5.90 Inches
- Free Air : Yes
Features:
- Marine Subwoofer: 10-inch M6 subwoofer designed for infinite-baffle use
- Power Handling: 250 W power handling and 4 Ω impedance
- Aesthetic Design: Gray metallic trim ring and titanium sport grille

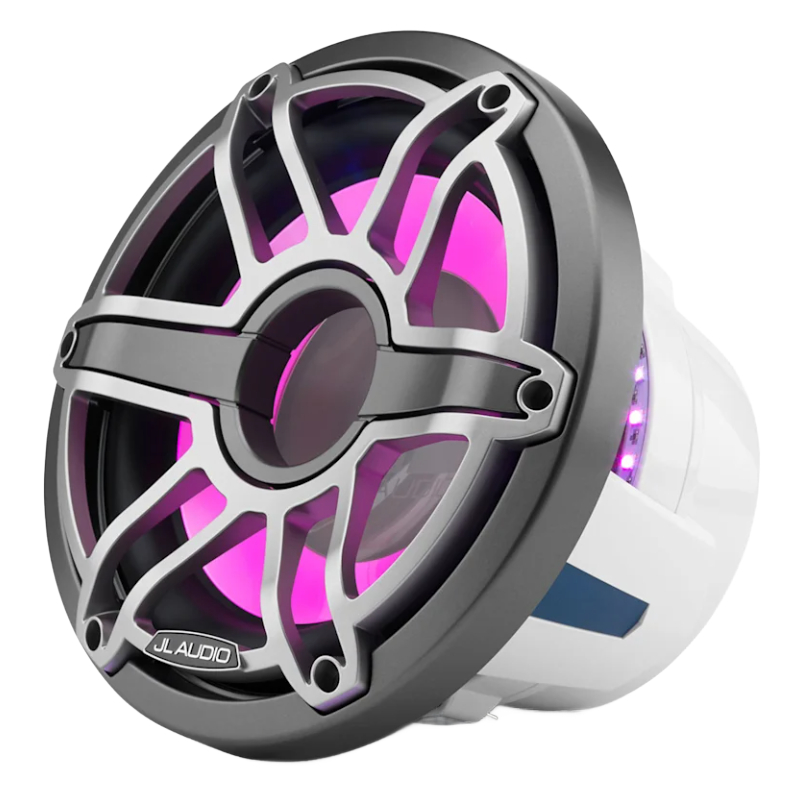

- Transflective™ LED Lighting: Integrated LED lighting for enhanced visual appeal
- Enhanced Audio Performance: Allows main speakers to play louder and sound cleaner by offloading low frequencies
- Marine-Grade Durability: Built to withstand saltwater marine environments for long-lasting performance
- No Dedicated Enclosure Needed: Designed to operate without a dedicated enclosure, ideal for infinite-baffle installations
- Deep Bass Response: Long excursion capability and rugged suspension systems for deep, powerful bass
- Amplifier Compatibility: Best used with amplifier power in the 75-250 W range
- Air Volume Optimization: Optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l)
- Made in the USA: Manufactured in JL Audio’s Miramar, Florida factory with global components and materials
- Sold Individually: Each unit is sold separately
Physical Specifications:
- Nominal Diameter: 10.0 in / 250 mm
- Overall Diameter: 10.75 in / 273 mm
- Bolt Hole Circle Diameter: 9.70 in / 247 mm
- Frontal Grilles Protrusion*: 1.66 in / 42 mm
- Mounting Hole Diameter: 8.875 in / 225 mm
- Mounting Depth: 5.90 in / 150 mm
- Driver Displacement: 0.052 cu ft / 1.47 L
- Net Weight: 8.70 lbs / 3.90 kg
*Frontal grille protrusion measured from mounting surface
Parameters:
- Free Air Resonance (Fs): 43.76 Hz
- Electrical “Q” (Qes): 0.907
- Mechanical “Q” (Qms): 11.315
- Total Speaker “Q” (Qts): 0.84
- Equivalent Compliance (Vas): 0.54 cu ft / 15.29 L
- One-Way Linear Excursion (Xmax)*: 0.52 in / 13.2 mm
- Reference Efficiency (no): 0.28%
- Efficiency (1 W / 1 m)**: 86.1 dB SPL
- Effective Piston Area (Sd): 50.11 sq in / 0.0323 sq m
- DC Resistance (Re): 4.543-ohm
- UPC: 699440936385
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
