Alpine  PDR-V75-Bundle2

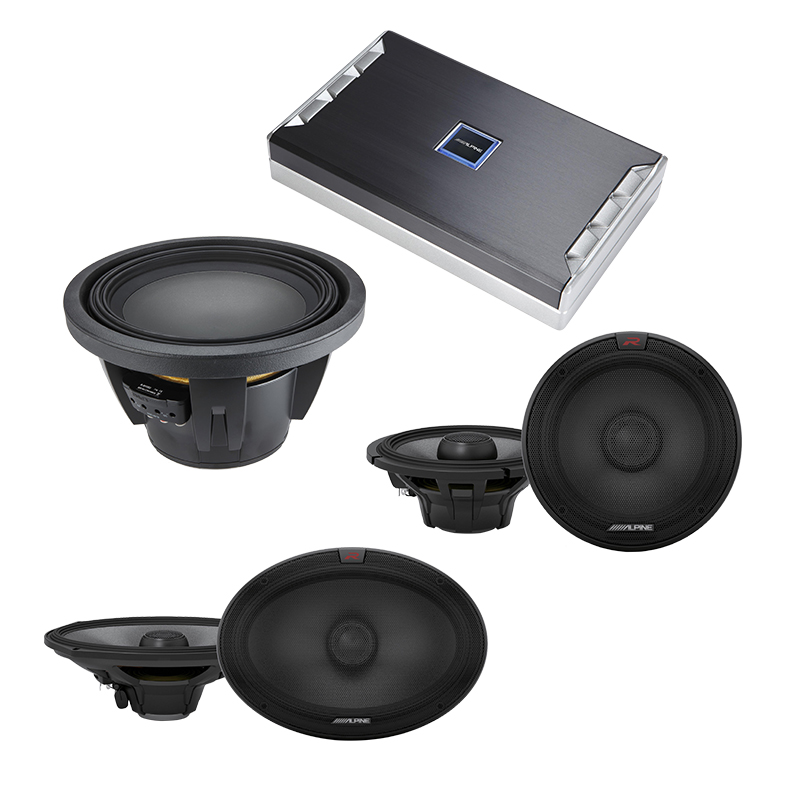

Alpine PDR-V75 + Alpine R-S65.2 + Alpine R-S69.2 + Alpine R-W12D2 Exclusive Bundle

Item #53472

1 / 1
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.


Huge Saving on Other items:


OCS Bundle Banner

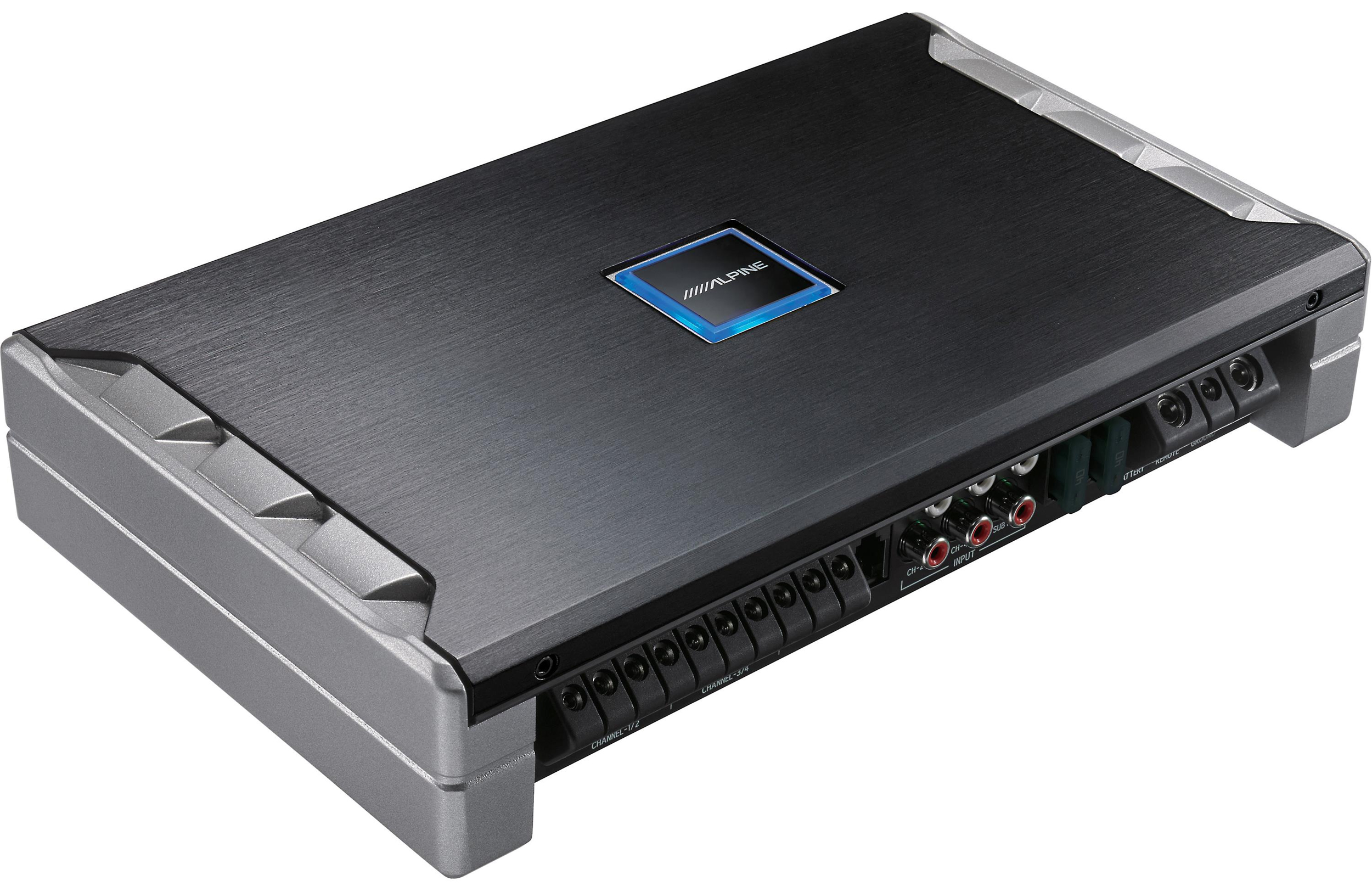

Alpine PDR-V75

Welcome the new digital PDR-Power series of Class-D amplifiers. The PDR-Power amplifiers incorporate many of Alpine’s best in class digital technologies, high performance and signature sound.

Alpine PDR-V75

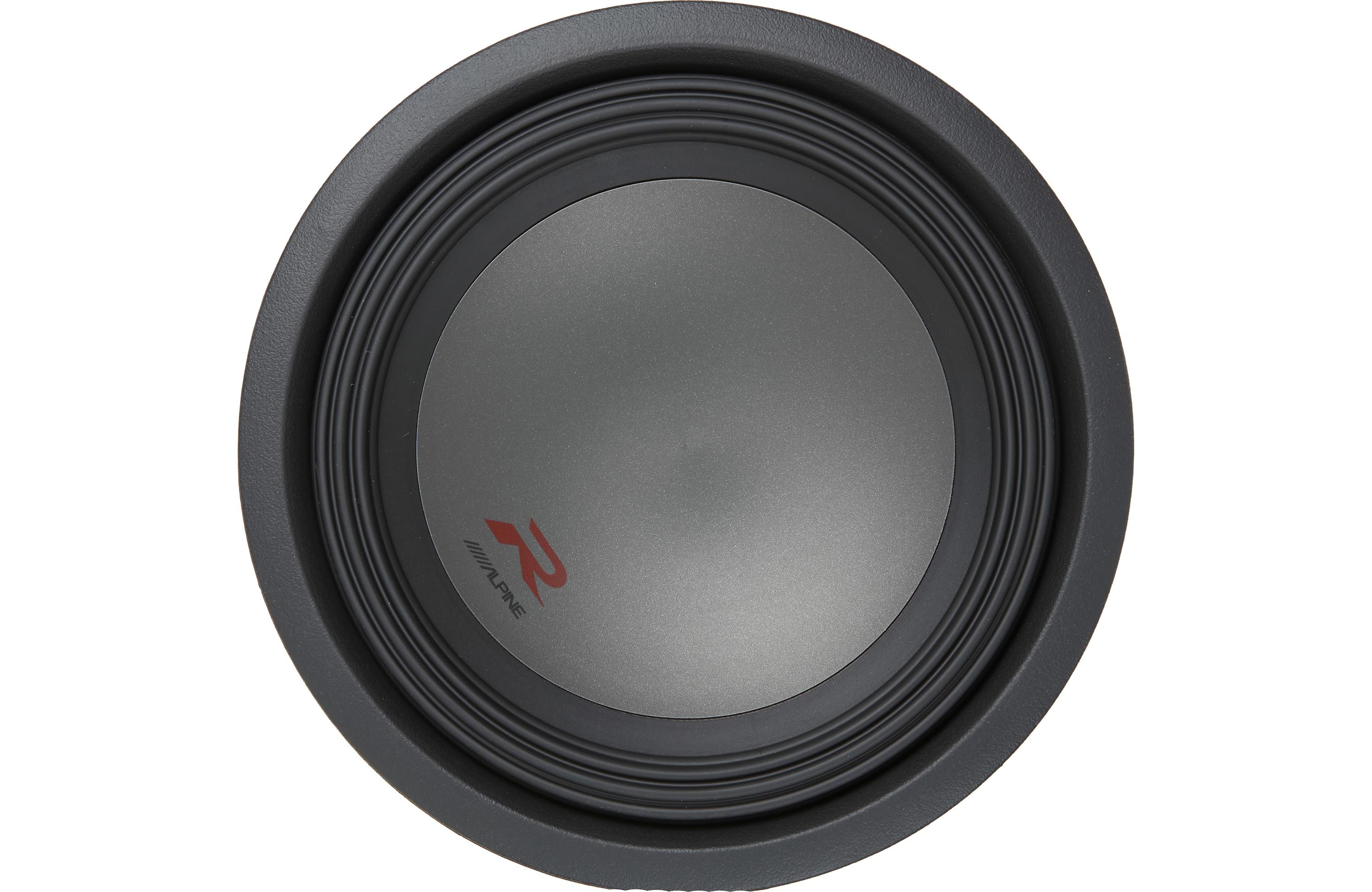

Alpine R-W12D2

Alpine is proud to announce the introduction of the new R-Series Subwoofer lineup that is built off the highly esteemed Type R platform. The new R-Series subwoofers take a great platform to the next level. Although the R-Series subwoofers are new for 2017, they actually come from an impressive Alpine lineage – the Type-R subwoofers.

Alpine R-W12D2

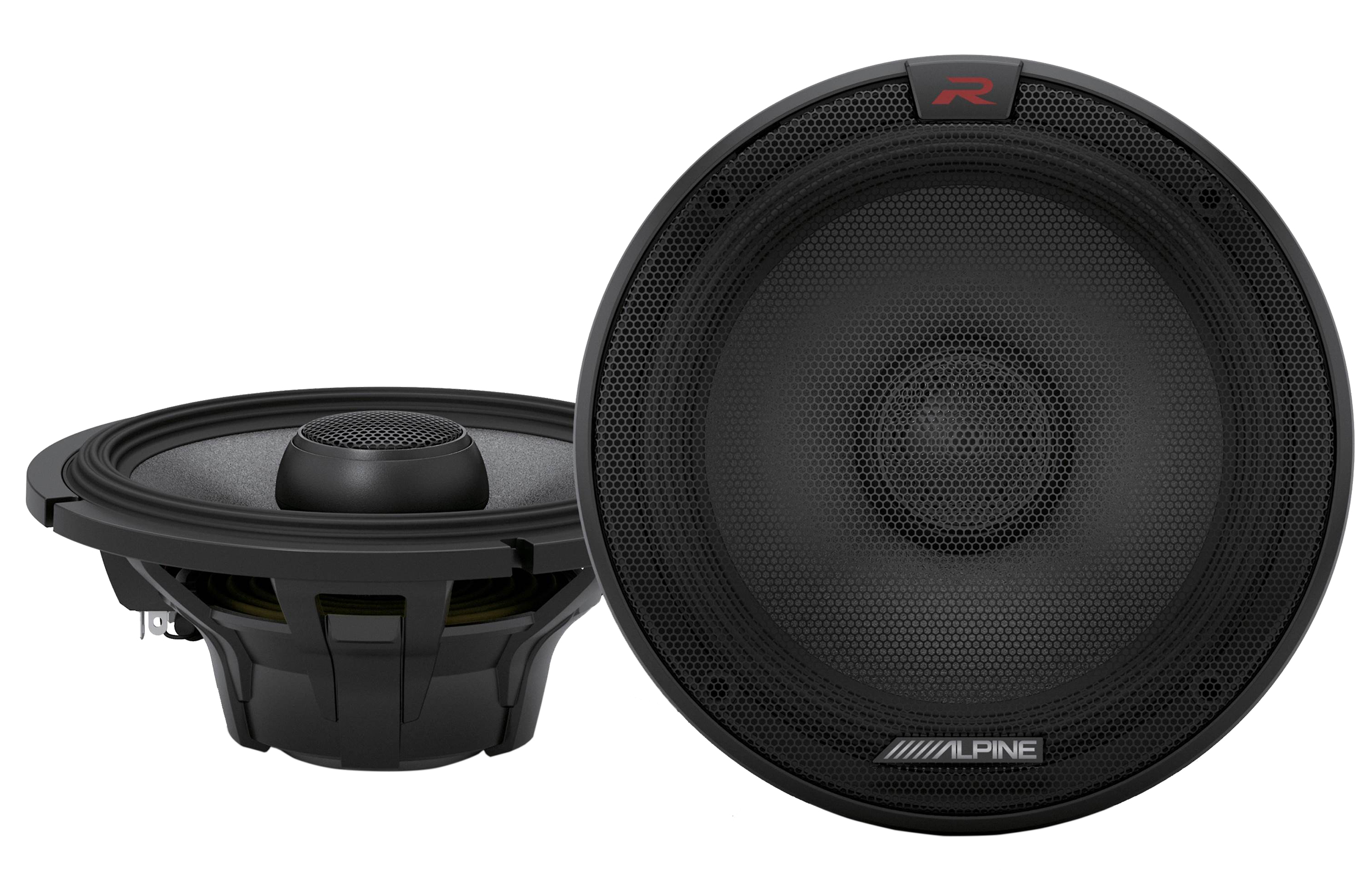

Alpine R-S65.2

With the R-Series speakers' innovative material that delivers more output, the speakers produce dependable performance for a loud and fun experience. The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material.

Alpine R-S65.2

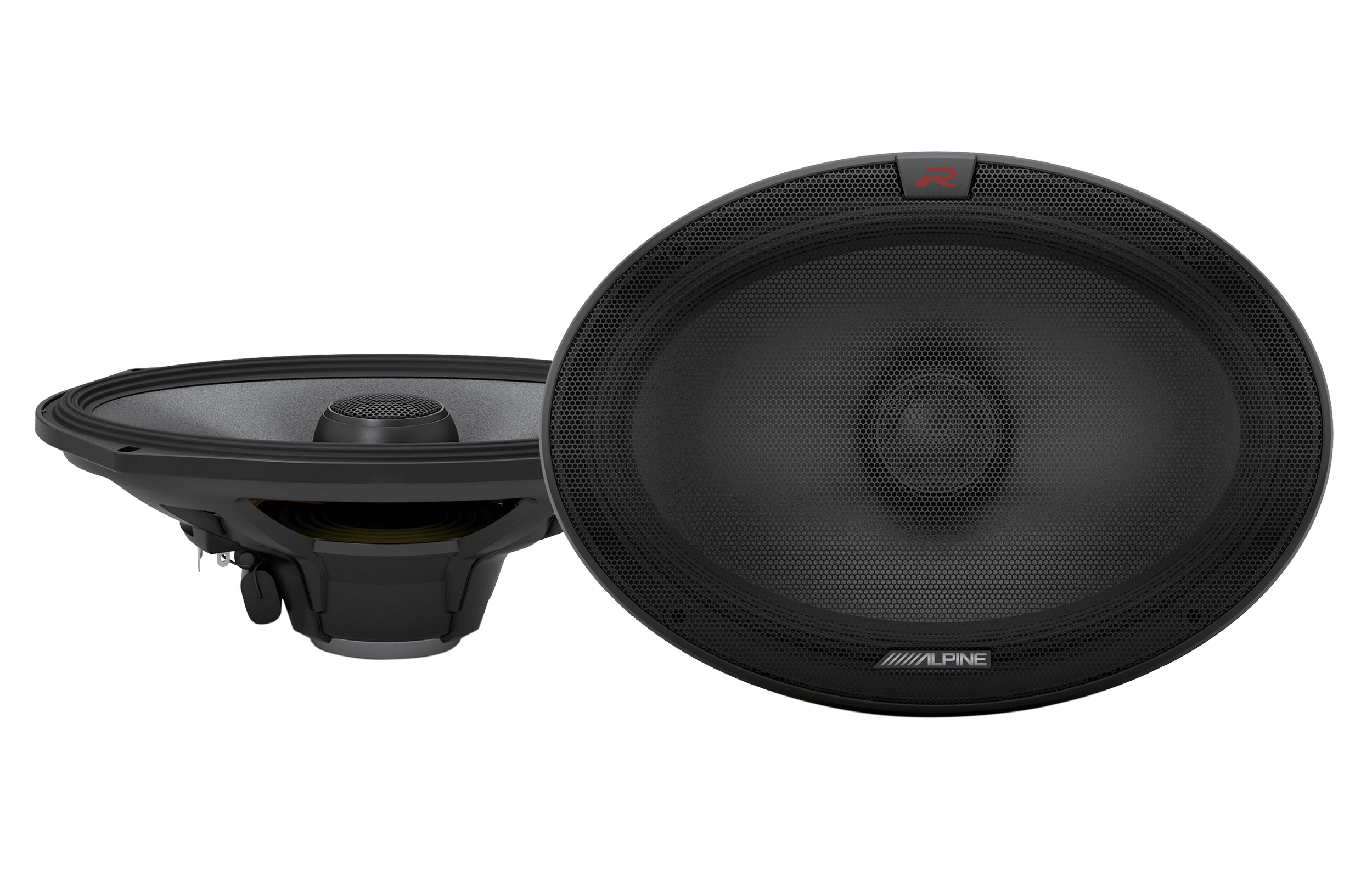

Alpine R-S69.2

R-Series speakers give you power and control. With an innovative material that delivers more output, the speakers produce dependable performance for a loud and fun experience. The R-Series speakers use a neodymium magnet which gives them a shorter overall height as compared to other speaker brands.

Alpine R-S69.2


PDR-V75 5-Channel Class D Digital Amplifier

CEA-2006 Power Ratings
  • CEA-2006 Power Rating: 75W RMS x 4 + 250W RMS x 1 (4-ohm, 14.4V at <1% THD+N)
  • RMS Power Ratings
  • Per channel into 4 Ohms: 75W RMS x 4 + 250W RMS x 1 (14.4V at <1% THD+N)
  • Per channel into 2 Ohms: 100W RMS x 4 + 350W RMS x 1 (14.4V at <1% THD+N)
  • Bridged 4 Ohms: 200W RMS x 2 (CH-1/2/3/4, 14.4V at <1% THD+N)
Sound Tuning
  • Crossover Frequency (CH1/2/3/4, HPF): 50 Hz - 400 Hz, -12 dB/oct.
  • Crossover Frequency (Subwoofer, LPF): 50 Hz - 400 Hz, -24 dB/oct.
  • Subsonic Filter (Subwoofer): 8 Hz -40 Hz, -24dB/oct. (Variable)
  • BASS EQ (Subwoofer): 0 to +12 dB, fc=50Hz (Variable)
Dimensions
  • Foot Print (WxHxD) mm: 270 x 50.8 x 165 mm
  • Foot Print (WxHxD) in: 10-3/4'' x 2'' x 6-1/2''
General
  • Power Requirements: 14.4 V.DC (11-16V allowable)
  • Input Impedance: >10k ohms
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for CH-1/2/3/4: 8 Hz - 45k Hz
  • Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 8 Hz - 400 Hz
  • THD+N (10W into 4 Ohms) for CH-1/2/3/4: 0.02 %
  • THD+N (10W into 4 Ohms) for Subwoofer: 0.02 %
  • Damping Factor for CH-1/2/3/4: >500
  • Damping Factor for Subwoofer: >1000
  • Signal to Noise (Rated Power into 4 Ohms) for CH-1/2/3/4: 105 dB
  • Signal to Noise (Rated Power into 4 Ohms) for Subwoofer: 110 dB
  • Weight: 2.76 kg/6lb 1.4oz
  • Input Sensitivity (RCA Input,CH-1/2/3/4): 0.2 - 4.0 V
  • Input Sensitivity (RCA Input, Subwoofer): 0.1 - 4.0 V


R-S69.2 R Series 6"x9" 300 Watts Peak Power 2-Way Speakers

  • Speaker Diameter: 6"X9"
  • Design: 2-way
  • Tweeter Design: Dome
  • Tweeter Composition: Carbon-fiber
  • Woofer Composition: Carbon-fiber polymer
  • Woofer Surround: Multi-roll synthetic rubber
  • Sensitivity (1W at 1 meter): 90
  • Frequency Response: 60 - 40k Hz
  • Maximum RMS Wattage: 100
  • Peak Power Handling (Watts): 300
  • Top-mount Depth (Inches): 2-7/8


R-S65.2 R Series 6.5" 300 Watts Peak Power 2-Way Car Speakers

  • Speaker Diameter: 6-1/2"
  • Design  2-way
  • Tweeter Design: Dome
  • Tweeter Composition: Carbon-fiber
  • Woofer Composition: Carbon-fiber reinforced polymer
  • Woofer Surround: Multi-roll synthetic rubber
  • Sensitivity (1W at 1 meter): 88
  • Frequency Response: 65 - 40k Hz
  • Maximum RMS Wattage 100
  • Peak Power Handling (Watts) 300
  • Top-mount Depth (Inches): 2-5/16


R-W12D2 12" R-Series 2250 Watts Max Power Dual 2-Ohm Car Subwoofer

  • Peak: 2250watts
  • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve
  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 127 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 6-3/8"
  • Cutout diameter: 10-7/8"
  • Frequency Response: 24 - 200Hz
  • Sensitivity: 84.3dB
  • Resonance Frequency (Fs): 27Hz
  • UPC: 713783635252
  • Weight: 40
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
