Kenwood  KAC-D3104

D Series 75W x 4 RMS @2Ohms, 600W Max Power Class D 4-Channel Power Amplifier

Item #53680

Condition:   Brand New

Product Highlights

  • 75W x 4 RMS @ 2 Ohms
  • 600W Max Power
  • Class D
  • 4-Channel Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$199.00

Reg. Price $300.00  Save $101.00
In Stock
In Stock

Only 3 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $18/mo with . Check your purchasing power

No Credit needed for Learn More


Kenwood Authorized Dealer

Huge Saving on Other items:


Kenwood Banner

Kenwood KAC-D3104 D Series 75W x 4 RMS @2Ohm, 600W Max Power Class D 4-Channel Power Amplifier


We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

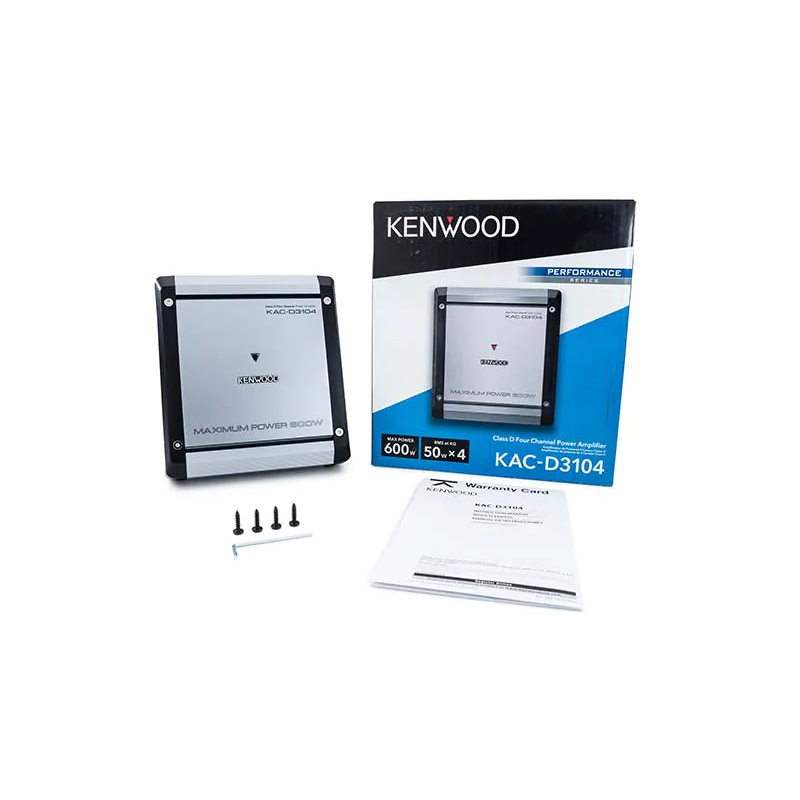

What's Inside?
  • •600W Amplifier
  • •(4) Mounting screws
  • •Allen wrench
  • •Owner's Manual
D Series Car Amplifier

Big power does not always mean big size. When it comes to Kenwood car amplifiers, like its KAC-D3104, it does not need to have a big chassis to be able to deliver a massive audio output like its other competitors. So you won't have any issues installing it, even with tight spaces.

Kenwood's Dual Sigma Drive Technology

The Kenwood KAC-D3104 comes with Kenwood's Dual Sigma Drive technology, which is an advanced negative feedback circuit that results in improved damping factor and accuracy for a better audio quality that you would surely love. It also has a signal-sensing turn-on feature.

Class D Amplifier

With its Class-D amplifier design, the Kenwood KAC-D3104 can handle 50 Watts of RMS Power per channel at 4 ohms and 75 Watts of RMS Power per channel at 2 ohms. It has a frequency response of 20 Hz up to 50 kHz, which is pretty impressive, especially for its size and price point, as amps rarely reach these figures.

Variable High and Low-Pass Filter

The Kenwood KAC-D3104 has variable high and low-pass filters, a bass boost control of up to 18 dB, input sensitivity knobs, and speaker-level inputs for easier integration with factory audio systems. With this four-channel amp, you can power up your car speakers comfortably.

Small Size Big Power

The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.

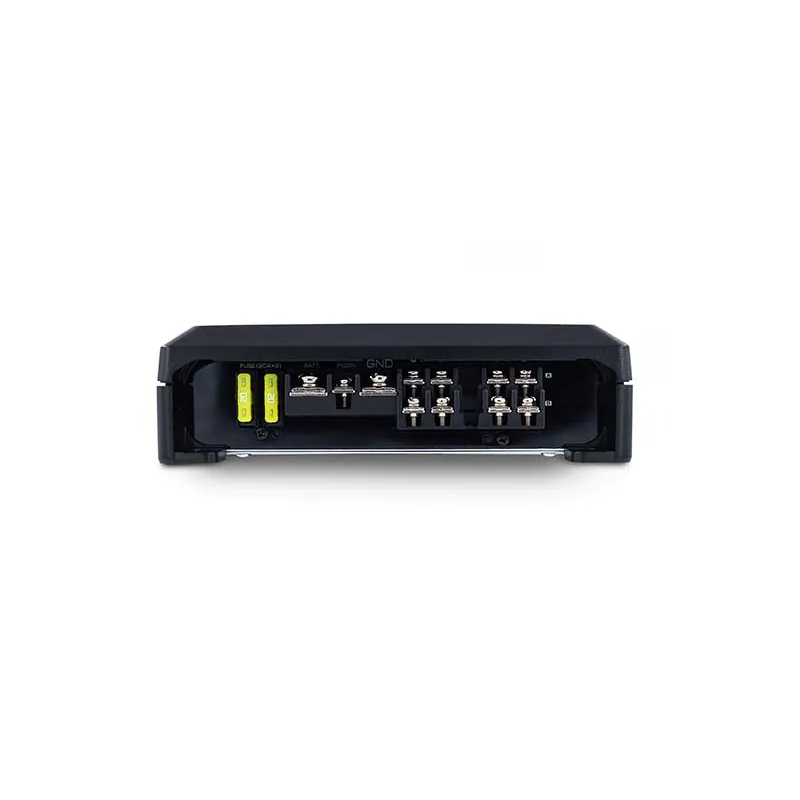

  • •(1) Fuse (20A x 2)
  • •(2) Battery Terminal (Power IN BATT.)
  • •(3) Power Control Terminal (P.CON)
  • •(4) Ground Terminal (GND)
  • •(5) Speaker Output Terminals (A.ch / B.ch)

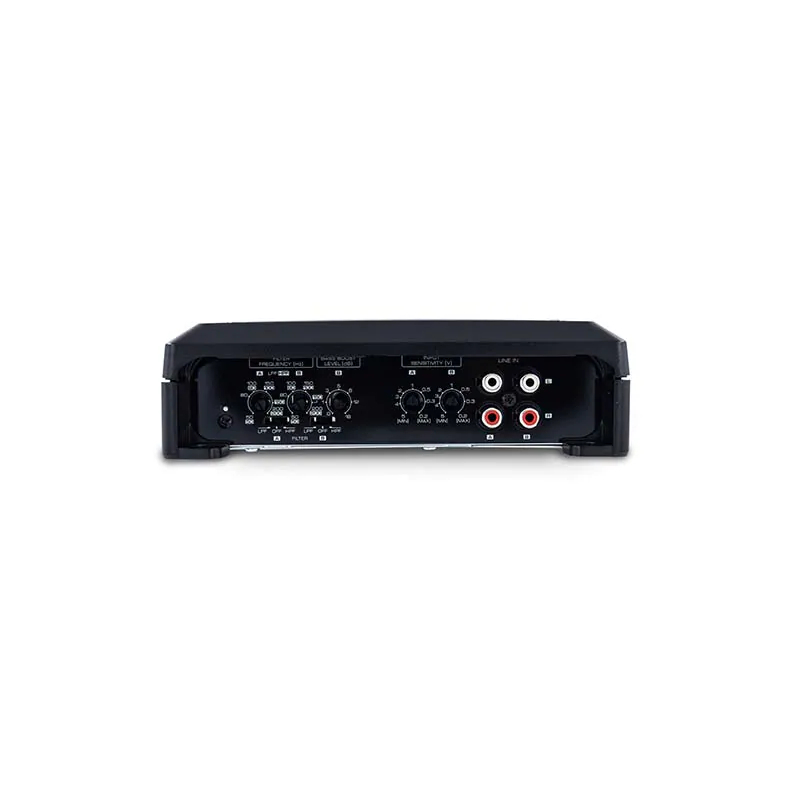

  • •(6) Filter Frequency Control (A.ch / B.ch)
  • •(7) Filter Switch (A.ch / B.ch)
  • •(8) Bass Boost Level Control (B.ch)
  • •(9) Input Sensitivity Control (A.ch / B.ch)
  • •(10) Line In Terminal (A.ch / B.ch)
  • Maximum Power : 600 Watts
  • Low Frequency Response : 50-200 Hz
  • High Frequency Response : 50-200 Hz
  • Number of Channels : 4
  • RMS Power Output : 75x4 Watts
  • Channel Separation : Yes
  • Amplifier Class : D
  • Fuse Rating : 30x2 A
  • XP750-SE OFFER : Yes

Features:

  • Expanded Frequency Response: Supporting Hi-Res Audio, KAC-D3104 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.
  • Dual Sigma Drive: This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.
  • Small Size Big Power: The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.



Specifications:

  • Speaker Level Input
  • Signal Sensing Turn-On
  • Max Power: 600W
  • RMS Power Output (4ohm): 50Wx4
  • RMS Power Output (2ohm): 75Wx4
  • RMS Power Output Bridged: 150W x 2 (Bridged)
  • Variable High Pass Filter: 50-200Hz
  • Variable Low Pass Filter: 50-200Hz
  • Bass Boost: 40Hz 0-18dB
  • Dimensions: (W)6-11/16” x (H)2-3/16” x (D)7-3/8”
  • UPC: 019048226310
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Tiny but an effective amp to give you a premium sound without taking too much space inside your car. Kenwood has been a highly respected brand when it comes to car audio which is why I had the courage to try out this one, and I’m glad that I went with this one.

    Alberto
    2/15/2024

  • Running JBLs with the amp and the sound is much better than the old amp I got before. The power seems a little bit lacking but the sound quality is still exceptional. The loudness is also enough so I don’t really have to crank up volume so much.

    Cyrus
    4/19/2024

  • I'm loving this setup! Clean power all the way. With two pairs of Kicker speakers, the sound and volume are spot on. Plus, this amp is compact enough to squeeze into tight spots.

    Ronald
    5/30/2024
