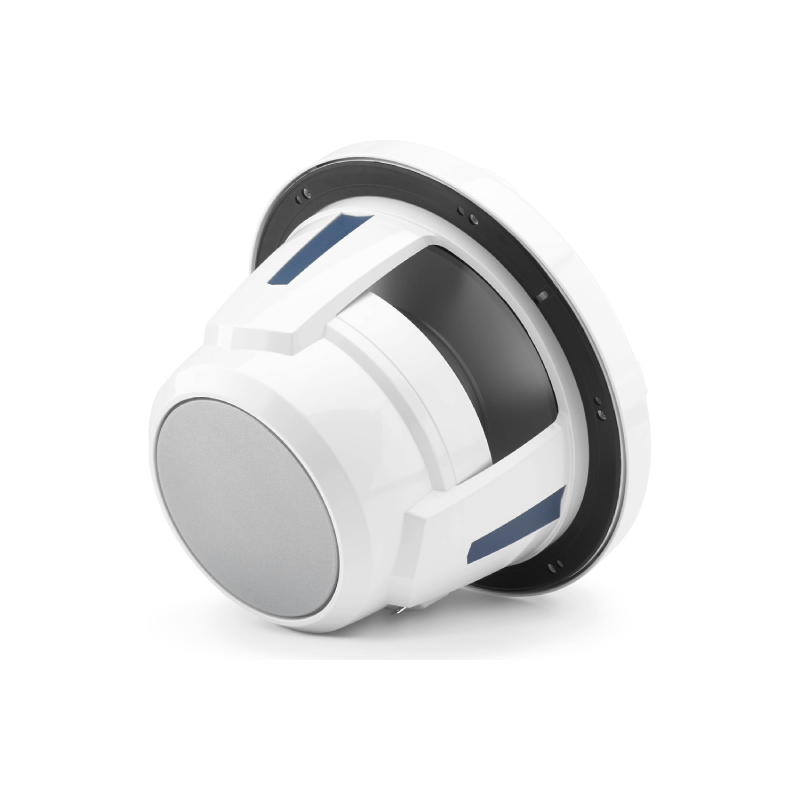

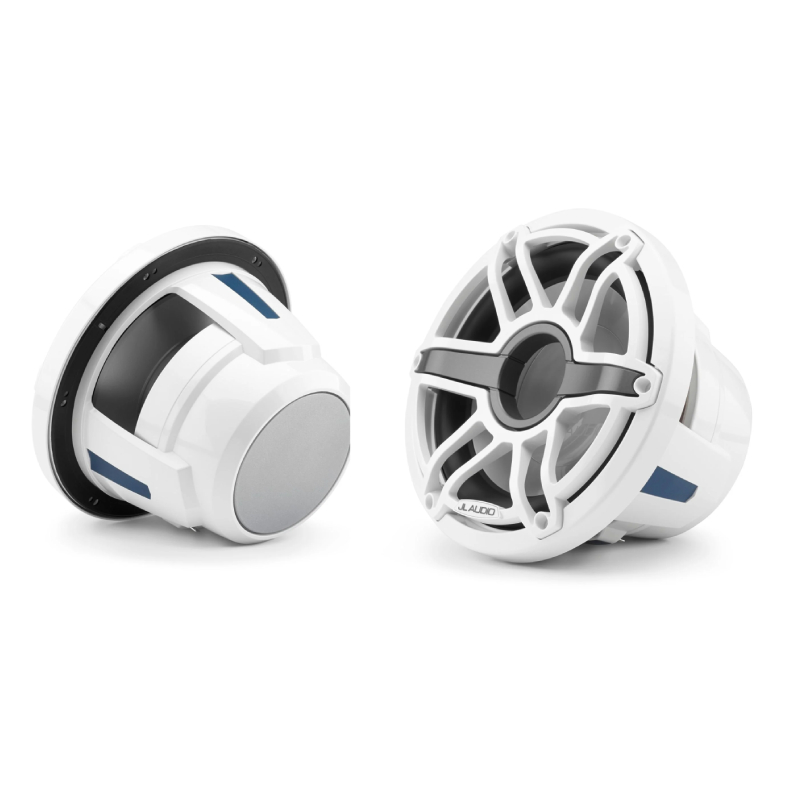

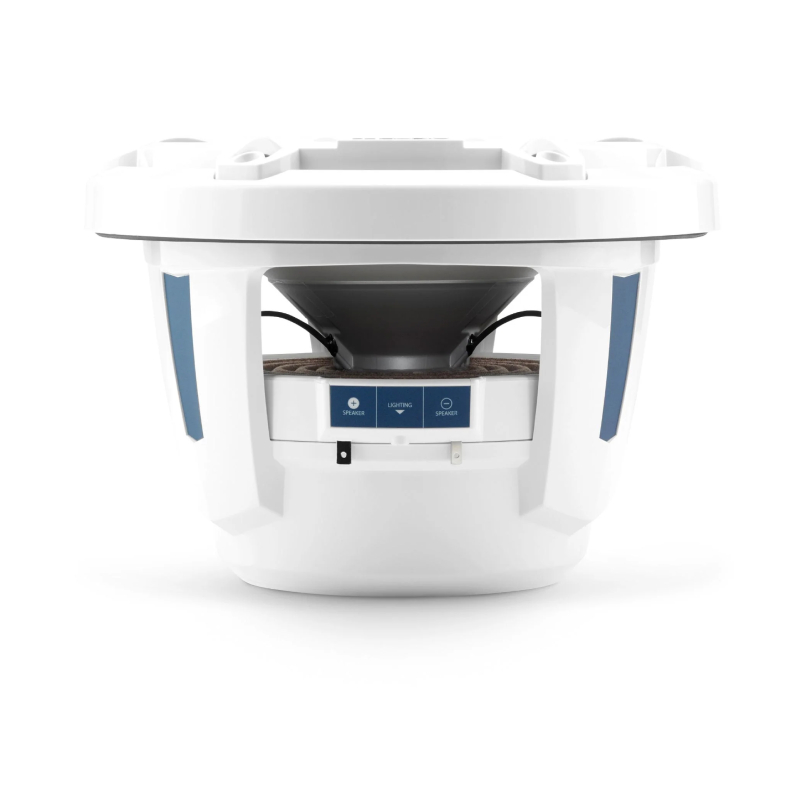

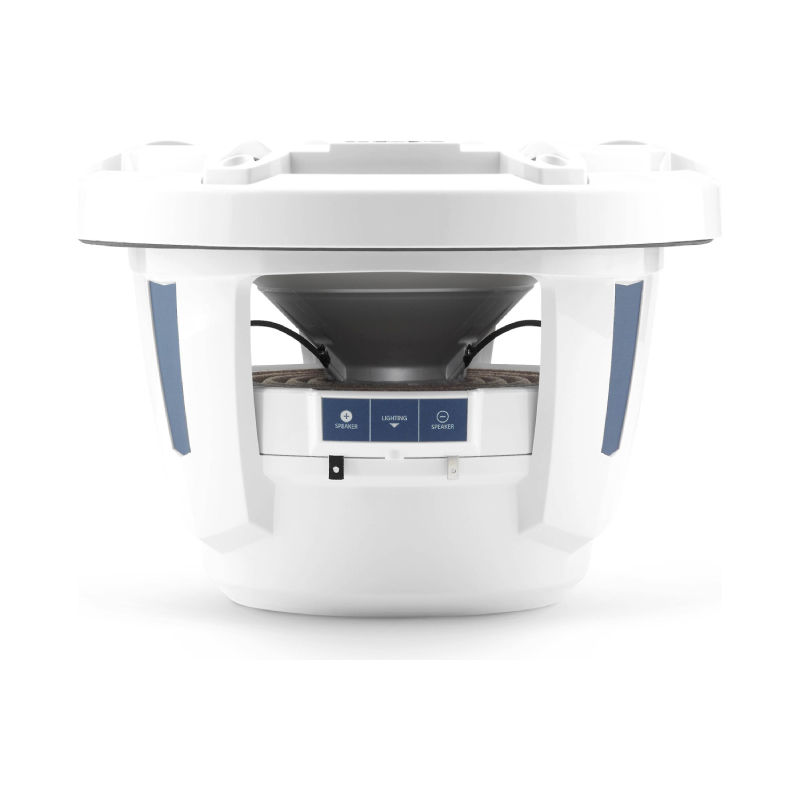

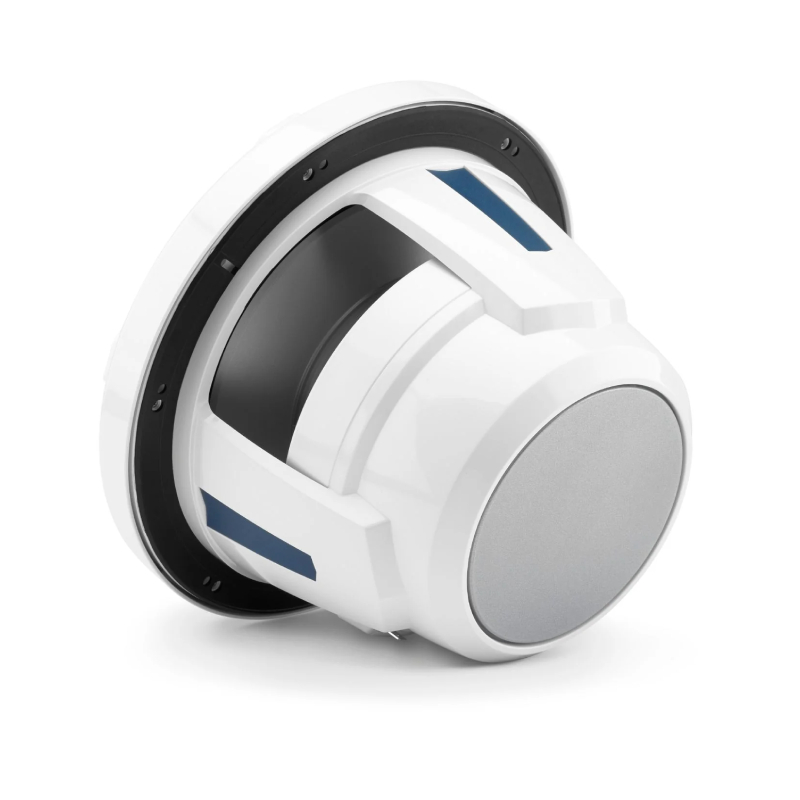

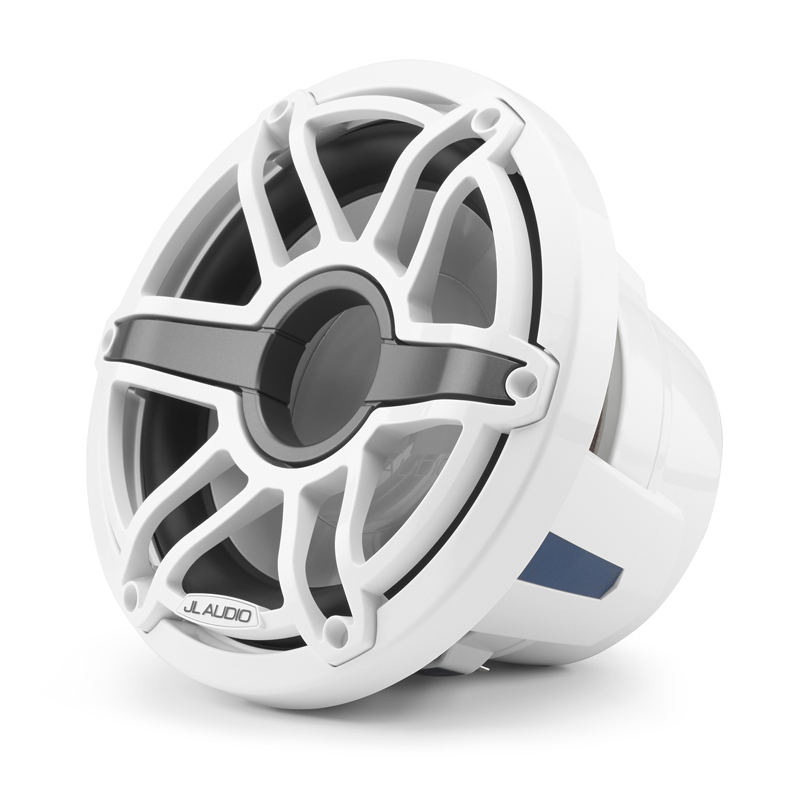

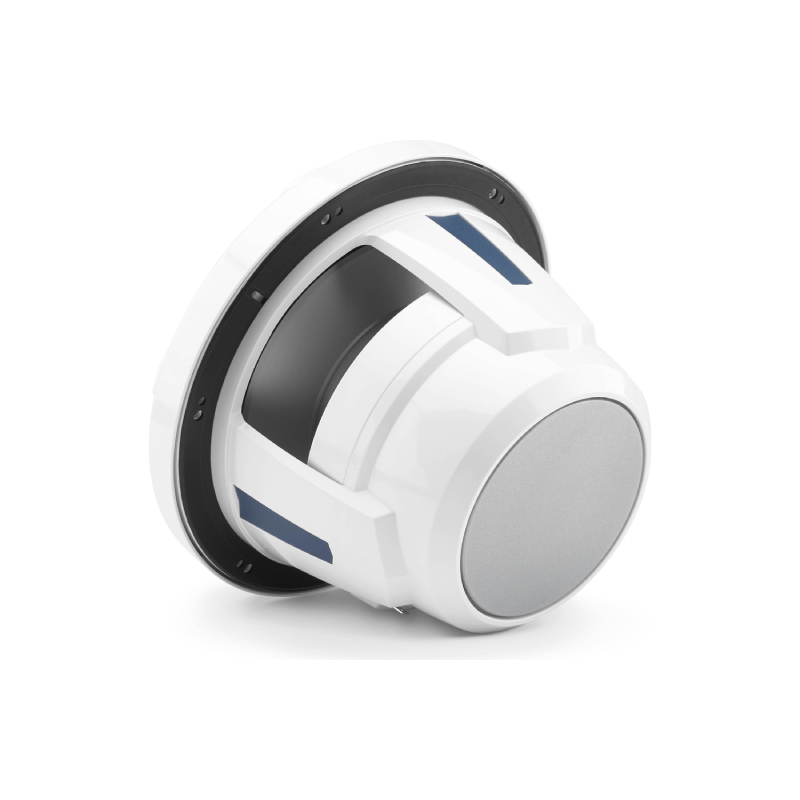

JL Audio M6-10W-S-GwGw-4 M6 Series 10" 250W RMS 4 Ohm, Marine Subwoofer with Gloss White Trim and Sport Grille
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" 250W RMS 4 Ohm, Marine Subwoofer
- • Grille
- • (6) 1-5/8" Stainless-steel screws
- • (6) Stainless-steel flat washers
- • Owner's Manual
Precision And Durability
M6 Loudspeakers fulfill JL Audio’s commitment to raise the bar with each product generation. The engineering team has completely reinvented the premium marine loudspeaker, with major improvements in performance, precision and durability. Offered in multiple sizes and cosmetic options, most models are also available with a brilliant, new lighting technology.
Superior Frequency Response
Every M6 coaxial loudspeaker starts with a long-excursion woofer designed with JL Audio’s proprietary motor, suspension and cone modeling systems to yield superior frequency response, smooth mid-range dispersion and linear performance at all listening levels. JL Audio’s acoustics laboratory in Miramar, Florida performs extensive testing on multiple generations of prototypes to refine every design and extract maximum performance.
Three Sizes Of Coaxial Loudspeakers
Choose from three sizes of coaxial loudspeakers: a 6.5-inch designed to fit in standard marine speaker locations, and two oversized designs that deliver even greater performance: a 7.7-inch and an 8.8-inch. Complementing the coaxial offering, the M6 line also includes subwoofer models, in 8-inch and 10-inch nominal diameters and Enclosed Coaxial Systems in 7.7-inch and 8.8-inch diameters.
- Diameter : 10 Inch
- Sensitivity : 86.1 dB
- Impedance : 4 Ohm
- RMS Power Range : 250 Watts
- Color : White
Features:
- Marine Subwoofer: 10-inch M6 subwoofer designed for enclosed use
- Power Handling: 250 W power handling and 4 Ω impedance

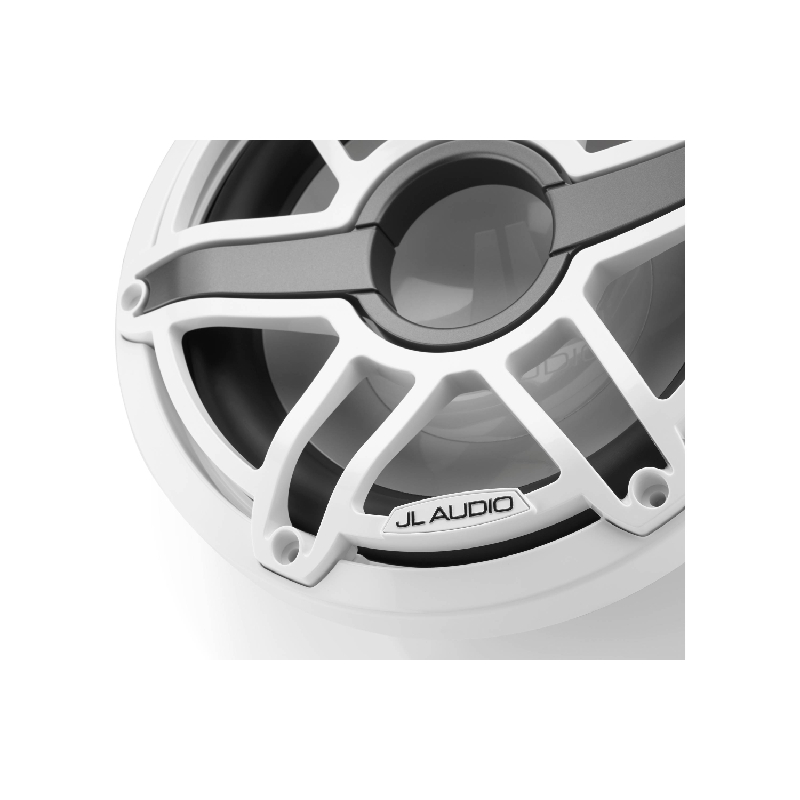

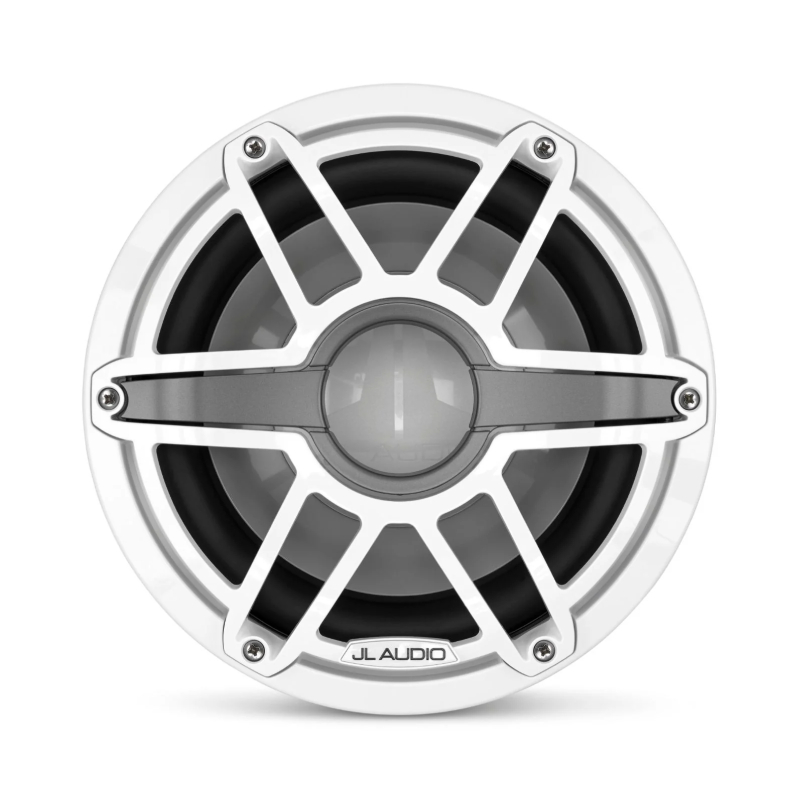

- Aesthetic Design: Gloss white trim ring and gloss white sport grille
- Enhanced Audio Performance: Allows main speakers to play louder and sound cleaner by offloading low frequencies
- Marine-Grade Durability: Built to withstand saltwater marine environments for long-lasting performance
- Compact Sealed Enclosure Compatibility: Designed to operate in a compact 0.75 cu. ft. (21.2 l) sealed enclosure
- Ported Enclosure Compatibility: Can also operate in a 1.50 cu. ft. (42.5 l) ported enclosure
- Deep Bass Response: Long excursion capability and rugged suspension systems for deep, powerful bass
- Amplifier Compatibility: Best used with amplifier power in the 75-250 W range
- Made in the USA: Manufactured in JL Audio’s Miramar, Florida factory with global components and materials
- Sold Individually: Each unit is sold separately
Technical Specifications:
- Continuous Power Handling (RMS): 250 W
- Nominal Impedance (Znom): 4 Ω
- Nominal Diameter: 10.0 in / 250 mm
- Overall Diameter (A): 10.75 in / 273 mm
- Bolt Hole Circle Diameter (B): 9.70 in / 247 mm
- Frontal Grilles Protrusion (C): 1.66 in / 42 mm
- Mounting Hole Diameter (D): 8.875 in / 225 mm
- Mounting Depth (E): 5.90 in / 150 mm
- Driver Displacement: 0.052 cu ft / 1.47 L
- Net Weight: 12.60 lb / 5.70 kg
Parameters:
- Free Air Resonance (Fs): 34.58 Hz
- Electrical “Q” (Qes): 0.522
- Mechanical “Q” (Qms): 9.78
- Total Speaker “Q” (Qts): 0.496
- Equivalent Compliance (Vas): 1.22 cu ft / 34.49 L
- One-Way Linear Excursion (Xmax): 0.52 in / 13.2 mm
- Reference Efficiency (no): 0.28%
- Efficiency (1 W / 1 m): 86.4 dB SPL
- Effective Piston Area (Sd): 50.11 sq in / 0.0323 sq m
- DC Resistance (Re): 3.619 Ω
Sealed Enclosure Specifications:
- Wall Thickness: 0.75 in / 19 mm
- Front Baffle Thickness: 0.75 in / 19 mm
- Volume (net internal): 0.75 cu ft / 21.2 L
- External Width (W): 17 in / 432 mm
- External Height (H): 17 in / 432 mm
- External Depth (D): 7.25 in / 184 mm
- F3: 41.54 Hz
- Fc: 53.41 Hz
- Qtc: 0.8035
Ported Enclosure Specifications:
- Wall Thickness: 0.75 in / 19 mm
- Front Baffle Thickness: 0.75 in / 19 mm
- Volume (net internal): 1.50 cu ft / 42.5 L
- External Width (W): 17 in / 432 mm
- External Height (H): 17 in / 432 mm
- External Depth (D): 13.125 in / 333 mm
- Internal Port Diameter (ID): 3 in / 76 mm
- Port Length (L): 11.125 in / 283 mm
- Tuning Frequency (Fb): 31 Hz
- F3: 29.81 Hz
- UPC: 699440936446
- Weight: 16.01
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
