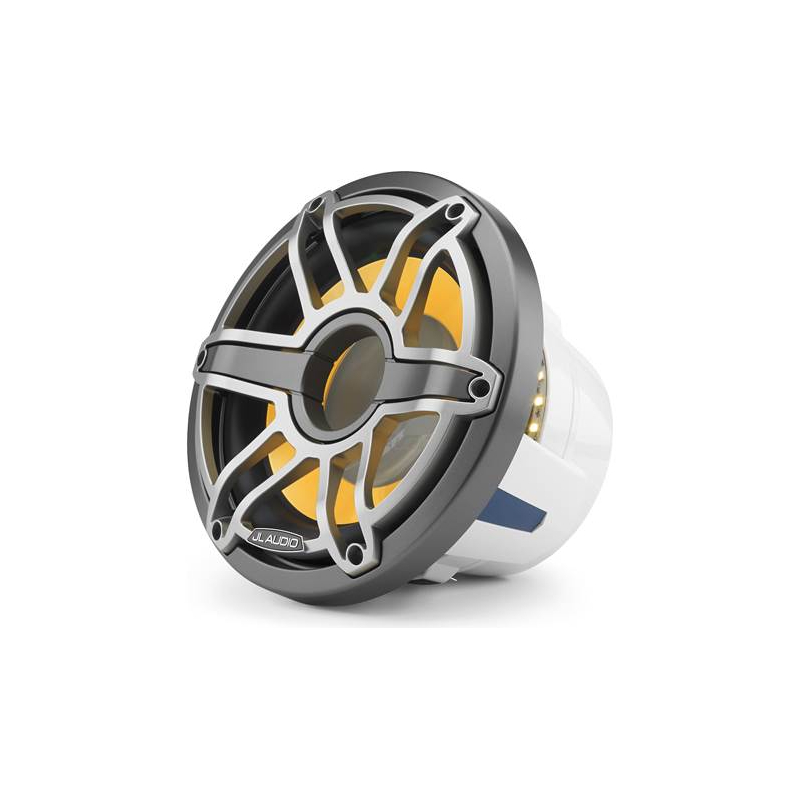

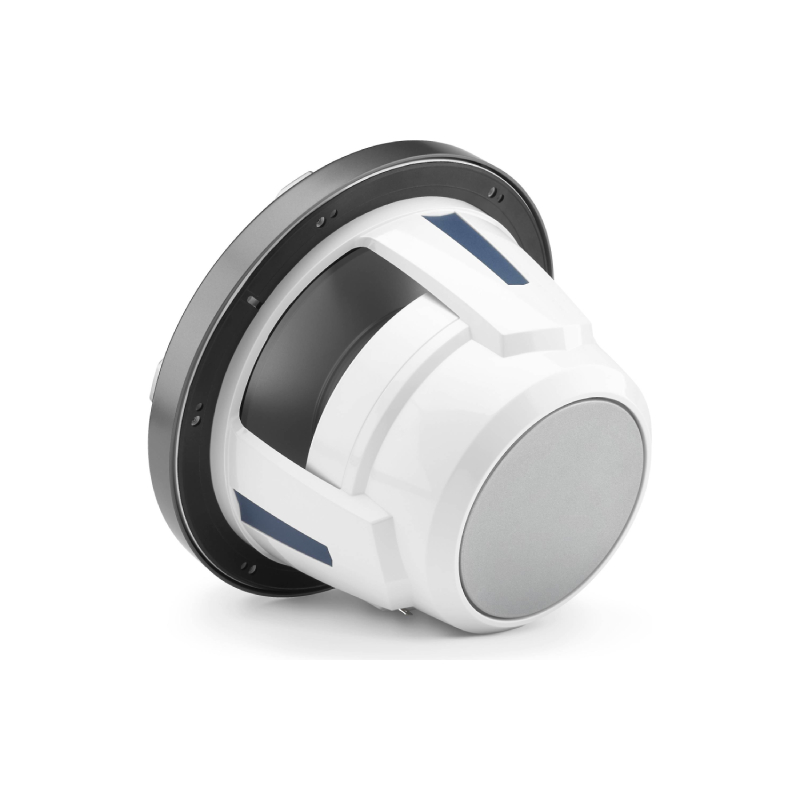

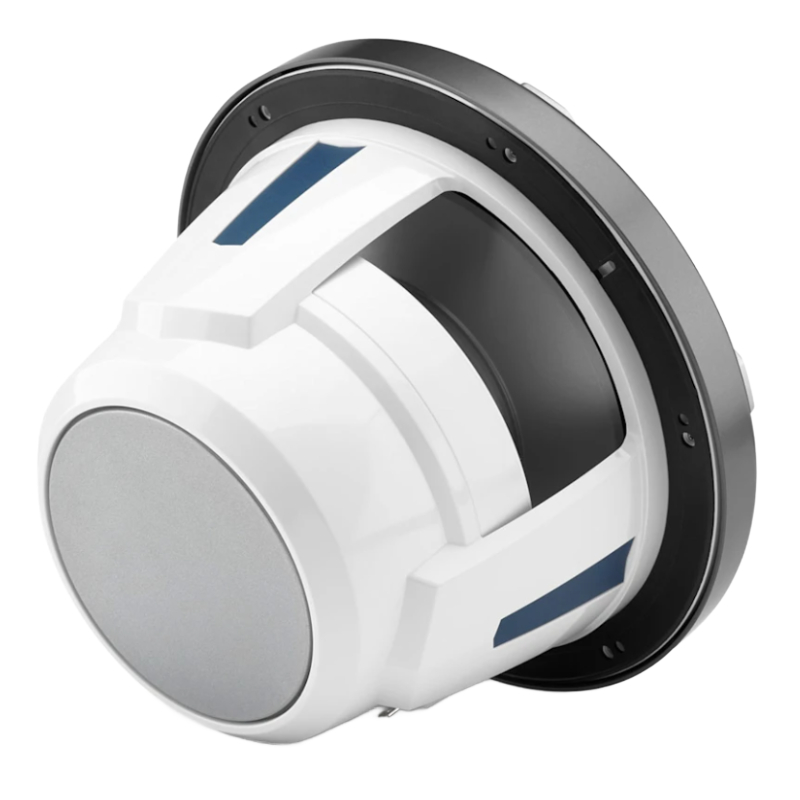

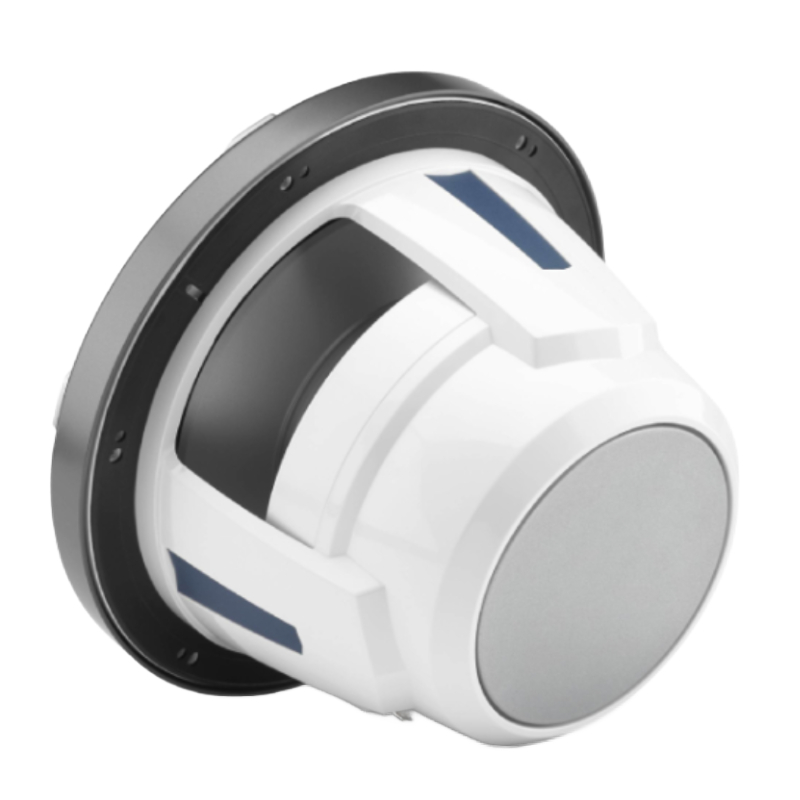

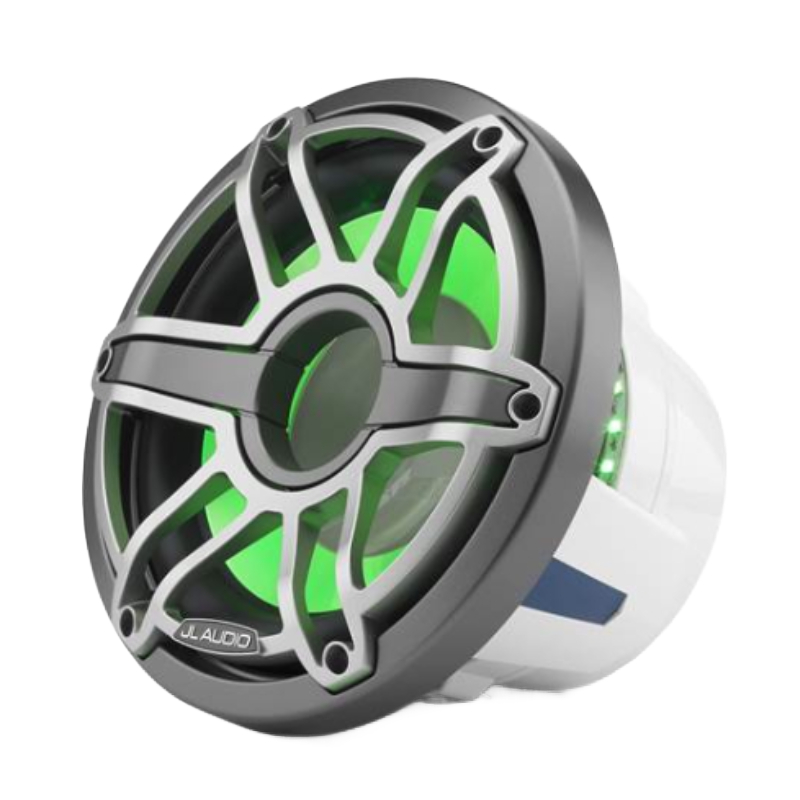

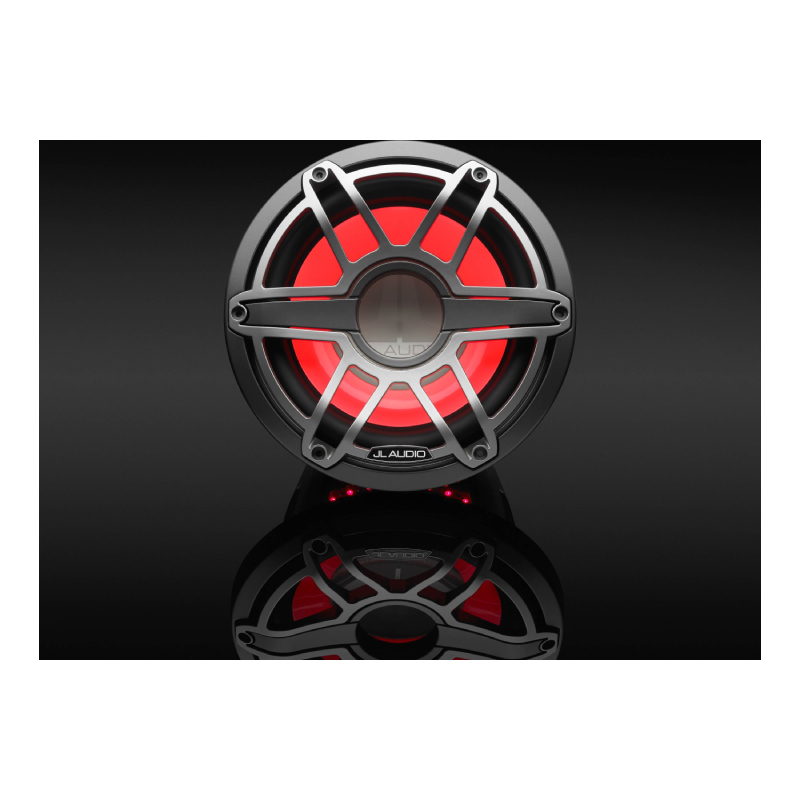

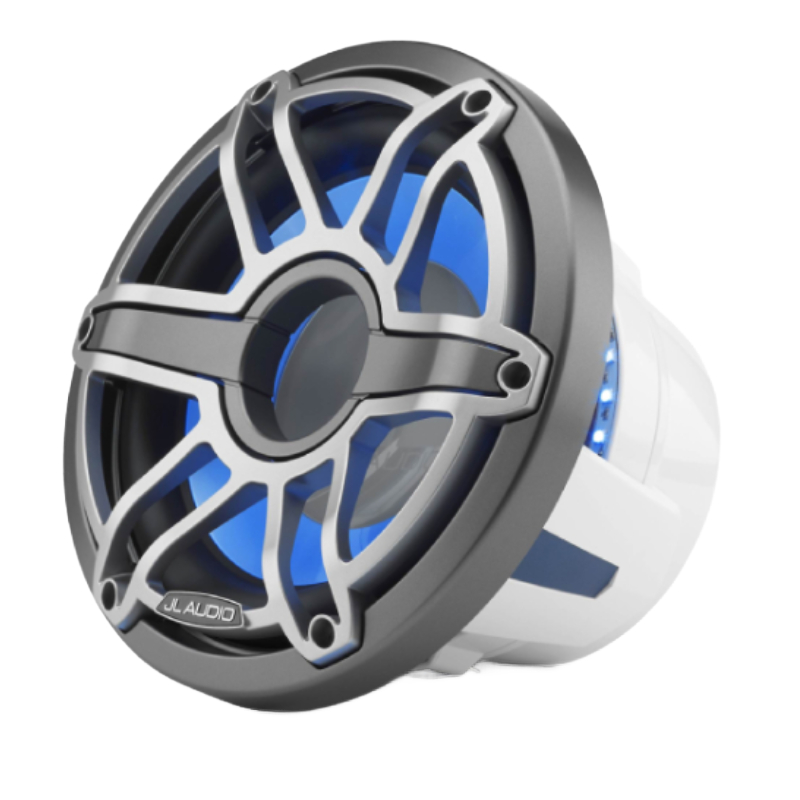

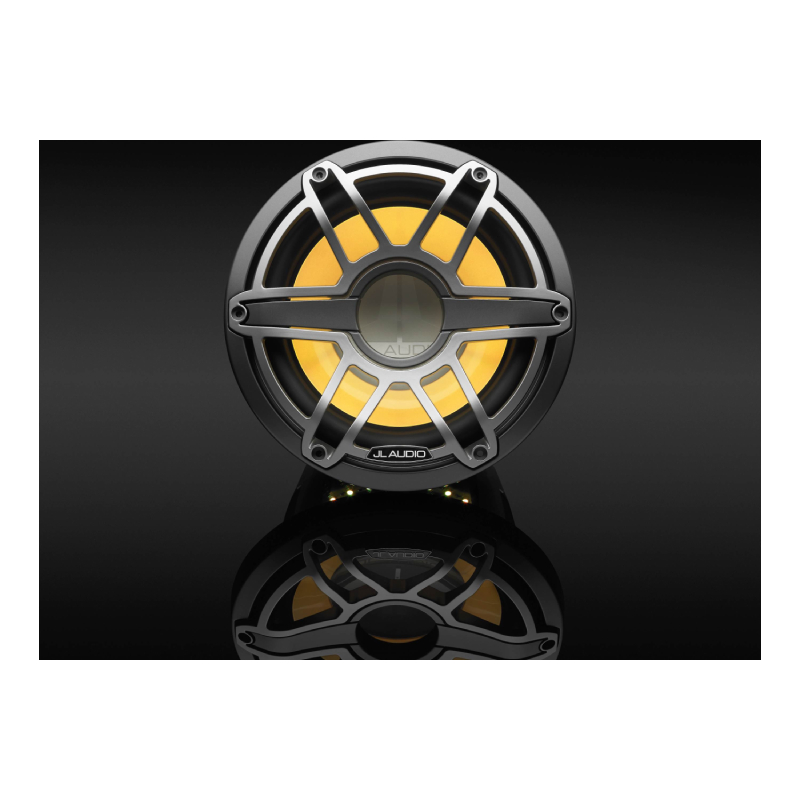

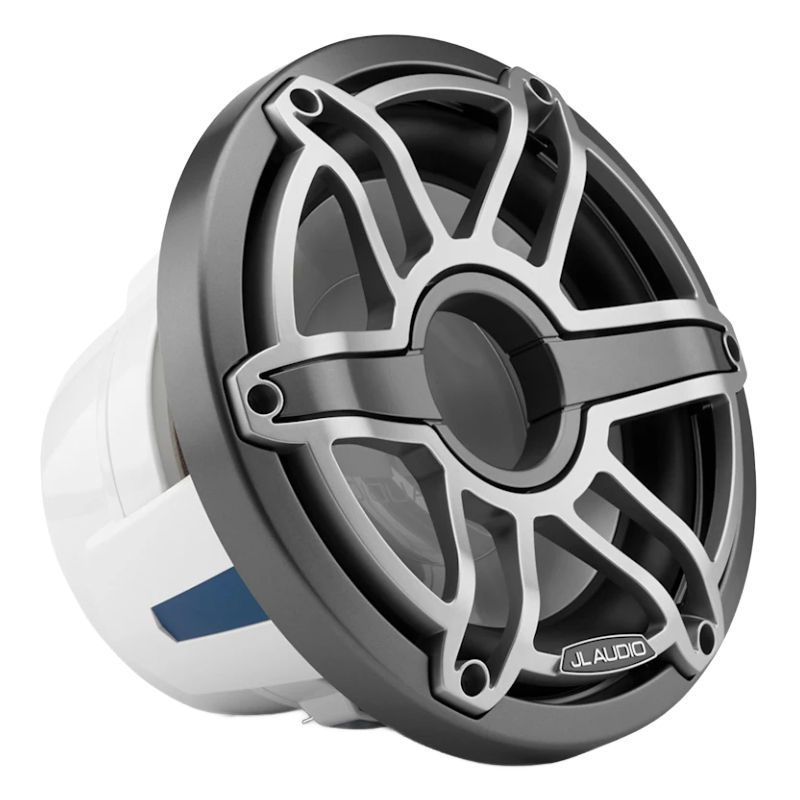

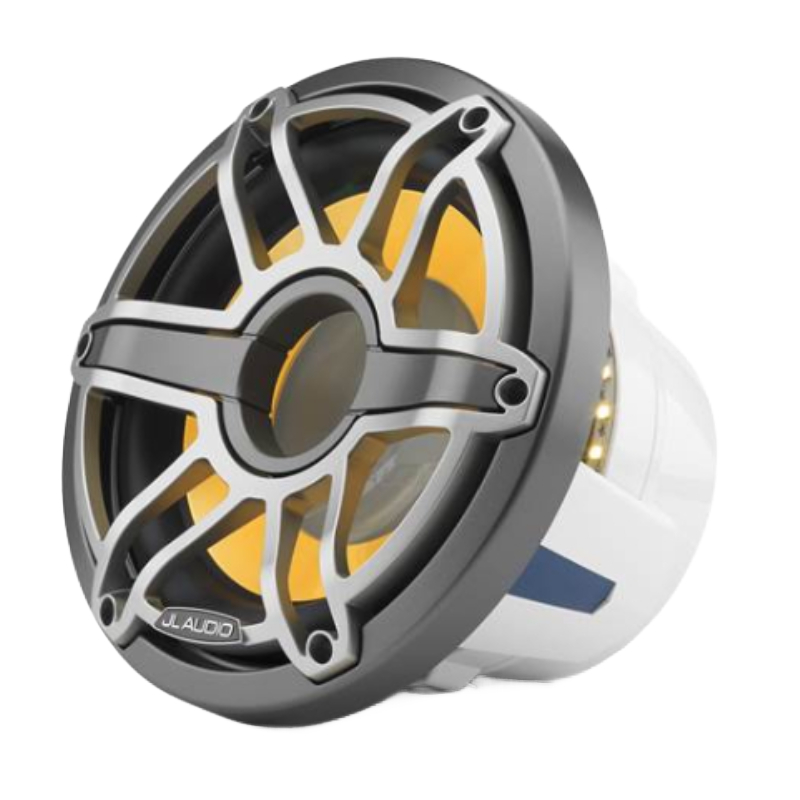

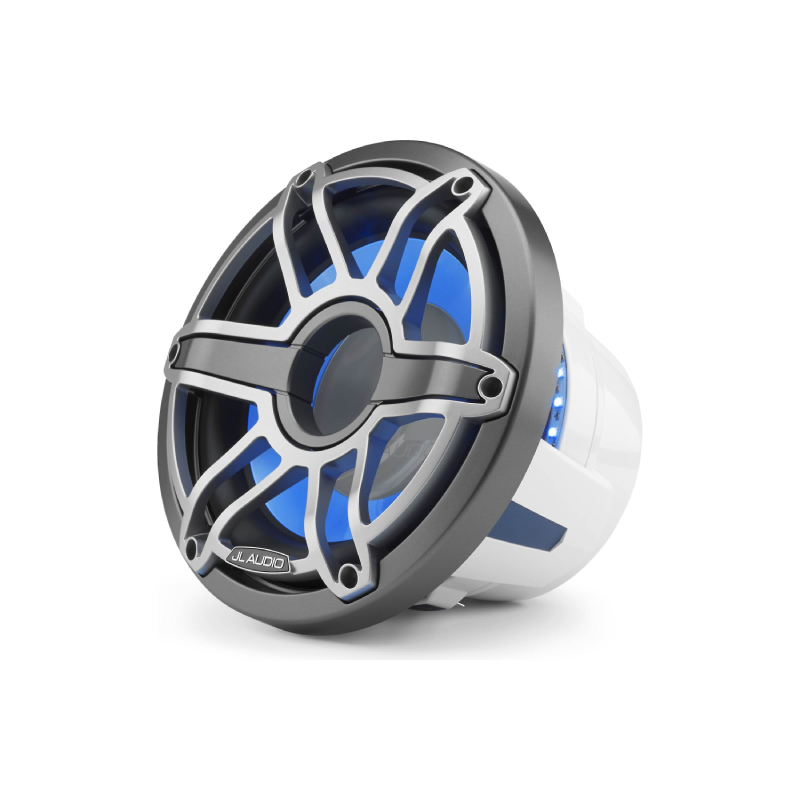

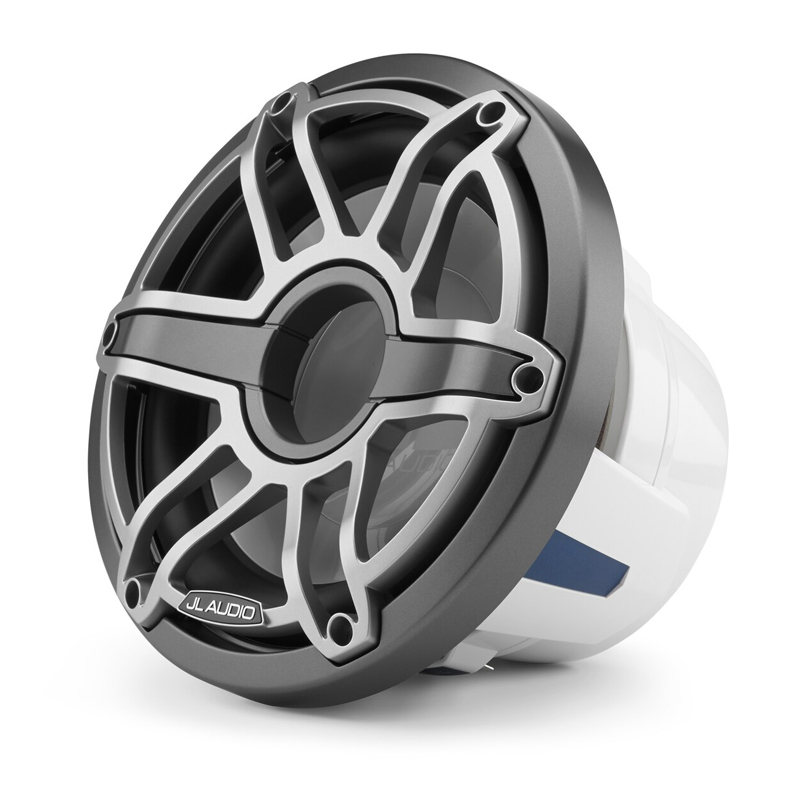

JL Audio M6-10W-S-GmTi-4 M6 Series 10" 250W RMS 4 Ohm, Marine Subwoofer with Gunmetal Trim and Titanium Grille
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" 250W RMS Marine Subwoofer with Gunmetal Trim and Titanium Grille
- • Grille
- • (6) 1-5/8" Stainless-steel screws
- • (6) Stainless-steel flat washers
- • Owner's Manual
Allows Your Whole System to Play Louder
The JL Audio M6-10W-S-GmTi-4 is a marine subwoofer that combines powerful bass performance with rugged durability for boat and outdoor audio systems. Designed to deliver impressive low-frequency output, this subwoofer is built to withstand the challenging marine environment.
Featuring a 10-inch woofer, the M6-10W-S-GmTi-4 can handle up to 250 watts of continuous power, producing deep and impactful bass. With its 4-ohm impedance, it is compatible with a wide range of amplifiers and audio setups.
Built for Real Marine Duty
The subwoofer's cone is constructed from a mica-filled polypropylene material, offering excellent stiffness and resistance to moisture, UV rays, and temperature fluctuations. This ensures reliable performance even in harsh marine conditions.

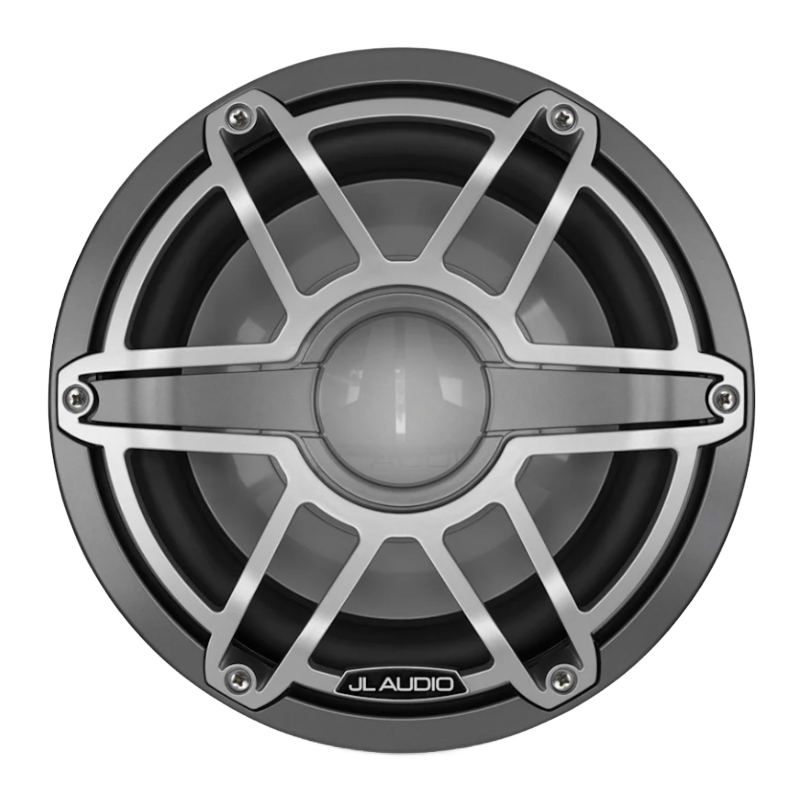

The M6-10W-S-GmTi-4 features a gunmetal sport grille and a titanium grille insert, giving it a sleek and stylish appearance while providing protection to the subwoofer. The grille is designed to withstand the marine environment and adds a touch of elegance to any boat's audio system.
Deliver Years of Listening Enjoyment
This subwoofer is optimized for Infinite-Baffle installations, allowing it to be mounted directly into a boat's hull or bulkhead without requiring a dedicated enclosure. This design maximizes bass output and saves space onboard.
The JL Audio M6-10W-S-GmTi-4 is a high-performance marine subwoofer that combines impressive bass reproduction, durability, and a stylish design. It is an excellent choice for boat owners seeking powerful and reliable bass in their audio systems on the water.
- Diameter : 10 Inch
- Sensitivity : 86.1 dB
- Impedance : 4 Ohm
- RMS Power Range : 250 Watts
- Color : White
Features:
- Marine Subwoofer: 10-inch M6 subwoofer designed for enclosed use
- Power Handling: 250 W power handling and 4 Ω impedance
- Aesthetic Design: Gray metallic trim ring and titanium sport grille
- Enhanced Audio Performance: Allows main speakers to play louder and sound cleaner by offloading low frequencies
- Marine-Grade Durability: Built to withstand saltwater marine environments for long-lasting performance
- Compact Sealed Enclosure Compatibility: Designed to operate in a compact 0.75 cu. ft. (21.2 l) sealed enclosure
- Ported Enclosure Compatibility: Can also operate in a 1.50 cu. ft. (42.5 l) ported enclosure
- Deep Bass Response: Long excursion capability and rugged suspension systems for deep, powerful bass
- Amplifier Compatibility: Best used with amplifier power in the 75-250 W range
- Detailed Enclosure Recommendations: Detailed recommendations available in the "Specifications" tab
- Made in the USA: Manufactured in JL Audio’s Miramar, Florida factory with global components and materials
- Sold Individually: Each unit is sold separately
Specifications:
- Nominal Diameter: 10 in / 250 mm
- Outer Diameter: 10.75 in / 273 mm
- Bolt Hole Circle: 9.7 in / 247 mm
- Frontal Grille Protrusion: 1.66 inches for Classic Grille, 1.66 inches for Sport Grille
- Mounting Hole Diameter: 8.875 in / 225 mm
- Net Weight: 12.6 lbs / 5.7 kg
- Driver Displacement: 0.052 ft³ / 1.47 liters
Paramaters:
- Free Air Resonance (Fs): 34.58 Hz
- Electrical “Q” (Qes): 0.522
- Mechanical “Q” (Qms): 9.78
- Total Speaker “Q” (Qts): 0.496
- Equivalent Compliance (Vas): 1.22 ft³ / 34.49 liters
- One-way, Linear Excursion (Xmax): 0.52 in / 13.2 mm
- Efficiency (1W/1m): 86.4 dB SPL
- Effective Piston Area (Sd): 50.11 in² / 0.0323 m²
- DC Resistance (Re): 3.619 ohm
- Nominal Impedance: 4 Ohm
- Infinite Baffle Use: No
- Enclosure Use: Yes (Sealed & Ported)
- Power Handling (continuous): 250W
Sealed Enclosure Specifications:
- Wall Thickness: 0.75 in / 19 mm
- Front Baffle Thickness: 0.75 in / 19 mm
- Volume (net internal): 0.75 cu ft / 21.2 L
- External Width (W): 17 in / 432 mm
- External Height (H): 17 in / 432 mm
- External Depth (D): 7.25 in / 184 mm
- F3: 41.54 Hz
- Fc: 53.41 Hz
- Qtc: 0.8035
Ported Enclosure Specifications:
- Wall Thickness: 0.75 in / 19 mm
- Front Baffle Thickness: 0.75 in / 19 mm
- Volume (net internal): 1.50 cu ft / 42.5 L
- External Width (W): 17 in / 432 mm
- External Height (H): 17 in / 432 mm
- External Depth (D): 13.125 in / 333 mm
- Internal Port Diameter (ID): 3 in / 76 mm
- Port Length (L): 11.125 in / 283 mm
- Tuning Frequency (Fb): 31 Hz
- F3: 29.81 Hz
- UPC: 699440936460
- Weight: 15.01
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
