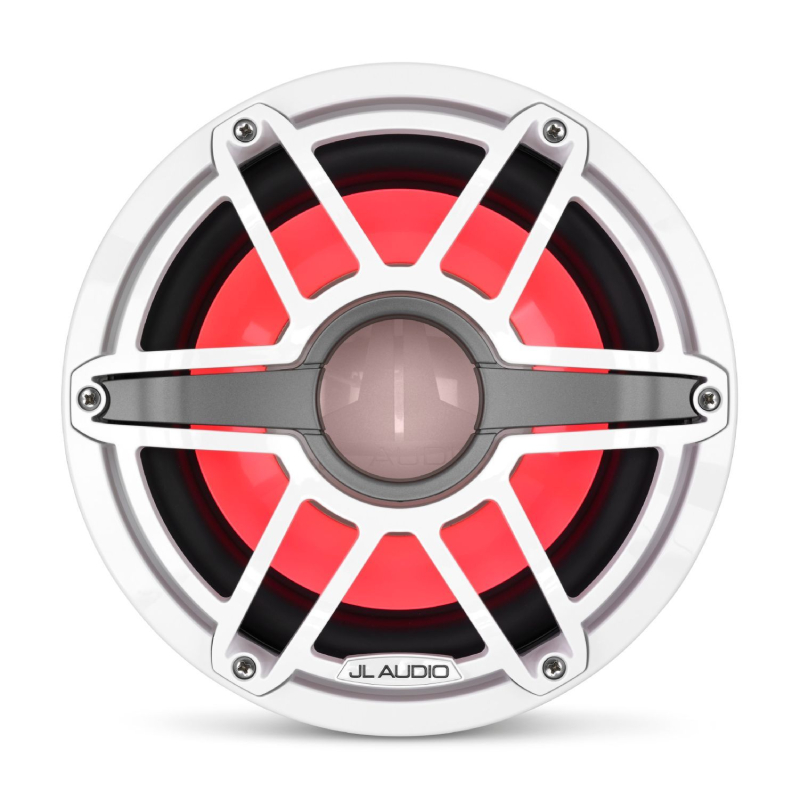

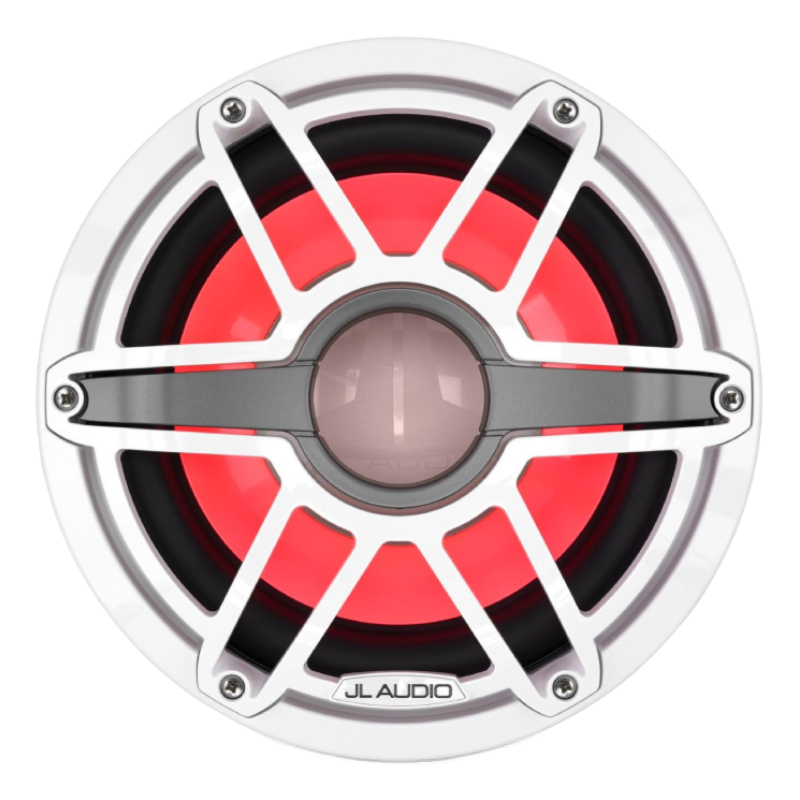

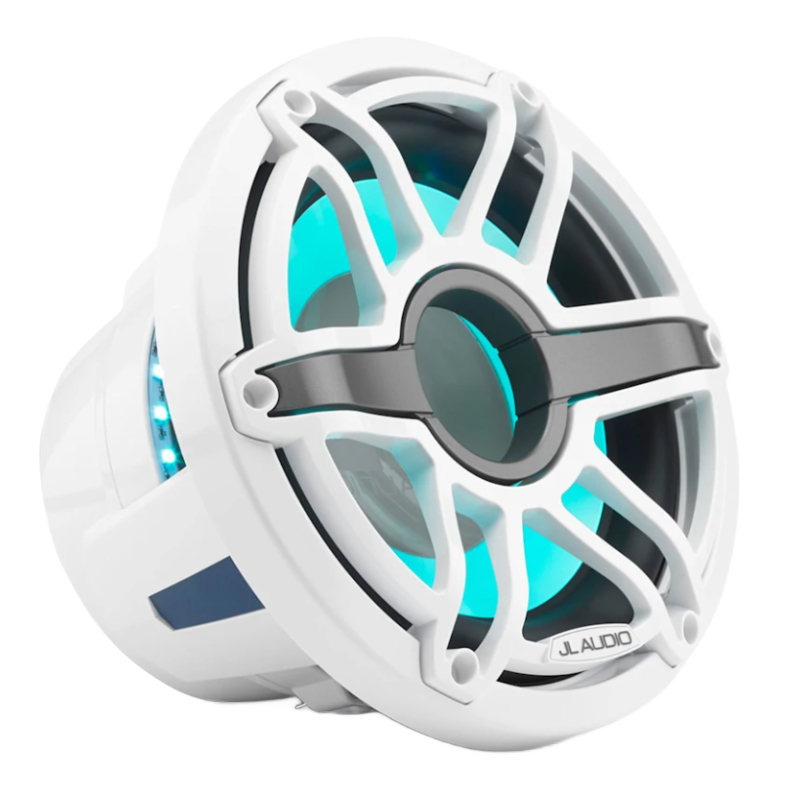

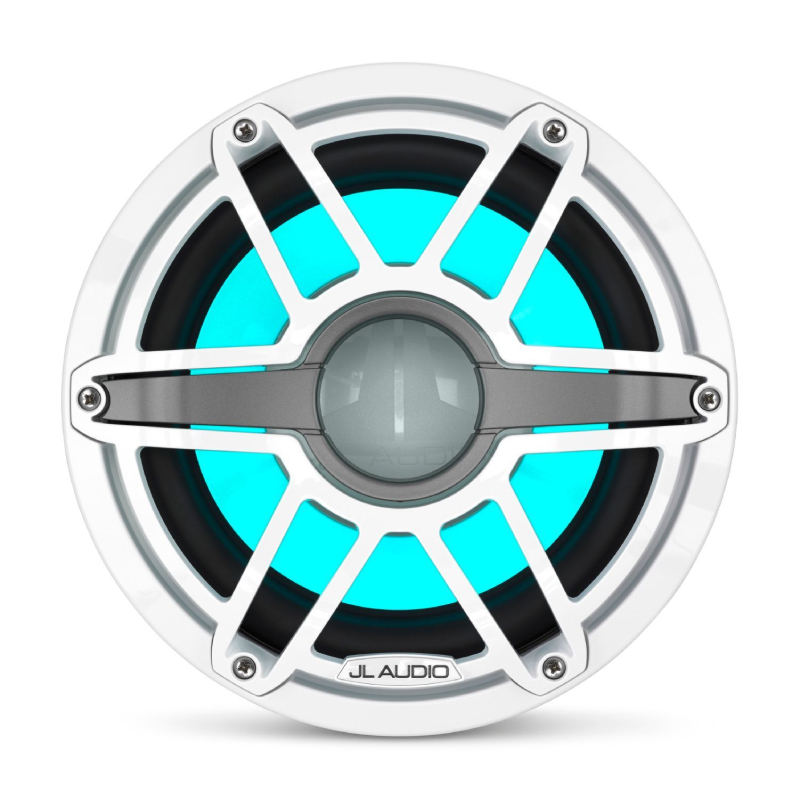

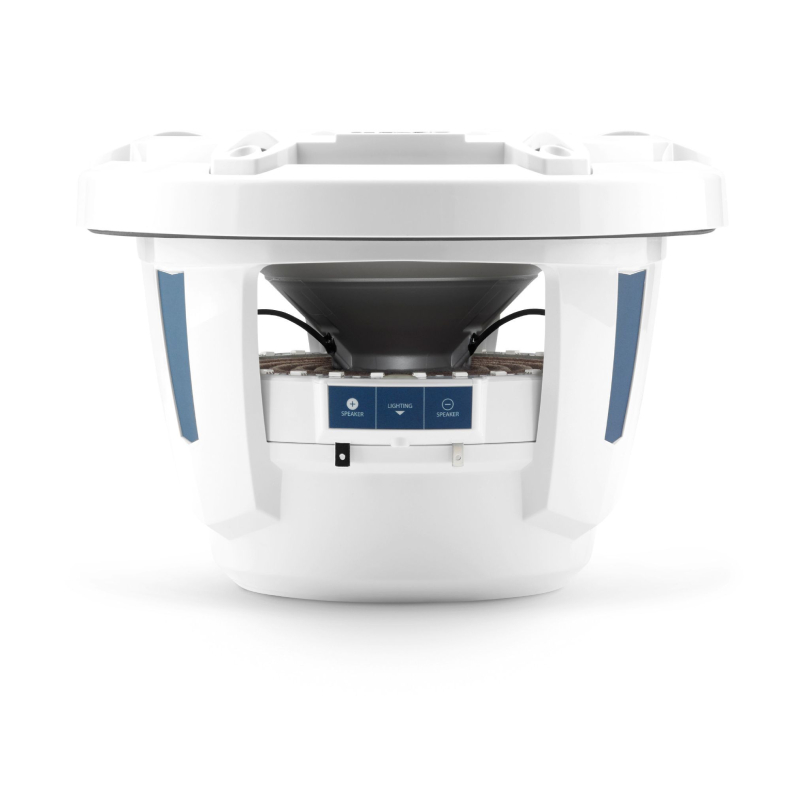

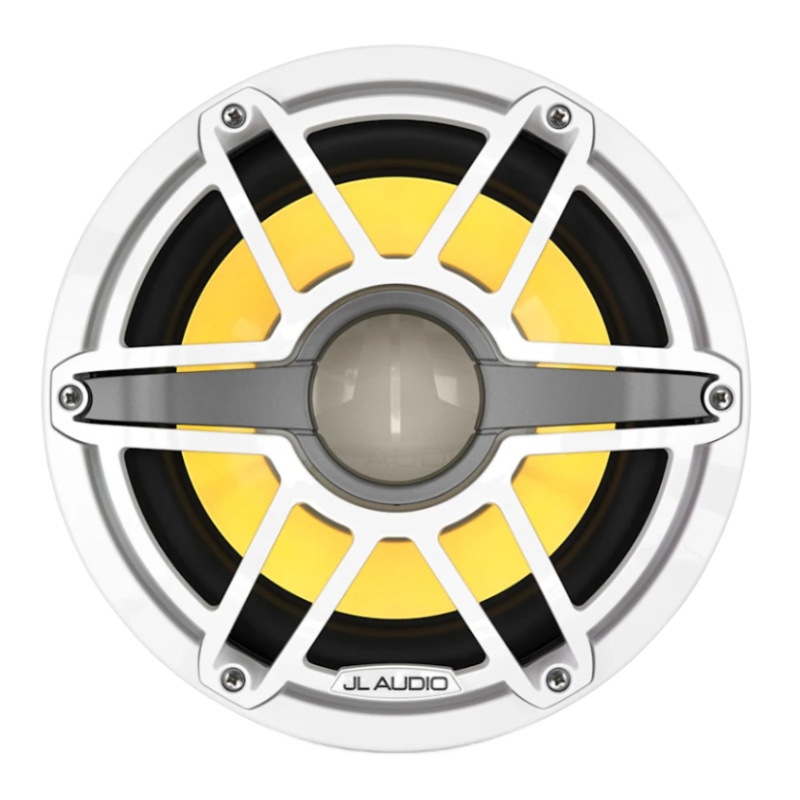

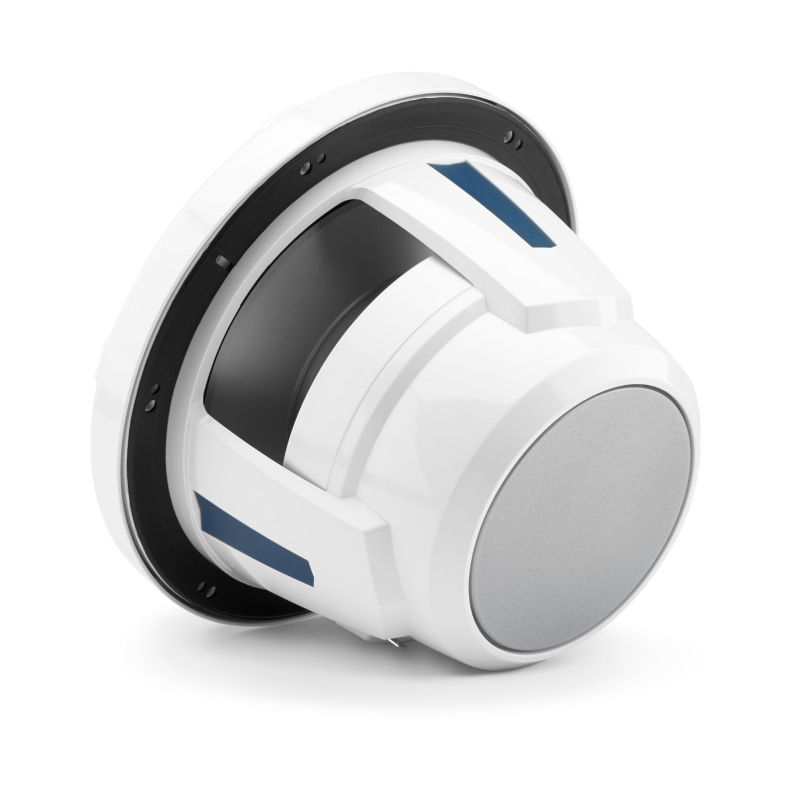

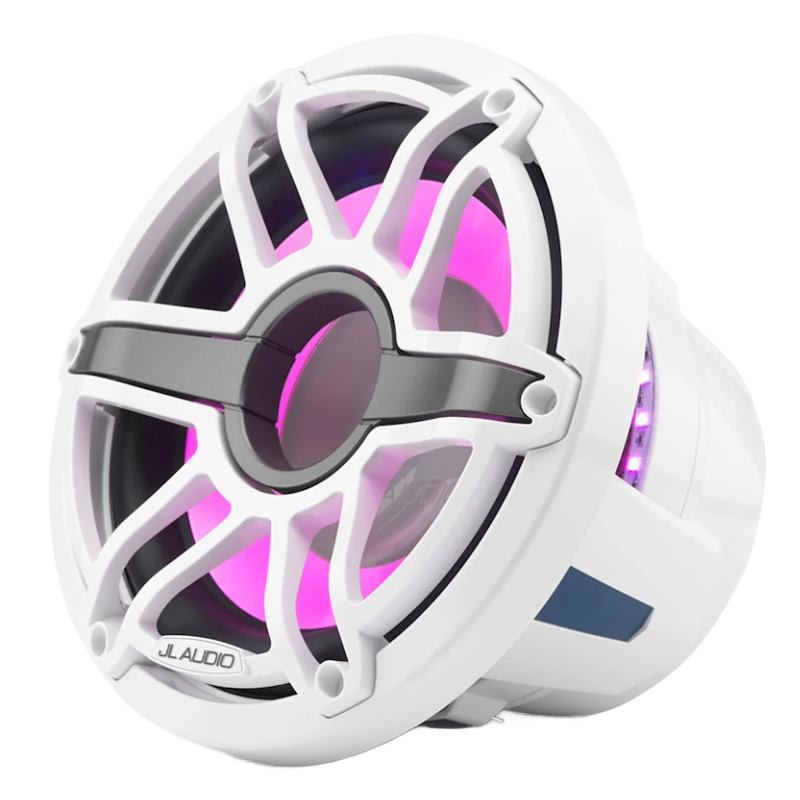

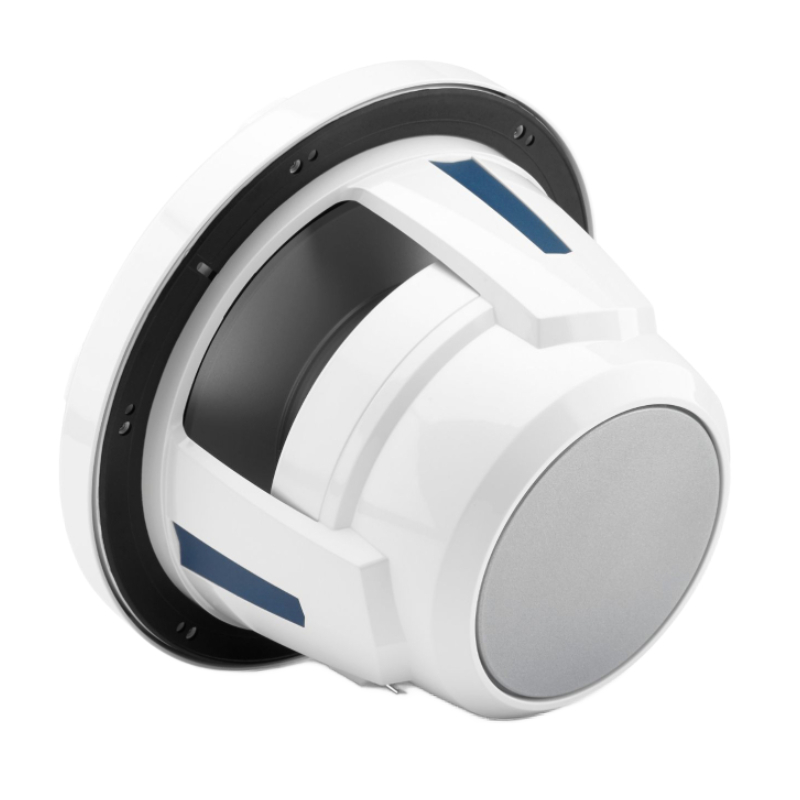

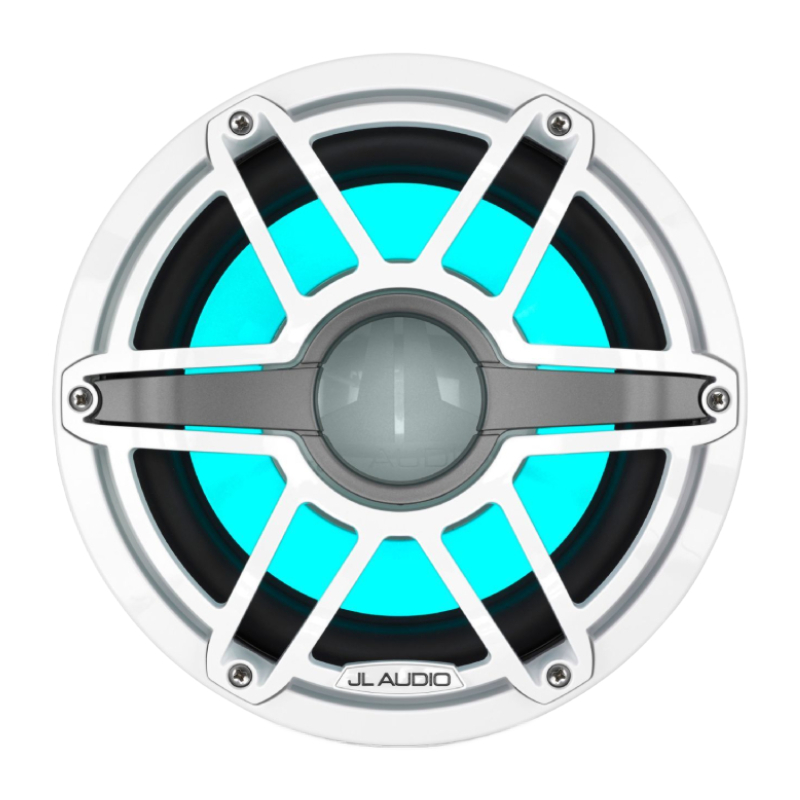

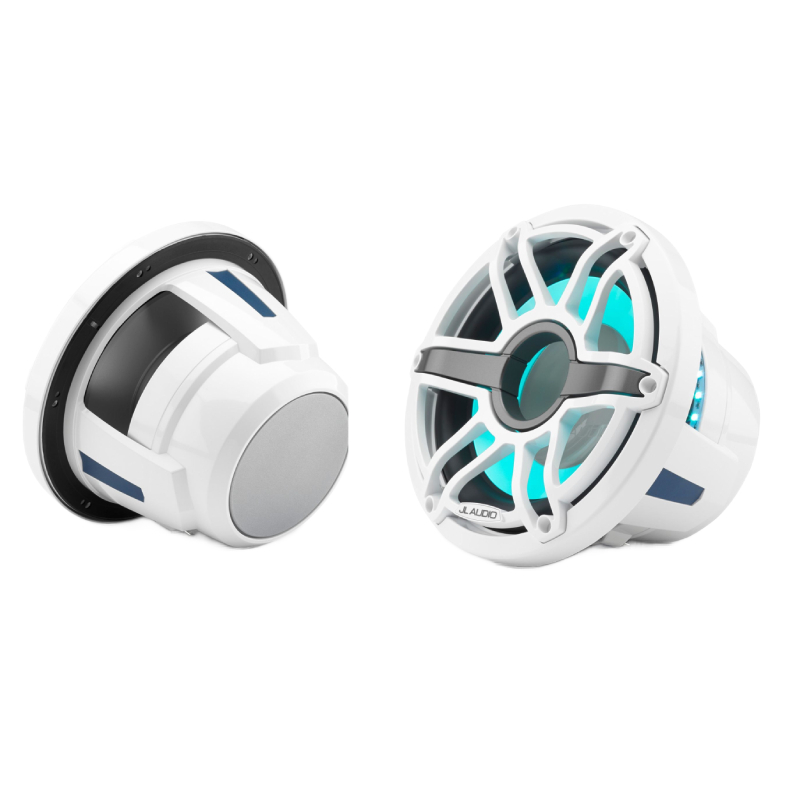

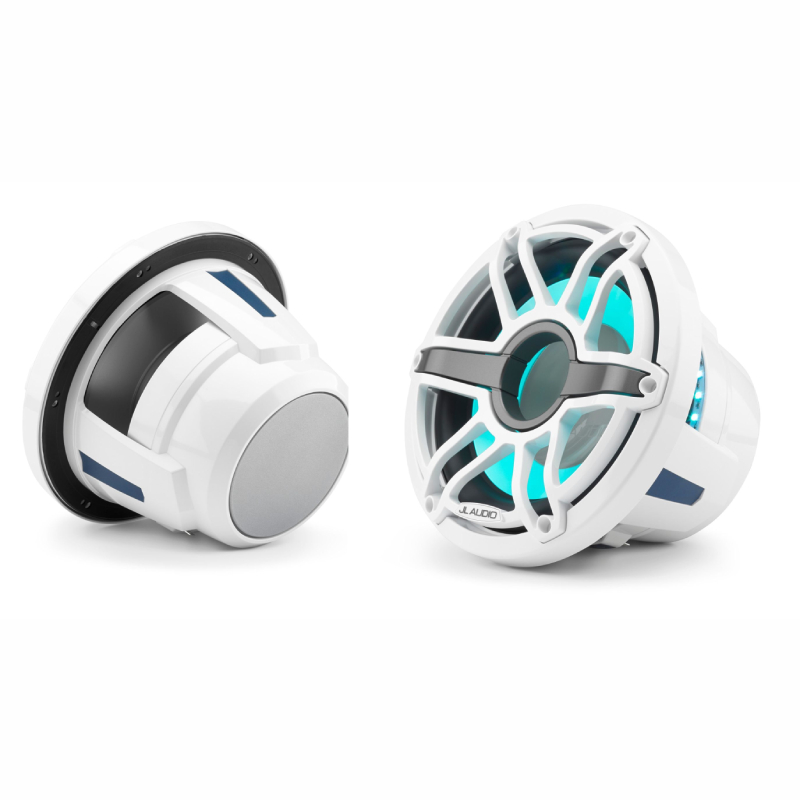

JL Audio M6-10W-S-GwGw-i-4 M6 Series 10" 250W RMS 4 Ohm, Marine Subwoofer with LED Light and Gloss White Sport Grille
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" 250W RMS 4 Ohm, Marine Subwoofer with LED Light
- • Grille
- • (6) 1-5/8" Stainless-steel screws
- • (6) Stainless-steel flat washers
- • Owner's Manual
Allows Your Whole System to Play Louder
M6 10-inch Marine Subwoofer with Transflective™ LED Lighting for Enclosed Use (250 W, 4 Ω) - Gloss White Trim Ring, Gloss White Sport Grille. With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
Built for Real Marine Duty
Purpose-engineered and built for real marine duty, The M6-10W is best used with amplifier power in the 75W - 250W range and is optimized to operate in a compact 0.75 cu. ft. (21.2 l) sealed enclosure, or a 1.50 cu. ft. (42.5 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab. If you need a Subwoofer that operates without a dedicated enclosure, select one of our Infinite Baffle Subwoofers instead.
Deliver Years of Listening Enjoyment
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment. Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials. Sold individually.
- Diameter : 10 Inch
- Sensitivity : 86.1 dB
- Impedance : 4 Ohm
- RMS Power Range : 250 Watts
- Color : White
Features:
- Model: M6 10-inch Marine Subwoofer with Transflective™ LED Lighting for Enclosed Use
- Power Handling: 250 W, 4 Ω
- Design: Gloss White Trim Ring, Gloss White Sport Grille
- System Benefit: Allows smaller main speakers to handle higher frequencies, improving overall system loudness and clarity
- Marine-Grade: Purpose-engineered for real marine duty
- Enclosure Compatibility: Optimized for 0.75 cu. ft. (21.2 l) sealed or 1.50 cu. ft. (42.5 l) ported enclosure
- Amplifier Power Range: Best used with 75W - 250W amplifier
- Construction: Designed for long excursion and rugged suspension systems for deep, powerful bass
- Environmental Resistance: Built to withstand saltwater marine environments
- Manufacturing: Produced in JL Audio’s Miramar, Florida factory with global components and materials
- Packaging: Sold individually
Physical Specifications:
- Nominal Diameter: 10.0 in / 250 mm
- Overall Diameter (A): 10.75 in / 273 mm
- Bolt Hole Circle Diameter (B): 9.70 in / 247 mm
- Frontal Grilles Protrusion* (C): 1.66 in / 42 mm
- Mounting Hole Diameter (D): 8.875 in / 225 mm
- Mounting Depth (E): 5.90 in / 150 mm
- Driver Displacement: 0.052 cu ft / 1.47 L
- Net Weight: 12.60 lbs / 5.70 kg
Parameters:
- Free Air Resonance (Fs): 34.58 Hz
- Electrical “Q” (Qes): 0.522
- Mechanical “Q” (Qms): 9.78
- Total Speaker “Q” (Qts): 0.496
- Equivalent Compliance (Vas): 1.22 ft³ / 34.49 litres
- One-way, Linear Excursion (Xmax): 0.52 in / 13.2 mm
- Efficiency (1W/1m): 86.4 dB SPL
- Effective Piston Area (Sd): 50.11 in² / 0.0323 m²
- DC Resistance (Re): 3.619 ohm
- Nominal Impedance: 4 Ohm
- Infinite Baffle Use: No
- Enclosure Use: Yes (Sealed & Ported)
- Power Handling (continuous): 250W
Sealed Enclosure Specifications:
- Wall Thickness: 0.75 in / 19 mm
- Front Baffle Thickness: 0.75 in / 19 mm
- Volume (Net Internal): 0.75 cu ft / 21.2 L
- External Width (W): 17 in / 432 mm
- External Height (H): 17 in / 432 mm
- External Depth (D): 7.25 in / 184 mm
- F3 (3 dB Down Frequency): 41.54 Hz
- Fc (Cutoff Frequency): 53.41 Hz
- Qtc (Total System Q): 0.8035
Ported Enclosure Specifications:
- Wall Thickness: 0.75 in / 19 mm
- Front Baffle Thickness: 0.75 in / 19 mm
- Volume (Net Internal): 1.50 cu ft / 42.5 L
- External Width (W): 17 in / 432 mm
- External Height (H): 17 in / 432 mm
- External Depth (D): 13.125 in / 333 mm
- Internal Port Diameter (ID): 3 in / 76 mm
- Port Length (L): 11.125 in / 283 mm
- Tuning Frequency (Fb): 31 Hz
- F3 (3 dB Down Frequency): 29.81 Hz
- UPC: 699440936453
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
