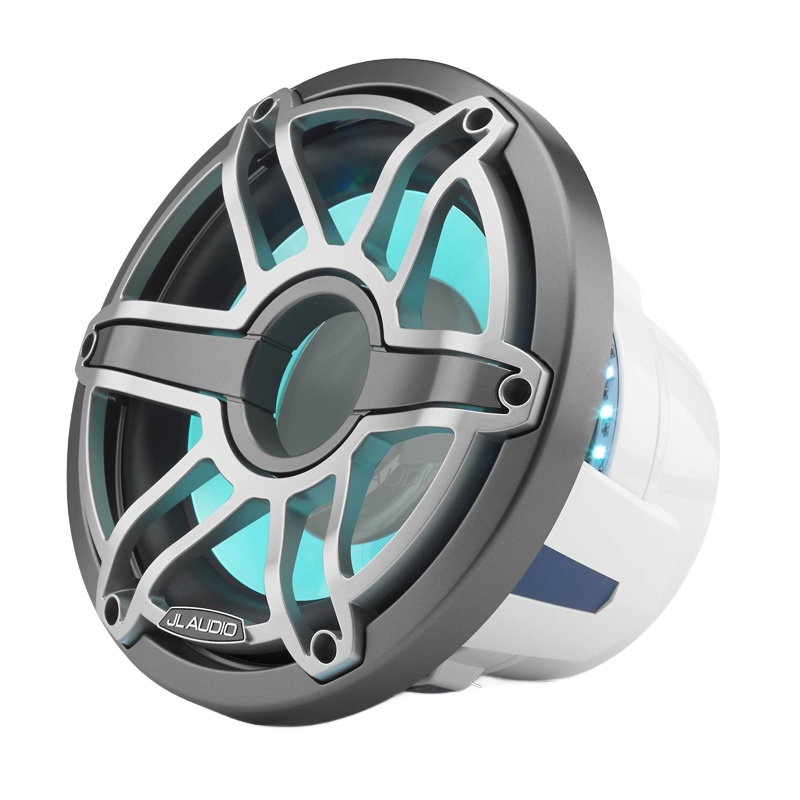

JL Audio M6-10W-S-GmTi-i-4 M6 Series 10" 250W RMS 4 Ohm, Marine Subwoofer with LED Light, Gunmetal Sport Grille, and Titanium Grille Insert
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" 250W RMS 4 Ohm, Marine Subwoofer with LED Light
- • Grille
- • (6) 1-5/8" Stainless-steel screws
- • (6) Stainless-steel flat washers
- • Owner's Manual
Allows Your Whole System
M6 10-inch Marine Subwoofer with Transflective™ LED Lighting for Enclosed Use (250 W, 4 Ω) - Gray Metallic Trim Ring, Titanium Sport Grille. With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
Built for Real Marine Duty
Purpose-engineered and built for real marine duty, The M6-10W is best used with amplifier power in the 75W - 250W range and is optimized to operate in a compact 0.75 cu. ft. (21.2 l) sealed enclosure, or a 1.50 cu. ft. (42.5 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab. If you need a Subwoofer that operates without a dedicated enclosure, select one of our Infinite Baffle Subwoofers instead.
Deliver Years of Listening Enjoyment
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment. Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials. Sold individually.
- Diameter : 10 Inch
- Sensitivity : 86.1 dB
- Impedance : 4 Ohm
- RMS Power Range : 250 Watts
- Color : White
Features:
- Marine Subwoofer: 10-inch M6 subwoofer designed for enclosed use
- Power Handling: 250 W power handling and 4 Ω impedance
- Aesthetic Design: Gray metallic trim ring and titanium sport grille
- Transflective™ LED Lighting: Integrated LED lighting for enhanced visual appeal
- Enhanced Audio Performance: Allows main speakers to play louder and sound cleaner by offloading low frequencies
- Marine-Grade Durability: Built to withstand saltwater marine environments for long-lasting performance
- Compact Sealed Enclosure Compatibility: Designed to operate in a compact 0.75 cu. ft. (21.2 l) sealed enclosure
- Ported Enclosure Compatibility: Can also operate in a 1.50 cu. ft. (42.5 l) ported enclosure
- Deep Bass Response: Long excursion capability and rugged suspension systems for deep, powerful bass
- Amplifier Compatibility: Best used with amplifier power in the 75-250 W range
- Made in the USA: Manufactured in JL Audio’s Miramar, Florida factory with global components and materials
- Sold Individually: Each unit is sold separately
Physical Specifications:
- Nominal Diameter: 10 in / 250 mm
- Outer Diameter: 10.75 in / 273 mm
- Bolt Hole Circle: 9.7 in / 247 mm
- Frontal Grille Protrusion: 1.66 inches for Classic Grille, 1.66 inches for Sport Grille
- Mounting Hole Diameter: 8.875 in / 225 mm
- Net Weight: 12.6 lbs / 5.7 kg
- Driver Displacement: 0.052 ft³ / 1.47 liters
Parameters:
- Free Air Resonance (Fs): 34.58 Hz
- Electrical “Q” (Qes): 0.522
- Mechanical “Q” (Qms): 9.78
- Total Speaker “Q” (Qts): 0.496
- Equivalent Compliance (Vas): 1.22 ft³ / 34.49 liters
- One-way, Linear Excursion (Xmax): 0.52 in / 13.2 mm
- Efficiency (1W/1m): 86.4 dB SPL
- Effective Piston Area (Sd): 50.11 in² / 0.0323 m²
- DC Resistance (Re): 3.619 ohm
- Nominal Impedance: 4 Ohm
- Infinite Baffle Use: No
- Enclosure Use: Yes (Sealed & Ported)
- Power Handling (continuous): 250W
Sealed Enclosure Specifications:
- Wall Thickness: 0.75 in / 19 mm
- Front Baffle Thickness: 0.75 in / 19 mm
- Volume (net internal): 0.75 cu ft / 21.2 L
- External Width (W): 17 in / 432 mm
- External Height (H): 17 in / 432 mm
- External Depth (D): 7.25 in / 184 mm
- F3: 41.54 Hz
- Fc: 53.41 Hz
- Qtc: 0.8035
Ported Enclosure Specifications:
- Wall Thickness: 0.75 in / 19 mm
- Front Baffle Thickness: 0.75 in / 19 mm
- Volume (net internal): 1.50 cu ft / 42.5 L
- External Width (W): 17 in / 432 mm
- External Height (H): 17 in / 432 mm
- External Depth (D): 13.125 in / 333 mm
- Internal Port Diameter (ID): 3 in / 76 mm
- Port Length (L): 11.125 in / 283 mm
- Tuning Frequency (Fb): 31 Hz
- F3: 29.81 Hz
- UPC: 699440936477
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
