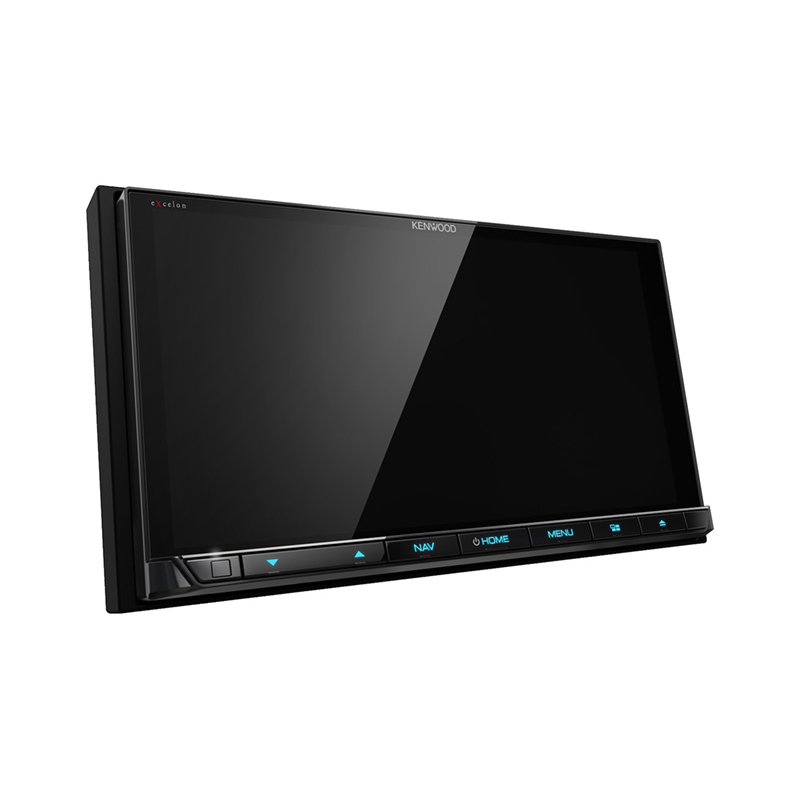

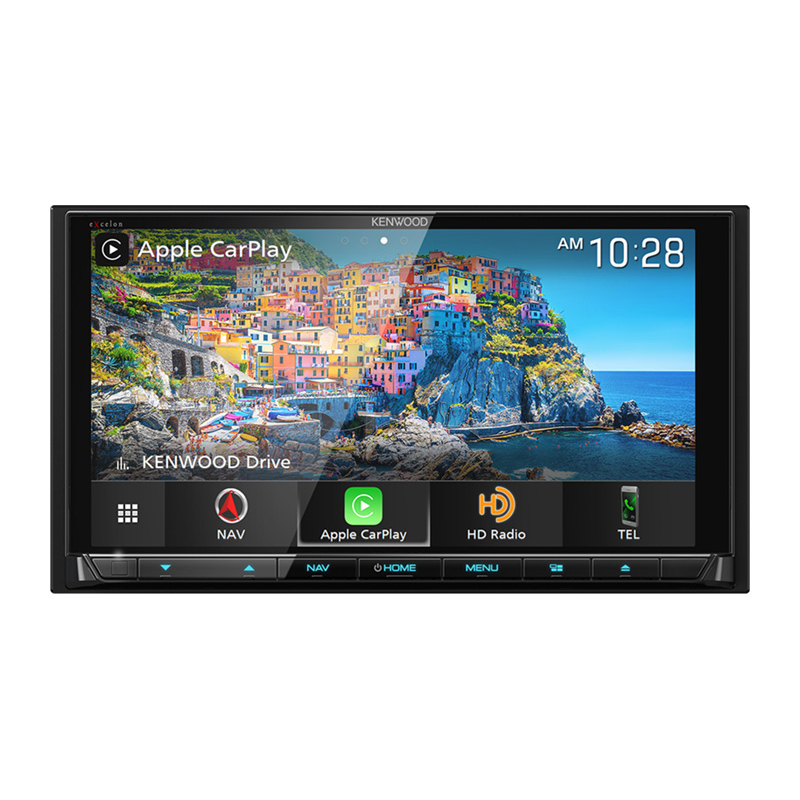

Kenwood Excelon DNX996XR 2-DIN 6.8" High Definition Capacitive Touch Panel Monitor
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Refurbished navigation receiver w/ electonic
- •Sleeve
- •Trim ring
- •Trim panel
- •Wiring harness
- •Two 39" USB extension cables
- •GPS antenna (
- •Microphone w/ bracket
- •7" Male minijack to female RCA adapter cable
- •Self-adhesive pad
- •2 Radio removal tools
- •6 Pan-head ISO-mount screws
- •6 Flat-head ISO-mount screws
- •Owner's Manual
Realistic Perspective of the Terrain
Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier such as Lane Assist.
With the Garmin 3D Terrain View, life-like map contours will be displayed at low zoom levels, giving you a realistic perspective of the terrain in available areas. Previously, users were limited to simply displaying the elevation and grade levels as text on a flat map. Now, true perspectives can be achieved in a 3D format! The mapping view will reflect the curves in real time.
Designed With Safety in Mind

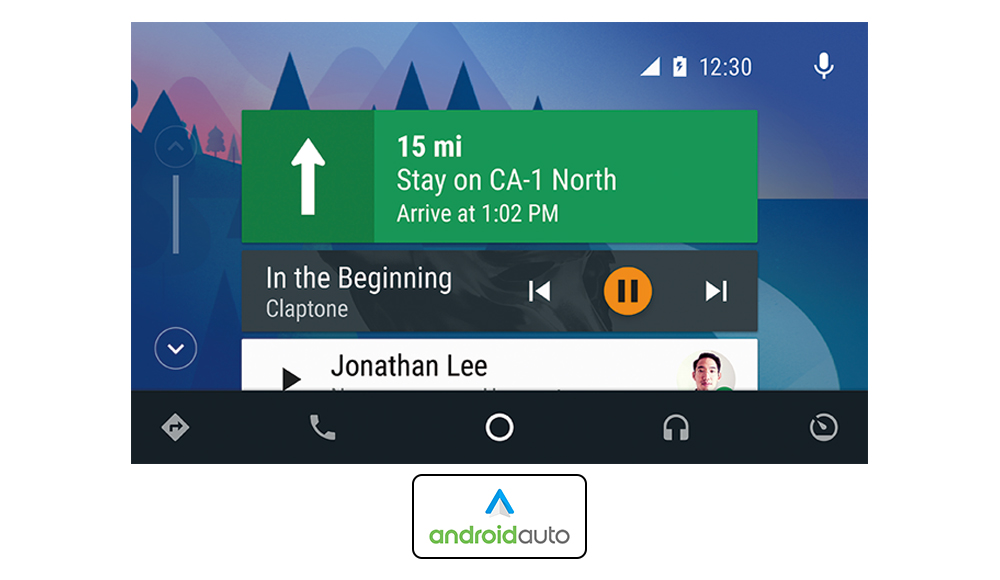

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD's multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. With the latest ANDROID OS version (PIE and higher), Google Maps™ and Waze™ are also supported. New KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).
Access and Control the Most Popular Music Application Sources
Connect your iPhone or Android device to access and control the most popular music application sources. Simply install the Spotify and/or Pandora apps on your device, then connect iPhone (USB or Bluetooth) or Android (Bluetooth only) to enjoy music playback.
Allows You to Stay Focused on the Road

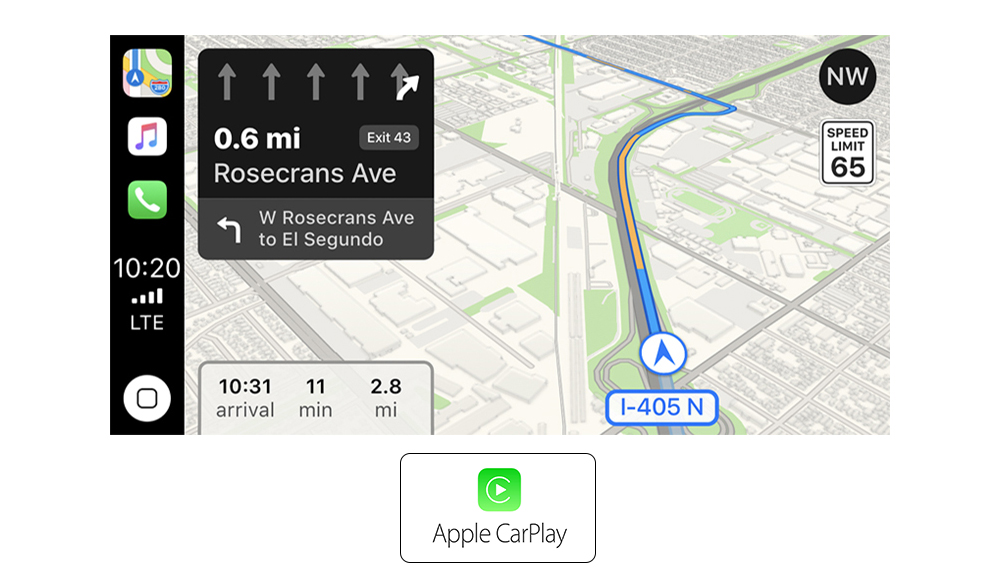

Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver's display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported. New KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).
- Maximum Power : 50 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 5 volts
- Display Size : 6.8 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Rear USB Input : 2
- Preamp Outputs : 6
- Voice Guidance : Yes
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Monitor Section
- Picture size: 6.75 inches(diagonal) wide
- W x H: 152.1 mm x 79.5 mm, 5-63/64 x 3-1/8 inch
- Display system: AAS LCD panel
- Drive system: TFT active matrix system
- Number of pixels: 2,764,800, 1280H x 720V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
DVD Section
- D/A Converter: 24 / 32Bit
- Audio Decoder:
- Linear PCM
- Dolby Audio
- MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
- Wow & Flutter: Below Measurable Limit
- Frequency response
- 96k Sampling: 20 - 44,000 Hz
- 48k Sampling: 20 - 22,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.010%
- Signal to Noise ratio: 98.5dB (DVD-Video 96k)
- Dynamic range: 89dB (DVD-Video 96k)
- DISC Format: DVD-Video / VIDEO-CD / CD-DA
- Quantifying bit number: 16 / 20 / 24bit
USB I/F Section
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32, exFAT, NTFS
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24/32Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
SD Section
- SD Standard: SD / SDHC / SDXC
- Compatible File System: FAT 16/32, exFAT, NTFS
- Capacity: Maximum 2T Byte
- Data Transfer Rate: Maximum 25MB/sec
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wireless Mirroring
- Mode: Sink
- Copyright protection: HDCP2.2
- Touch Control: UIBC
Wi-Fi
- IEEE Standard: 802.11 a/b/g/n/ac
- Frequency Range: Dual Band ( 2.4GHz / 5GHz )
- Channels:
- Auto(1-11ch)
- Auto(149,153,157,161ch)
- Transfer rates (MAX):
- 11a: 54 Mbps / 11b: 11 Mbps /
- 11g: 54 Mbps / 11n: 300 Mbps /
- 11ac: 867 Mbps
- Output Power 2.4GHz/SISO:
- 11b:14dBm±2dB / 11g:13dBm±2dB /
- 11n(20MHz):12dBm±2dB
- Output Power 5GHz/SISO:
- 11a:9dBm±2dB /
- 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /
- 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB /
- 11ac(80MHz):8dBm±2dB
- Output Power 5GHz/MIMO:
- 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /
- 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB /
- 11ac(80MHz):11dBm±2dB
Bluetooth Section
- Technology: Bluetooth Ver5.0
- Frequency: 2.402 – 2.480 GHz
- RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
- Profile:
- HFP (V1.7) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.6) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
DSP Section:
- Graphics equalizer
- BAND: 13Band
- frequency (Hz) (BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
- Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
- 2Way X'Over
- HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- 3Way X'Over
- HIGH PASS FILTER frequency: 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
- SLOPE: -12/-18/-24[dB/Oct.]
- Band PASS FILTER frequency: Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
- SLOPE: -12/-18/-24[dB/Oct.]
- LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/Through[Hz]
- SLOPE: -12/-18/-24[dB/Oct.]
- Position:
- Front / Rear /Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
- Gain: -8 to 0dB
- Subwoofer Level: -50 to +10dB
Digital FM
- Frequency Range (Frequency step): 87.9MHz - 107.9MHz (200kHz)
- Frequency Response (±3.0 dB): 20Hz - 20kHz
- S/N: 80dB (STEREO)
Digital AM
- Frequency Range (Frequency step): 530kHz - 1700kHz (10kHz)
- Frequency Response (±3.0 dB): 40Hz - 15kHz
- S/N: 80dB (STEREO)
FM
- Frequency Range (Frequency step): 87.9MHz - 107.9MHz (200kHz)
- Usable sensitivity: 9.3dBf
- S/N30dB: 0.8μV/75ohms
- Quieting sensitivity: 10.2dBf
- DIN S/N 46dB: 1.13μV / 75Ohms
- Frequency response (±3.0dB): 30Hz - 15kHz
- S/N (dB): 65dB (MONO)
- Selectivity Over 80dB (±400kHz)
- Stereo separation: 45dB (1kHz)
AM
- Frequency Range(Frequency step): 530kHz - 1700kHz (10kHz)
- Usable sensitivity: 28dBμ
Video
- Color system of external video input: NTSC/PAL
- External video input level (Mini jacks): 1 Vp-p / 75 Ohms
- External audio max input level (Mini jacks): 2 V / 25 kOhms
- Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
- Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
- Audio Output level (Mini jacks): 1.2 V / 10 kOhms
Audio
- Maximum Power Output (Front&Rear): 50Wx4
- Typical Power Output (Front&Rear):
- Full Bandwidth Power
- (at less than 1%THD)
- 22Wx4
- Output frequency band: 20 - 88,000Hz
- Preout level (V): 5V / 10kOhms
- Preout impedance (ohms): =< 300 Ohms
- Speaker Impedance (ohms): 4-8 Ohms
Navigation Section
- Receiver: High-sensitivity GNSS receiver
- Receiving frequency
- GPS:1575.42MHz
- GLONASS:1598.0625~1605.375MHz
- (C/A code)
- Acquisition Times:
- Cold: 26 seconds(typ)
- All satellites at -130dBm Without aiding
- Update Rate: 1/second, continuous
- Accuracy: Position: < 2.0meters,CEP, at -130dBm
- Accuracy: Velocity: 0.05meter/sec
- Positioning Method: GPS/GLONASS
- Antenna: External GNSS Antenna
General
- Operating voltage: 12V DC Car Battery
- Maximum Current consumption: 15A
- Installation Dimensions WxHxD: 178mm x 100mm x 160mm (7 x 3-15/16 x 6-5/16 inch)
- (with Sleeve): 182mm x 112mm x 163mm (7-3/16 x 4-7/16 x 6-7/16 inch)
- Operational temperature range: -10°C to +60°C
- Weight Main unit: 2.5 kg (5.5 lb)
- UPC: 019048226471
- Weight: 8
