X Series 50W RMS x 4 @4Ohms + 500 watts RMS x 1 @20hms (1600 Max Power) Class D 5-channel Power Amplifier
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •5-Channel amplifier
- •Three 30-amp ATC fuses (installed)
- •Terminal cover (installed)
- •8" Speaker level input harness
- •Four 5/8" Screws
- •Instruction manual (English/ French/ Spanish)
- •Owner's Manual

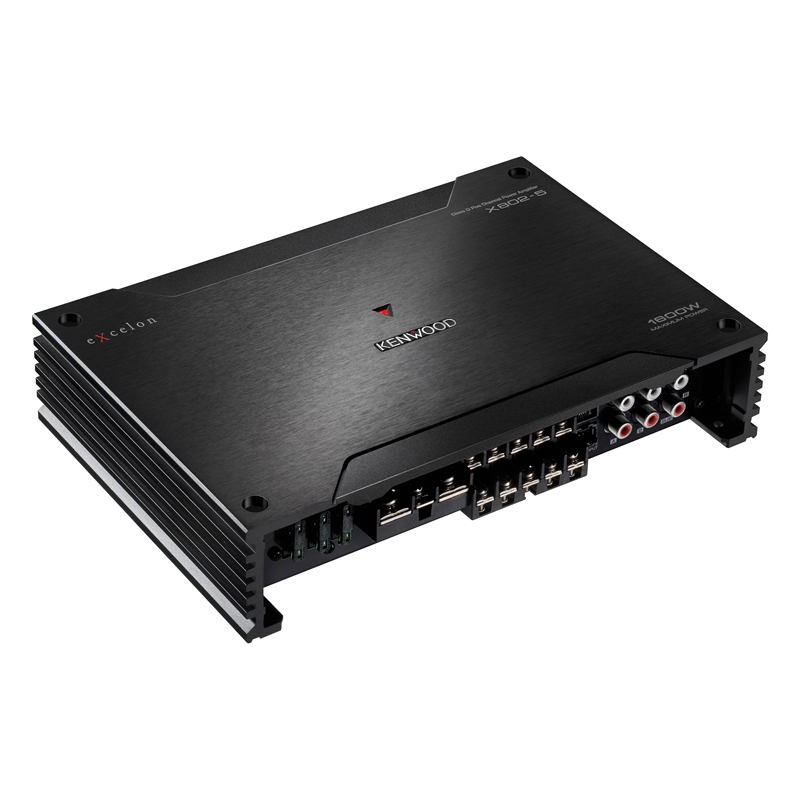

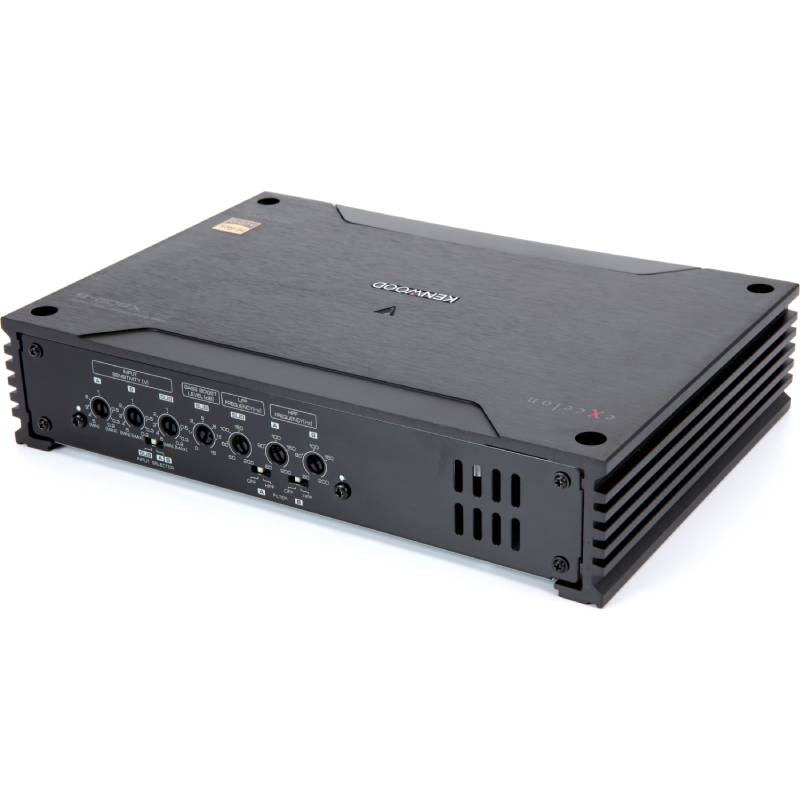

Premium 5-Channel Car Amplifier
Designed and made to power up your front and rear speakers and even your subwoofer, the Kenwood Excelon X802-5 is a premium 5-channel car amplifier that can easily fit inside your vehicle wherever you place it. You can also set it as a 3-channel amp with stereo connections for your speakers and a mono sub.
MOSFET power supply and 3-Way Circuitry
The Kenwood Excelon X802-5 comes with a MOSFET power supply and three-way protection circuitry, protecting it from overload, thermal, and short circuit issues. Its dual terminal design also allows you for an easier hookup to your speakers. You can connect an optional KCA-RC01A as well to control its subwoofer channel.
Power Handling
The Kenwood Excelon X802-5 can deliver a continuous power output of 50 Watts per channel for your front and rear speakers and 300 Watts for your subwoofer at 4 ohms. It can also produce a power output of 75 Watts RMS per channel for your front and rear speakers and 500 Watts RMS for your subwoofer at 2 ohms. Its frequency response of 20 Hz up to 50 kHz and sensitivity rate of 100 dB enables it to deliver an extensive full-range frequency performance while going loud with minimal distortion.

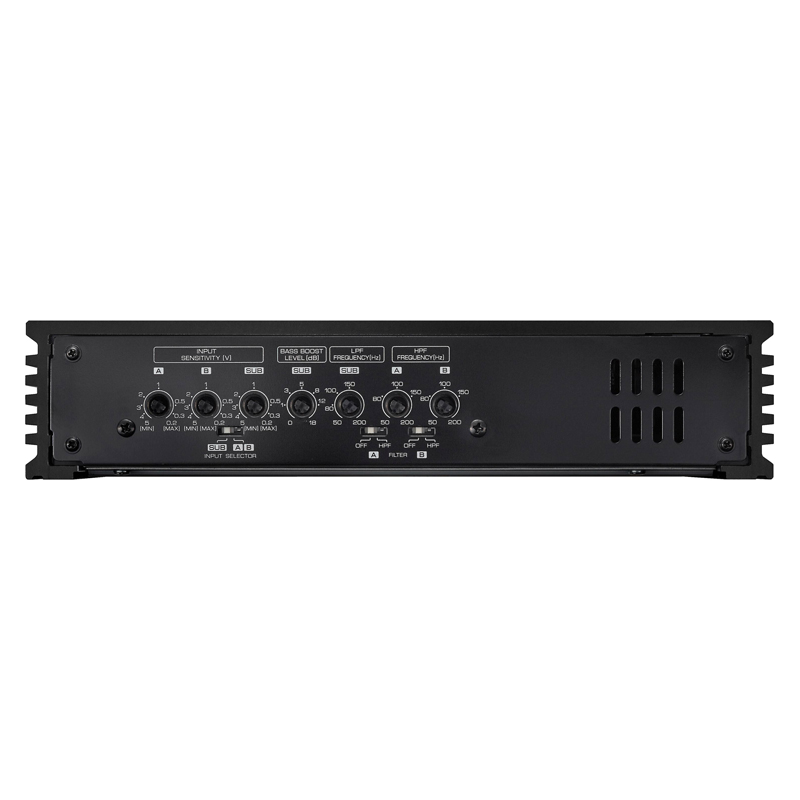

Variable High and Low-Pass Filters
The Kenwood Excelon X802-5 is equipped with variable high and low-pass filters to filter out unwanted frequencies while protecting your speakers from getting damaged. It also has a variable bass boost of up to 18 dB for improved low-frequency production with your subwoofer.
- Maximum Power : 1600 Watts
- Low Frequency Response : 50-200 Hz
- High Frequency Response : 50-200 Hz
- Number of Channels : 5
- Frequency Response : 20-50000 Hz
- Built In Crossovers : Yes
- Amplifier Class : D
- Fuse Rating : 30x3 A
- XP750-SE OFFER : Yes
Features:
- Power Output: 50 Watts RMS x 4 + 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
- Signal-to-Noise Ratio: 80dBA (Reference: 1Watt into 4Ohms)
- MAX POWER: 1600W
Rated Power Output at 14.4V
- A/B (4 Ohms): 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
- A/B (2 Ohms): 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
- SUB (4 Ohms): 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
- SUB (2 Ohms): 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
- A/B (Bridged 4Ohms): 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
- Frequency Response: 20Hz-50kHz (+0dB, -3dB) A/B
- Frequency Response: 20Hz-200Hz (+0dB, -3dB) SUB
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
- Bridged Connection: 4Ω to 8Ω allowable
Audio Section
- Low-Pass Filter: 50Hz-200Hz, -24dB/oct (SUB)
- High-Pass Filter: 50Hz-200Hz, -12dB/oct (A/B)
- Bass Boost: 40Hz, 0dB - +18dB (SUB)
- Infrasonic Filter: -
- RCA Input Sensitivity: 0.2[V] - 5.0 [V]
- Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]

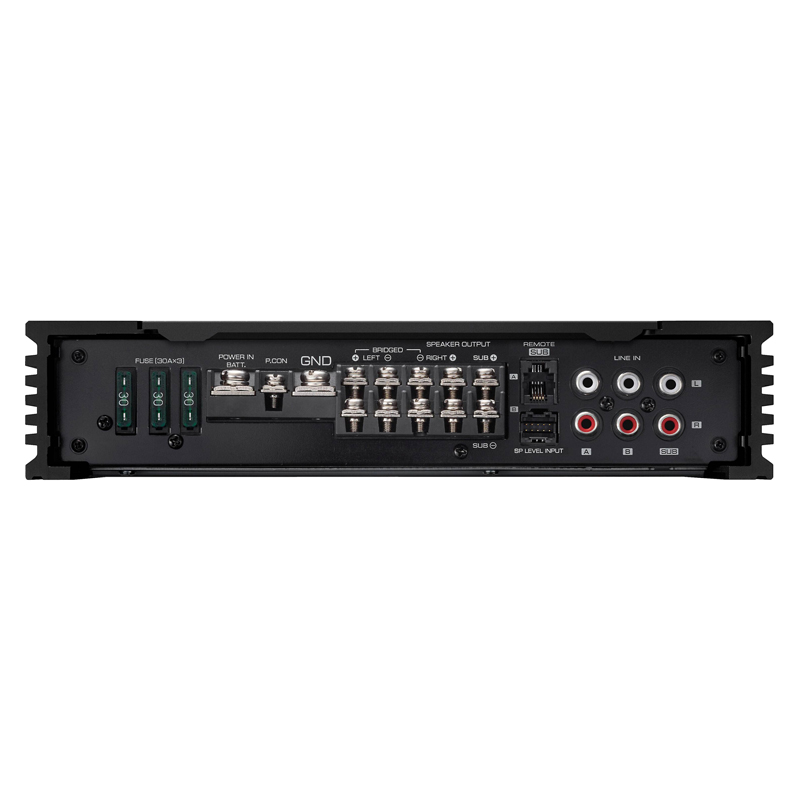

Terminals
- Battery & Ground: M6 Screw Type Terminal Block
- Speaker Output: M4 Screw Type Terminal Block
General
- Dimensions(WxHxD): (W)9-3/4" x (H) 2-1/16” x (D)5-7/8”
- Dimensions(WxHxD): (W) 248cm x (H) 53cm x (D) 169cm
- Weight: 4.6 lbs ( 2.1 kg)
- Operating Voltage: 14.4V(11-16V allowable)
- Current Consumption: 42[A]
Key Features
- High-Res Audio Compliant
- CTA-2006 Compliant
- 2 Ohms Load Capability
- One Sided Connection
- Speaker Level Input with Signal Sensing Turn-on
Accessorries
- Signal Sensing Turn-On
- Remote Level Control Ready ( Optional KCA-RC01A)
- Terminal Cover
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design
- A B Sub Independent Gain Adjustment
- A B AB(MIX) Independent Gain Adjustment
- UPC: 019048226211
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Sounds good for the high speakers, but not tons of power for the sub in a 5-channel amp. Pleased with the size and quality overall. Compact, easy to find a spot to mount it. Clean and powerful, plus, crossover adjustments. Great value for the money and tiny design, excellent sound quality, and powers my component nicely.
-
Running my sub and speakers in this amp @ 2 ohms, and its super loud that I have to tone down the volume level. You might also want to get that optional remote control as it might come in handy in the long run.
-
Perfect for powering up all my speakers and sub. Very good sound, and considering that it can go 500 Watts at 2 ohms for the sub, it is a powerful amp surely.
