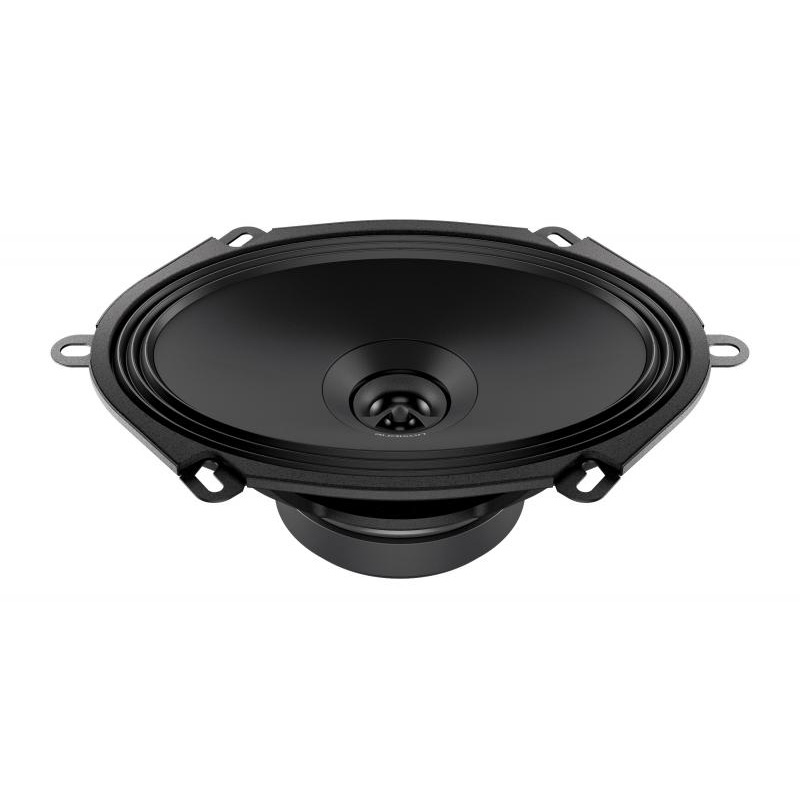

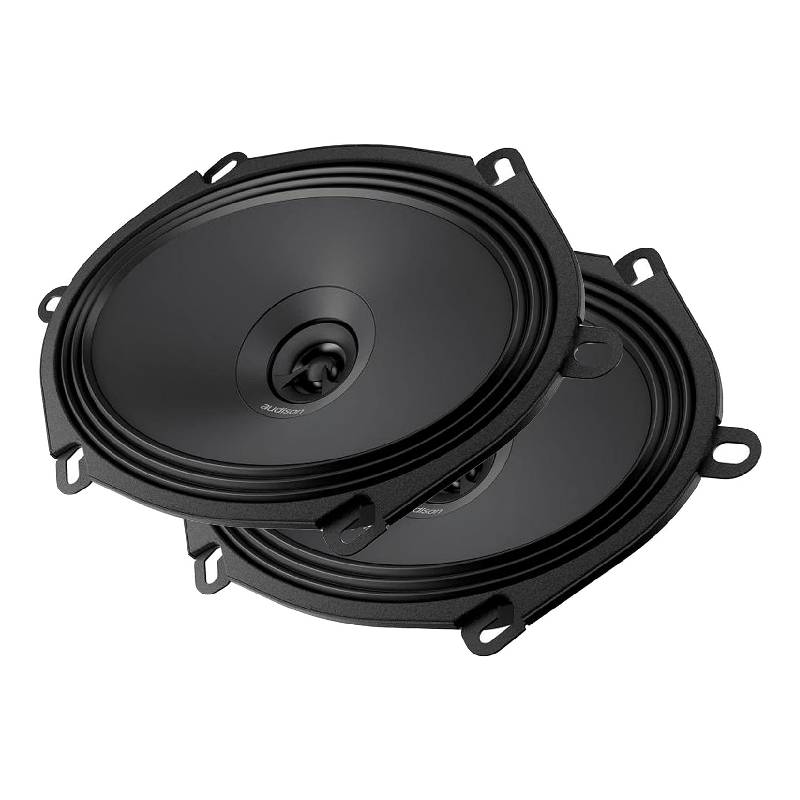

Audison APX570 PRIMA Series 5"x7" 210W Peak Power Handling, 4-Ohms Impedance, 2-Way Coaxial Speakers
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2* Speakers
- • 2* Tweeters
- • 2* Woofers
- • Owner's Manual
Concentric Coaxial Tweeter
APX 570 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter. The 5×7″ cones surround features an exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Innovative Coaxial Speaker System with Concentric Tweeter Brilliance
The concentric coaxial tweeter, positioned within the woofer for a single point of emission, ensures a consistent phase response and precise sound stage reproduction comparable to a component system. The tweeter incorporates an acoustic lens for a linear frequency response, even in off-axis placements common in indoor installations. Featuring a 32 mm pure copper voice coil, it provides high power handling and effective low-frequency control. The overall mounting depth is optimized for seamless OEM integration, thanks to the concentric tweeter and low-profile basket. The water-repellent paper cone, developed using Finite Element Method simulation and Klippel Scan Vibrometer optimization, enhances durability. The TPU sphere with a unique "triple wave" profile ensures maximum excursion linearity. The compact basket, protected by an abrasion-resistant coating, houses a motor affixed with damping epoxy adhesive. The high-current fast-on terminal with double contact points offers flexibility and quick connections, featuring a temperature-resistant plastic cover for protection against accidental short circuits. Developed with the KLIPPEL suite, this system combines advanced features for optimal audio performance.
- Diameter : 5x7/6x8 Inch
- Sensitivity : 93 dB
- Impedance : 4 Ohm
- Frequency Response : 60-23000 Hz
- Peak Power Handling : 210 Watts
- Design : 2 Way
- RMS Power Handling : 70 Watts
Product Highlights:
- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
Specifications:
- CompL Two way coaxial
- Size:
- Woofer (5″ x 7″)
- Tweeter diaphragm 24 mm (0.9″)
- Power Handling:
- 70 W Continuous Power
- 210 W Peak Power
- Impedance: 4 ohms
- Frequency Response: 60 ÷ 23k Hz
- Sensitivity: 93 dB/Spl
- Magnet: High density flux ferrite
- Dome: Water-repellent pressed paper
- UPC: 8018823111867
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Audison dealer will have a three (3) year limited warranty from the original date of purchase.
Do you own this product?
Write a review!
-
These speakers have an amazing sound. They need an external amp, to really push out the music the way it’s supposed to be no to be ran off of simply just the head unit.
