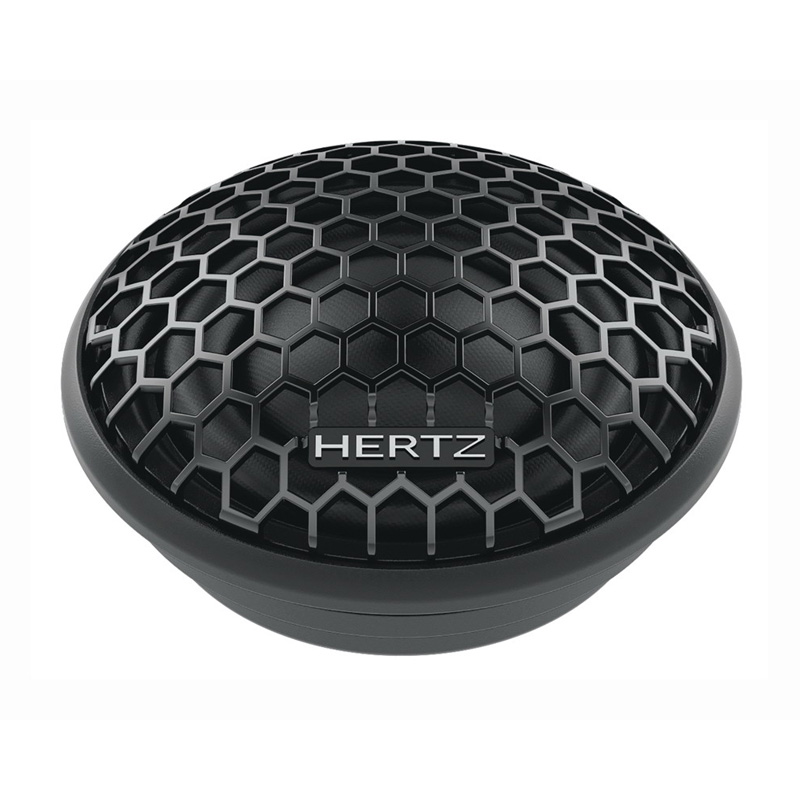

Hertz  C26

Cento Series 1" 120W Peak Power Handling 4 Ohm, Neodymium Tweeters

Item #54284

Condition:   Brand New

Product Highlights

  • Cento Series 1"
  • 120W Peak Power
  • Neodymium Tweeter

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$169.99

Reg. Price $190.00  Save $20.01
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Hertz Authorized Dealer

Huge Saving on Other items:


PAC Banner

Hertz C26 Cento Series 1" 60W RMS (120W Peak Power Handling) 4 Ohms, Neodymium Tweeters


Alpine Banner for OCS

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

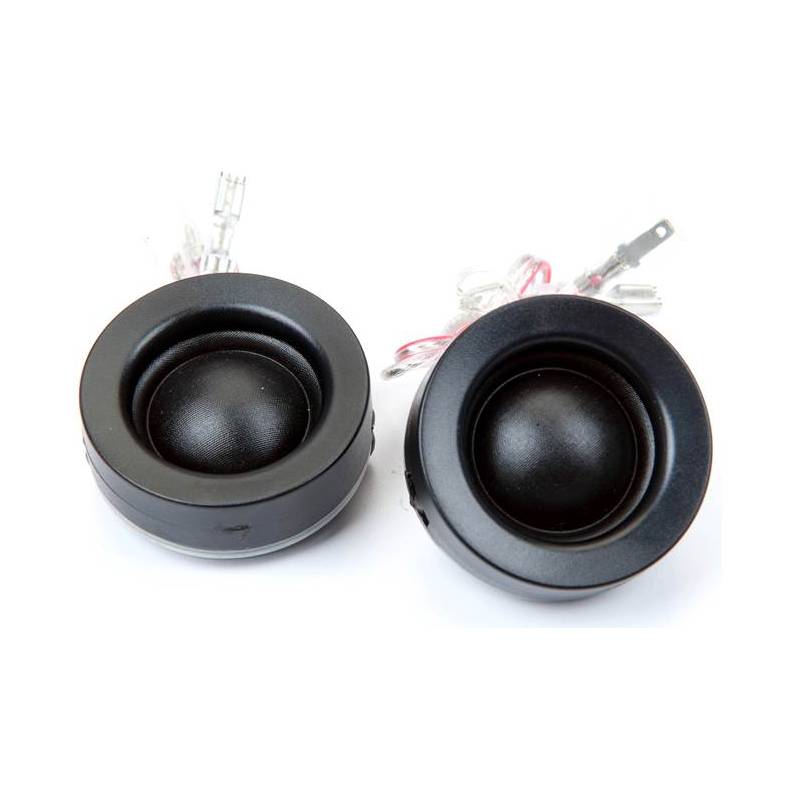

  • • (2) C 26 OE Tweeters (with attached 5" length of speaker wire)
  • • (2) CCX 26 Crossovers (48" speaker wires with in-line crossovers)
  • • (2) Mounting pads with adhesive on both sides
  • • Owner's Manual
Natural Timbre

C 26 tweeter features a 26 mm (1 in.) Tetolon® dome and 20 mm (0.8 in.) voice coil for a detailed and natural reproduction of medium-high frequencies. The R&D team worked extensively to optimize the C 26 dispersion characteristics to maximize performance on the listening point, with a natural and progressive roll-off and a natural timbre that favors frequency linearity.

Frequency Response

The C 26 tweeter boasts an impressive frequency response range spanning from 1.8 kHz to 22.5 kHz, ensuring accurate reproduction of high-frequency audio signals with exceptional clarity and detail.

Physical Specifications
  • • A 44 mm (1.73 in.)
  • • B 38.5 mm (1.52 in.)
  • • C 20 mm (0.79 in.)
  • • D 9.1 mm (0.36 in.)
  • Diameter : 1 Inch
  • Sensitivity : 92 dB
  • Frequency Response : 1800-22500 Hz
  • Peak Power Handling : 120 Watts
  • RMS Power Handling : 60 Watts

Features:

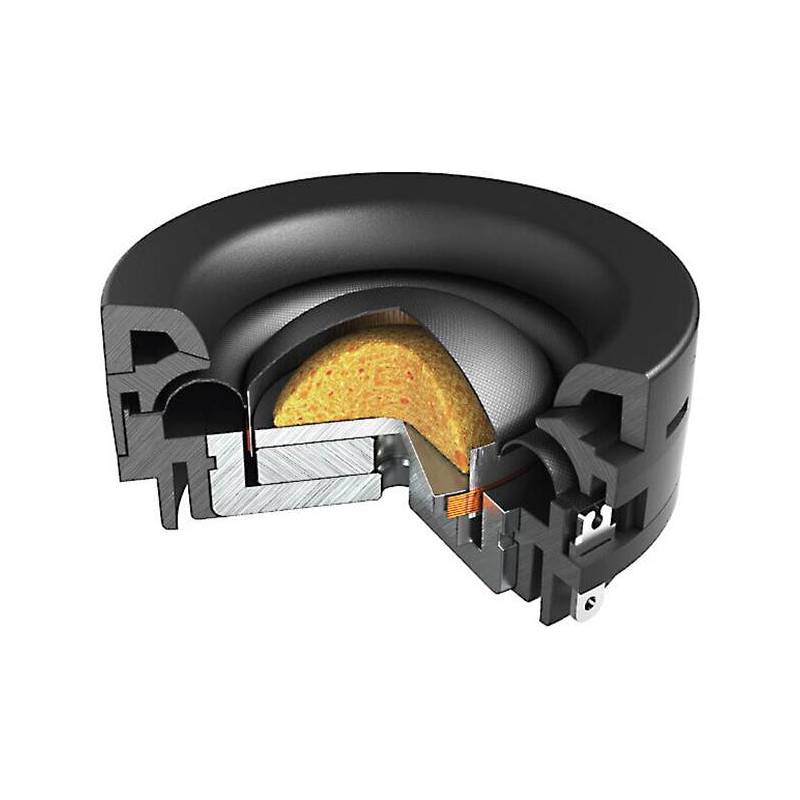

  • Soft Tetolon® fiber 26 mm (1 in.) dome and 20 mm (0.8 in.) voice coil, for a natural and yet detailed reproduction of musical nuances.
  • Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
  • Faceplate geometry optimized with FEM (Finite Element Modeling) technique for a linear frequency response in off-axis installations.
  • Wide range of accessories, for easy integration in OEM placements.



Specifications:

  • Component: Tweeter
  • Size mm (in.): 26 (1)
  • Power Handling - Peak W: 120
  • Power Handling - Peak Note: (Hi-Pass filtered @ 2.5kHz - 12 dB Oct.)
  • Impedance Ohm: 4
  • Voice Coil Ø: 20 (0.8)
  • Frequency Response Hz: 1.8k ÷ 22.5k
  • Magnet size D x d x h mm (in.): 19 x 0 x 3 (0.75 x 0 x 0.12)
  • Weight of one speaker kg (lb.): 0.04 (0.08)
  • Magnet: Neodymium
  • Dome: Tetolon



Electro-Acoustic Specifications:

  • Diameter (D) mm: 26
  • DC Resistance (Re) Ohm: 3.7
  • Resonant Frequency (Fs) Hz: 1500
  • Voice Coil Inductance (Le) mH: 0.02
  • Equivalent Volume of Air Compliance (Vas) I: -
  • Mechanical Mass (Mms) g: 0.17
  • Mechanical Compliance of Suspension (Cms) mm/N: 0.07
  • Force Factor (BL) T*m: 1.3
  • Total Q-factor (Qts): 1.6
  • Electrical Q-factor (Qes): 3.5
  • Mechanical Q-factor (Qms): 2.9
  • Sound Pressure Level (Spl) dB: 92
  • UPC: 8018823126502
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
