Audison AV 5.1k - VOCE Series 1650W Max Power, 5-Channel Amplifier, Class-A/B
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • AV 5.1k amplifier
- • Owner's Manual
1650 Power Amplifier
The AV 5.1k amplifier, boasting a maximum output of 1650 Watts RMS across its five channels, is tailored for front + rear + subwoofer setups or multi-amplified front + subwoofer systems. With its unique hybrid design, it features a high-quality AB Class output stage delivering 250 Watts RMS for two channels, complemented by a pair of A Class pure audio channels with a rating of 75 Watts RMS each—ideal for active two-way front speaker systems. Additionally, the D Class mono section provides a robust 1000 Watts RMS for a commanding subwoofer output. Notably, the AV 5.1k offers the flexibility to swap out the analog input board with the digital one (AV bit IN).

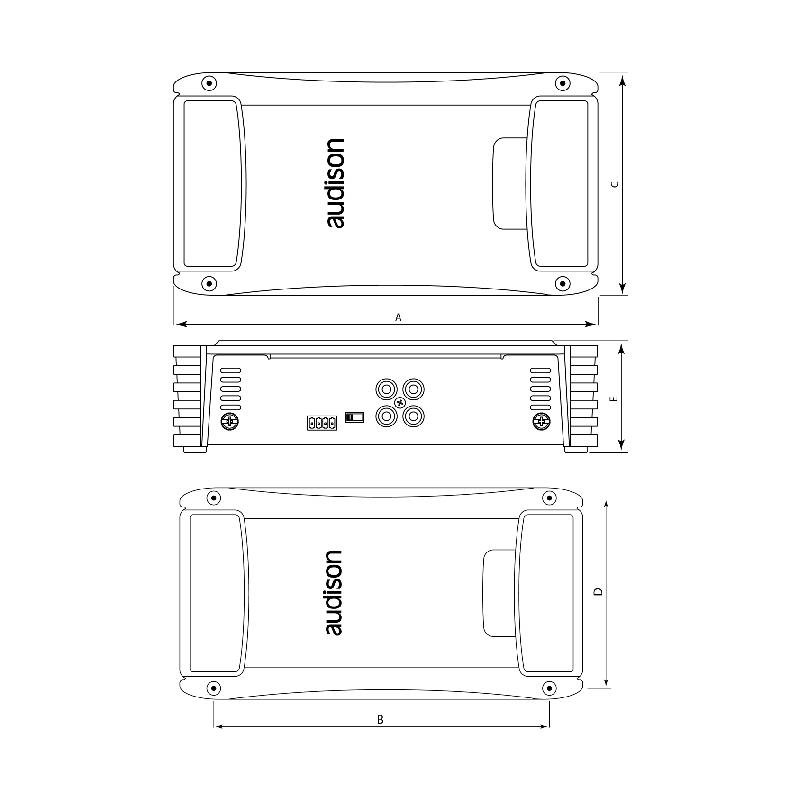

DIMENSIONS
Physical Specifications
- • Dimension A: 470 mm
- • Dimension B: 399 mm
- • Dimension C: 220 mm
- • Dimension D: 198 mm
- • Dimension E: 58 mm
- Maximum Power : 1650 Watts
- Low Frequency Response : 50-150 Hz
- High Frequency Response : 50-5000 Hz
- Number of Channels : 5
- Frequency Response : 4-60000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : A/B
- Fuse Rating : 100 A
Power Supply:
- Power supply voltage: 11 ÷ 15 VDC
- Idling current: 3 A
- Idling current when off: 0.02 mA
- Consumption @ 14.4 VDC (Max Musical Power): 110 A
Amplifier Stage:
- Distortion - THD (1k Hz @ 4 ohms) A, B Ch: 0.05 %
- Distortion - THD (100 Hz @ 4 ohms), C (sub) Ch: 0.3 %
- Bandwidth (-3 dB) A, B Ch: 5 ÷ 20k Hz
- Bandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 Hz
- S/N ratio (A weighted @ 0dB) A, B Ch: 100 dB
- S/N ratio (A weighted @ 0dB) C (sub) Ch: 87 dB
- Damping factor (1k Hz @ 4 ohms) A, B Ch: 100
- Damping factor (100 Hz @ 4 ohms) C (sub) Ch: 80
- Gain (ON/OFF selectable): -15 / +3 dB
- Minimum load impedance A / B / C Ch: 4 ohms / 2 ohms / 2 ohms
- NOMINAL POWER (RMS) A + B + C Ch @ 12 VDC, THD 0,3%, 4 ohms: 50 W x 2 + 120 W x 2 + 500 W x 1
- OUTPUT POWER (RMS) A + B + C Ch @ 14.4 VDC, THD 1%:
- 5 Ch: 75 W x 2 (4 ohms) + 140 W x 2 (4 ohms) + 600 W x 1 (4 ohms)
- 5 Ch: 75 W x 2 (4 ohms) + 140 W x 2 (4 ohms) + 1000 W x 1 (2 ohms)
- 5 Ch: 75 W x 2 (4 ohms) + 250 W x 2 (2 ohms) + 1000 W x 1 (2 ohms)
Digital Connection Panel:
- Digital resolution: 24 bit / 192 kHz
- Input: AD Link / AC Link
- Output: AD Link / AC Link
Other Functions:
- Remote IN: 7 ÷ 15 VDC - 1mA
- Remote OUT: 12 VDC - 50mA
- Fuse (Strip type): 100 A
Size / Weight:
- Max size (mm/inch): 220 x 470 x 58 / 8.66” x 18.50” x 2.28”
- Weight (kg/lb): 7,2 / 15.87
- UPC: 8018823107815
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
