Hertz ML 700.3 Mille Legend Series 3" 50W RMS (100W Peak Power Handling) 1-way Mid-Range Speaker
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) ML 700.3 Midrange
- •(2) Grilles
- •Eight 1/2" Allen head screws (2.5mm)
- •(8) Speed clips
- •2.5mm Allen head bit
- •Template on box
- •Owner's Manual
Features the V-cone Geometry Upgrade

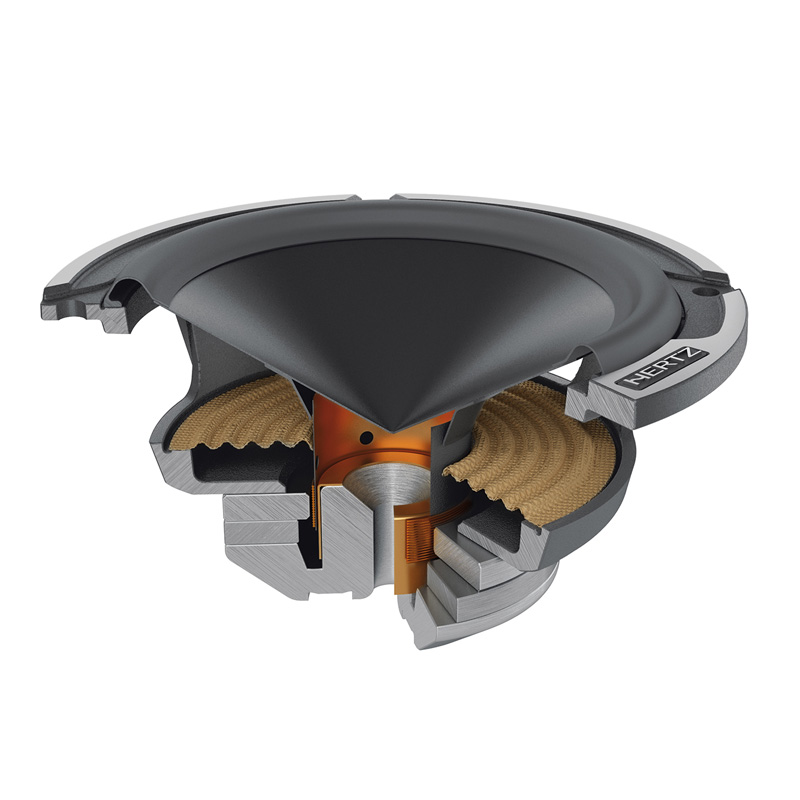

The ML 700.3 Legend car audio midrange features the V-cone geometry upgrade, the Neodymium magnet assembly and the threespoke anti-resonant aluminium alloy basket with vented holes. Thanks to these technologies, as well as the Boundary Free Surround, taking the diameter emission from 60 to 65 mm, the midrange will provide extended, properly damped low frequency response, as the component will be filtered especially at the low frequencies, for excellent combination with the ML 1800.3 Legend, to build an ultra-performing system for competitions.

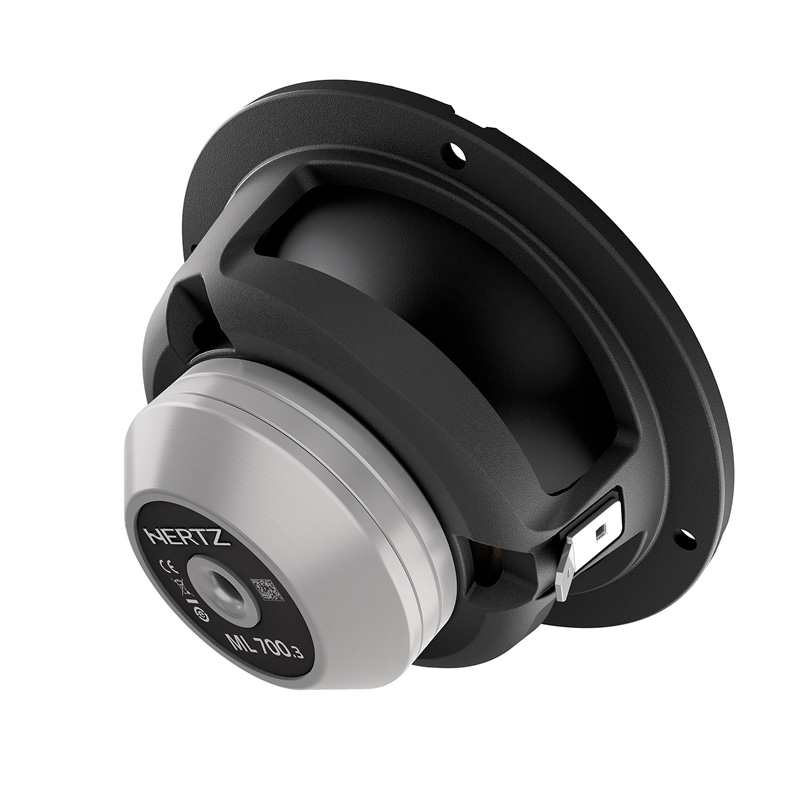

The speaker boasts a neodymium magnet
Fine-tuned through FEA simulations to ensure superior dynamics and precise control, complemented by CNC machined plates with minimal carbon content to maximize magnetic permeability, resulting in minimal distortion even at high power levels, alongside an exceptionally pure copper-covered central pole and single-layer mobile coil, enabling a wider extension in the high-frequency range.
Frequency Response
The Hertz ML 700.3 Mille Legend Series mid-range speaker spans from 200 Hz to 20,000 Hz, encompassing a wide range of frequencies to deliver rich and detailed sound reproduction across various audio applications.
Physical Specifications
- • A: 87.8 mm (3.45 in)
- • B: 74 mm (2.91 in)
- • C: 47 mm (1.85 in)
- • D: 41.3 mm (1.62 in)
- • E: 93 mm (3.66 in)
- • F: 17 mm (0.67 in)
- Diameter : 3 Inch
- Sensitivity : 90 dB
- Impedance : 4 Ohm
- Frequency Response : 200-20000 Hz
- Peak Power Handling : 100 Watts
- RMS Power Handling : 50 Watts
Product Highlights:
- Neodymium magnet optimized with FEA simulations, for superior dynamics and control.
- Very low carbon content CNC machined plates, for maximum magnetic permeability and low distortion at high power levels.
- Extremely pure copper covered central pole and one-layer mobile coil, for a wider extension in the high frequency range.
- Exponential V-cone® with optimized geometry for utmost linearity and dispersion.
- CONEX spider with optimized profile, for maximum transparent acoustics at mid-high frequency.
- “Boundary Free” IIR rubber surround, for better efficiency and wider mid-bass frequency.
- Pressed-pulp cone with cotton fibres, combining stiffness and lightweight, to achieve wide frequency response and limited break-ups at high frequency.
- Junction point between cone and former with geometry optimized with FEA methods, allowing a more integral coupling, thus ensuring wider extension at high frequency.
- Three-spoke, very acoustically transparent anti-resonant aluminium alloy basket featuring built-in venting holes.
- CNC machined elegant diamond-cut basket edge featuring the Hertz logo.

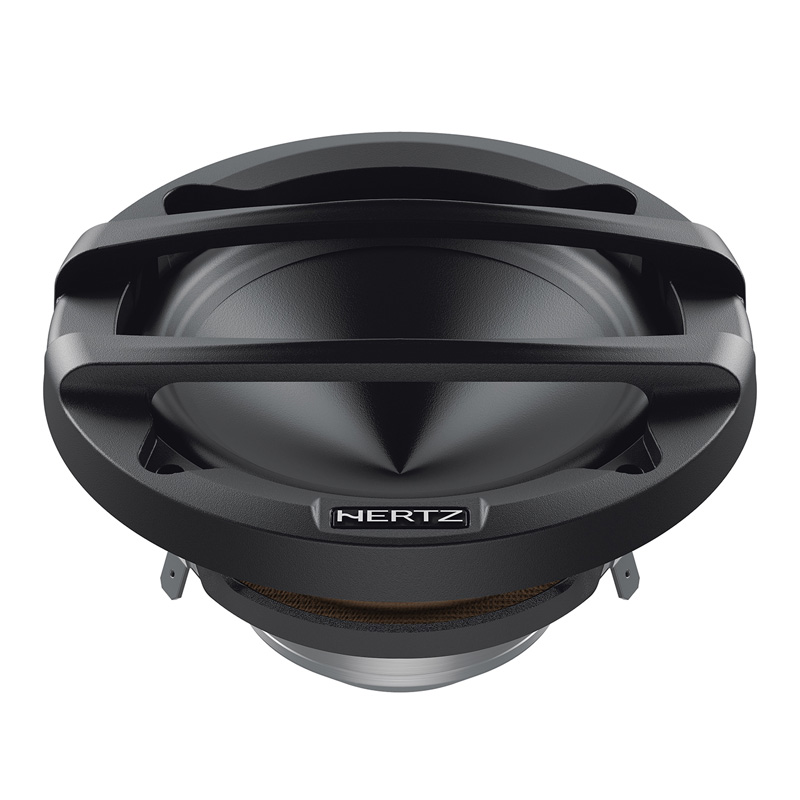

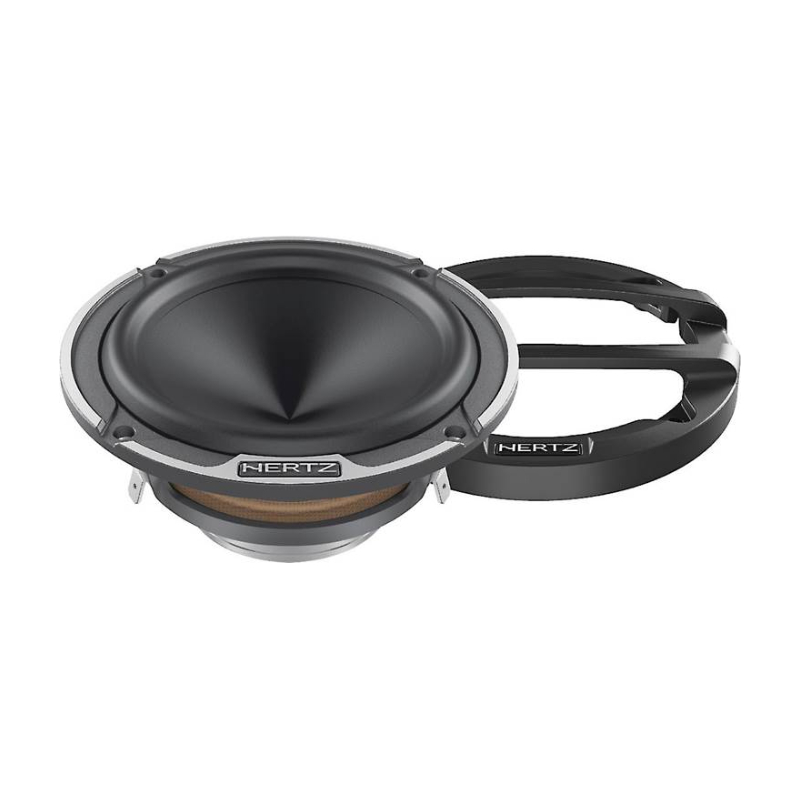

- Die-cast aluminium factory provided grille featuring diamond-cut aluminium Hertz logo.
Specifications:
- Component: Mid-range
- Size mm (in.): 70 (3)
- Power Handling - Peak W:100 (Overall)(Hi-Pass filtered @ 250Hz - 12dB Oct.)
- Impedance Ohm: 4
- Voice Coil Ø: 20 (0.8)
- Frequency Response Hz: 200 - 20k
- Magnet size D x d x h mm (in.): 45 x 25 x 3.5 (1.77 x 0.98 x 0.13)
- Weight of one speaker kg (lb.): 0.21 (0.46)
- Magnet: Neodymium
- Cone: Pressed-pulp cone with cotton fibers
Electro-acoustic Specifications:
- Diameter (D): 65 mm
- DC Resistance (Re): 3.8 Ohms
- Resonant Frequency (Fs): 110 Hz
- Voice Coil Inductance (Le): 0.05 mH
- Equivalent Volume of Compliance (Vas): 1.1 liters
- Moving Mass (Mms): 2.7 grams
- Mechanical Compliance of Suspension (Cms): 0.7 mm/N
- BL Product (BL): 3.3 T*m
- Total Q Factor (Qts): 0.57
- Electrical Q Factor (Qes): 0.67
- Mechanical Q Factor (Qms): 4
- Sound Pressure Level (SPL): 90 dB
- UPC: 8018823113908
- Weight: 0.21
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
