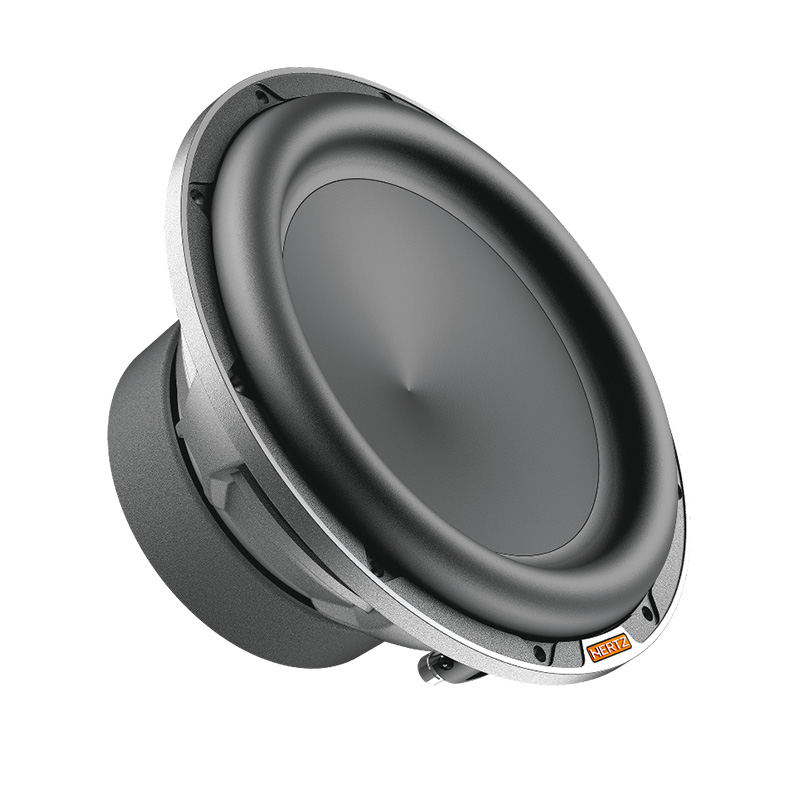

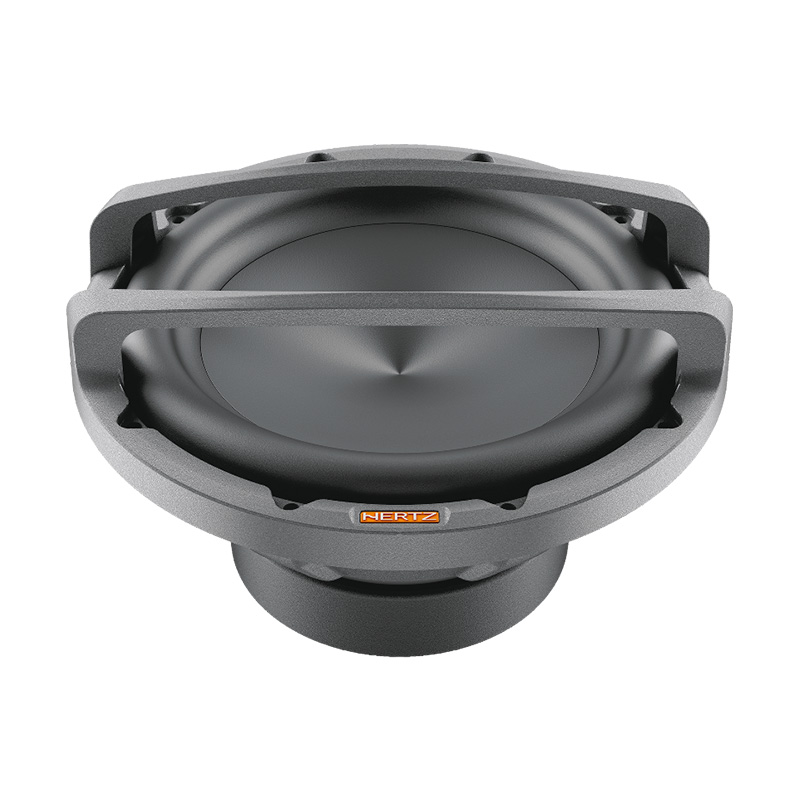

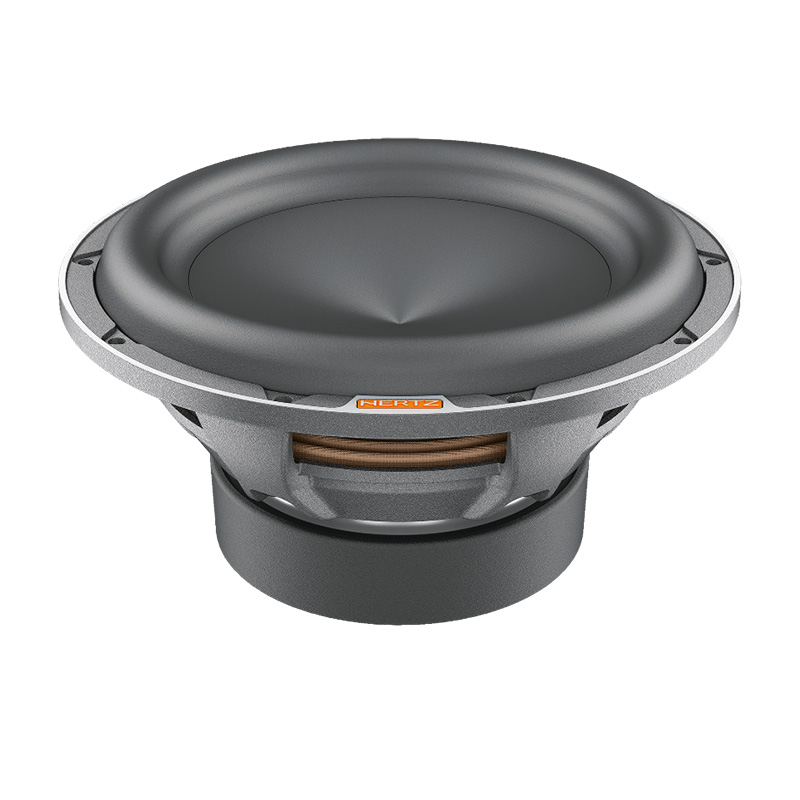

Hertz  MP 250 D2.3

Mille Pro Series 10" 1200W Peak Power Handling 2 Ohms Dual Voice Coil Component Car Subwoofer

Item #54322

Condition:   Brand New

Product Highlights

  • Mille Pro Series
  • 10" Subwoofer
  • 1200W Peak Power
  • 2 Ohms Impedance
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$474.99

Reg. Price $560.00  Save $85.01
In Stock
In Stock

Only 2 left
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


Hertz Authorized Dealer

Huge Saving on Other items:


Brand Banner

Hertz MP 250 D2.3 Mille Pro Series 10" 600W RMS (1200W Peak Power Handling) 2 Ohm Dual Voice Coil Component Subwoofer


Alpine Banner for OCS

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •(1) 10" Dual 2-ohm voice coil subwoofer
  • • (10) 1-3/8" Allen Head Screws
  • •4mm Allen Head bit
  • •(10)Speed clips
  • •Owner's manual
Outstanding Performance

Outstanding performance in a compact size, this is the target of Mille Pro car audio subwoofers. On the strength of its know-how acquired with Mille Legend, the R&D team has optimized the production process to offer the “Hertz Sound Experience” to a wider audience using part of the technologies and materials of the flagship line.

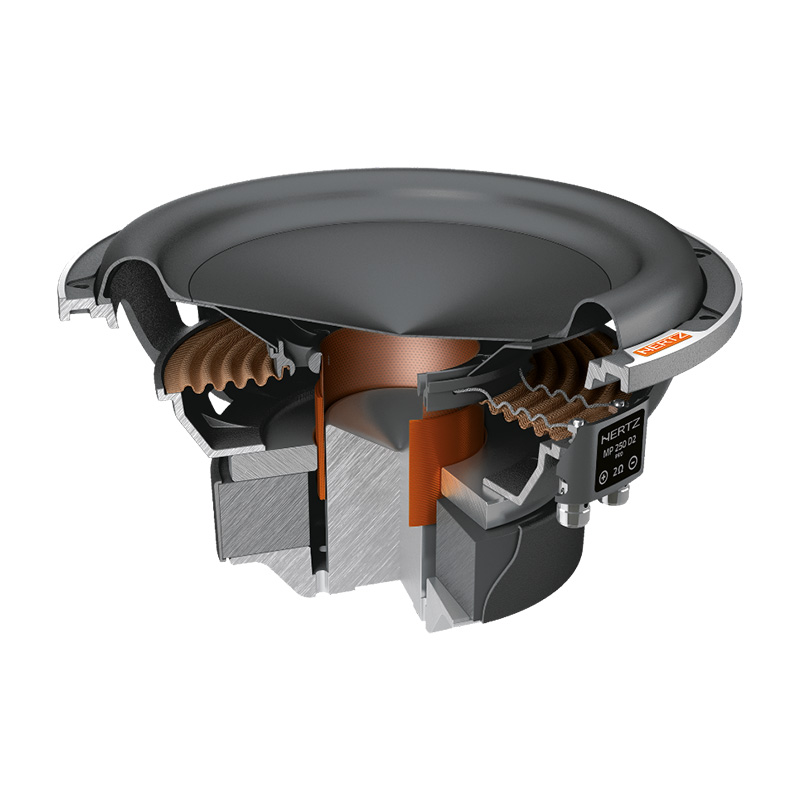

Construction Technique Used for Legend

The MP 250 D2.3 cone is made by pressing paper pulp with the injection of mineral powders, the same construction technique used for Legend. The V-cone® profile increases rigidity, allowing the cone to function like a piston.

Boundary Free Surround Technology

Surround materials consist of high-purity IIR-butyl rubber. Like the Legend ML2000.3 and ML2500.3, the Mille PRO subwoofers are built with Boundary Free Surround technology allowing for a greater emission surface with equal diameter, generating higher sound pressure. The compact 6-spoke aluminum alloy anti-resonant basket is the same as the top model ML 2500.

Delivering High Linear Displacement

3 and contributes to the subwoofer’s mechanical damping, being absolutely transparent to the sound. The 65-mm 4-layer voice coilis higher than 60 mm and wound in a TIL-P former, thus delivering high linear displacement.

Physical Specifications
  • • A: 268 mm (10.55 in.)
  • • B: 236 mm (9.29 in.)
  • • C: 160 mm (6.3 in.)
  • • D: 141 mm (5.55 in.)
  • • E: 274 mm (10.79 in.)
  • • F: 58.5 mm (2.3 in.)
  • Diameter : 10 Inch
  • Sensitivity : 83.5 dB
  • Impedance : 2 Ohm
  • Peak Power Handling : 1200 Watts
  • Number of Voice Coils : Dual
  • Suggested Sealed Box Volume : 0.6 Cubic ft.
  • Suggested Ported Box Volume : 0.78 Cubic ft.
  • RMS Power Handling : 600 Watts

Features:

  • Ergonomic, compact design, specifically developed for sealed box enclosures starting at 17 lt volume.
  • CCAW, 65 mm (2,5”) 4-layer voice coil, capable of handling 1200 W musical power. The 2 Ω + 2 Ω DVC impedance configuration improves versatility to match any amplifier system.
  • Voice coil wound on TIL-P material with venting holes behind the winding. This combines efficient heat dissipation with a high Qms factor (low mechanical loss) for bursting dynamic sound.
  • Exponential V-cone® with optimized geometry for high cone stiffness and strong resistance to deformation even at maximum excursions.
  • Boundary Free IIR rubber surround, for higher SPL performance while keeping a nominal external diameter.
  • Mineral-injected paper cone, for superior rigidity and damping.

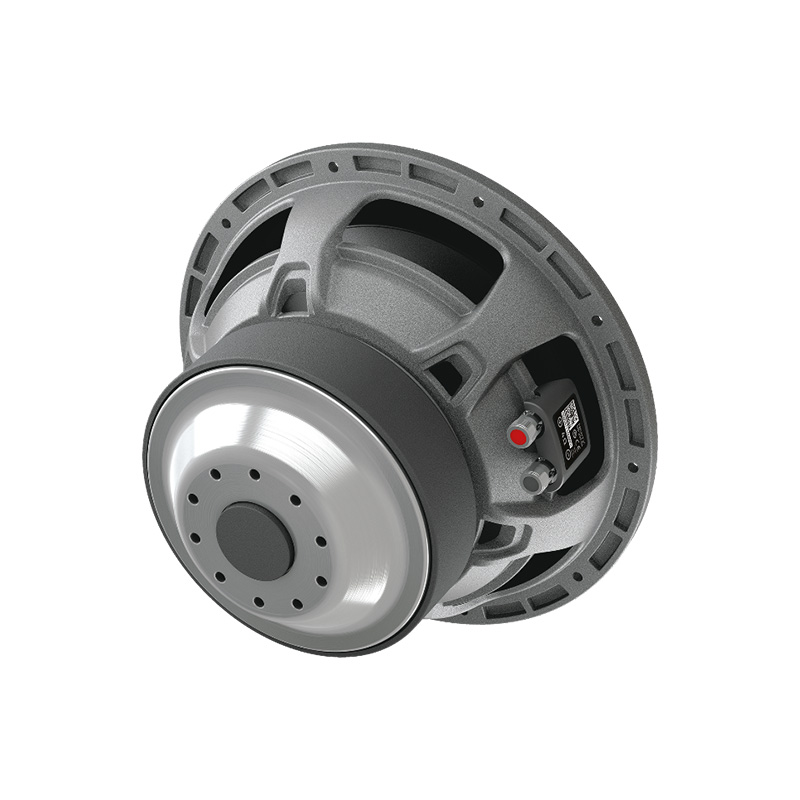

  • Extremely acoustically transparent anti-resonant aluminium alloy basket with six-spokes standing structure and built-in venting holes underneath the spider.
  • CNC machined elegant diamond-cut basket edge featuring the Hertz logo.
  • Terminal block accepting cables up to 8 AWG to provide ultra-low wiring resistance in low impedance configurations. A plastic cover prevents any accidental short-circuit.
  • Possibility to secure the subwoofer to the box wall, taking full advantage of its minimal dimensions.
  • High performance compact motor with a superior magnetic field transferred to the coil.



Specifications:

  • Size: 250 mm (10 in.)
  • Power Handling - Continuous: 600 W
  • Power Handling - Peak: 1200 W
  • Impedance: 2+2 Ohms
  • No Filter Component: Subwoofers
  • Voice Coil Diameter: 65 mm (2.56 in.)
  • Magnet Size (D x d x h): 165 x 75 x 35 mm (6.5 x 2.95 x 1.38 in.)
  • Weight of One Component: 8.2 kg (18.08 lb.)
  • Magnet: High Density Flux Ferrite
  • Cone: Pressed-Pulp Cone with Mineral Powders
  • Xmech: ±27 mm (1.06 in.)



Electro-Acoustic Specs:

  • Diameter (D): 213 mm
  • Xmax: 17.00 mm
  • DC Resistance (Re): 0.85 Ohms
  • Resonant Frequency (Fs): 30.00 Hz
  • Voice Coil Inductance (Le): 0.65 mH
  • Equivalent Air Volume (Vas): 25.00 liters
  • Moving Mass (Mms): 182.00 grams
  • Mechanical Compliance (Cms): 0.14 mm/Newtons
  • Force Factor (BL): 7.1 Tesla*meters
  • Total Q-factor (Qts): 0.54
  • Electrical Q-factor (Qes): 0.6
  • Mechanical Q-factor (Qms): 5.92
  • Sound Pressure Level (SPL): 83.5 dB
  • UPC: 8018823114387
  • Weight: 18
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
