Audison APBMW K4M PRIMA Series - 4" 100W Peak Power Handling, 4 Ohms, 2-Way System for BMW-Mini
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

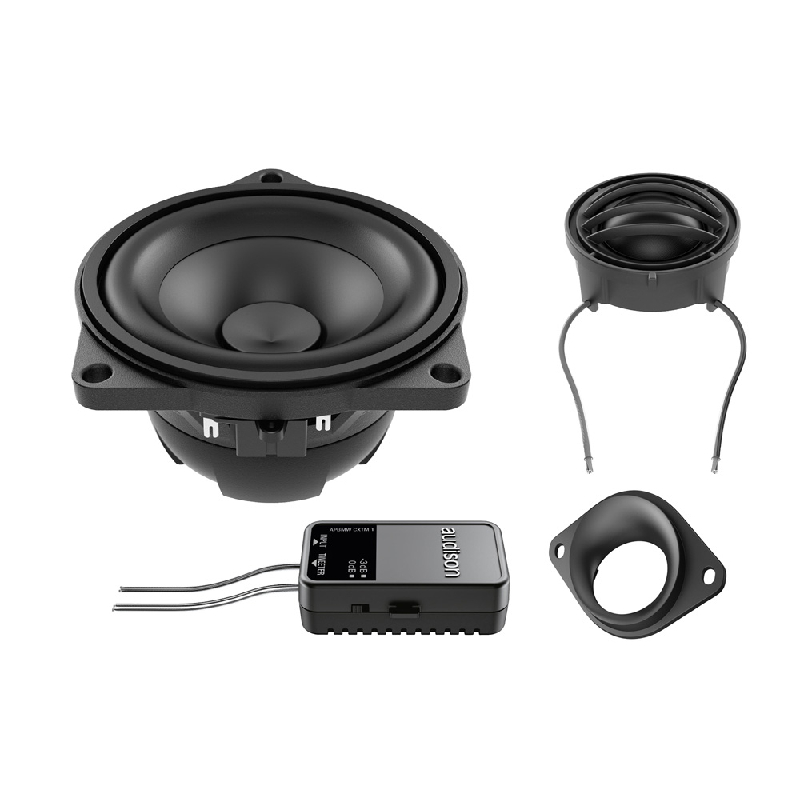

What's Inside?
- • 2 4" AP BMW M4E - Woofers
- • 2 1.1" AP BMW T1 - Tweeters
- • 2 AP BMW CXTM 1 - Crossovers
- • 2 Flange
- • 2 EVA Adhesive Tape
- • 2 Cable Ties
- • 2 Extension Cables
Unprecedented Performance
The Audison BMW tweeter has the largest dome of any BMW replacement tweeter – while still snapping into the same mount as the OEM tweeter. The Audison 29mm dome has 34% more surface area than a 25mm dome, and that means more output, a lower resonant frequency, and greater low-frequency extension. Most BMW replacement tweeters have 25mm domes – only Audison offers this improved performance. Audison R&D used a Tetolon silk/Cotton blend for light weight and improved damping. The tweeter uses an inline crossover filter in plug-and-play upgrade applications, and can also be used in fully-active configurations. An adapter is included to fit this tweeter into certain rear-deck fitments, where the stock tweeter is angled forward.
Midrange
This 100mm-class midrange uses a cast-aluminum frame, and is designed for BMW and MINI fitments. Connection is plug-and-play. The neodymium-alloy magnet provides more motor strength in a smaller package, permitting fitment into the shallowest BMW doors. The vented rear pole assists with cooling and improves power handling. For some models, an optional door mounting adapter is available.
- Diameter : 4 Inch
- Sensitivity : 89 dB
- Frequency Response : 90-23000 Hz
- Peak Power Handling : 100 Watts
- Vehicle Make : BMW
- RMS Power Handling : 50 Watts
Product Highlights:
- Specially developed for the upgrade of BMW-Mini featuring factory 2 way systems, to create an extended sound stage in the three dimensions, amplifying the perception of reality in the car cabin.
- Neodymium Magnetic group to maximize performance while minimizing bulk and weight.
- 25 mm (1") fiberglass woofer voice coil for high power dissipation and stiffness.
- Waterproof pressed-paper cone for medium natural frequencies free from any plastic resonance.
- BMW-Mini compatible aluminium die-cast basket with Plug & Play connectors;
- 25 mm Tetolon coil tweeter with dispersion characteristics optimized with FEM simulations.
- Tweeter support supplied for Plug&Play OEM placements.
- 30 cm extension provided featuring Plug & Play connectors, for high flexibility of installation.
- Damping removable motor cover.
- Crossover equipped with high quality components and Plug&Play connections.
Specifications:
- Component: 2-Way System
- Woofer Size (mm, in.): 100, 4"
- Tweeter Size (mm, in.): 29, 1.1"
- Power Handling:
- Impedance: 4 ohms
- Frequency Response: 90-23kHz
- Sensitivity: 89dB
- Crosspover Type: Hi-Pass: 6k Hz @ 6dB/Oct.
- Voice Coil:
- Woofer: 25 (1)
- Tweeter: 25(1)
- UPC: 8018823124133
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Audison dealer will have a three (3) year limited warranty from the original date of purchase.
