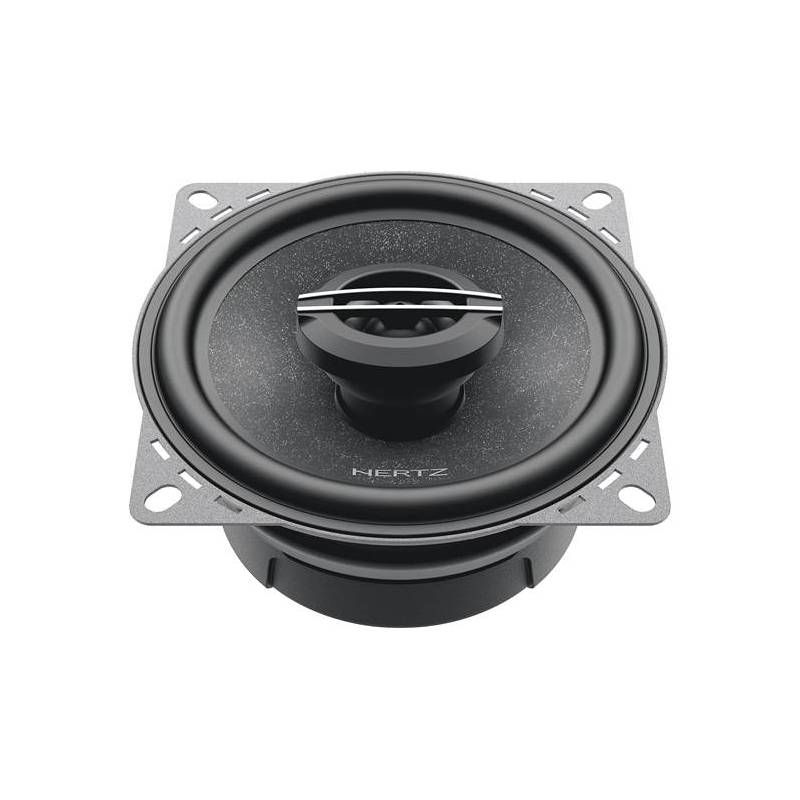

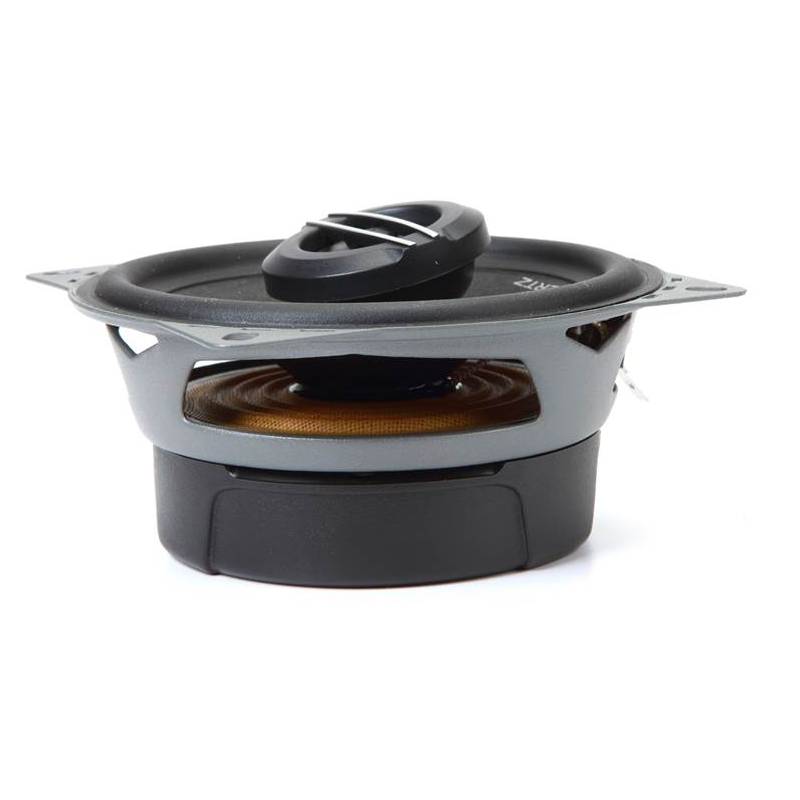

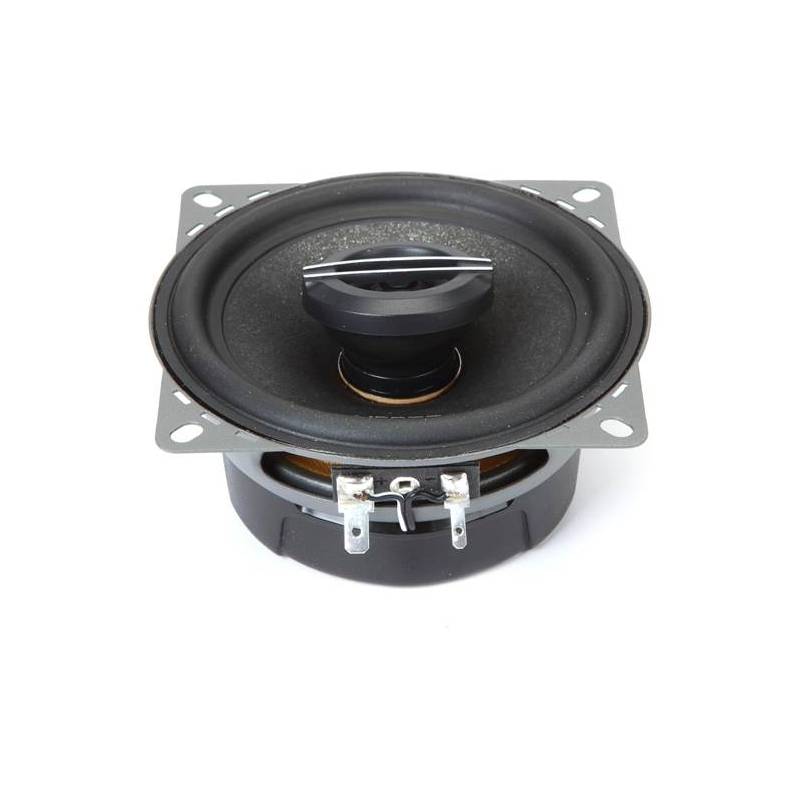

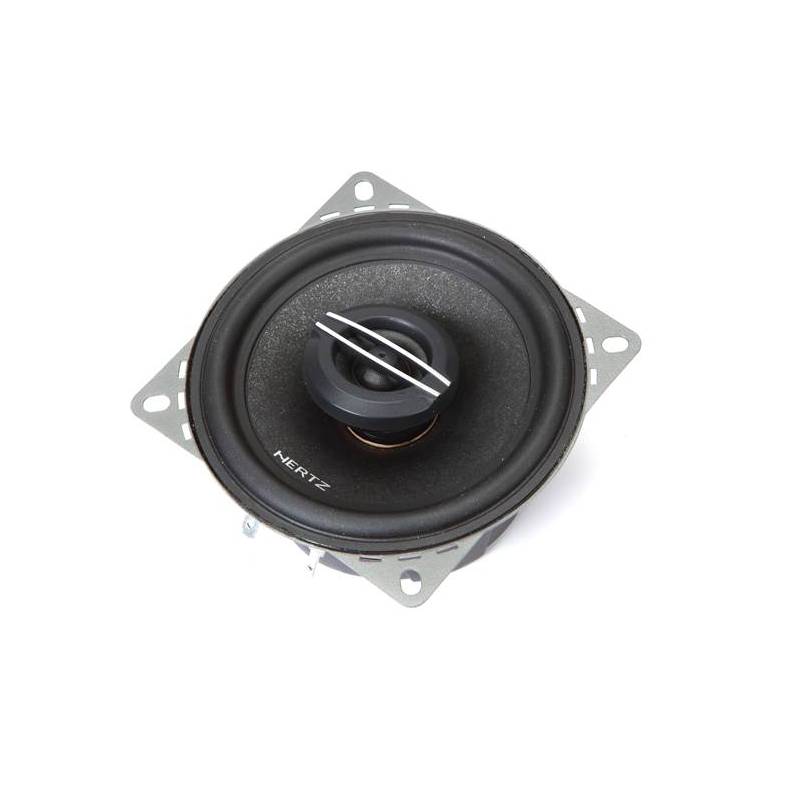

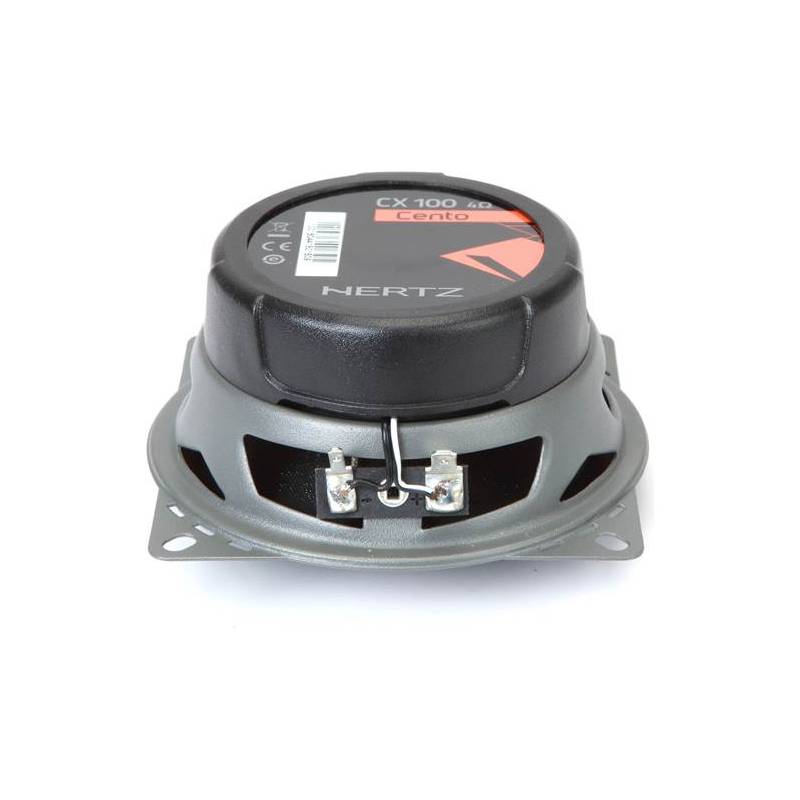

Hertz CX100 Cento Series 4" 120W Peak Power Handling 2-Way Coaxial Car Speakers
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

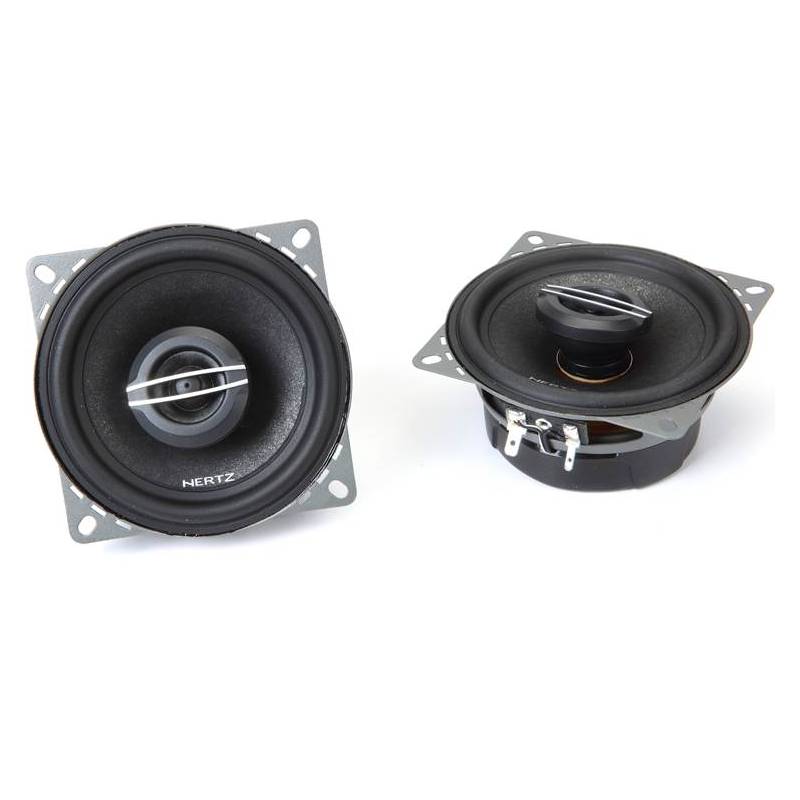

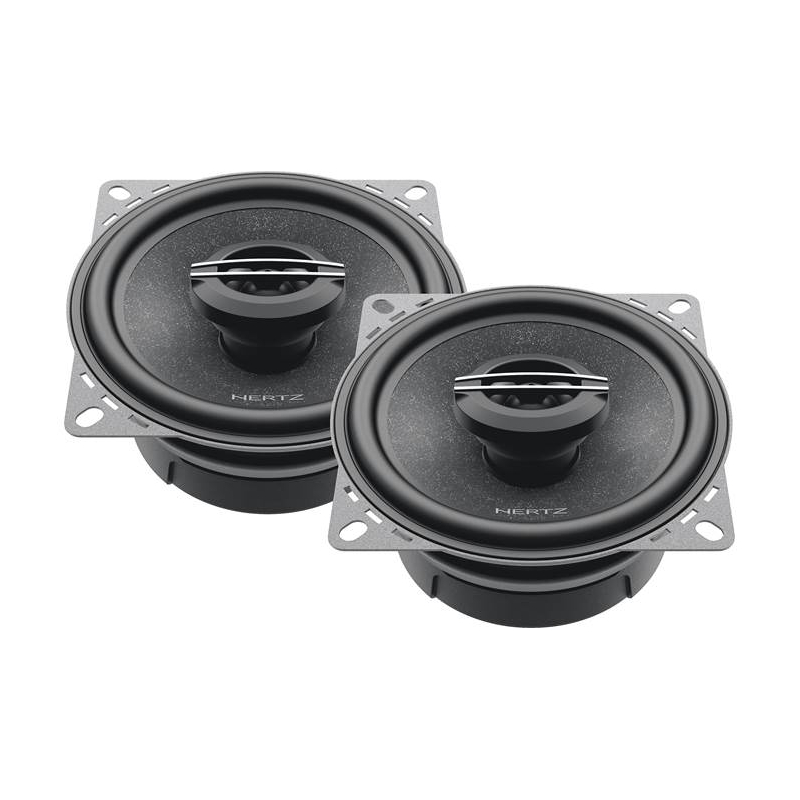

- •(2) Hertz CX100 Cento Series 4" 2-Way Car Speakers
- •(8) 3/4" Screws
- •(8) Speed clips
- •Template on box
- •Owner's Manual
Optimized for off-axis listening
CThe Cento two-way coaxials CX 100 boast the inclusion of the new 24 mm (0.9 in.) Tetolon® dome tweeter, which offers enhanced musicality and detailed sound reproduction in contrast to conventional plastic materials. Optimized for off-axis listening, the dispersion characteristics have been meticulously refined. Additionally, these coaxials feature the SPP-M cone (Semi Pressed Paper-Mica), guaranteeing superior acoustic performance and damping properties.
Frequency Response
The Hertz CX 100 coaxial speakers showcase an impressive frequency response range from 80 Hz to a remarkable 22,000 Hz, ensuring a wide spectrum of audio frequencies are faithfully reproduced with exceptional clarity and fidelity, making them the perfect choice for audiophiles seeking immersive and detailed sound reproduction across all genres of music and multimedia content.
Physical Specifications
- A – 102.5 mm (4.04 in.)
- B – 93 mm (3.66 in.)
- C – 57.5 mm (2.26 in.)
- D – 43.5 mm (1.71 in.)
- Diameter : 4 Inch
- Sensitivity : 92 dB
- Impedance : 4 Ohm
- Frequency Response : 80-22000 Hz
- Peak Power Handling : 120 Watts
- Design : 2 Way
- RMS Power Handling : 40 Watts
Features:
- 1. Soft Tetolon® fiber 24 mm (0.9 in.) dome tweeter cooled with ferrofluid, for extended and natural high frequencies.
- 2. RHFC ™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.
- 3. Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
- 4. 25 mm (1 in.) woofer voice coil featuring an aluminum former to guarantee high excursion and power handling.
- 5. 100 mm (5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
- 6. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
- 7. Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
- 8. Elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh, available as optional.
Specifications:
- Component: Coaxials
- Size mm (in.): 100 (4)
- Power Handling - Continuous W: 40
- Power Handling - Peak W: 120
- Impedance Ohm: 4
- Woofer Voice Coil Ø mm (in.): 25 (1)
- Tweeter Voice Coil Ø mm (in.): 13 (0.5)
- Frequency Response Hz: 80 ÷ 22k
- Woofer Magnet size D x d x h mm (in.): 70 x 32 x 10 (2.76 x 1.26 x 0.39)
- Tweeter Magnet size D x h mm (in.): 13 x 2 (0.51 x 0.08)
- Weight of one speaker kg (lb.): 0.47 (1.04)
- Woofer Magnet: High-density flux ferrite
- Tweeter Magnet: Neodymium
- Cone: Semi-pressed paper + Mica
- Dome: Tetolon
- Xmech mm (in.): 2.9 (0.11)
Electro-acoustic Specifications:
- Diameter (D): 86.5 mm
- Voice Coil Resistance (Re): 3.1 Ohms
- Resonance Frequency (Fs): 100 Hz
- Voice Coil Inductance (Le): 0.18 mH
- Equivalent Air Volume (Vas): 2 liters
- Moving Mass (Mms): 5.1 grams
- Mechanical Compliance (Cms): 0.41 mm/N
- Force Factor (BL): 3.3 T*m
- Total Q (Qts): 0.81
- Electrical Q (Qes): 1.00
- Mechanical Q (Qms): 4.1
- Sensitivity (SPL): 92 dB
- UPC: 8018823126878
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
