Hertz C165 Cento Series 6.5" 70W RMS (210W Peak Power) 4 Ohm Component Car Woofer (Pair)
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •(2) C 165 Car Woofers
- •(8) 3/4" Screws
- •(8) Speed clips
- •Template on box
- • Owner's manual
Provides Excellent Control Even at Higher Excursions
C 165 6.5" | Woofer | 210 W | 4 Ohm Much time was invested in the research of the perfect material for the C 165 woofer cones: through a long process of customisation of the materials SPP-M was selected (Semi Pressed Paper-Mica), which preserves the natural sound of the semi-pressed paper and enhances it with Mica powder improving rigidity. The result is an excellent balance between lightness and damping, essential for a powerful and controlled emission. The oversized ferrite magnet provides excellent control even at higher excursions.6

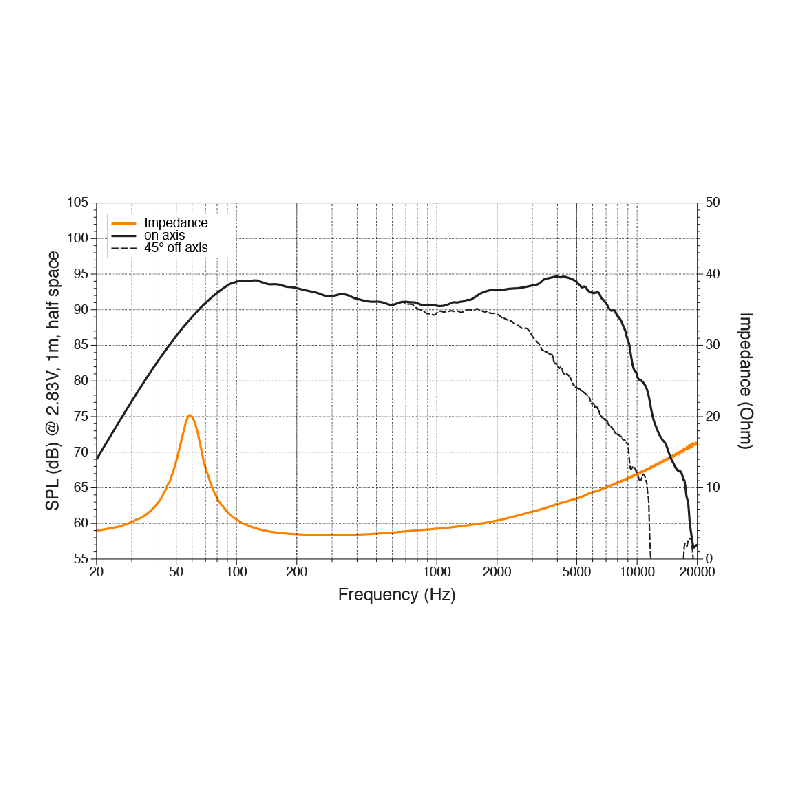

Frequency Response
The frequency response range of the C165 woofer spans from 55 Hz to 7 kHz, ensuring that it effectively reproduces a wide range of frequencies, from deep bass tones at the lower end to crisp highs at the upper end, providing an immersive audio experience across various types of music and sound content.

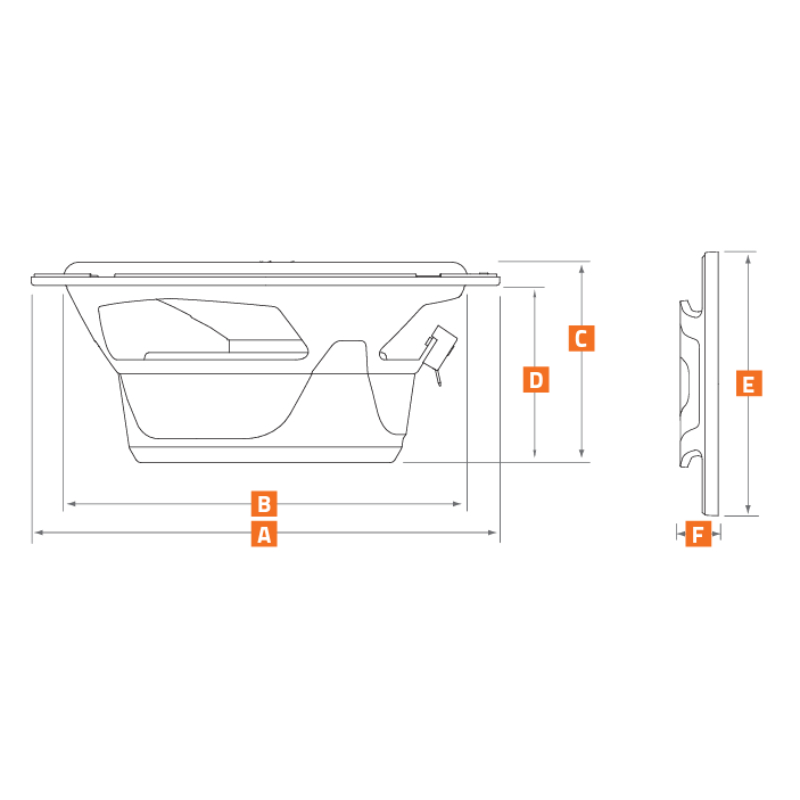

Physical Specifications
- • A: 165 mm (6.5 in.)
- • B: 142 mm (5.59 in.)
- • C: 71 mm (2.8 in.)
- • D: 62.5 mm (2.46 in.)
- • E: 171 mm (6.73 in.)
- • F: 24 mm (0.94 in.)
- Diameter : 6.5 Inch
- Sensitivity : 93 dB
- Impedance : 4 Ohm
- Frequency Response : 55-7000 Hz
- Peak Power Handling : 210 Watts
- Design : 1 Way
- Number of Voice Coils : Single
- RMS Power Handling : 70 Watts
Features:

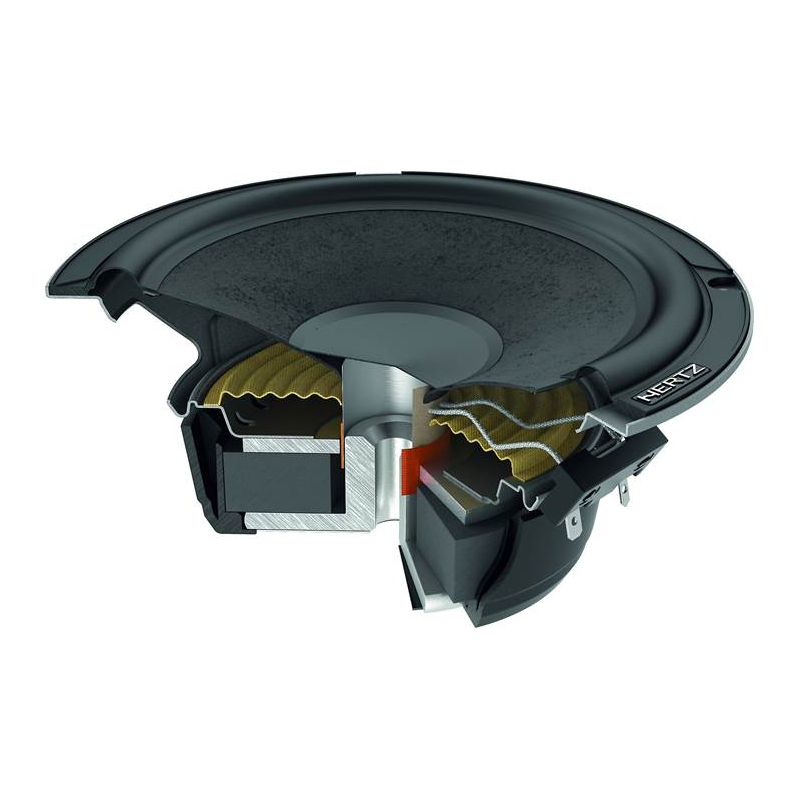

- 165 mm (6.5 in.) semi-pressed paper cone SPP-M (Semi Pressed PaperMica) enhanced with Mica powder for an excellent balance between lightness and damping.
- High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
- 25 mm (1 in.) voice coil featuring an aluminum former to guarantee high excursion and power handling.
- Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
- Optional elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
Specifications:
- Size mm (in.): 165 (6.5)
- Power Handling - Peak W: 210
- Power Handling - Continuous W 70
- Impedance: 4 ohms
- Frequency response Hz: 55 ÷ 7k
- Sensitivity dB SPL: 93
- Voice coil Ø mm (in.): 25 (1)
- Magnet: High density flux ferrite
- Cone/Dome: Semi-pressed paper+ Mica
Electro-acoustic Specs:
- Diameter (D): 131.5 mm
- DC Resistance (Re): 3.2 Ohm
- Resonant Frequency (Fs): 60 Hz
- Inductance (Le): 0.2 mH
- Equivalent Volume Compliance (Vas): 13.24 liters
- Moving Mass (Mms): 13.9 grams
- Mechanical Compliance (Cms): 0.51 mm/N
- Magnetic Flux Density (BL): 4.9 T*m
- Total Quality Factor (Qts): 0.59
- Electrical Quality Factor (Qes): 0.69
- Mechanical Quality Factor (Qms): 3.9
- Sound Pressure Level (SPL): 93 dB
- UPC: 8018823126519
- Weight: 6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
Do you own this product?
Write a review!
-
Lovely mids and midbass for these woofers. Though not a subwoofer, it can still give you some nice lows, making it a great alternative to have in your setup.
