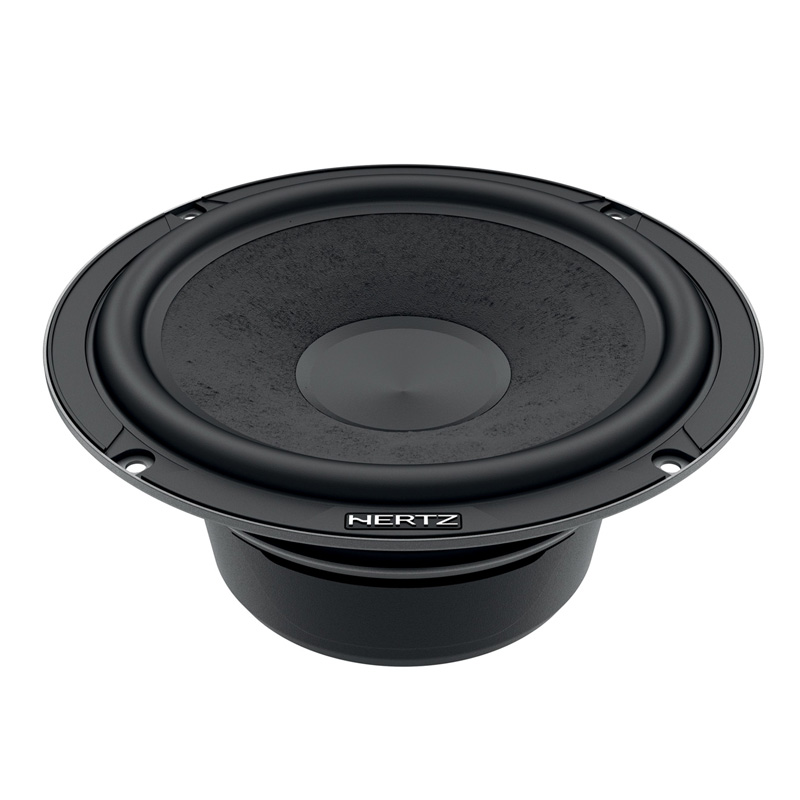

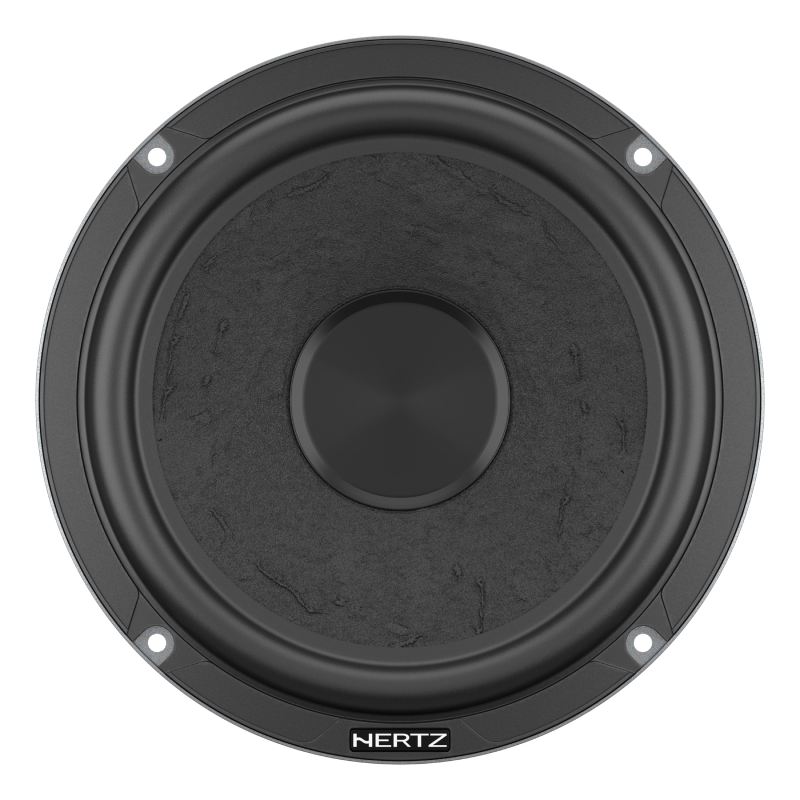

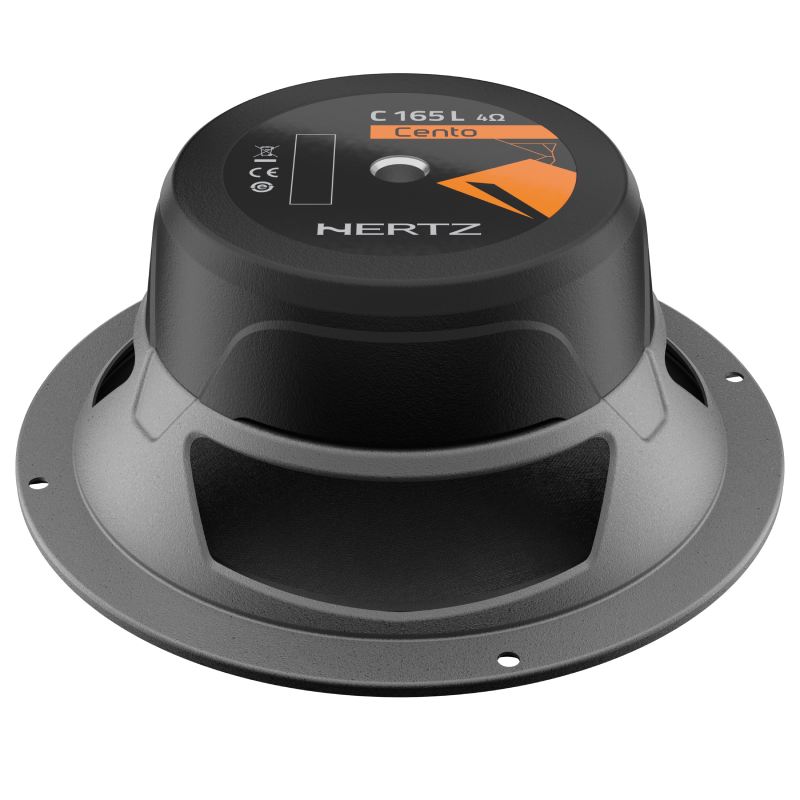

Hertz C165L Cento Series 6.5" 240W Peak Power Handling 4 Ohms Car Woofers
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Two C 165 L Car Woofers
- • Eight 3/4" Screws
- • 8 Speed clips
- • Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 28 Others)
- • Template on box
Natural Sound
The Cento line expands with the C165 L woofer, featuring the use of non-pressed paper for the cone membrane, a choice that gives this component a natural sound, with solid and controlled low frequencies. The enhancement of the magnetic group together with the specific wide stroke voice coil allow the excursion of the woofer to be maximized maintaining utmost control even in the most demanding musical passages.
Technical Specifications
The woofer component measures 165 mm (6.5 inches) and is capable of handling continuous power of 80 watts, with a peak power handling of 240 watts, and operates at an impedance of 4 Ohms. It features a voice coil diameter of 25 mm (1 inch) and a frequency response ranging from 50 Hz to 5 kHz. The magnet size is 85 x 32 x 17 mm (3.35 x 1.26 x 0.67 inches), constructed from high-density flux ferrite. Each speaker weighs 0.973 kg (2.15 lbs) and is equipped with a water-repellent non-pressed paper cone. Additionally, the Xmech (mechanical excursion limit) measures 6.1 mm (0.24 inches).
Electro-acoustic Specifications
The speaker's specifications include a diameter of 131.5 mm, a DC resistance of 3.2 Ohms, a resonant frequency of 60 Hz, a voice coil inductance of 0.23 mH, an equivalent volume of compliance of 13.66 liters, a moving mass of 14.2 grams, a mechanical compliance of suspension of 0.52 mm/N, a Bl Product of 4.9 T*m, a total Q factor of 0.60, an electrical Q factor of 0.70, a mechanical Q factor of 3.8, and a sound pressure level of 91 dB.
Physical Specifications
- • A: 165 mm (6.5 in.)
- • B: 142 mm (5.59 in.)
- • C: 71 mm (2.8 in.)
- • D: 62.5 mm (2.46 in.)
- Diameter : 6.5 Inch
- Sensitivity : 91 dB
- Impedance : 4 Ohm
- Frequency Response : 50-5000 Hz
- Peak Power Handling : 240 Watts
- RMS Power Handling : 80 Watts
Features:
- Non-Pressed Paper Cone (NPP) for natural sound and low, powerful damped frequencies.
- High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
- 25 mm (1 in.) voice coil sized for high excursion and wound on aluminium former to guarantee high power handling.
- Compact and transparent three-spoke basket, acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
- Elegant high resistance ABS plastic grille with a metallic finish combined with a protective metal mesh.
Specifications:
- Size mm (in.): 165 (6.5)
- Power Handling - Peak W: 240
- Power Handling - Continuous W: 80
- Impedance: 4 ohms
- Frequency response Hz: 50 ÷ 5k
- Sensitivity dB SPL: 91
- Voice coil Ø mm (in.): 25 (1)
- Magnet: High density flux ferrite
- Cone/Dome: Water repellent non pressed paper
Electro-acoustic Specifications:
- Diameter (D): 131.5 mm
- DC resistance (Re): 3.2 Ohms
- Resonant frequency (Fs): 60 Hz
- Voice coil inductance (Le): 0.23 mH
- Equivalent volume of compliance (Vas): 13.66 liters
- Moving mass (Mms): 14.2 grams
- Mechanical compliance of suspension (Cms): 0.52 mm/N
- Bl Product (BL): 4.9 T*m
- Total Q factor (Qts): 0.60
- Electrical Q factor (Qes): 0.70
- Mechanical Q factor (Qms): 3.8
- Sound pressure level (SPL): 91 dB
- UPC: 8018823128865
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
Do you own this product?
Write a review!
-
I know it is a midrange speaker but I really love the bass that’s coming out from it. Perfect component for my setup. A bit expensive but it is what it is when it comes to setting up a great sound system.
