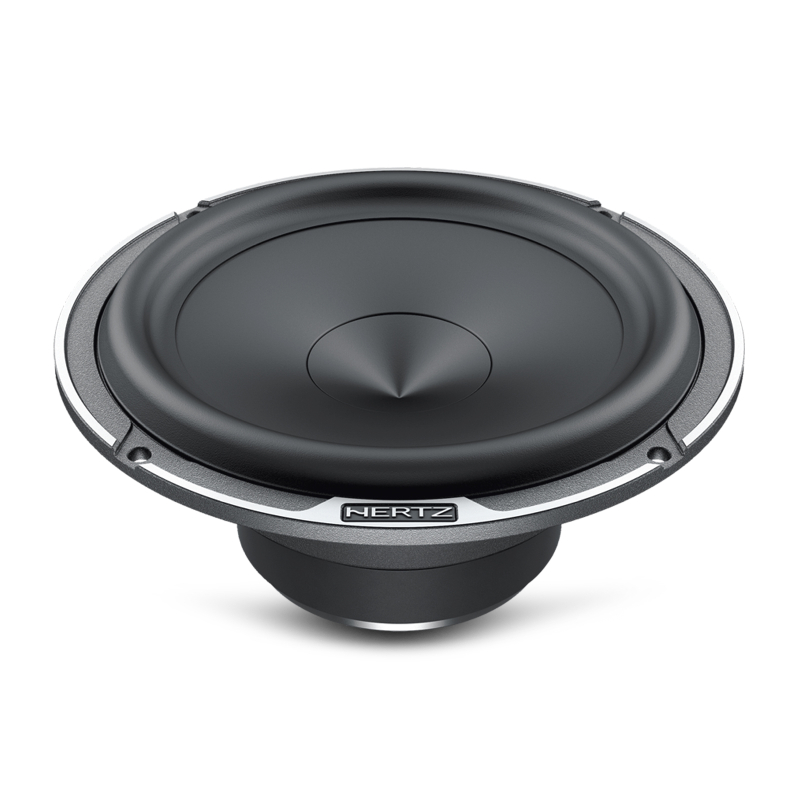

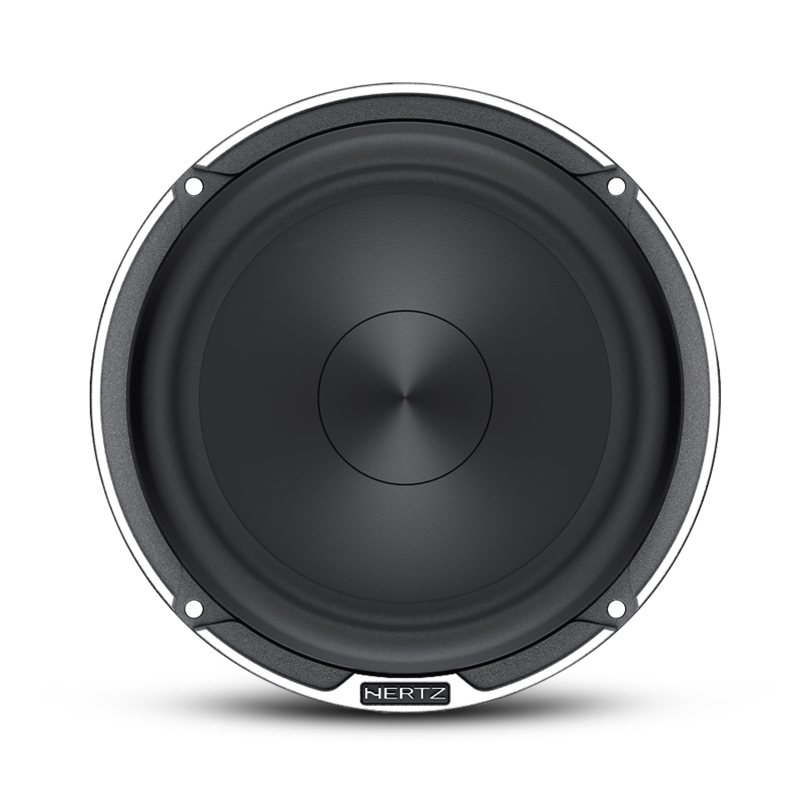

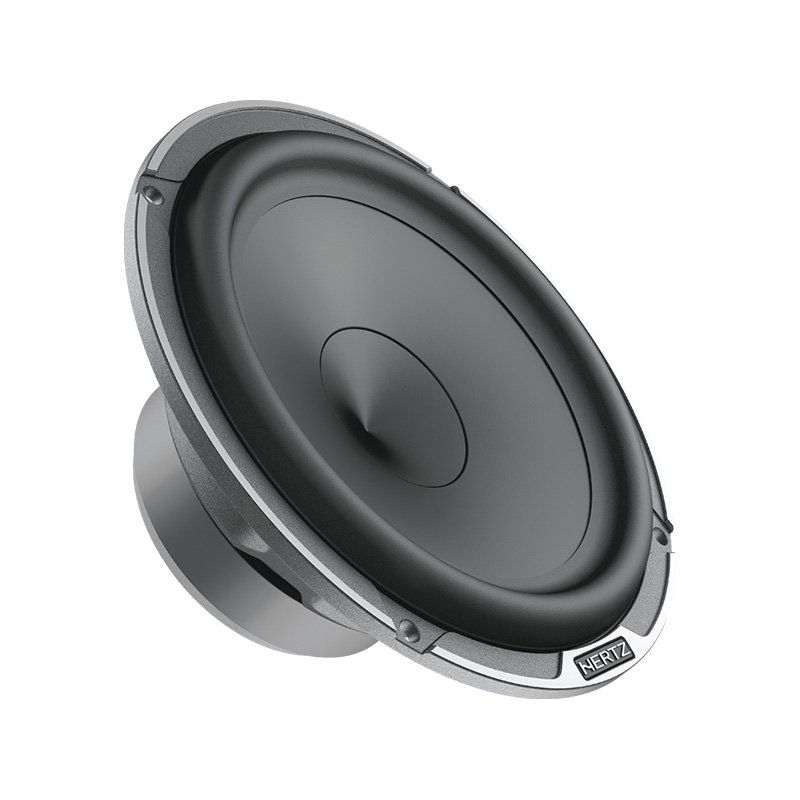

Hertz MP165.3 Single - 6.5" 90W RMS (180W Peak Power) 4-ohm Impedance Woofer
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • One 6.5" 4-Ohms woofer
- • Ten 1-3/8" Allen Head Screws
- • 4mm Allen Head bit
- • 10 Speed clips
- • Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 21 Others)
- • Template on the box
Features and Generates High SPL
Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 car audio woofers boast outstanding dispersion features and generates high SPL with compact dimensions, ensuring a wide low frequency response, even in cars with no space for a subwoofer.
Electro-acoustic Specifications
The speaker features a diameter of 132 mm, a DC resistance of 3.1 Ohms, a resonant frequency of 70 Hz, a voice coil inductance of 0.3 mH, an equivalent air volume of 9.5 liters, a moving mass of 14.9 grams, a mechanical compliance of 0.36 mm/Newtons, a force factor of 5.5 Tesla*meters, and Q-factors of 0.58, 0.67, and 4.6 for total, electrical, and mechanical, respectively, resulting in a sound pressure level of 93 dB.
Frequency Response
The speaker's frequency response spans from 40 Hz to 5 kHz, encompassing a wide range of frequencies crucial for delivering detailed and immersive sound reproduction across various audio sources, from deep, resonant bass tones at 40 Hz to crisp and clear high frequencies reaching up to 5 kHz, ensuring a comprehensive and engaging listening experience across a diverse range of music genres and multimedia content.
Physical Specifications
- • A: 165 mm (6.5 in.)
- • B: 141 mm (5.55 in.)
- • C: 74 mm (2.91 in.)
- • D: 63 mm (2.48 in.)
- • E: 183.5 mm (7.22 in.)
- • F: 29 mm (1.14 in.)
- Diameter : 6.5 Inch
- Sensitivity : 93 dB
- Impedance : 4 Ohm
- Frequency Response : 40-5000 Hz
- Peak Power Handling : 180 Watts
- Number of Voice Coils : Single
- RMS Power Handling : 90 Watts

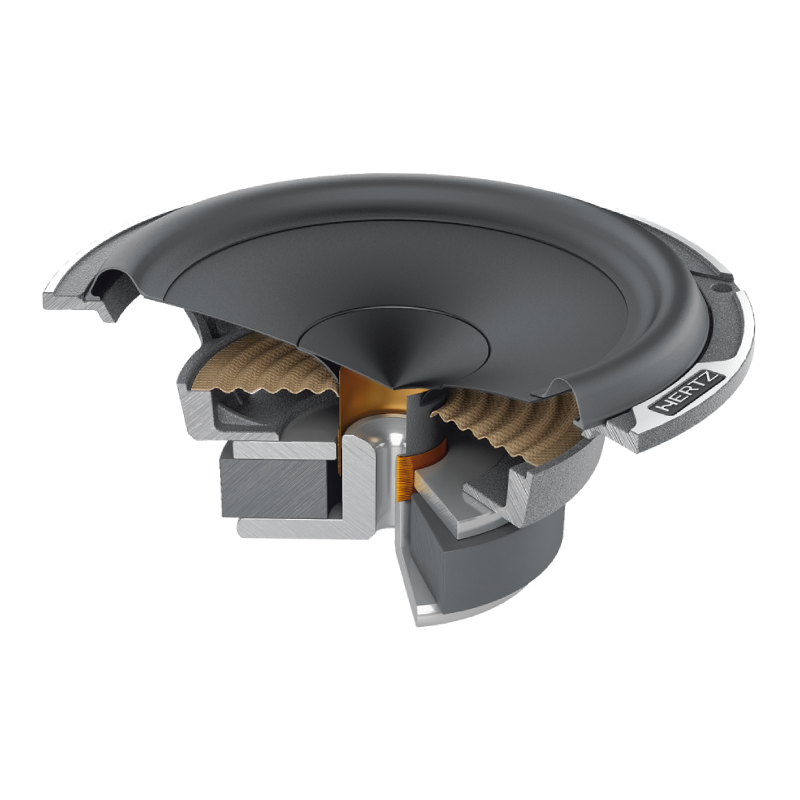

Features:
- 6.5" Single 4 ohms Mille Pro Series Subwoofer
- Power Handling:
- Peak: 180 watts
- RMS: 90 watts
- Pressed Pulp Fiber Cone
- Rubber Surround
- Polyamide former
- Combined with very low carbon content iron plates, for low distortion at high power levels
- Transparent Aluminum alloy basket
- Exponential v-cone® profile
- 1" High Temperature Copper Voice coil
- 0.28 mm Xmax
- Single Stacked Ferrite magnet motor structure
- Frequency Response: 40 - 5000 Hz
- Resonance Frequency (Fs): 70 Hz
- Top-mount depth: 2.48"
- Cutout diameter: 5.55"
- Authorized Internet Dealer
- Optional protective subwoofer grille available
- 1-year Manufacturer's Warranty
Specifications:
- Size mm (in.): 165 (6.5)
- Power Handling - Peak W: 180
- Power Handling - Continuous W: 90
- Impedance: 4 ohms
- Frequency response Hz: 40 ÷ 5k
- Sensitivity dB SPL: 93
- Voice coil Ø mm (in.): 25 (1)
- Magnet: High density flux ferrite
- Cone/Dome: Pressed-pulp cone with cotton fibers
Electro-acoustic Specifications:
- Diameter (D): 132 mm
- DC Resistance (Re): 3.1 Ohm
- Resonant Frequency (Fs): 70 Hz
- Inductance (Le): 0.3 mH
- Equivalent Volume Compliance (Vas): 9.5 liters
- Moving Mass (Mms): 14.9 grams
- Mechanical Compliance (Cms): 0.36 mm/N
- Magnetic Flux Density (BL): 5.5 T*m
- Total Quality Factor (Qts): 0.58
- Electrical Quality Factor (Qes): 0.67
- Mechanical Quality Factor (Qms): 4.6
- Sound Pressure Level (SPL): 93 dB
- UPC: 8018823113885
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
Do you own this product?
Write a review!
-
Good addition if youre looking to add mids on your audio system. Its a little bit high for the price but youll really get the quality you deserve for the price you paid for it.
-
Vocals are very clear for this mid range. Top quality option if you are looking to replace yours
