Hertz DCX 170.3 Dieci Series 6.75" 100W Peak Power Handling 4 Ohm, 2-Way Coaxial Car Speakers
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

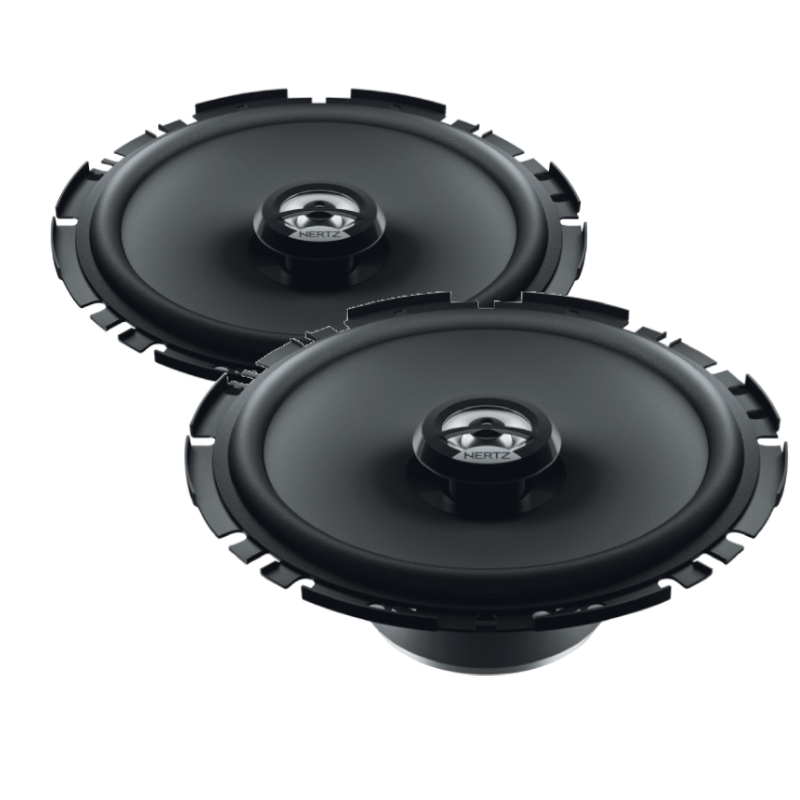

- • (2) 6.75" 2-Way Coaxial Car Speakers
- • (8) 3/4" Screws
- • (8) Speed clips
- • Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 20 Others)
- • Template on box
Elevate Your Car Audio Experience
Introducing the Hertz DCX 170.3 car audio coaxial speaker: With its ultra-slim 51 mm (2.0 in.) depth, this "flat" model is perfect for tight vehicle spaces like doors, without compromising sound quality. Featuring a Neodymium magnet, PEI dome tweeter, built-in crossover, and durable TPU surround, it delivers exceptional performance. Elevate your car audio experience with the DCX 170.3, setting a new standard for quality and clarity.
Immersive Audio Experience
With a robust 3.6 Ohm impedance and a resonant frequency of 85 Hz, it delivers powerful bass and crisp highs. Its 11.3 I Vas ensures deep, immersive sound, while the lightweight 8.8 g Mms and TPU surround guarantee durability without sacrificing performance. Engineered for excellence, it boasts a SPL of 93 dB, providing an immersive audio experience that will elevate every journey.

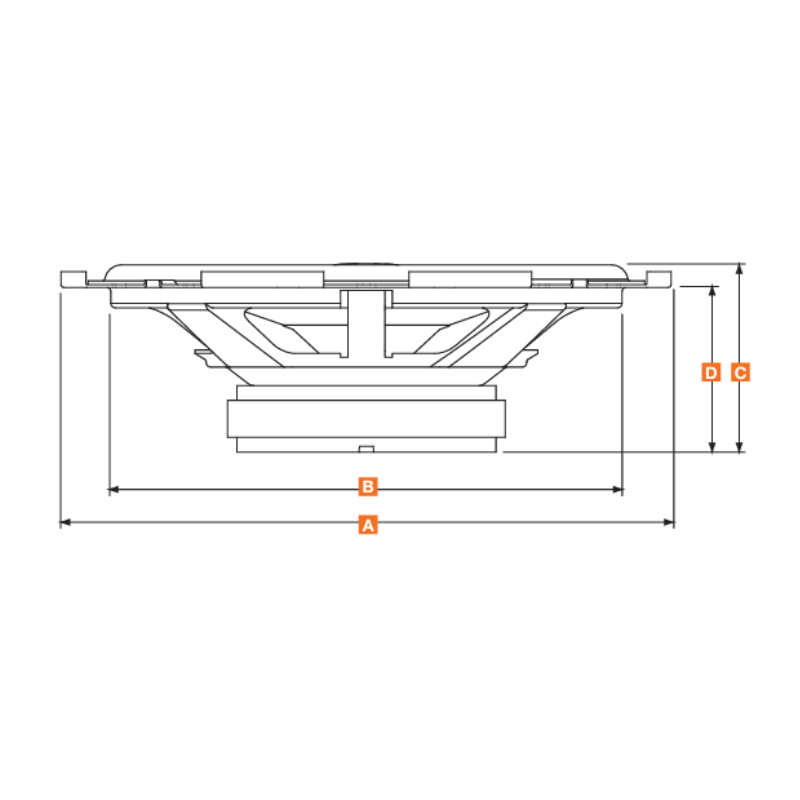

Physical Specifications
- • A: 165 mm (6.5 in.)
- • B: 140 mm (5.5 in.)
- • C: 51 mm (2.0 in.)
- • D: 45 mm (1.8 in.)
- Diameter : 6.75 Inch
- Sensitivity : 93 dB
- Impedance : 4 Ohm
- Frequency Response : 60-21000 Hz
- Peak Power Handling : 100 Watts
- Design : 2 Way
- RMS Power Handling : 50 Watts
Features:
- Maximum depth of 51 mm (2.0 in.), ideal for installation in vehicle doors and other compact spaces
- "Flat" model design optimized for reduced spaces without compromising acoustic reproduction quality
- Equipped with a Neodymium magnet and PEI dome tweeter for enhanced audio performance
- Built-in crossover for seamless integration and balanced sound output
- TPU (Thermoplastic Polyurethane) surround for durability and reliable performance
- Copper voice coil wound on a Conex former for efficient power handling and clear sound reproduction
- Meticulous construction ensures superior performance compared to other components in the same category
Specifications:
- Power Handling - Peak W: 100
- Power Handling - Continuous W: 50
- Impedance: 4 ohms
- Frequency response Hz: 60 ÷ 21k
- Sensitivity dB SPL: 93
- Woofer size mm (in.): 170 (6.7)
- Tweeter size mm (in.): 15 (0.6)
- Woofer Voice Coil Ø mm (in.): 25 (1.0)
- Woofer magnet: High density flux ferrite
- Tweeter magnet: Neodymium
- Woofer cone: Water-repellent pressed paper
- Tweeter dome: PEI
Electro-acoustic Specs:
- Diameter (D): 133 mm
- DC Resistance (Re): 3.6 ohms
- Resonant Frequency (Fs): 85 Hz
- Equivalent Air Volume (Vas): 11.3 liters
- Moving Mass (Mms): 8.8 grams
- Compliance (Cms): 0.4 mm/N
- Force Factor (BL): 3.7 T*m
- Total Q Factor (Qts): 0.95
- Electrical Q Factor (Qes): 1.21
- Mechanical Q Factor (Qms): 4.39
- Sound Pressure Level (SPL): 93 dB
- UPC: 8018823104203
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
