Hertz MP165P.3 MP Series 6.5" 100W RMS (200W Peak Power Handling) 3 Ohms, Midbass Car Woofer (Sold as Single)
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1 Car Audio Woofer)
- • Owner's Manual
Pure and Solid Sound
The MP 165P.3 car audio woofers electro-acoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems. The voice coil with a generous 14 mm height, has a nominal 3 Ω impedance in addition to an increased power handling.
Boundary Free Surround Moves

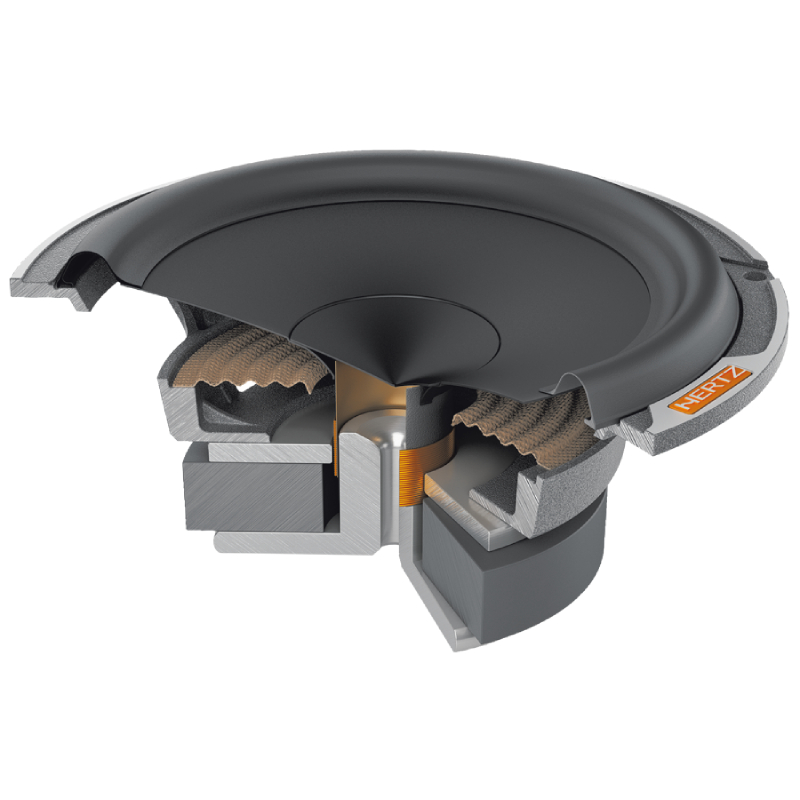

These features provide the ability to maximally exploit the power of the Hertz HCP and HDP amplifiers as well as all the 2 Ω stable electronics. The ferrite 95 mm diameter magnet enables a +/-4.5 mm voice coil linear excursion, ensuring utmost control at all times. The Boundary Free Surround moves a bigger amount of air, and the V-cone® profile improves the offaxis dispersion, the real in-car listening condition. The sophisticated aluminium alloy basket neutralizes the undesired vibrations.
Frequency Response
The speaker's frequency response ranges from 45 Hz to 4.5 kHz, covering a broad spectrum of frequencies essential for delivering rich and balanced audio reproduction, ensuring exceptional clarity in both low and high-frequency ranges, ideal for enjoying a wide variety of music genres and multimedia content with immersive sound quality.
Physical Specifications
- • A: 165 mm (6.5 in.)
- • B: 141 mm (5.55 in.)
- • C: 74.5 mm (2.93 in.)
- • D: 64 mm (2.52 in.)
- • E: 183.5 mm (7.22 in.)
- • F: 29 mm (1.14 in.)
- Diameter : 6.5 Inch
- Sensitivity : 94 dB
- Impedance : 3 Ohm
- Frequency Response : 45-4500 Hz
- Peak Power Handling : 200 Watts
- Number of Voice Coils : Single
- RMS Power Handling : 100 Watts
Product Highlights:
- PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
- EXPONENTIAL V-CONE® PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
- “BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
- HIGH DENSITY FLUX FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
- BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
Specifications:
- Size mm (in.): 165 (6.5)
- Power Handling - Peak W: 200
- Power Handling - Continuous W: 100
- Impedance: 3 ohms
- Frequency response Hz: 45 ÷ 4,5k
- Sensitivity dB SPL: 94
- Voice coil Ø mm (in.): 25 (1)
- Magnet: High density flux ferrite
- Cone/Dome: Pressed-pulp cone with cotton fibers
Electro-acoustic Specs:
- Diameter (D): 132 mm
- DC Resistance (Re): 2.6 Ohms
- Resonant Frequency (Fs): 75 Hz
- Voice Coil Inductance (Le): 0.28 mH
- Equivalent Air Volume (Vas): 8 liters
- Moving Mass (Mms): 15.1 grams
- Mechanical Compliance (Cms): 0.3 mm/Newtons
- Force Factor (BL): 5.45 Tesla*meters
- Total Q-factor (Qts): 0.56
- Electrical Q-factor (Qes): 0.63
- Mechanical Q-factor (Qms): 5.2
- Sound Pressure Level (SPL): 94 dB
- UPC: 8018823119085
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Hertz dealer will have a three (3) year limited warranty from the original date of purchase.
