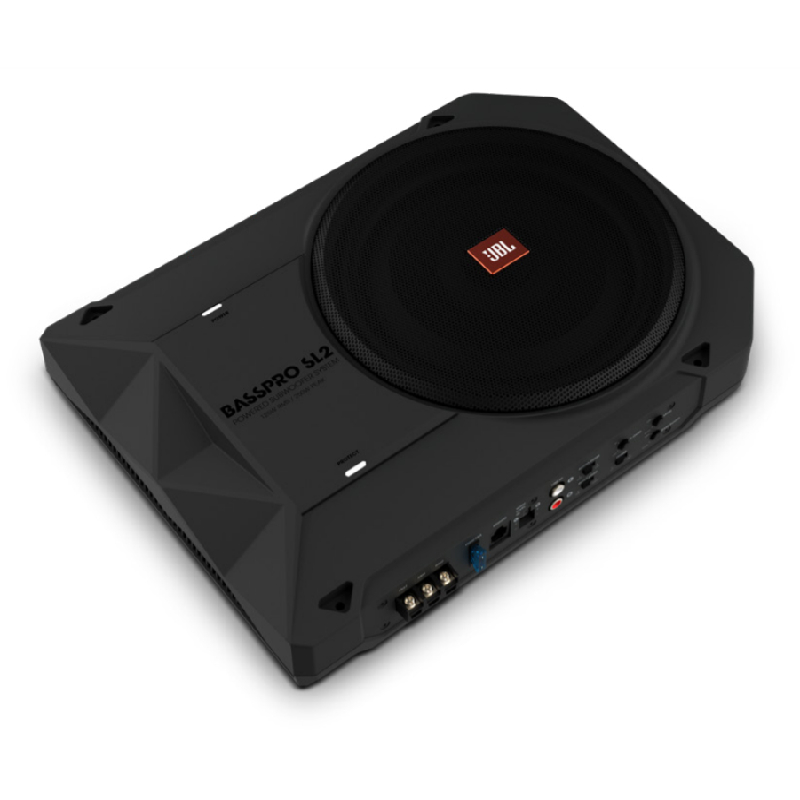

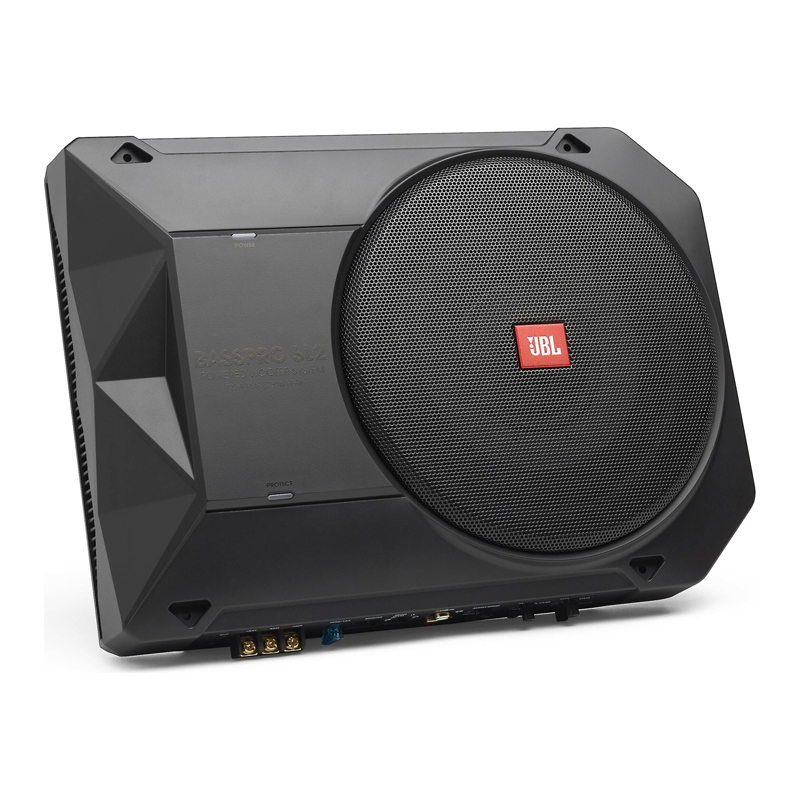

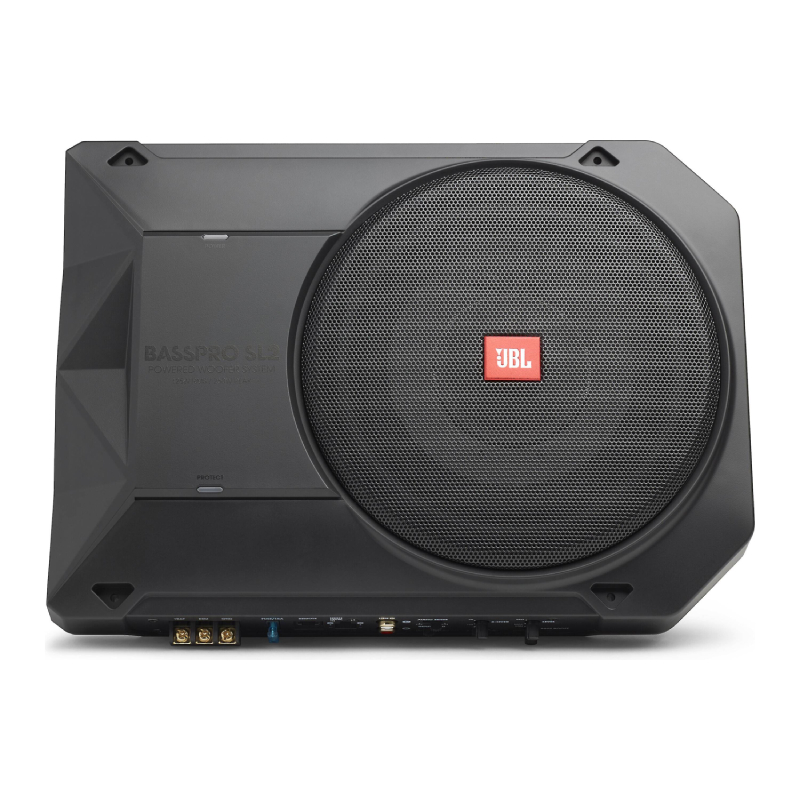

JBL BassPro SL2 8" Compact Powered Car Subwoofer with Build-in 125W RMS Class D Amplifier
We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 8" Powered subwoofer (15A ATC fuse installed)
- • 8" Speaker-level input harness
- • 16.5' Remote cable (RJ-25 connectors on both ends)
- • (4) 2-1/2" Hex-socket screws
- • Hex-socket bit
- • (2) 1" Philips-head screws
- • Remote level control
- • Quickstart guide
Proprietary, shallow-profile woofer
The 8" (200mm) woofer in the BassPro SL2 is designed specifically to provide low distortion and great bass performance in an ABS enclosure with a remarkably compact footprint.
Crossover control
A manual crossover control (50Hz – 120Hz) lets you adjust how much upper bass and mid-bass the BassPro SL2 produces. Fine-tune the crossover to achieve a smooth transition from the BassPro SL2 to the rest of the system’s speakers.

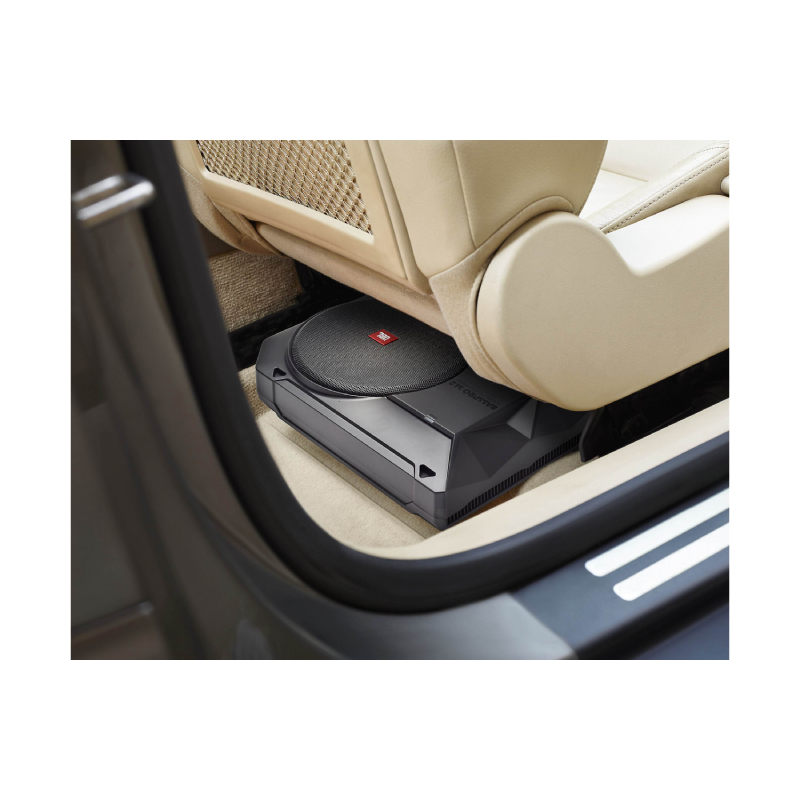

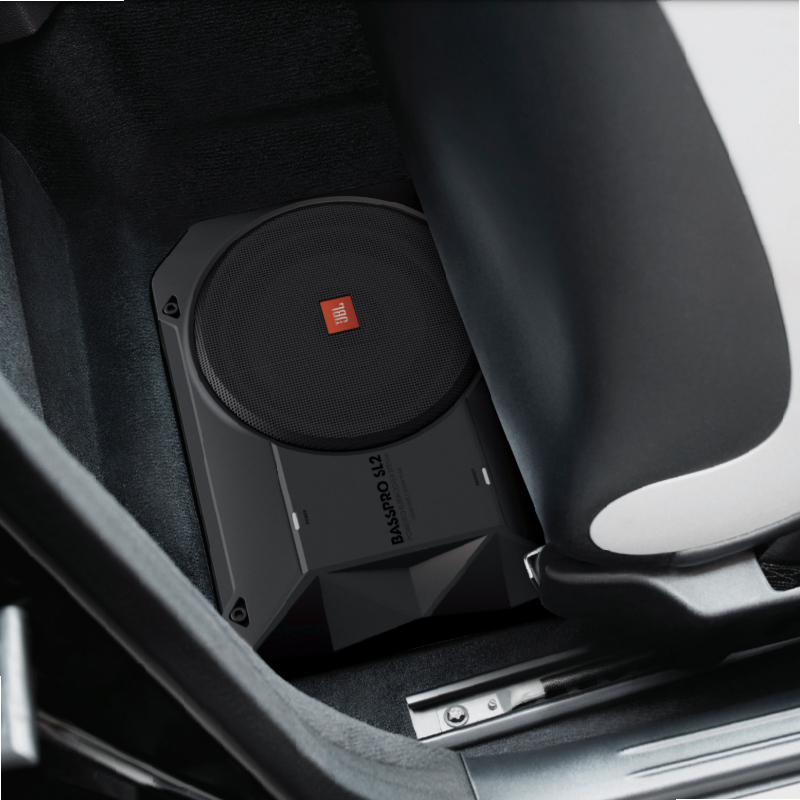

Easily Fits Under the Car Seat
A self-powered subwoofer that easily fits under the front seat of various vehicles, delivering deep, rich bass to enhance your current audio setup. Equipped with an 8" shallow-profile woofer in a custom-tuned enclosure, it's powered by a robust Class D digital amplifier, ensuring remarkable performance. With onboard fully variable crossover and Bass EQ controls, the BassPro SL2 can be fine-tuned to match your system perfectly.
Line- and high-level inputs
For added installation flexibility, the BassPro SL2 features both line- and high-level inputs. If you use the high-level inputs to connect the BassPro SL2 to the head unit, an input load switch lets you switch from “Low” to “High” to achieve optimum results.
Wired, remote level control capability
The BassPro SL2 is compatible with the JBL GTO-RBC included, which enables you to control the bass level remotely.
- Diameter : 8 Inch
- Frequency Response : 35-120 Hz
- RMS Power Range : 125 Watts
Features:
- Proprietary, shallow-profile woofer
- Efficient Class D amplifier
- Intelligent electronic design
- Crossover control
- Flexible EQ adjustments
- Line- and high-level inputs
- Wired, remote level control capability
- Compact Design: The BassPro SL2 self-powered subwoofer is specifically designed to fit conveniently under the front seat of many vehicles, ensuring space-saving installation without sacrificing audio quality.
- Deep, Rich Bass: Equipped with a shallow-profile, 8" woofer coupled with a custom-tuned enclosure, the BassPro SL2 delivers deep, full, and rich bass tones that enhance your existing audio system's sound quality.
- Powerful Amplification: Driven by a powerful Class D digital amplifier, the BassPro SL2 offers robust and dynamic bass performance, making it a powerful solution for enhancing your in-car audio experience.
- Customizable Tuning: With a fully variable crossover and Bass EQ onboard, you can easily tune the BassPro SL2 to suit your system's specific requirements, ensuring optimal bass response and seamless integration with your vehicle's audio setup.
Specifications :
- Woofer: 8" (200mm)
- Amplifier Power: 125W RMS
- Frequency Response: 35Hz – 120Hz
- Fuse: 15A
- Maximum Current Draw: 12A
- Quiescent Current Draw: <800mA
- Input Sensitivity: 0.05V – 2V
- Line-Level Input; 0.5V – 20V
- High-Level Input Crossover Frequency: 50Hz – 120Hz
- Crossover Slope: 12dB/octave
- Bass Boost: 0dB to +9dB @ 70Hz
- Dimensions (L x W x H): 13-9/16" x 9-7/8" x 2-13/16"
(344mm x 250mm x 71mm)

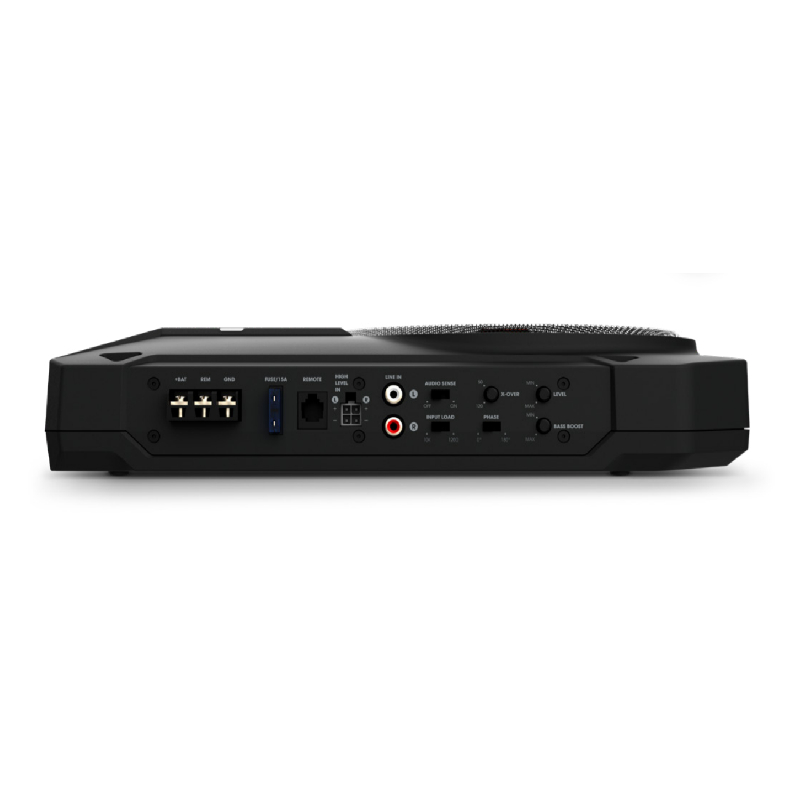

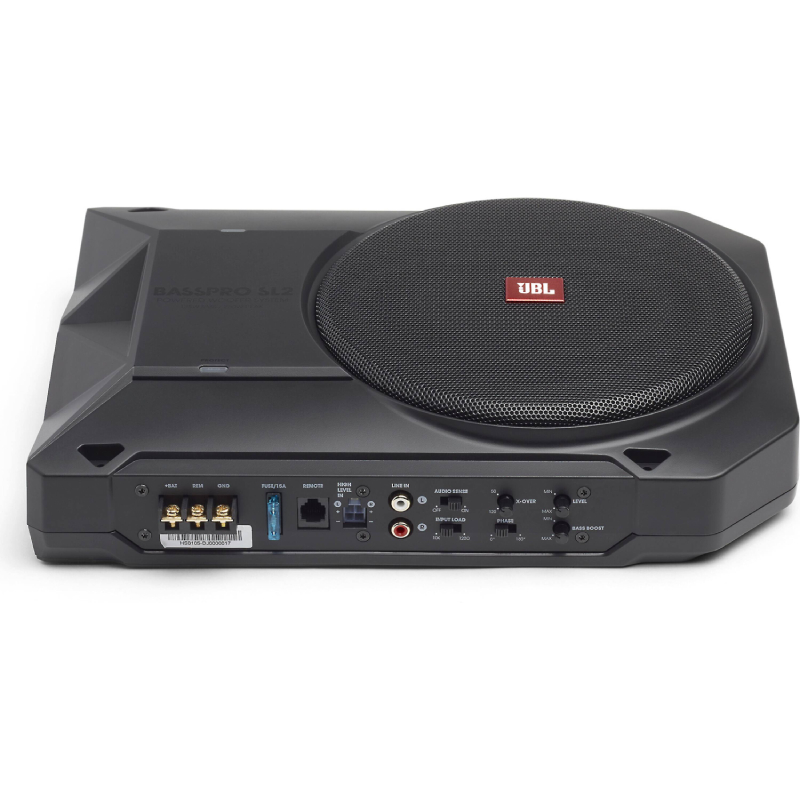

Connections:
- Remote Bass: RJ-25 jack for use with included remote bass level control.
- Fuse: A single 15 amp ATC fuse protects the amplifier.
- High Level Input: Accommodates the included 4-pin Molex high-level input harness.
- Power/Ground: Three set-screw terminals provide connections for Power, Ground, and Remote In, each accepting up to 8AWG wire.
Other Controls&Indicators:
- Phase: A two position switch (0° or 180°) allows the subwoofer's phase to easily be inverted .
- Level: A rotary knob adjusts the input signal level.
- Input Load: Used in conjunction with the speaker-level inputs, this 2-postition switch (High/Low) can be set to provide the lowest amount of noise with a high-level input signal. Generally, this will be set to the High position for most factory radios.
- Power LED: Lights to indicate unit is powered on.
- Protect LED: Lights to indicate a fault or short-circuit.
- UPC: 050036365284
- Weight: 12
