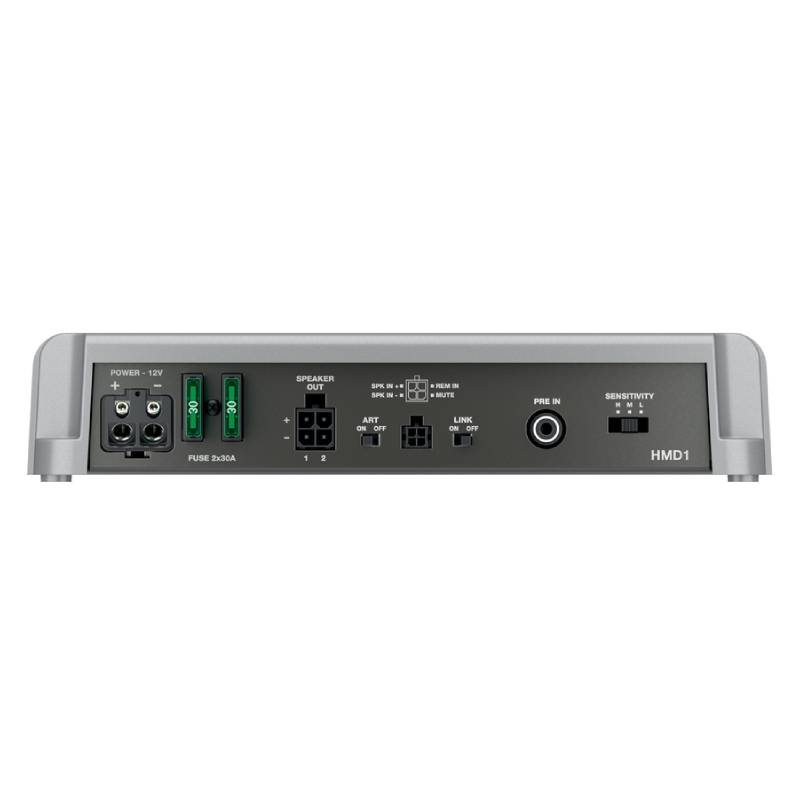

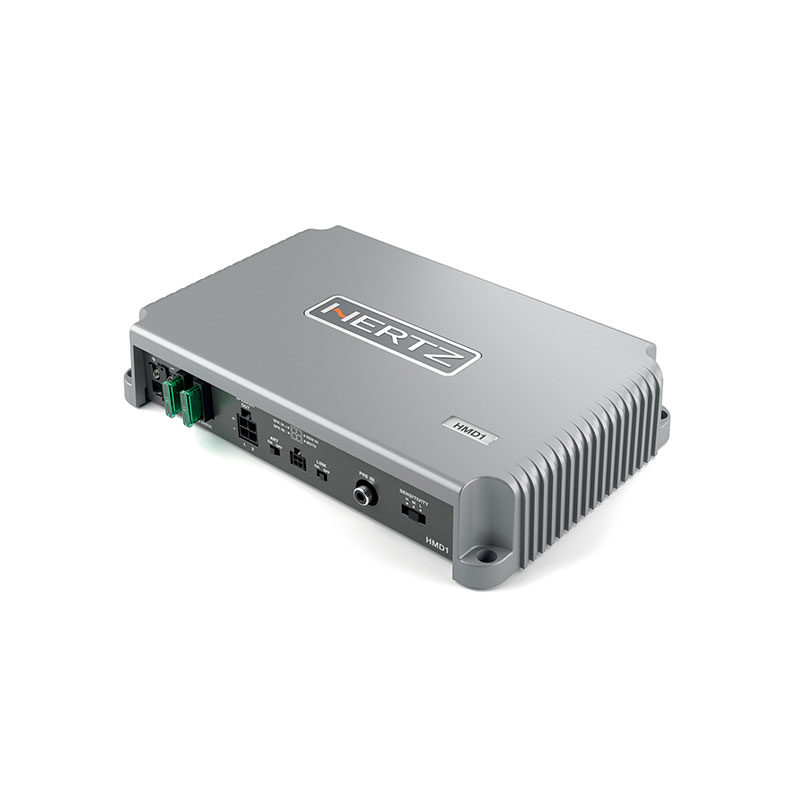

Hertz HMD1 1000W RMS x 1 @1Ohms Class D High Power Mono Amplifier
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •1 Channel Mono Amplifier
- •Owner's Manual
The perfect solution
HMD1 mono amplifier is the perfect solution to add one or more marine subwoofer to your vassel, being the ideal power extension of HMD8 DSP. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.
- Maximum Power : 1000 Watts
- Number of Channels : 1
- Frequency Response : 10-500 Hz
- Built In Crossovers : No
- RMS Power Output : 800x1 Watts
- Channel Separation : No
- Amplifier Class : D
- Fuse Rating : 50x1 A
Amplifier Stage
- Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.1%
- Damping factor @ 1 kHz, 4Ω, 2 VRMS: 120
- Bandwidth @ -1.5 dB: 10Hz ÷ 22kHz
- S/N ratio (A weighted @ 1 V Input) Master Input: 101 dBA
- Input sensitivity Pre-In: 0.6 ÷ 6 VRMS
- Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS
- Minimum load impedance: 1Ω
Output Power (RMS) @14.4 VDC, 1% THD:
- 1Ch @ 4Ω: 500 W
- 1Ch @ 2Ω: 800 W
Inputs / Outputs
- Pre-In Inputs: Ch1
- Speaker-In Inputs: Ch1 ÷ Ch4 customizable
Size
- Max size W x H x D (mm/inch): 238 x 49,5 x 155 / 9.37 x 1.95 x 6.1
- Weight (kg/lbs): 1.98 / 4.36
- UPC: 8018823134132
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
