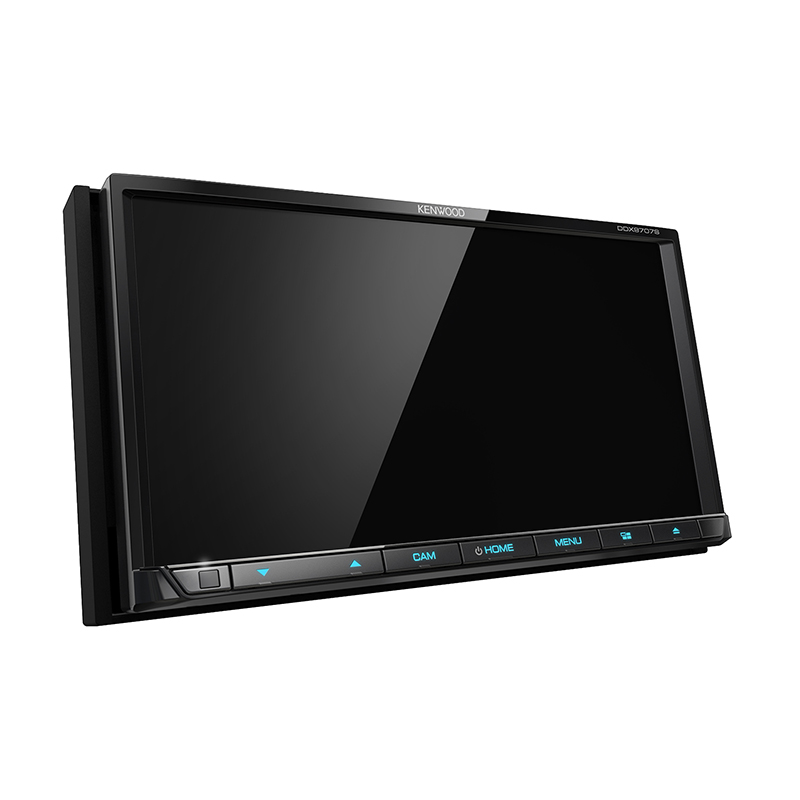

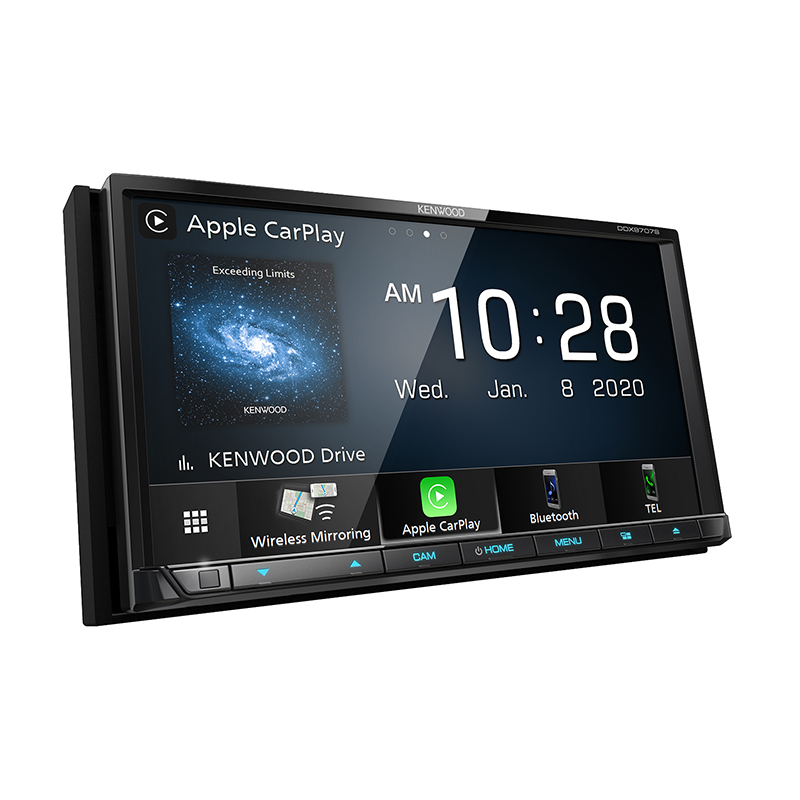

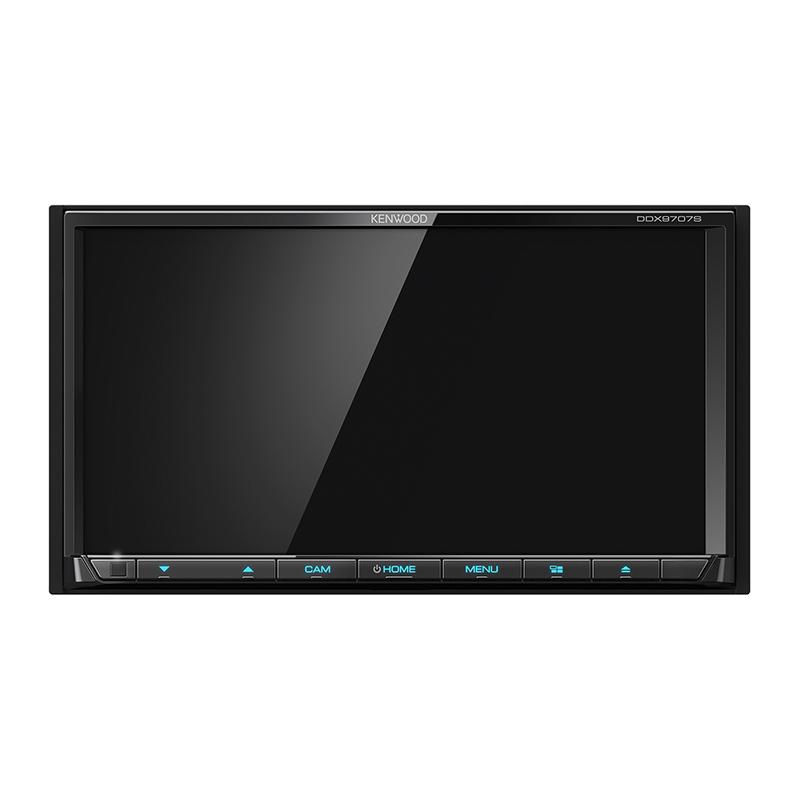

Kenwood DDX9707S 2-DIN 6.95" DVD/CD receiver with AM/FM tuner, Wireless Apple CarPlay, Wireless Android Auto
We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

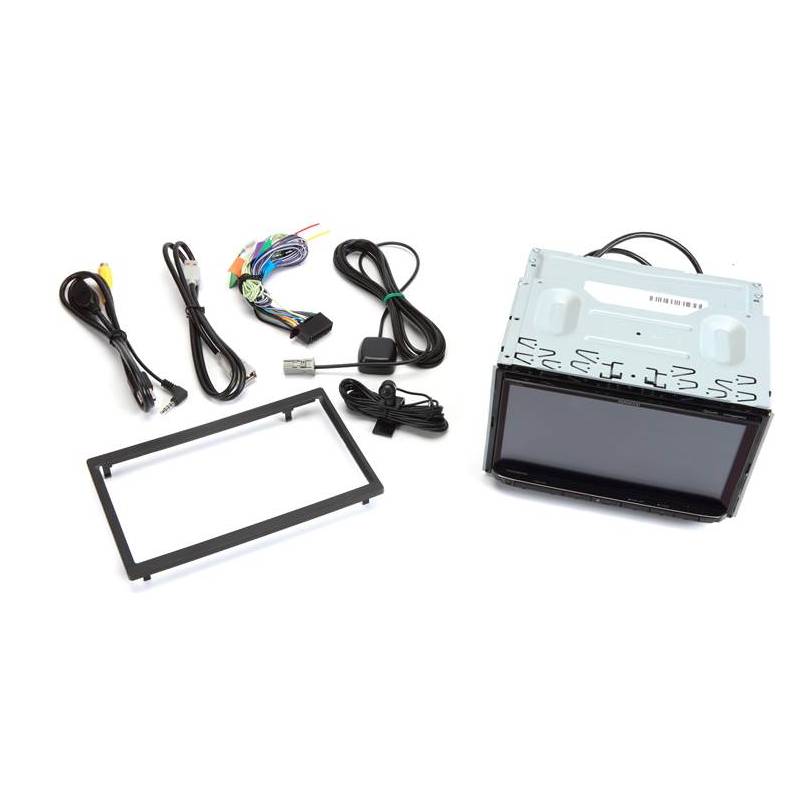

What's Inside?
- • DVD receiver w/ electronic 6.95" touchscreen monitor (15A fuse)
- • Sleeve (attached)
- • Trim ring

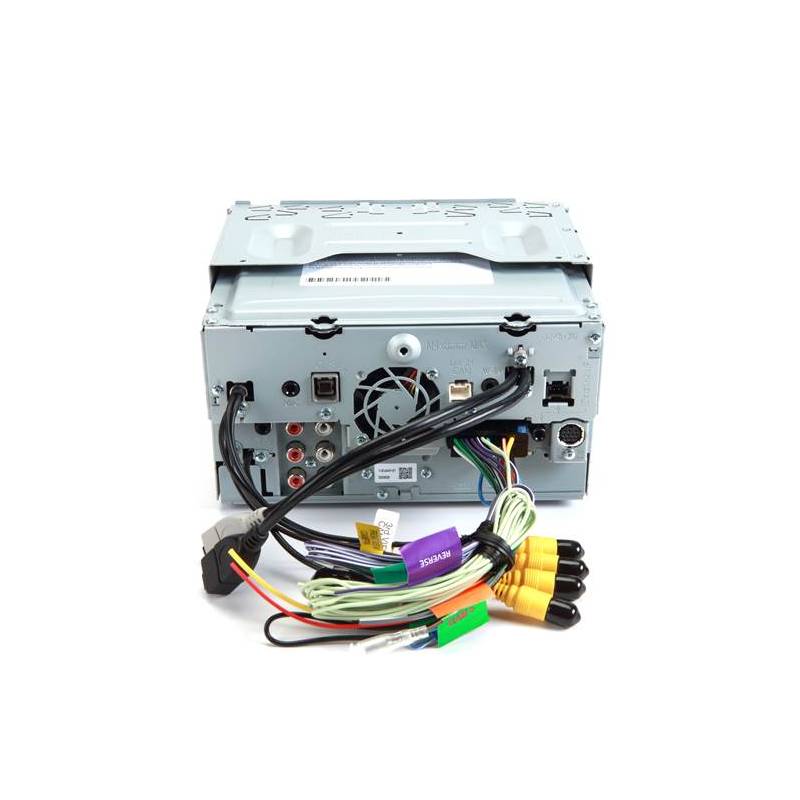

- • Wiring harness
- • (2) 39" USB extension cables
- • GPS antenna (attached 11.5' cable terminated by a proprietary connector)
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- • Self-adhesive pad
- • (2) Radio removal tools
- • (6) Pan-head ISO-mount screws
- • (6) Flat-head ISO-mount screws
- • Owner's Manual
Safe, Smart and Comprehensive Control with Apple CarPlay™

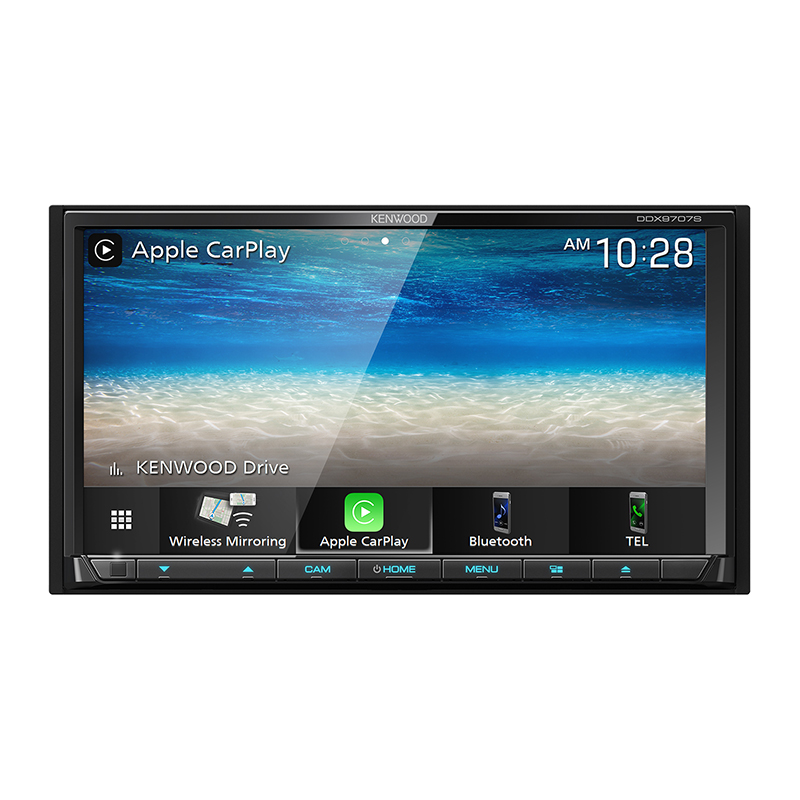

Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported. New KENWOOD Wi-Fi receivers now support Apple CarPlay™ wirelessly (compatible phone required).
Android Auto for Easy Connectivity

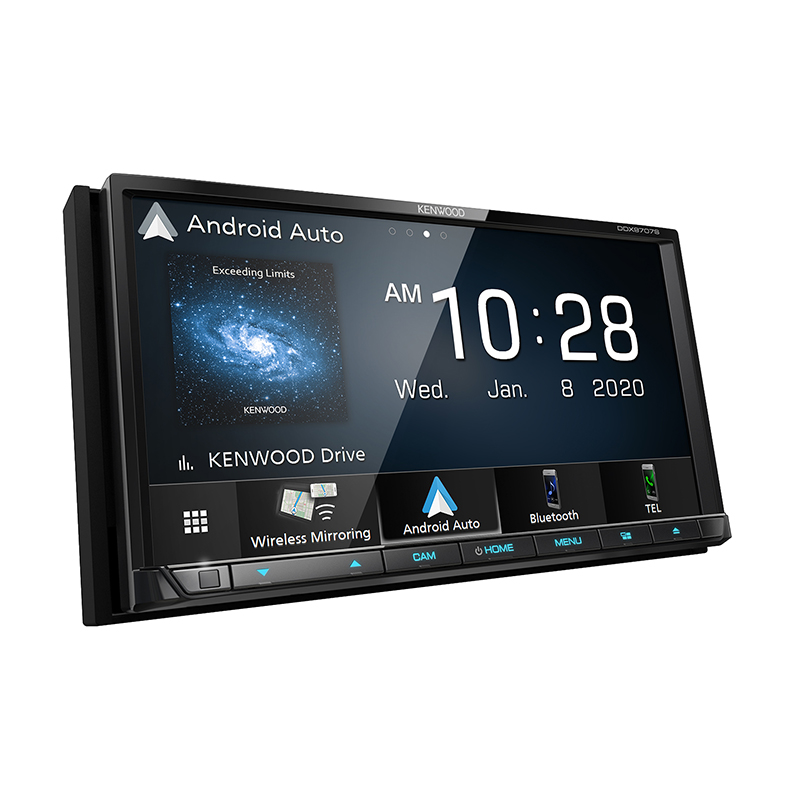

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. New KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).
4 Camera Inputs

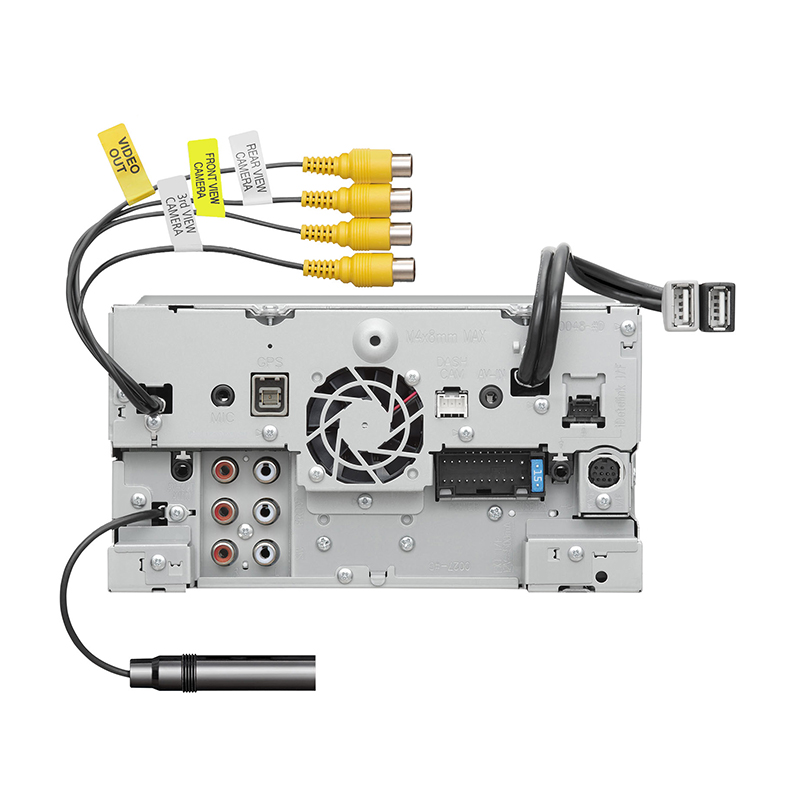

To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a front camera, a KENWOOD dashboard camera (DRV-N520 sold separately), and rear and side (blind spot) cameras. Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front camera, and a reverse camera. Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink
True Mirroring via USB for iPhone & Android, 2-Way Touch Control for Android
True Mirroring allows you to display and control your smartphone on the receiver screen via USB. You can enjoy your favorite apps on a large display with impressive sound quality. Before starting True Mirroring, just install the free app “Mirroring for KENWOOD” on your smartphone and connect it to the receiver via Bluetooth as well as a USB cable.
Additional Features

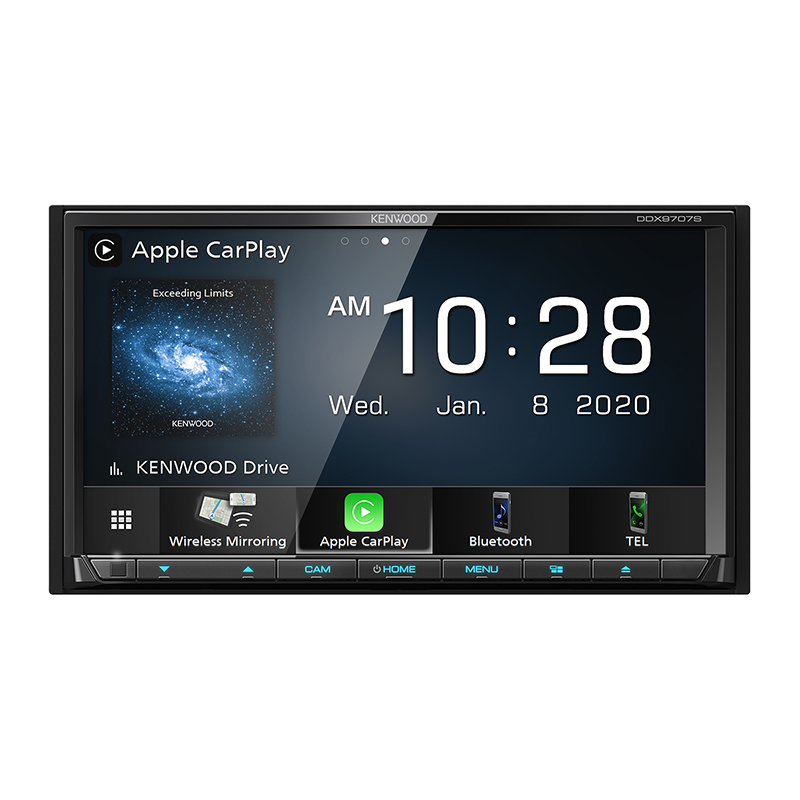

Customizable Multi Widget Screen You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, and more. Equipped with Dual USB PortsPlay your music from one USB port and use the other to charge your device, or charge both at the same time. SiriusXM Radio Ready Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)Remote Control (Optional)This receiver unit can be operated using the optional remote control KNA-RCDV331.
- Maximum Power : 50 Watts
- CD Text : yes
- Satellite Radio Ready : Yes
- Built In Crossovers : Yes
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 6.95 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Rear USB Input : 2
- Preamp Outputs : 6
- RDS - Radio Data System : Yes
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : Yes
Features:
- Clear Resistive Touch Panel: A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation
- Customizable Multi Widget: Customize your Home Screen by selecting four shortcut/ information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, and more.
- Wireless Mirroring for Android: Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
- USB Mirroring: USB Mirroring via USB for iPhone & Android, 2-way Touch Control for Android.
- 4 Camera Inputs: Optional camera connection method for up to 4 cameras in various configurations.
- Parking Guide Lines: Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
- Dash Cam Link: Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.
- Music Mix: Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
- Dual Phone Connection: While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
- Graphic EQ / Digital Time Alignment: 13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
- FLAC Supported: Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
- DUAL USB: Multiple USB ports provide additional inputs for music sources or smartphone battery charging.
- Variable Color Illumination: Bright variable color LEDs can be adjusted to match any color dash lighting.
Specifications:
- AUX Input Mini: (rear)
- Audio/video Input: Mini (rear)
- USB Input Rear: (2)
- USB Port Power: 1.5A
- Backup Camera Input: Yes
- Second Camera Input: Yes
- CarPlay: Wireless
- Android Auto: Wireless
- Siri Control: CarPlay
- Alexa Voice Control: N
- Android Control: Yes
- Memory Card Slot: USB
- Bluetooth Compatible: Built-in
- Satellite Radio Ready: SiriusXM 3.0
- HD Radio: No
- Navigation: Optional
- Full size: No
- Nano: No
- Touch: 6Gen and newer
- iPhone: 5S and newer
- RMS Power (CTA-2006): N/A
- RMS Power (Manufacturer): 22 watts
- Peak Output: 50 watts
- RMS Power Bandwidth: 20-20kHz
- Preamp Outputs: 6-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Video Screen: Yes
- Navigation App Compatible (iOS): Apple, Google, Waze
- Navigation App Compatible (Android): Google, Waze
- Preamp Voltage: 4 volts
- Screen Size: 6.95
- Screen Type: Basic (Resistive)
- Key Button Color: Variable
- EQ Bands: 13
- Wireless Remote: Optional
- Steering Wheel Control Compatible: Adapter required
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- FM Sensitivity: 9.3 dBf
- European Tuning: No
- Seek/Scan: Seek
- Radio Data System: Yes
- Music File Playback: MP3,WMA,AAC,FLAC,WAV
- High-res Playback: WAV/FLAC (24-bit/192kHz)
- UPC: 019048229847
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
