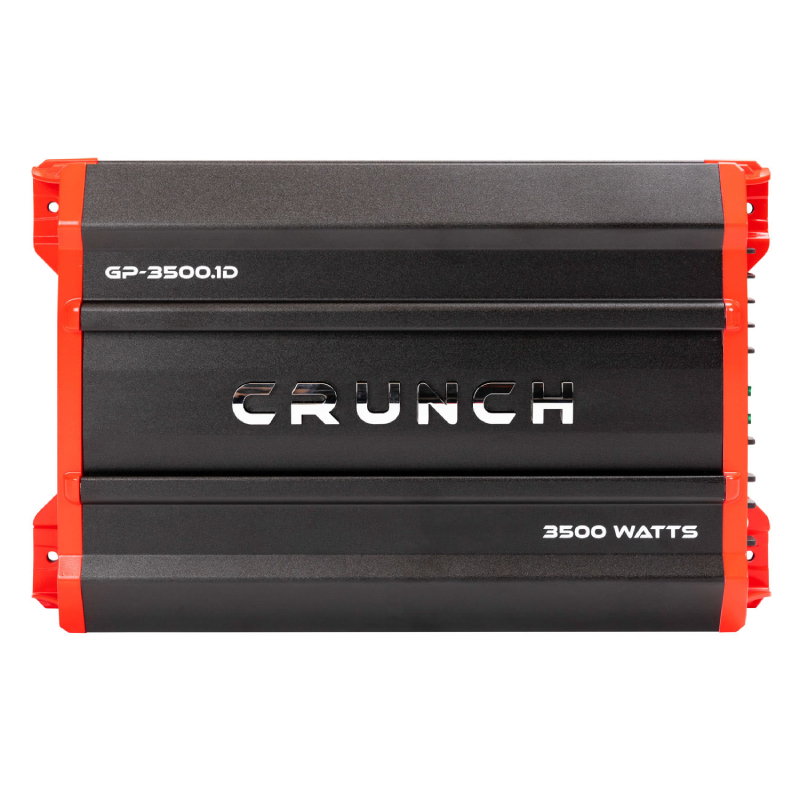

Crunch GP-3500.1D Ground Pounder Series 3500W Max Power, Class-D Mono Subwoofer Car Amplifier with Bass Remote Included
We are a Crunch authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 3500W Class-D Mono Subwoofer Car Amplifiers
- • Bass Remote (Wire Attached)
- • (4) Mounting Screws
- • (4) Washers
- • Spare Fuse
- • High-Level Input Wiring Harness with Molex Connector
- • Owner's Manual
Maximize Your Audio Experience
Introducing the Crunch GROUND POUNDER series: a sleek, powerful amplifier delivering 3500 watts of max power in a compact design, perfect for enhancing your vehicle's audio system. With versatile features like a built-in bass control, variable electronic crossover, and speaker level audio inputs, it ensures unparalleled customization for premium sound quality. Backed by a 1-year warranty, this amplifier is compatible with all vehicles, making it the ultimate choice for maximizing your audio experience on the road.
Compact Class-D Topology
Experience pristine sound with our amplifier's Low Noise Preamplifier Circuit and premium RCA Inputs, minimizing distortion and reducing interference. Easily integrate with OEM audio systems using High Level Inputs, and enjoy focused audio output in mono mode. Fine-tune your settings with Variable Electronic 12dB Per Octave Crossover and Fully Adjustable 12dB Crossovers. Efficiently drive power to subwoofer frequencies with our compact Class D Topology.
Improved Sound Quality
Maximize your audio performance with our amplifier equipped with exclusive Crunch SPEED-FET MOSFET Components for optimized power efficiency and improved sound quality. Stay cool with QTD Technology Aluminum Heat Sink while our High Energy Pulse Width Modulated Power Supply ensures consistent power delivery. Enjoy secure connections with Nickel Plated Brass Output Connections and easy installation with Screw Down Connectors. Monitor system health with LED System Protection Circuitry Diagnostics and fine-tune your bass with the included Bass Remote for ultimate control.
- Maximum Power : 3500 Watts
- Number of Channels : 1
- Frequency Response : 10-500 Hz
- Built In Crossovers : Yes
- RMS Power Output : 1x1750 Watts
- Amplifier Class : D
- Fuse Rating : 2x30 A
Features:
- Low Noise Preamplifier Circuit: Minimizes distortion for maximum audio clarity.
- RCA Inputs: Ensures high-quality connection with premium RCA materials, reducing interference and distortion.
- High Level Inputs: Easily integrates with OEM audio systems lacking RCA output for increased amplifier power.
- Operation Mode: Supports mono configuration for focused audio output.
- Crossover Type: Variable Electronic 12dB Per Octave for precise crossover control.
- Electronic Equalizer: Fully Adjustable 12dB Crossovers for fine-tuning audio settings.
- Class D Topology: Efficiently drives additional power to subwoofer frequencies while maintaining a compact footprint.
- Exclusive Crunch SPEED-FET MOSFET Components: Maximizes power efficiency and improves sound quality while minimizing distortion.
- QTD Technology Aluminum Heat Sink: Ensures effective heat dissipation, keeping the amplifier cool with minimal distortions.
- High Energy Pulse Width Modulated Power Supply: Delivers power with minimal impact on the electrical system.
- Nickel Plated Brass Output Connections: Provides secure, corrosion-resistant connections.
- Screw Down Connectors: Allows quick and secure installation with hand tools.
- LED System Protection Circuitry Diagnostics: Monitors overload and speaker short protection with illuminated indicators.
- Bass Remote Included: Wired remote enables convenient bass frequency adjustments from anywhere in the vehicle.
Details and Specifications:
- Dimensions: 11.5 × 8 × 2.375 inches
- Type: Amplifier
- Brand: Crunch
- Series: GROUND POUNDER
- Category: Mobile
- Condition: New
- Color: Black/Red
- Model Replaced: PD-3000.1D
- Warranty: 1 Year
- Compatible Vehicles: Universal
- Class: Class D
- Total Channels: 1
- Max Power (watts): 3500
- Power @ 1 Ohm (ch x watts): 1 x 3500
- Power @ 2 Ohms (ch x watts): 1 x 1750
- Power @ 4 Ohms (ch x watts): 1 x 875
- Crossover: Variable Electronic 12dB Per Octave

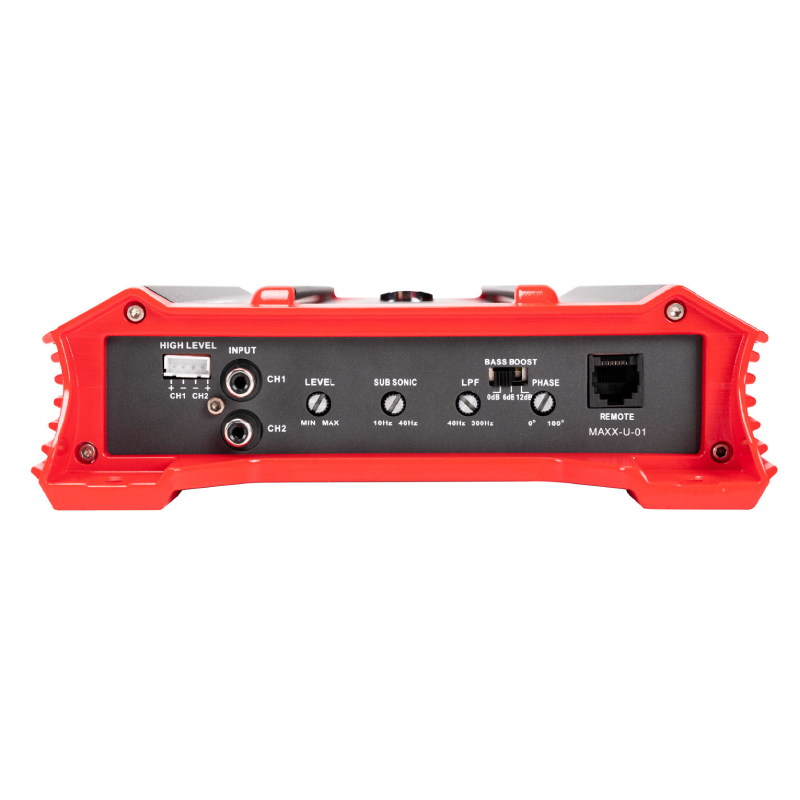

- Tone Control / Parametric EQ: Built-in Bass Control
- Bass Boost: Switchable: 0/+6/+12dB
- Subsonic Filter: 10Hz-40Hz
- Phase Shift: 0-180 Degrees
- Variable Voltage: 0.2-9V
- Frequency Response: 10Hz-500Hz
- Speaker Level Audio Inputs: Yes

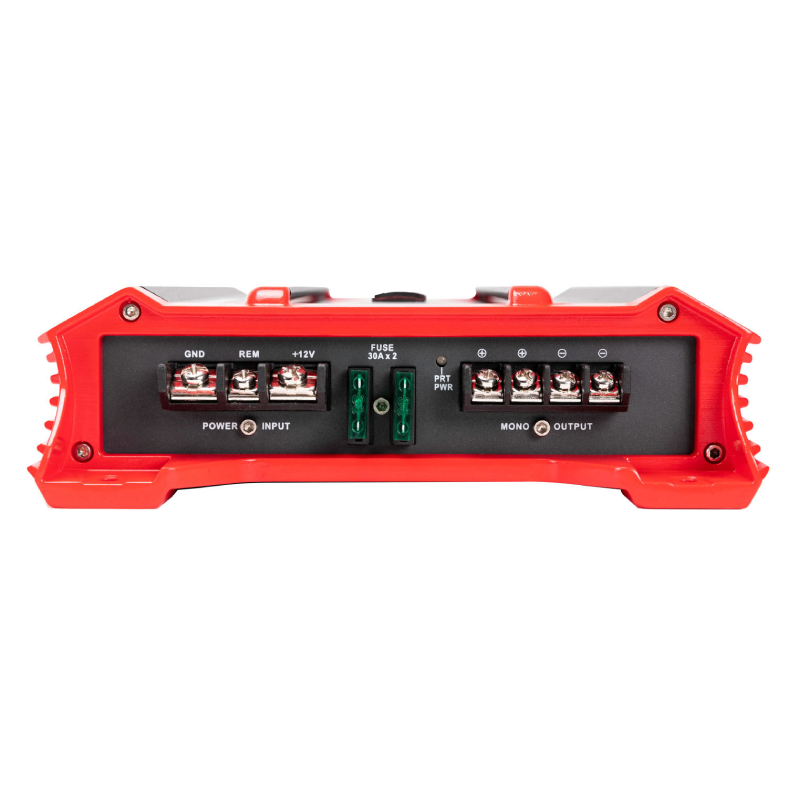

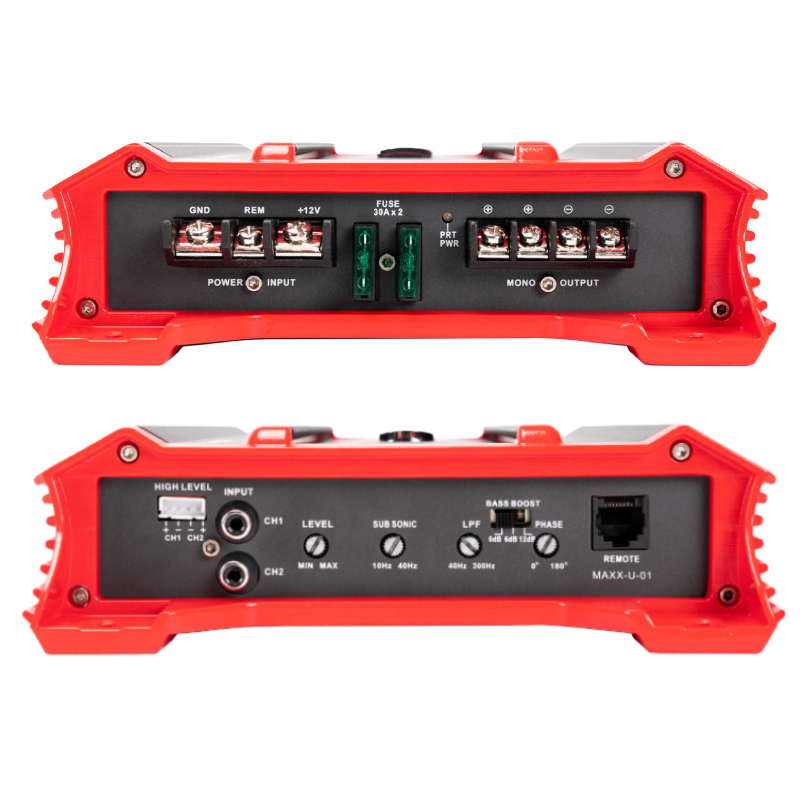

- Power Terminal 12v/GND: 4 AWG
- Speaker Terminal Wire Gauge: 12 AWG
- Fusing: 30A x 2
- UPC: 806576231059
- Weight: 9.05
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Definitely isn't a huge power amp it does however at 2 ohms give you around 1000 to 1100 watts have 2 of these on 2 kicker l7 15s and the amps never quit, don't overheat even I'm 90 degree weather bass nob could be better same as the tuning filters but for less than 100 dollars each can't go wrong. One did blow on break in had a new one in less than 5 days
