Kenwood  DDX8706S-Bundle

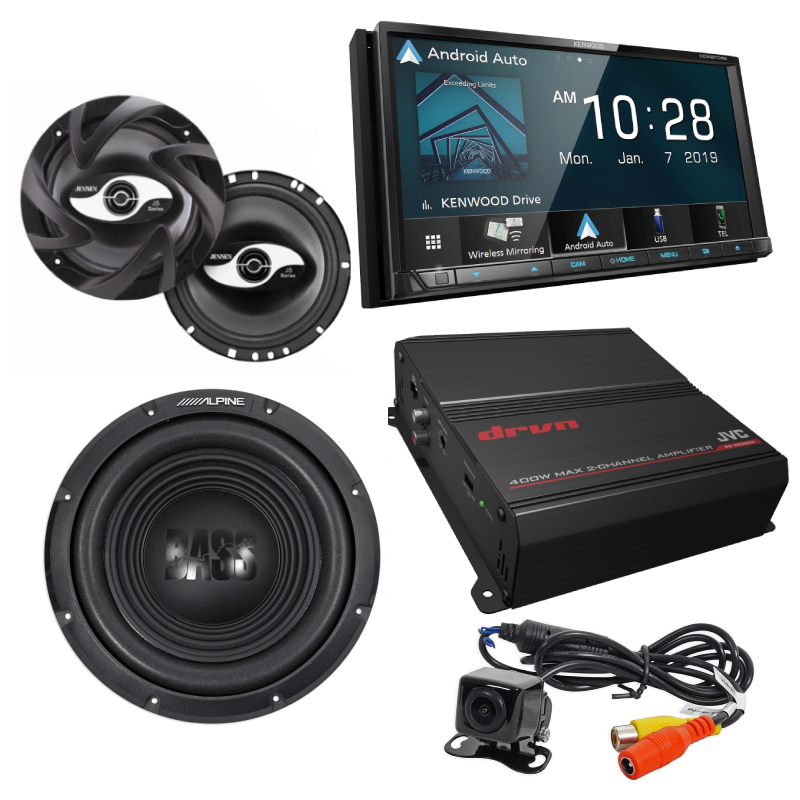

Kenwood DDX8706S + Alpine W12S4 + JVC KS-DR3002 + Jensen JS265 + Jensen BUCAM200J Exclusive Bundle

Item #56170

1 / 1
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.


Huge Saving on Other items:


Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.


Kenwood Excelon DDX8706S

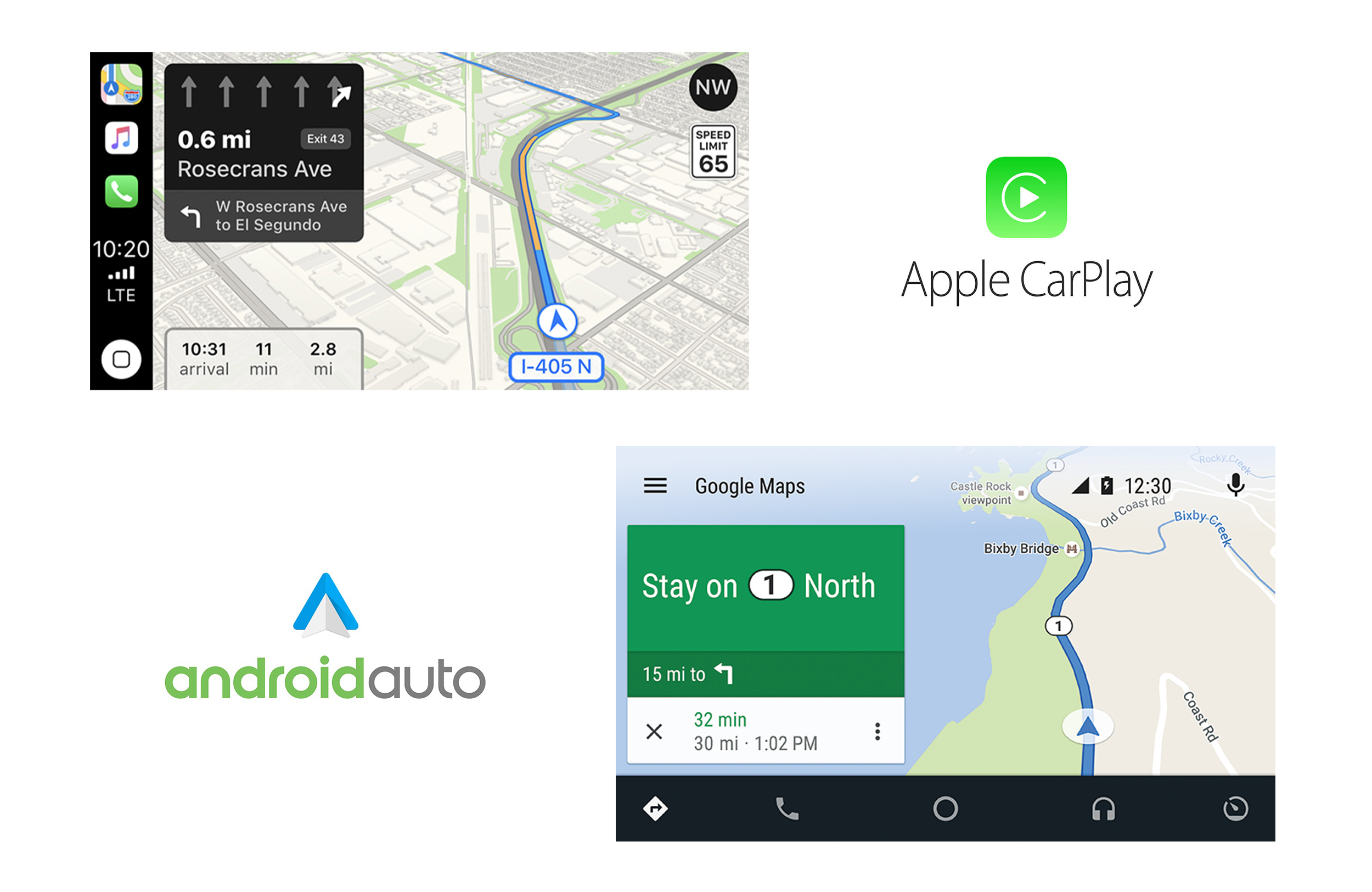

Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver's display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported. New KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD's multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. With the latest ANDROID OS version (PIE and higher), Google Maps™ and Waze™ are also supported. New KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).

Kenwood Excelon DDX8706S


Alpine W12S4

The 2017 BASS subwoofers are engineered to be fun and loud in a budget friendly category by combining retro styling with enough efficiency to run on 250W RMS. An optimized magnet circuit allows more focused magnetism in the gap which results in improved efficiency. This means tighter bass control and more output!

Alpine W12S4

JVC KS-DR3002

DR Series amplifiers feature speaker level inputs with Auto Turn-on function. Installation is possible without having to detach the receiver. Stable power supply is assured thanks to a large-size toroidal transformer. Its high winding density and low flux leakage improves conversion efficiency of the power. The result is natural and powerful music playback throughout the volume range.

JVC KS-DR3002


Dual DS652

Dual's DS Series speakers are one of the best options if you are looking to upgrade your car audio system without spending a lot. The sizes range from 4" to 6"x 9". They feature high-strength ABS grille, black chromed polypropylene cones, black stamped steel baskets and more! The DS Series speakers are an easy add-on for existing systems.

Dual DS652

Jensen BUCAM200J

This universal rear view camera from Jensen features wide angle lens for greater vehicle visibility. BUCAM200J has an IP rating of IP67 which makes the camera waterproof. Cheap and reliable, The BUCAM200J will make your driving easier and safer.

Jensen BUCAM200J


DDX8706S 2-DIN 6.95" WVGA DVD Receiver feat. Bluetooth, Wireless CarPlay, Wireless Android Auto, Dash-Cam Ready, Pandora, Spotify, SiriusXM, iDatalink

Monitor Section

  • Picture Size: 6.95"
  • WxH: 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch
  • Display system: TN LCD panel
  • Drive system: TFT active matrix system
  • Number of pixels: 1,152,000 800H x 480V x RGB
  • Effective pixels: 99.99%
  • Pixel arrangement: RGB striped arrangement
  • Back lighting: LED

DVD Section

  • D/A Converter: 24 / 32Bit
  • Audio Decoder: Linear PCM | Dolby Audio
  • Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
  • Wow & Flutter: Below Measurable Limit
  • Frequency response:
    • 96k Sampling: 20 - 44,000 Hz
    • 48k Sampling: 20 - 22,000 Hz
    • 44.1k Sampling: 20 - 20,000 Hz
  • Total harmonic distortion 1kHz: 0.010%
  • Signal to Noise ratio: 90.5dB (DVD-Video 96k)
  • Dynamic range: 89dB (DVD-Video 96k)
  • DISC Format: DVD-Video / VIDEO-CD / CD-DA
  • Quantifying bit number: 16 / 20 / 24bit

USB I/F Section

  • USB Standard: USB2.0 High Speed
  • File System: FAT 16/32, exFAT, NTFS
  • Maximum Power Supply Current: DC5V=1.5A
  • D/A Converter: 24/32Bit
  • Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
  • Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV

Wireless Mirroring

  • Mode: Sink
  • Copyright protection: HDCP2.2
  • Touch Control: UIBC

Wi-Fi

  • IEEE Standard: 802.11 a/b/g/n/ac
  • Frequency Range Dual: Band ( 2.4GHz / 5GHz )
  • Channels: Auto(1-11ch) | Auto(149,153,157,161ch)
  • Transfer rates (MAX): 11a: 54 Mbps / 11b: 11 Mbps / 11g: 54 Mbps / 11n: 300 Mbps / 11ac: 867 Mbps
  • Output Power 2.4GHz/SISO: 11b:14dBm±2dB / 11g:13dBm±2dB / 11n(20MHz):12dBm±2dB
  • Output Power 5GHz/SISO: 11a:9dBm±2dB / 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
  • Output Power 5GHz/MIMO: 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB

Bluetooth Section

  • Technology: Bluetooth Ver5.0
  • Frequency: 2.402 – 2.480 GHz
  • RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
  • Maximum Communication range: Line of sight approx.10m(32.8ft)
  • Audio Codec: SBC / AAC
  • Multi Profile Support: Multi Profile
  • Profile: HFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile)

DSP Section

  • Graphics equalizer:
    • BAND: 13Band
    • frequency (Hz)(BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
    • Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
  • 2Way X'Over:
    • HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
    • SLOPE: -6/-12/-18/-24[dB/Oct.]
    • LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
    • SLOPE: -6/-12/-18/-24[dB/Oct.]
  • Position:
    • Front/Rear/Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
    • Gain: -8 to 0dB
    • Subwoofer Level: -50 to +10dB

Digital FM

  • Frequency Range (Frequency step): 87.9MHz - 107.9MHz (200kHz)
  • Frequency Response (±3.0 dB): 20Hz - 20kHz
  • S/N: 80dB (STEREO)

Digital AM

  • Frequency Response (±3.0 dB): 40Hz - 15kHz
  • S/N: 80dB (STEREO)

FM

  • Frequency Range (Frequency step): 87.9MHz - 107.9MHz(200kHz)
  • Usable sensitivity: 9.3dBf
  • S/N30dB: 0.8μV/75Ω
  • Quieting sensitivity: 10.2dBf
  • DIN S/N 46dB: 1.13μV / 75Ohms
  • Frequency response(±3.0dB): 30Hz - 15kHz
  • S/N (dB): 65dB (MONO)
  • Selectivity: Over 80dB (±400kHz)
  • Stereo separation: 45dB (1kHz)

AM

  • Frequency Range (Frequency step): 530kHz - 1700kHz (10kHz)
  • Usable sensitivity: 28dBμ

Video

  • Color system of external video input: NTSC/PAL
  • External video input level (Mini jacks): 1 Vp-p / 75 Ohms
  • External audio max input level (Mini jacks): 2 V / 25 kOhms
  • Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
  • Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
  • Audio Output level (Mini jacks): 0.9 V / 10 kOhms

Audio

  • Maximum Power Output (Front&Rear): 50Wx4
  • Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1%THD) 22Wx4
  • Output frequency band: 20 - 88,000Hz
  • Preout level (V): 4V / 10kOhms
  • Preout impedance (ohms): =< 300 Ohms
  • Speaker Impedance (ohms):4-8 Ohms

General

  • Operating voltage: 12V DC Car Battery
  • Maximum Current consumption: 15A
  • Installation Dimensions WxHxD: 178mm x 100mm x 155mm | 7-3/16 x 4-7/16 x 6-2/16 inch
  • (with Sleeve): 182mm x 112mm x 153mm | 7-3/16 x 4-7/16 x 6 inch
  • Operational temperature range: -10°C to +60°C
  • Weight: 2.4 kg 5.3 lb

W12S4 750 Watts Peak 4-Ohm Car Subwoofer:

  • 12" 4-ohm subwoofer
  • polypropylene and mica cone with poly-foam surround
  • stamped steel frame
  • power handling: 50-250 watts RMS
  • peak power: 750 watts
  • sensitivity: 87.9 dB
  • frequency response: 22-200 Hz
  • top-mount depth: 5-5/16"
  • sealed box volume: 1.09 cu. ft.
  • ported box volume: 1.91 cu. ft.

KS-DR3002 2-Channel drvn Series Car Audio Power Amplifier

  • 2-channel power amplifier
  • Output power (max.): 400 watts
  • Output power (RMS): 90 Watt / 2 Ohm (2 channel), 65 Watt / 2 Ohm (2 channel), 180 Watt / 4 Ohm (Bridged 1 channel)
  • Frequency range: 5-50000 Hz
  • THD: less than 0.04%
  • Signal / noise ratio: 80 dBA at 4O, 1W
  • 2 RCA inputs
  • High-level terminal

JS265 JS Series 6-1/2" 50W RMS (100W Peak Power) 4 ohms 2-Way Speakers

  • 6-1/2 inch
  • 2-Way Design
  • Sensitivity: 86dB
  • Frequency Response: 80Hz-20kHz,
  • Nominal Impedance: 4 Ohms
  • RMS Power: 50 Watts
  • Peak Power: 100 Watts
  • Treated Paper Cone & Black Foam Surround
  • Injection-Molded Polypropylene Woofer Cone
  • 1 inch Black Mylar Dome Tweeter
  • Stamped Steel Frame
  • High Performance Coated Steel Stamped Basket

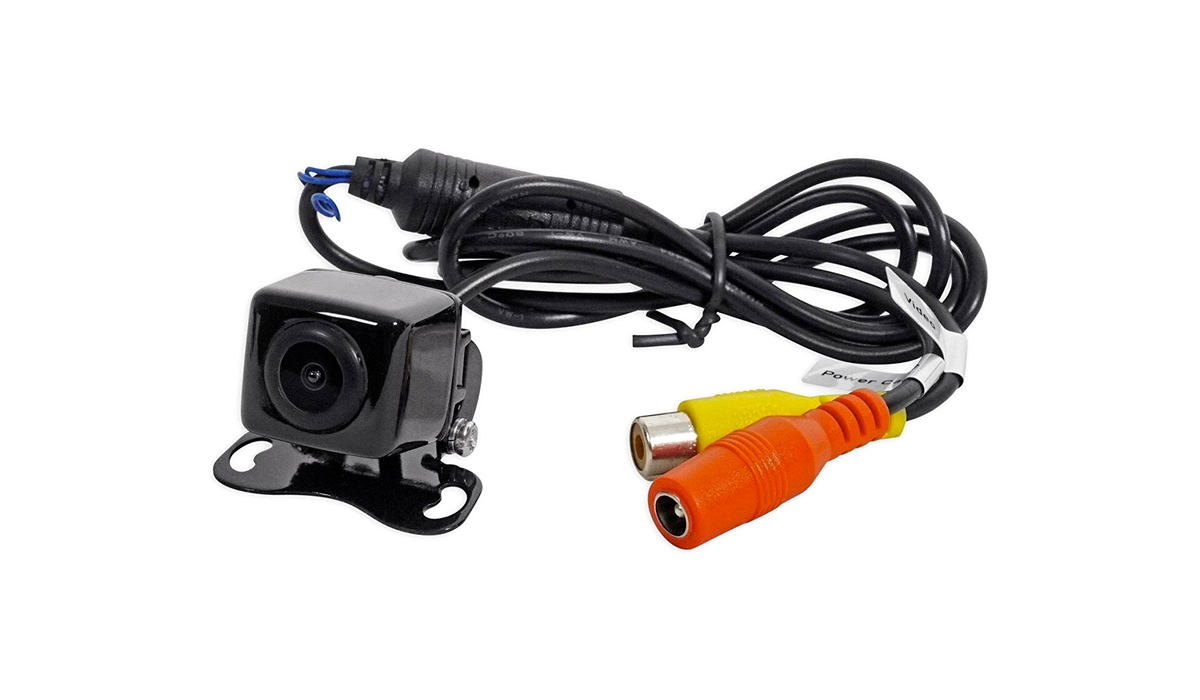

BUCAM200J Waterproof Rear-View Camera

  • Low profile surface-mount Design
  • Wide angle lens (170 Degree)
  • Resolution: 640 x 480
  • Standard RCA Video connection
  • Low LUX (< 0.5) sensor for improved night viewing
  • IP Rating: IP67
  • Waterproof CMOS color rear-view camera
  • Parking guidelines (On/Off)
  • UPC: 798418844582
  • Weight: 30
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
