MB Quart MBQR-STG3-RC-1 Polaris RZR Stage 3 Audio System with 8" Speakers, 2-channel Amplifier, 10" Subwoofer, and Mono Amplifier fits select 2017-up Polaris RZRs with Ride Command
We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 8-pin Ride Command Adapter harnesses

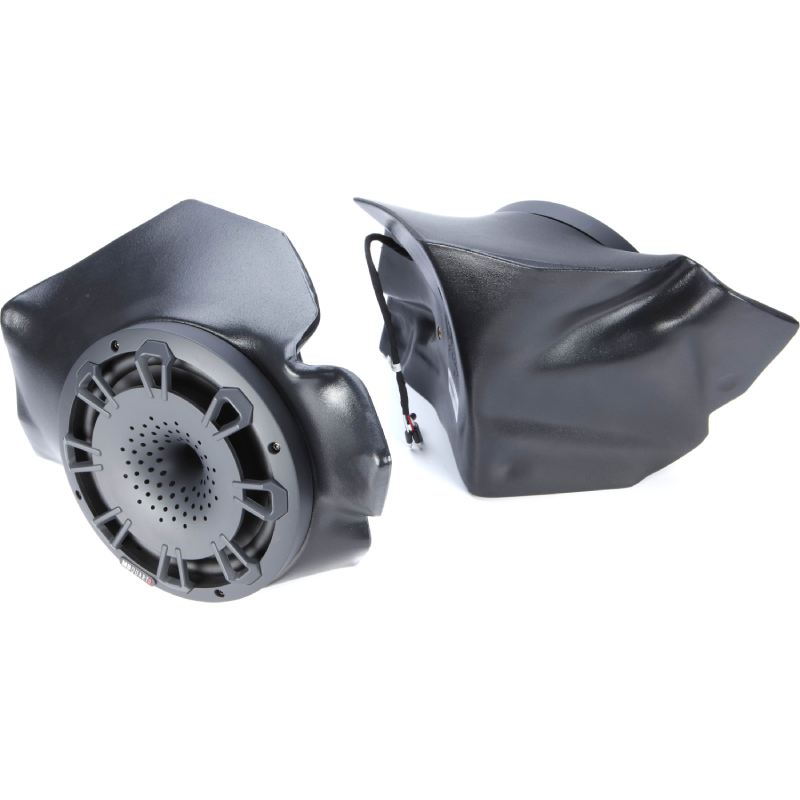

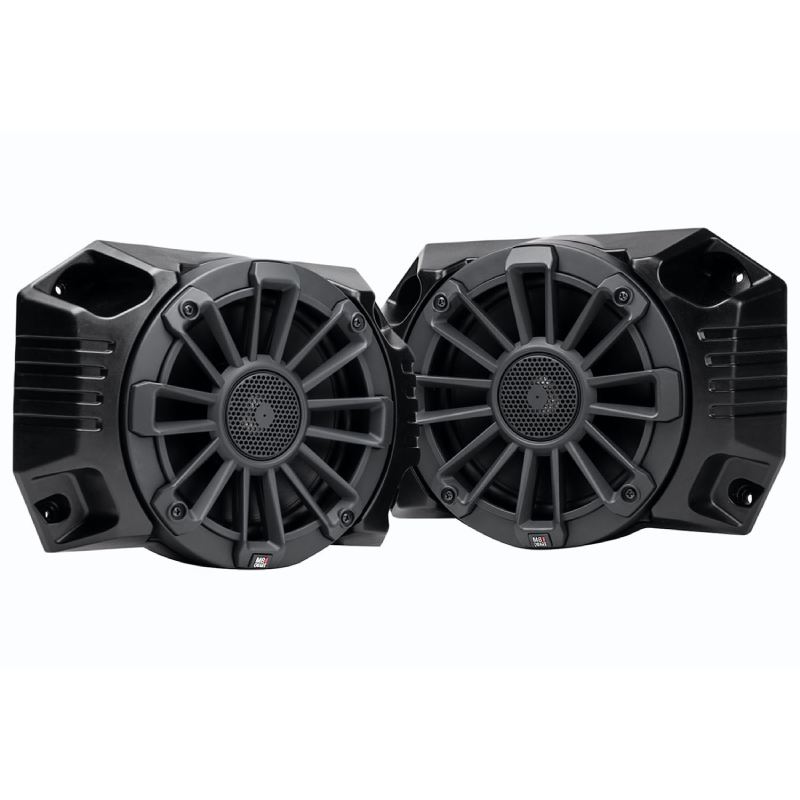

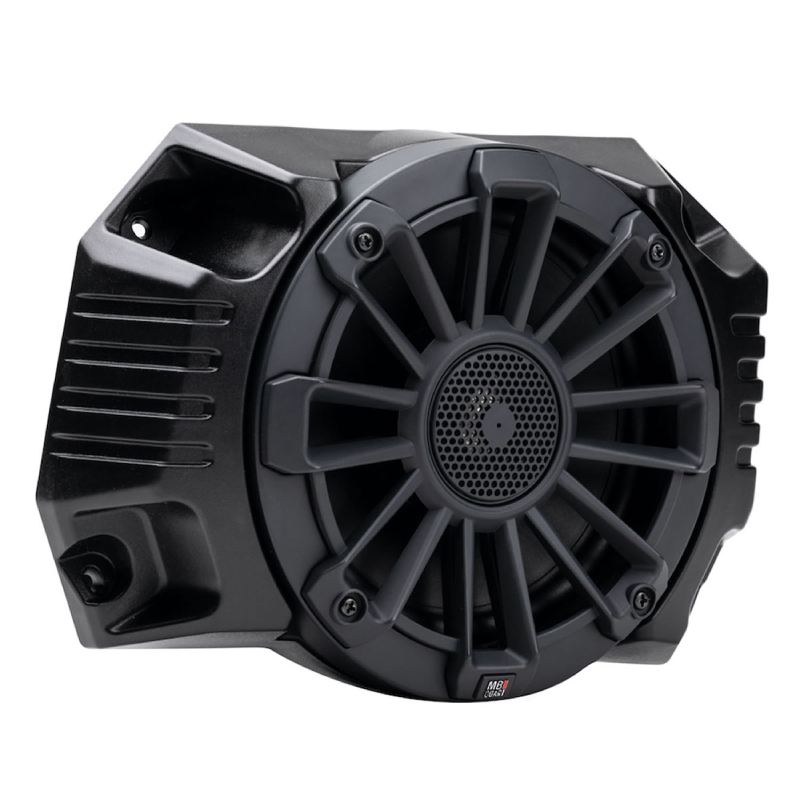

- • (2) MQBR-POD-2 Speaker pods pre-loaded with NH1-120B 8" drivers (attached 11" wire harness)
- • (4) 18mm bolts
- • (2) 24mm T40 Torx screws
- • (4) Flat-washers

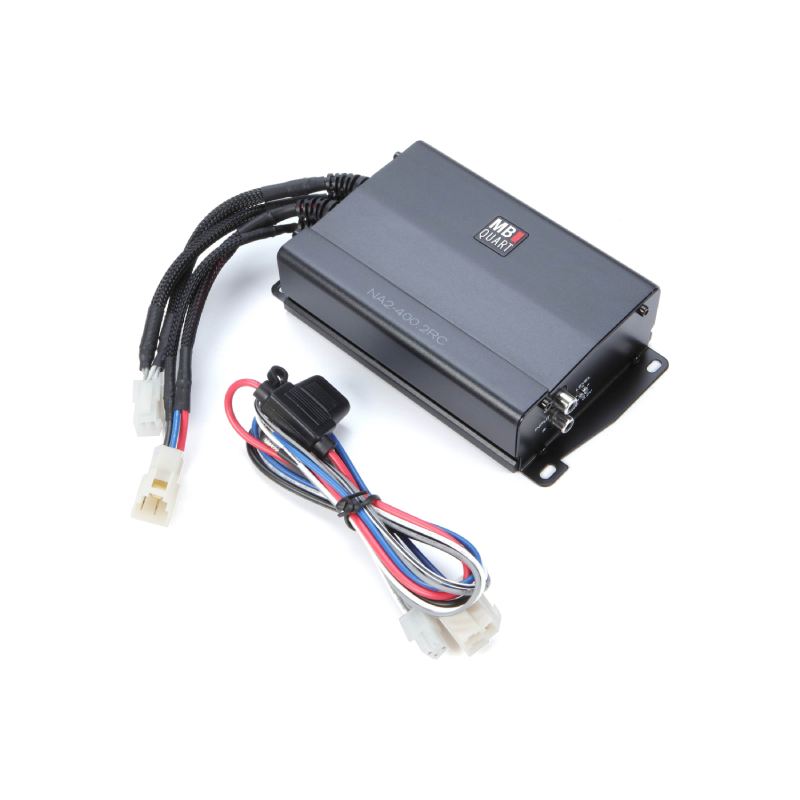

NA2-400.2RC:
- • 2-Channel amplifier w/ attached 8" power/ground and speaker output harnesses (terminated with Molex plugs)
- • 16" Power/ground harness (inline 30A ATC fuse)
- • 16" Speaker output harness
- • (4) 18mm screws
NA2-400.1:
- • Mono amplifier (attached 7" 3-pin & 2-pin harnesses)
- • 16" Power/ground harness (inline 30A ATC fuse)
- • 16" 2-Pin speaker harness
- • (4) 3/4" screws
- • (4) Flat-washers
- • (4) Lock-washers
- • Remote level control (attached 15.5' cable w/ Molex connector)
NA2-400.1:
- • Loaded 10" subwoofer enclosure w/ attached 20" wire harness
- • (2) Mounting plates
- • (2) 1/4" Metal support tab
- • (8) 3/4" bolts
- • (8) Lock-washers

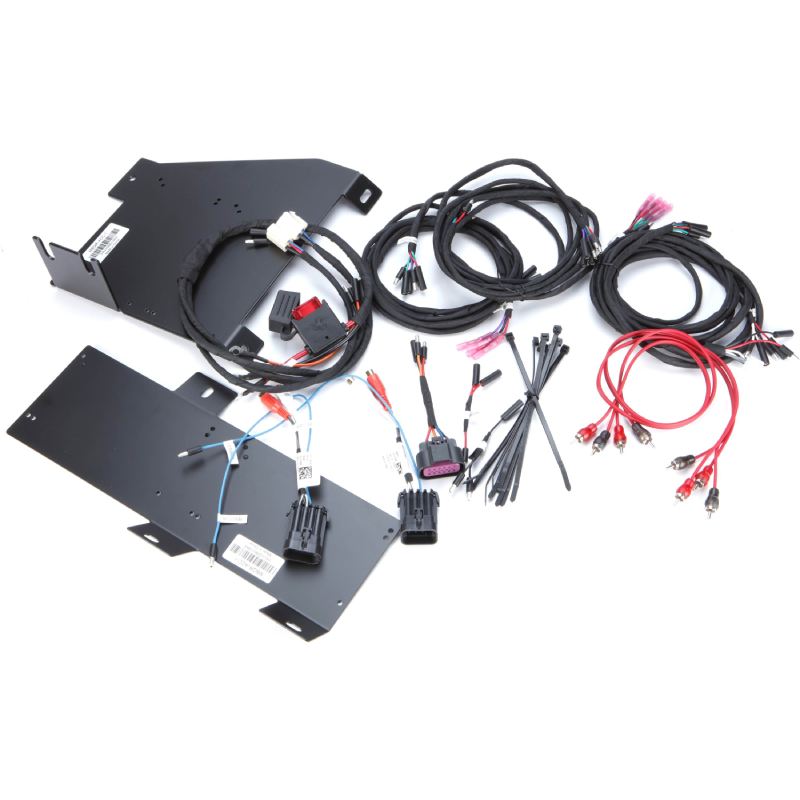

MBQR-ACC-1 :
- • Single amp mounting plate
- • Dual amp mounting plate
- • 3' Power harness (inline 50A Maxi fuse)
- • 80" Speaker output splitter harness
- • 9' Right rear speaker harness
- • 9' Left rear speaker harness
- • 32" 4-Seat extension harness
- • 6-Pin Radio power adapter harness
- • (2) 2' stereo RCA cables
- • (2) 4" LED jumper/splitters
- • (10) 7" wire ties
- • (8) 12mm screws
- • (8) Flat-washers
- • (8) Nylock nuts
- • Owner's Manual
Impressive Sound

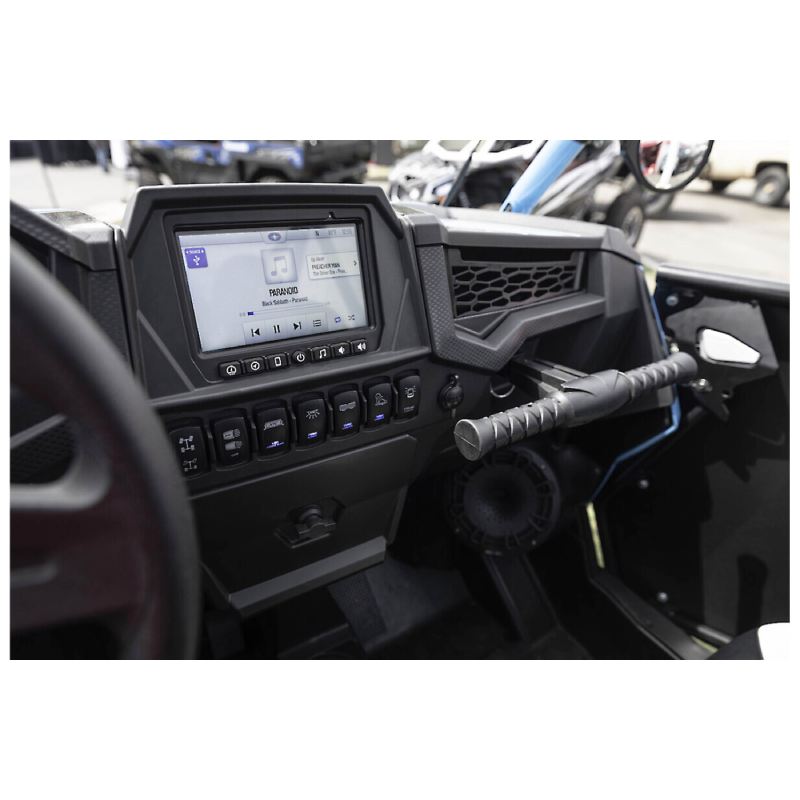

A Polaris RZR with Ride Command is one impressive ride already, but this MB Quart Stage 3 audio kit will add something new — impressive sound. With 8" speakers, a 2-channel amp, a mono sub amp, and a 10" subwoofer, this system will add some serious thump to your off-road adventures. Ride Command is and amazing bit of technology, but the low-voltage output isn't ideal for great audio. MB Quart worked with the engineers at Polaris to design a system that produces outstanding sound. The system includes two vehicle-specific Ride Command adapters and amplifiers that are specifically designed to work with the Ride Command system.
No Cutting and Minimal Hassle

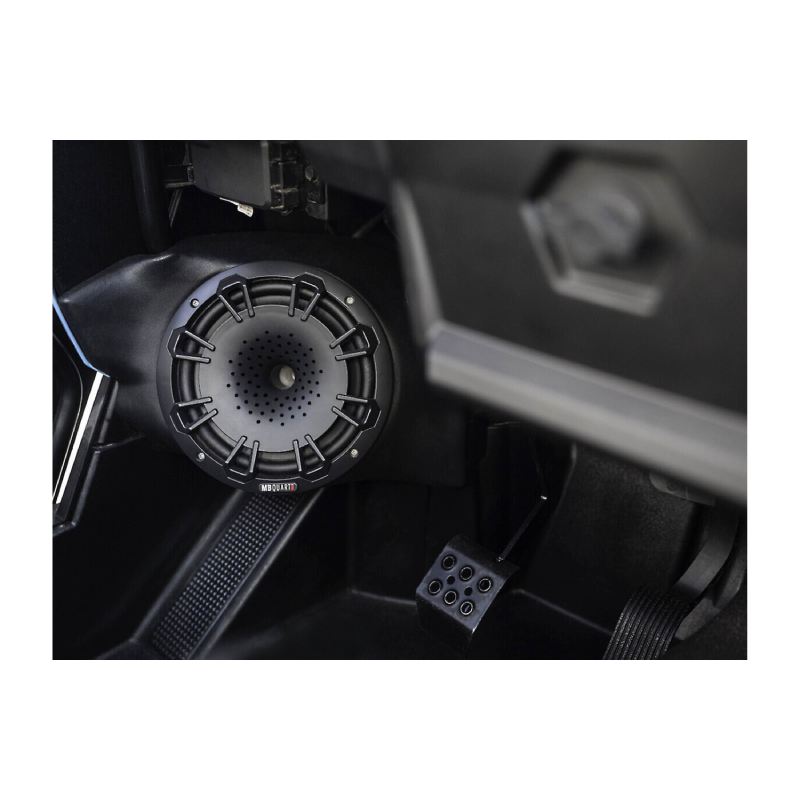

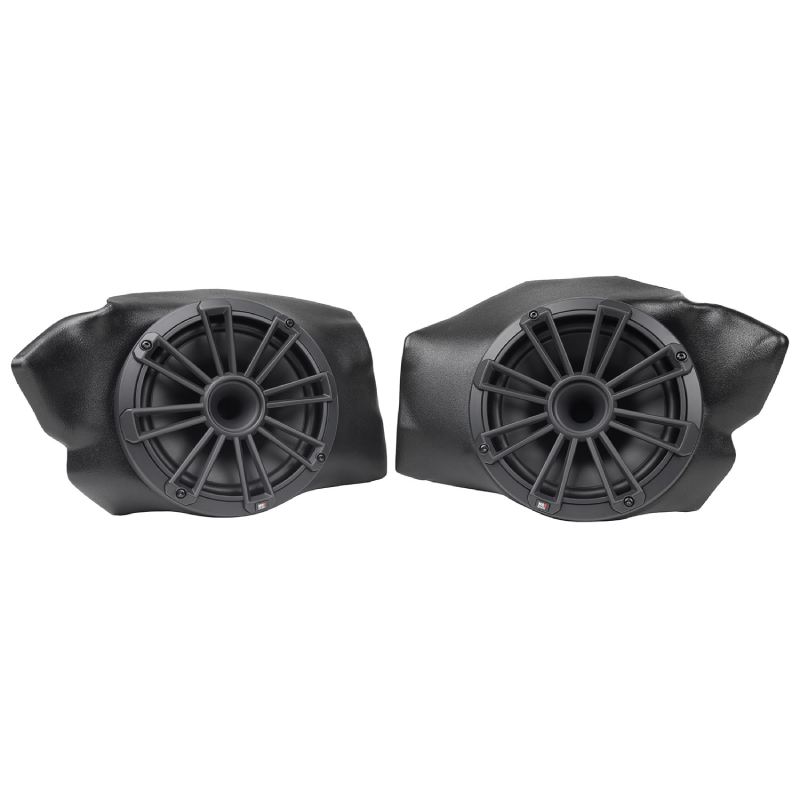

MB Quart designed this entire package to fit right into your RZR, with no cutting and minimal hassle. It also comes with all the parts and pieces needed for a smooth, hassle-free installation. Each component is tough enough for trail duty, so you won't have to worry about your system getting swamped. The package includes a pair of 8" NH1-120B compression horn marine speakers that are built for off-road and marine use. The durable poly cones withstand moisture and sunlight, as do the 1" titanium diaphragm tweeters. These all-weather speakers are really easy to install, too, thanks to the RZR-specific speaker enclosures included in this kit. These rugged kick panel enclosures bolt right in using the factory mounting holes with just a little bit of drilling.
And there's a 10" sub with a mono amp

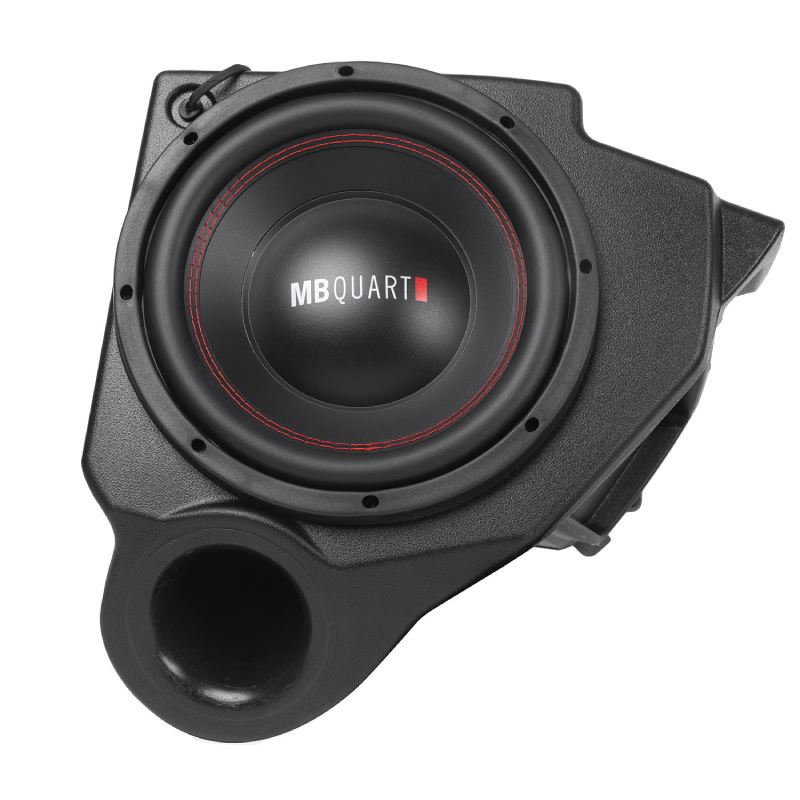

Experience thunderous audio with this kit featuring a marine-rated MB Quart 10" subwoofer, effortlessly fitting into your RZR's glovebox using the provided direct-fit enclosure made of durable composite material. Powered by the MB Quart NA2-400.1 powersports mono amp boasting 400 watts of maximum power, onboard equalization, and quick-release connectors, installation is a breeze, promising intense bass performance for your off-road adventures.
Features:

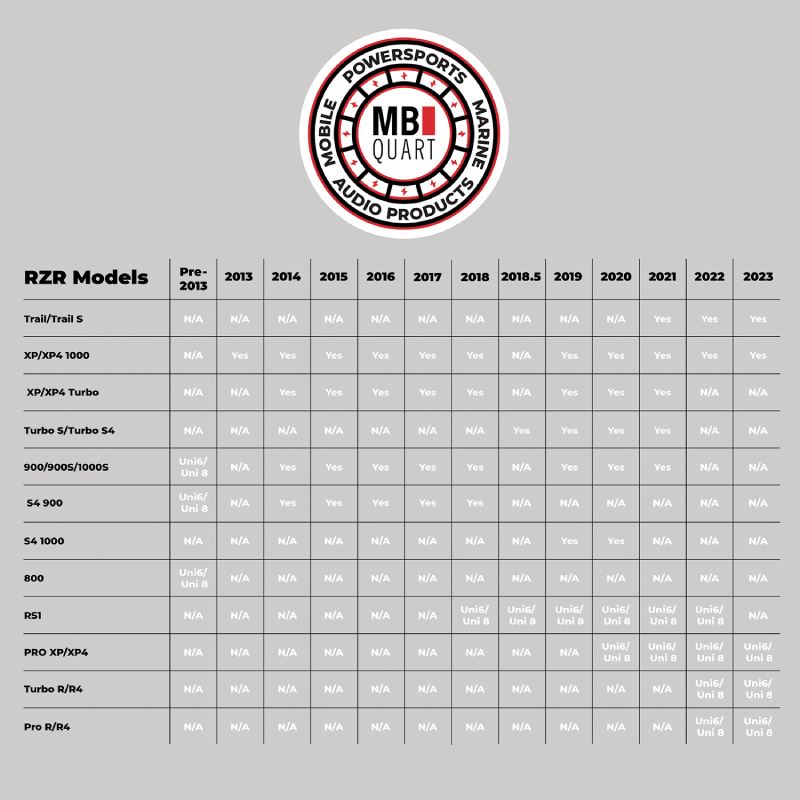

- Compatible Vehicle Fitment: Polaris Rzr 2014-current with Ride Command
- Marine Grade Protection/ipx Rating: Ipx67
- Source Unit Features: Ride Command is a High-tech Source Unit With an Off-road Display That Acts as the Hub and Integrates Your Phone, Gps, Audio, and Communication Systems.
- Speaker Features: the Front Speakers Are Meticulously Engineered to Fit in the Rzr Kick Panels. The Entire System Utilizes the Mb Quart Compression Horn Technology. (See Inside Here). This Design Assures That the System Will Be Louder and Better Sounding Than Anything Else on the Trails. Upgrade This System to a Stage 5 by Adding the Rear Speakers, Nht1-120bpr. The Harness is Already Wired for the Upgrade.
- Amplifier Features: the Rzr System is Powered by the Na2 Series of Amplifiers. The Stereo Amplifier is Operating in 2 Ohm Mode for Maximum Volume for All 4 Speakers When Utilized in a Stage 5 Configuration (Front and Rear Pods). Upgrade This System to a Stage 5 by Adding the Rear Speakers, Nht1-120bpr. The Harness is Already Wired for the Upgrade.
- Subwoofer Features: 400 Watt Specific 10 Inch Subwoofer System Includes 10 Inch, Dual 4 Ohm Subwoofer, Rzr Ported Glovebox Subwoofer Enclosure, Powered by the 400 Watt High Effeciency Class D Amplifier.
- Mount/harness: Plug and Play Harness. Waterproof Connectors With Premeasured Wires. No Guesswork and No Installation Mistakes.
- Time and Tools: Standard Hand Tools Are Required. See the Manual for Time on Each of the Different Components.
Specifications:
- Designed for 2017-up Polaris RZRs with Ride Command
- all components designed for off-road use
- System includes:
- 8" speakers with enclosures and a 2-channel amp
- 10" subwoofer with enclosure and mono amp
- Two Ride Command adapters, amp brackets, installation parts and wiring
MB Quart NH1-120B 8" marine speakers
- Compression horn design for outstanding volume
- Power handling up to 90 watts RMS (180 watts peak)
- 1" titanium compression diaphragm tweeters
- Santoprene rubber surrounds
- Impedance: 4 ohms
MB Quart 10" marine subwoofer
- Handles up to 400 watts peak power

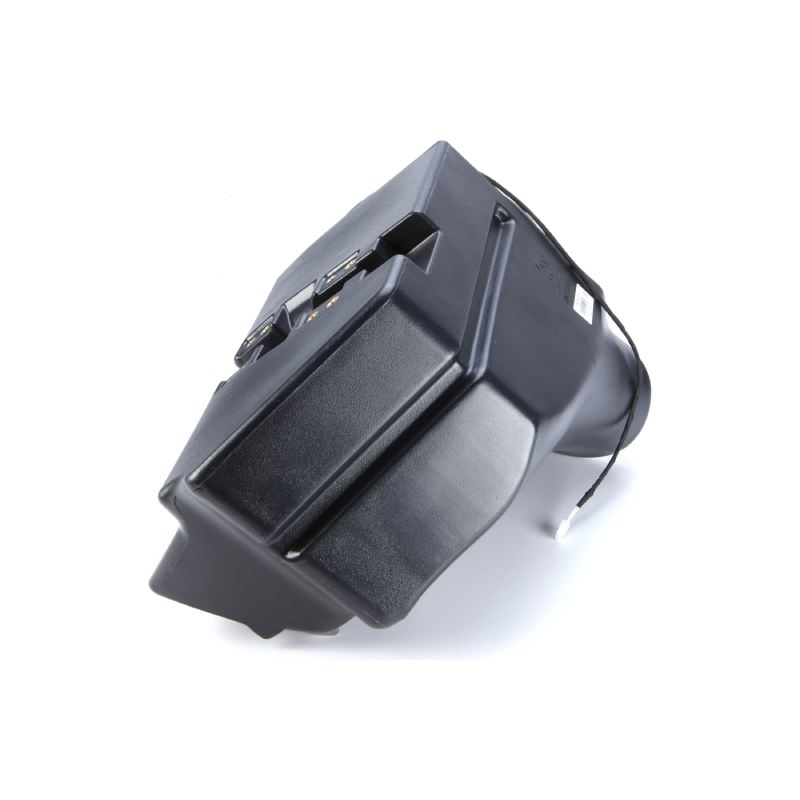

- Enclosure replaces the glove box
- Dual voice coils
- IP67-rated

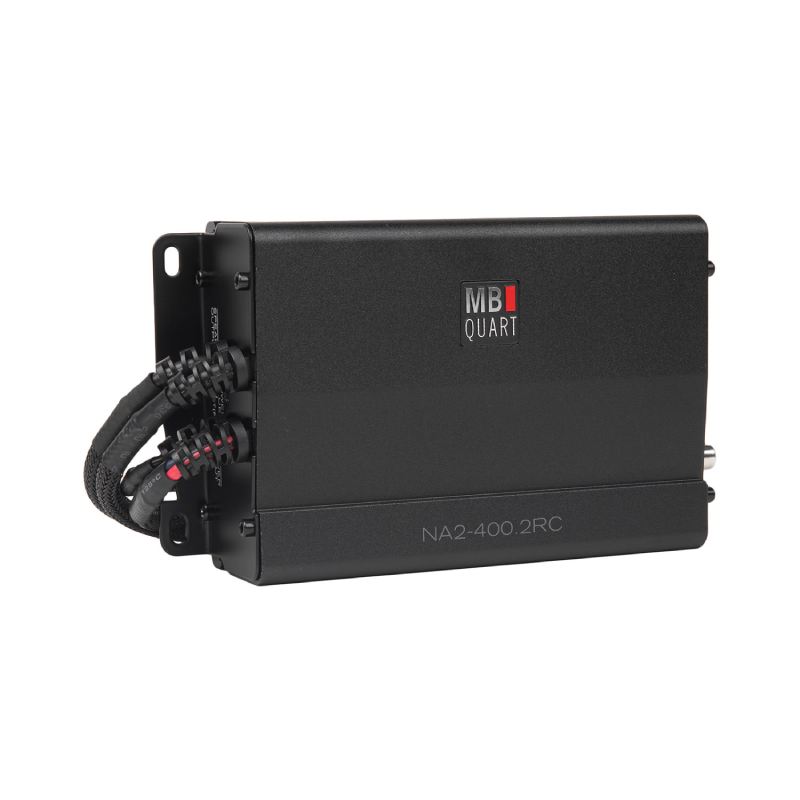

- MB Quart NA2-400.2RC 2-channel amp
- Class D design
- 100 watts RMS x 2 at 4 ohms
- Frequency response: 20-20,000 Hz
- Low-pass crossover and bass boost
- Conformal-coated circuit board — suitable for power sports and marine applications
MB Quart NA2-400.1 mono subwoofer amp
- Class D design
- Frequency response: 10-300 Hz
- Power specs: 200 watts x 1 at 4 ohms (400 watts x 1 at 2 ohms)
- Electronic crossover
- UPC: 806576230731
- Weight: 25
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
