MB Quart  RS1-269

Reference Series 6x9" 120W Peak Power Handling, 4-Ohms, 2 Way Component Speaker System (Grills Included)

Item #56471

Condition:   Brand New

Product Highlights

  • Reference Series 6x9"
  • 120W Peak Power Handling
  • 4-Ohms
  • 2 Way Component Speaker System
  • Grills Included

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$191.99

In Stock
In Stock

Only 2 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $18/mo with . Check your purchasing power

No Credit needed for Learn More


MB Quart Authorized Dealer

Huge Saving on Other items:


MB Quart Banner

MB Quart RS1-269 - Reference Series 6x9" 120W Peak Power Handling, 4-Ohms, 2 Way Component Speaker System (Grills Included)


We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

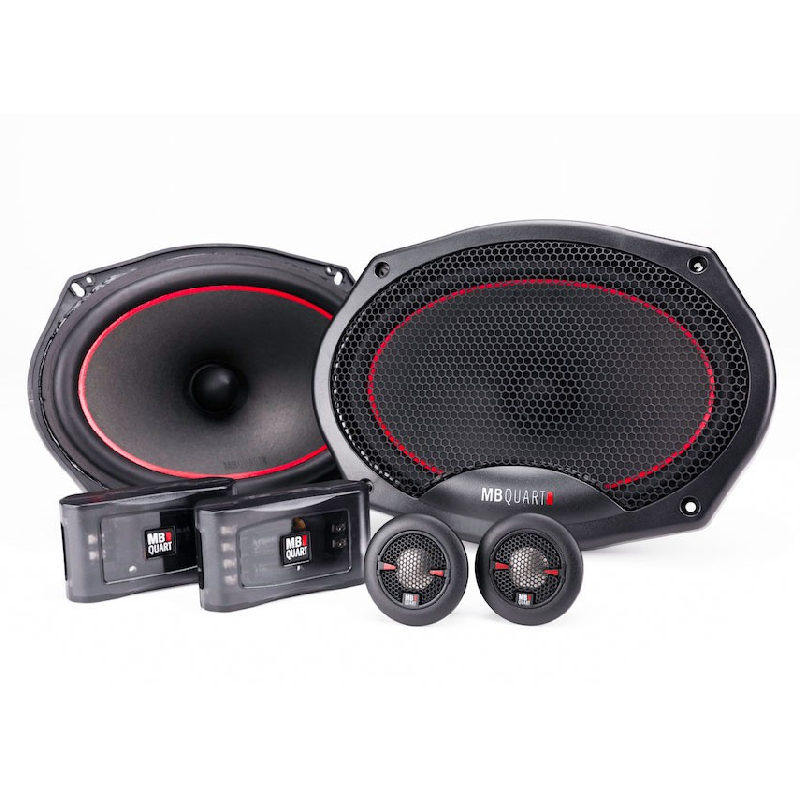

What's Inside?
  • •(2) Woofers
  • •(2) Tweeters (each has a 38" wire attached)
  • •(2) Crossovers

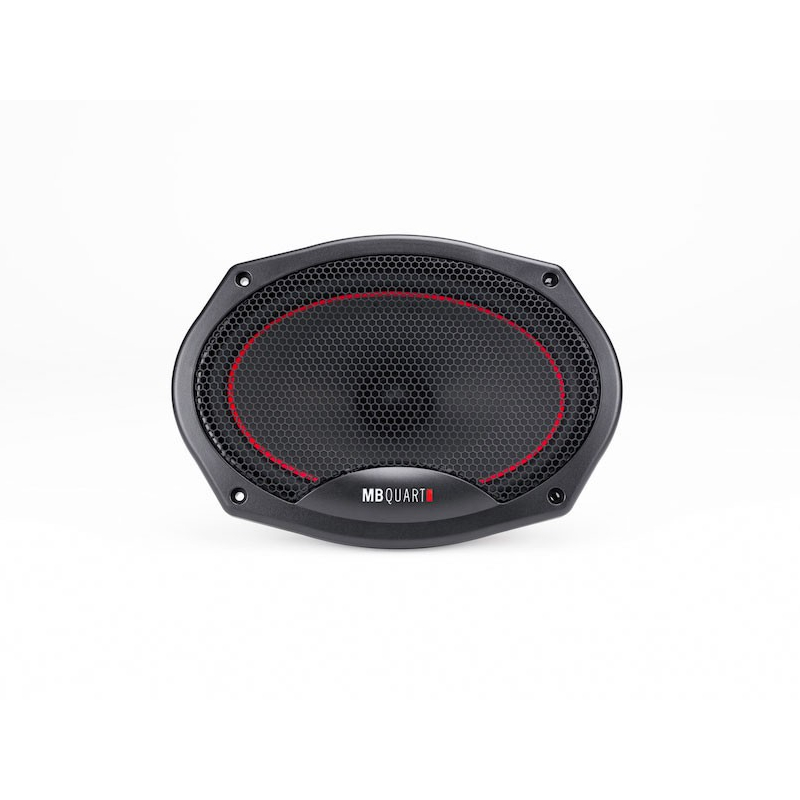

  • •(2) Woofer grilles
  • •(2) Flush-mount trim rings (Tweeter)
  • •(2) Surface-mount covers (Tweeter)
  • •(2) Flat mounting bases (Tweeter)
  • •(2) Angled mounting bases (Tweeter)
  • •(2) Flush-mount clamps (Tweeter)
  • •(2) Adhesive backed tweeter pads
  • •(8) 1-1/8" Screws
  • •(4) 1/2" Flat-head screws
  • •(8) Large speed clips
  • •(4) Small speed clips
  • •(2) MB Quart crossover badges
  • •(2) Adhesive backed hook and loop crossover mounts
  • •(2) MB Quart stickers
  • Owner's Manual
Clear Audio Performance

The MB Quart RS1-269 is a 6x9-inch component speaker system designed to deliver powerful and clear audio performance in your vehicle. With its high-quality construction and advanced features, this speaker system is engineered to elevate your in-car audio experience.

Dynamic Bass Reproduction

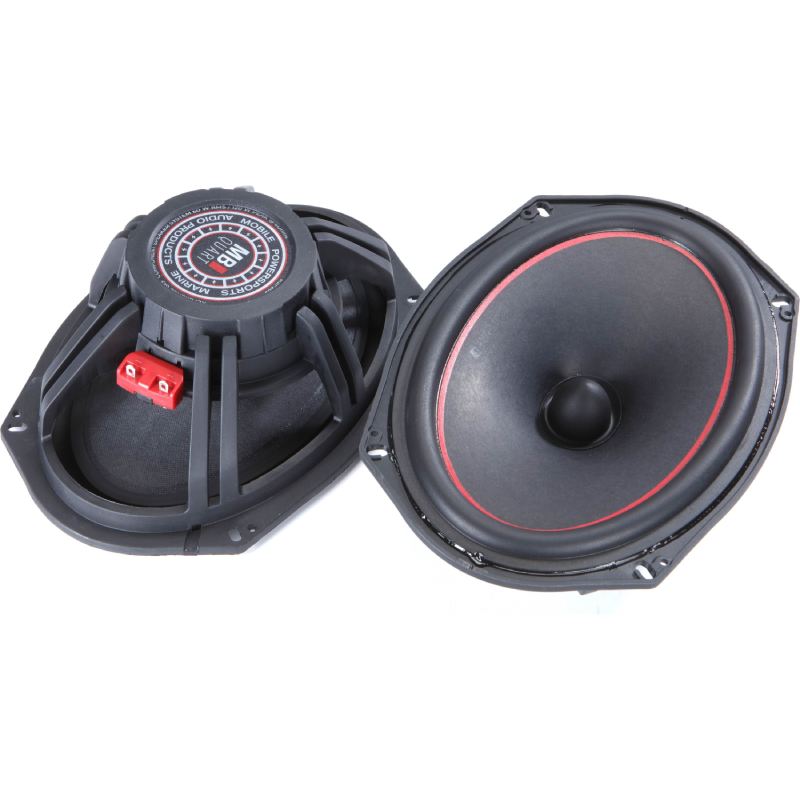

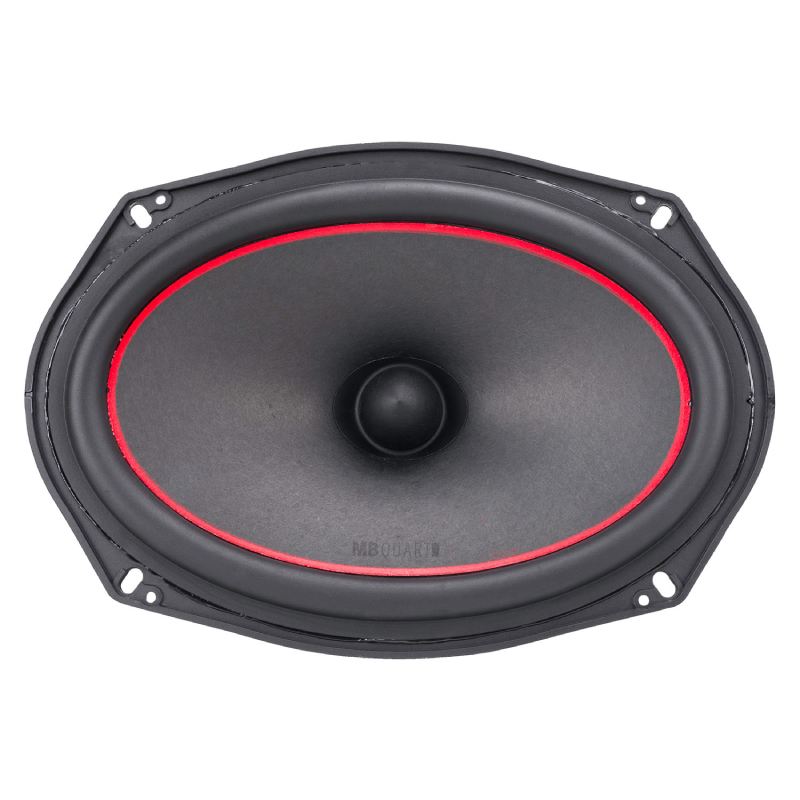

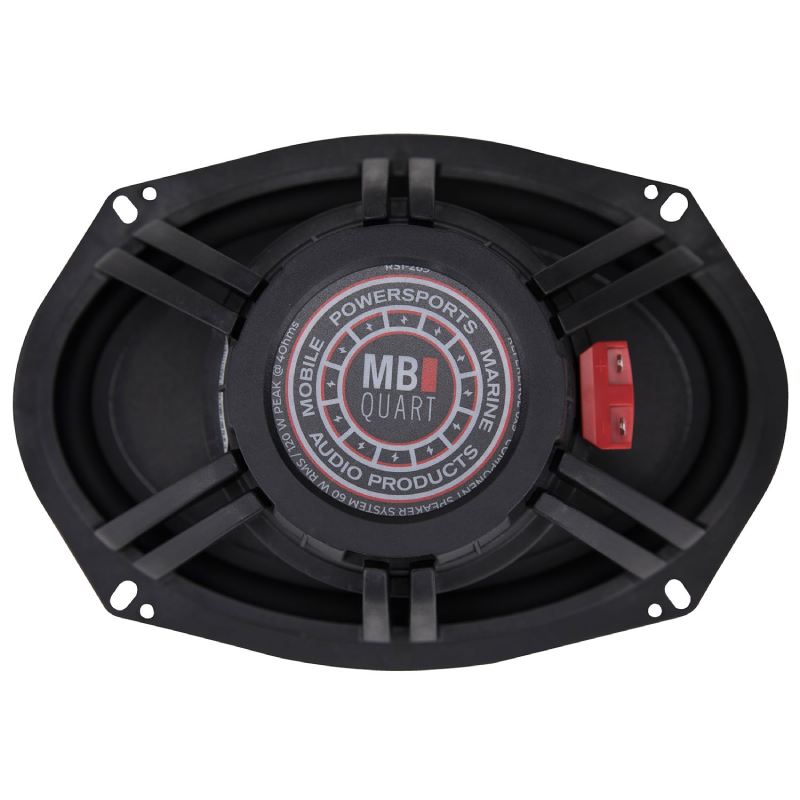

The RS1-269 features a pair of 6x9-inch fiber cone woofers that provide accurate and dynamic bass reproduction. These woofers are complemented by a 0.75-inch titanium dome tweeter, which delivers crisp and detailed high-frequency response for a well-balanced sound output.

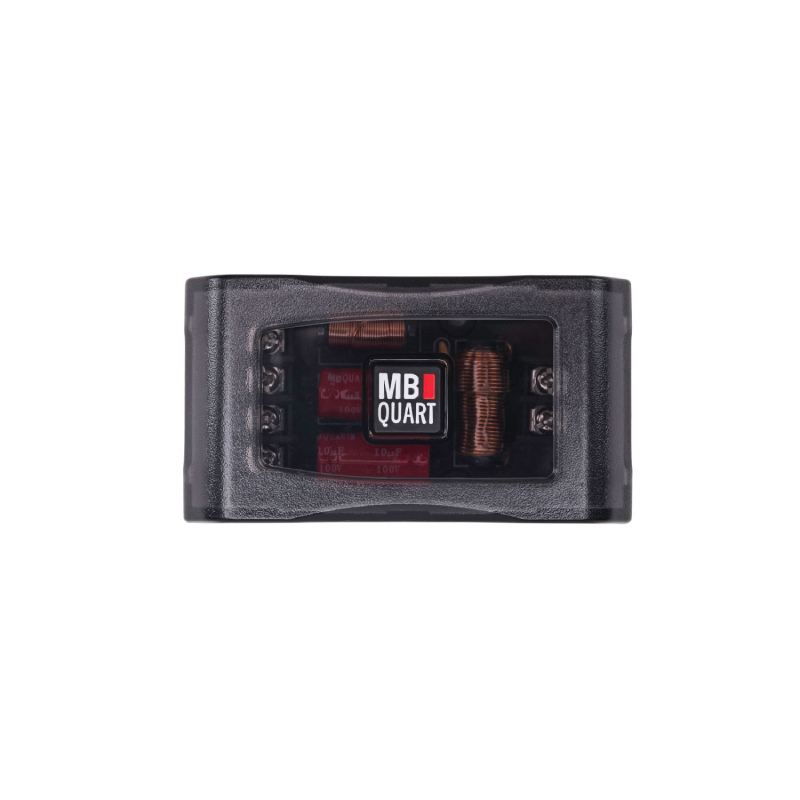

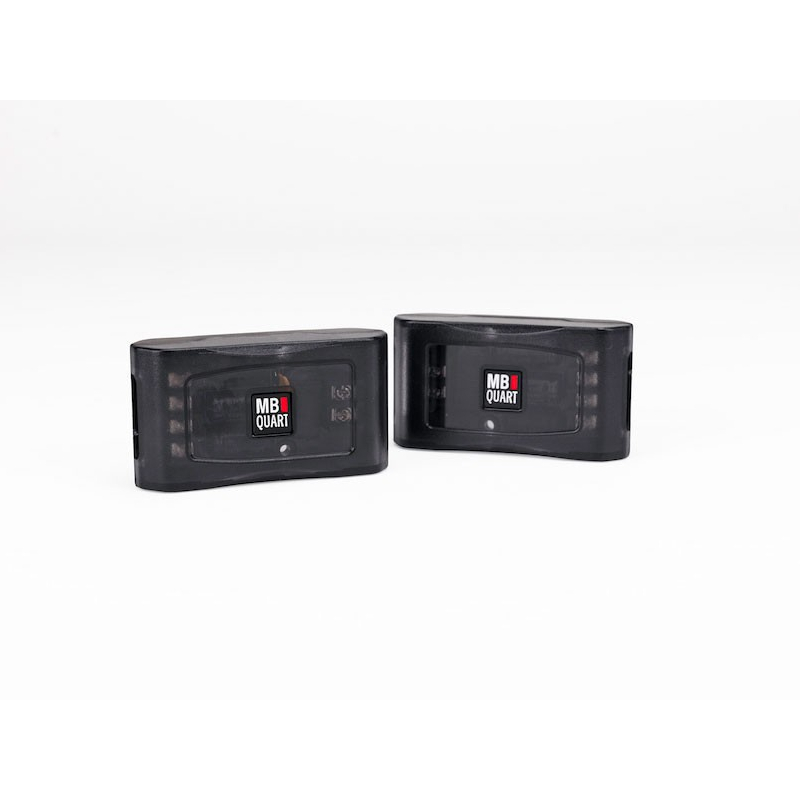

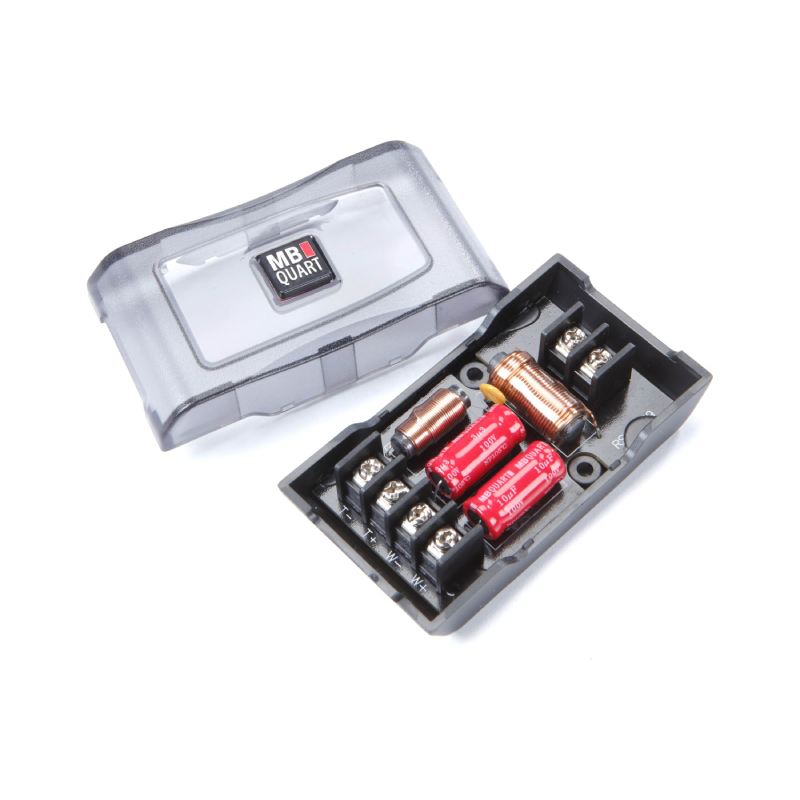

External Crossovers

The speaker system includes external crossovers allowing precise sound control and customization, ensuring optimal integration between the woofers and tweeters. With a power handling capability of 60 watts RMS and a peak power rating of 120 watts, the RS1-269 can handle high power levels, resulting in impactful and immersive sound performance.

Sleek and Stylish Design

The RS1-269 features a sleek and stylish design that adds a touch of sophistication to your car's interior. Its compact size and versatile mounting options make installation easy in various vehicle applications.

  • Diameter : 6x9 Inch
  • Sensitivity : 88 dB
  • Frequency Response : 20-22000 Hz
  • Peak Power Handling : 120 Watts
  • RMS Power Handling : 60 Watts

Featuires:

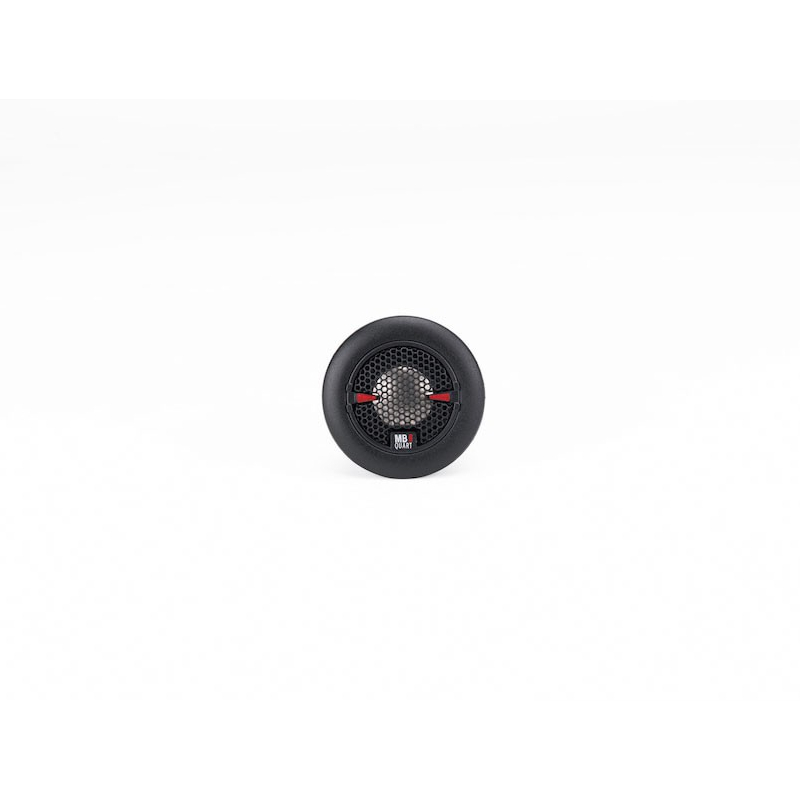

  • Tweeters: .75” titanium dome tweeters utilizing WideSphere™ Technology for exceptional musical reproduction of high frequencies are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.
  • Cone Material: The speaker is engineered with a Lightweight Curvilinear craft pulp with bamboo fiber cone. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.
  • Surround / Cone Coupling: High temperature adhesives are utilized to keep the coupling from cone to surround fused. Adhesives are also impervious to cold weather.
  • Gasket: Molded Polymer Sealing gaskets are utilized to keep the speaker isolated from the mounting surface and improve protection from water and dust intrusion.
  • Voice Coil / Former Assembly: High temperature imported wire on Kapton former. The former is lighter than a standard speaker which allows the component to support slightly higher frequency extension and efficiency.
  • Spider: Red woven fiber cotton poly blend spider to stabilize the cone and voice coil in all musical situations.
  • Cooling System: Venting allows air passage through the spider and speaker frame ribs to exchange air over the voice coil.
  • Crossover: Reference coax (2-way) designs feature a built-in audiophile crossover which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components for superb sound quality.

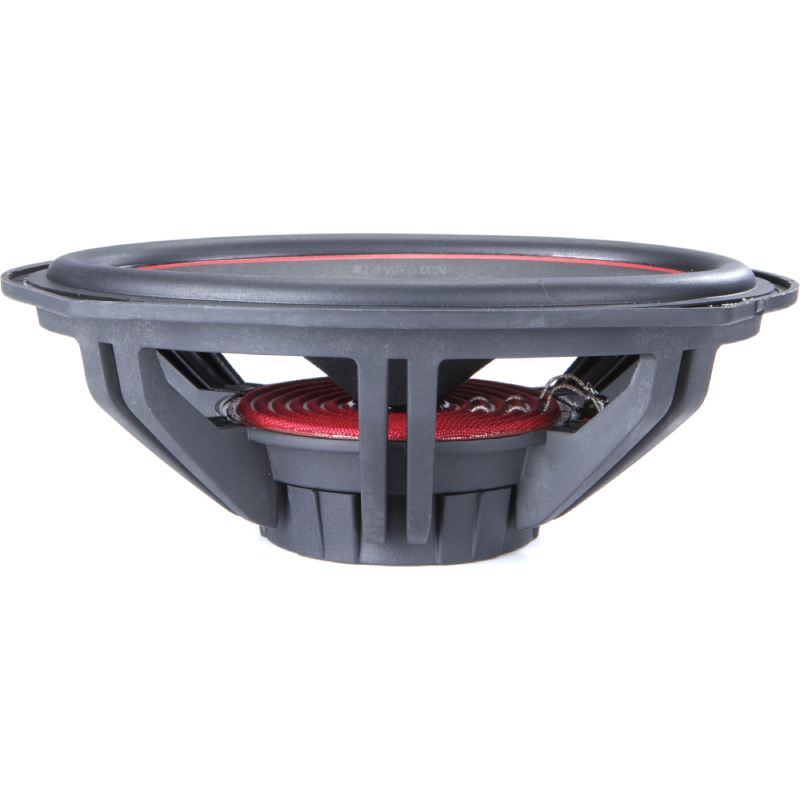

  • Frame: Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker.
  • Grills: included



Specifications:

  • Speaker Size: 6x9
  • Design: 2-way
  • Tweeter Design: 3/4" Dome
  • Impedance (Ohms): 4
  • Tweeter Composition: Titanium
  • Woofer Composition: Pulp/Bamboo Fiber
  • Woofer Surround: Rubber
  • Sensitivity (1W at 1 meter): 88
  • Sensitivity at 2.83 volts: N/A
  • Frequency Response: 20 - 22k Hz
  • Minimum RMS Wattage: ---
  • Maximum RMS Wattage: 60
  • Peak Power Handling (Watts): 120
  • Top-mount Depth (Inches): 2 15/16
  • Bottom-mount Depth (Inches): N/A
  • Cutout Diameter or Length (inches): 0
  • Mounting Height (Inches): 0.39



  • UPC: 806576230434
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Not quite the bass that I’m looking for. The website says it can go down to 20 Hz but from what I’m hearing I think its just a little bit above 40 Hz. Still good sound but not great lows. On the other hand, the tweeters just sounds fine. Overall, a good priced component system

    Dustin
    4/29/2024
