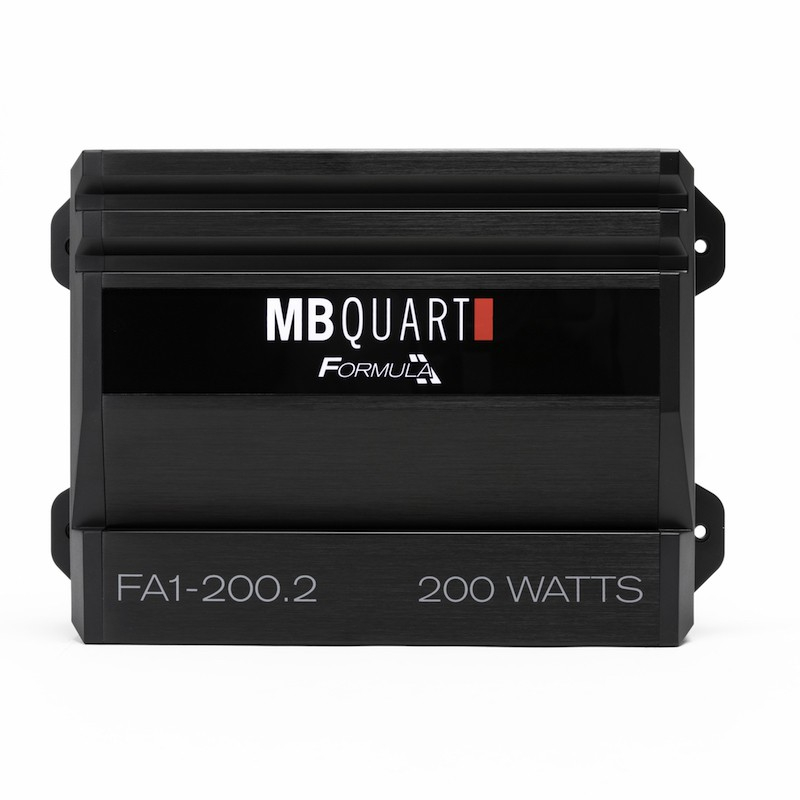

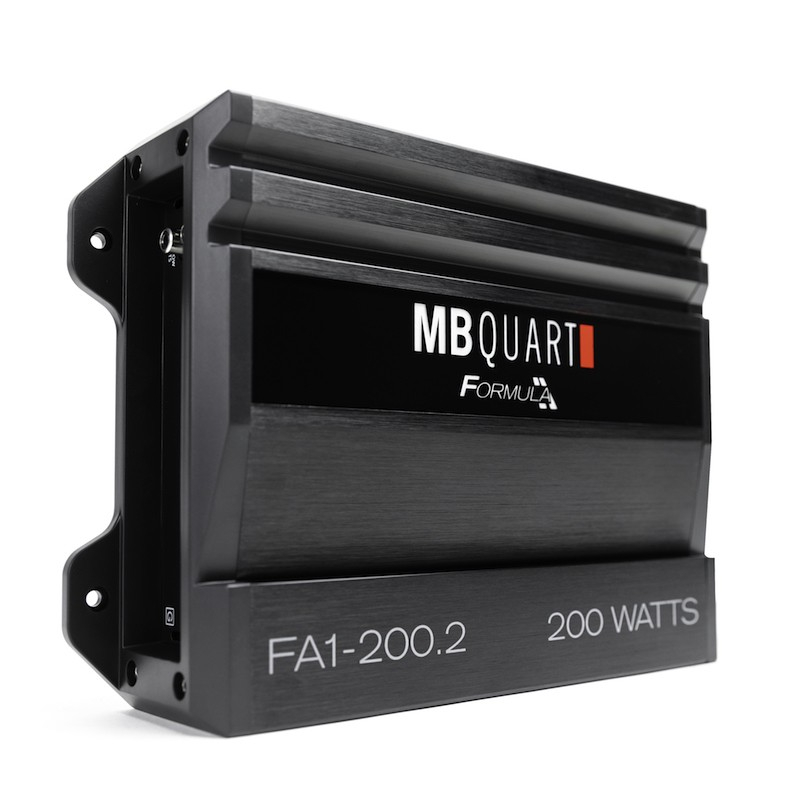

MB Quart  FA1-200.2

Formula Series 100W X 2 @2Ohms (200W Max Power) 2 Channel Car Audio Amplifier

Item #56488

Condition:   Brand New

0
❮ ❯
1 / 3
Product Highlights
  • Formula Series
  • 100W x 2 @2Ohms
  • 200W max power
  • 2-channel car audio
  • Efficient power output
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
0 Review

$74.80

Reg. Price $139.99  Save $65.19
Add to Cart
Out of Stock Check out other products listed below
Or call us at 310-526-8635 and our expert tech-support would be happy to suggest alternative products for you!
Or email at customerservice@onlinecarstereo.com
 Fit Guide. Check if it will fit your car.
MB Quart Authorized Dealer

Available alternative products:

Huge Saving on Other items:

MB Quart Banner

MB Quart FA1-200.2 200 Watt Amplifier 2 Channel Car Audio Amp

We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •2 Channel Car Audio Amp
  • • Owner's Manual
Audio Amplifier Featuring Innovative Sound

MB Quart Formula series two channel car audio amplifier featuring innovative sound quality and power technology. The FA1-200.2 is a 200 watt bridgeable car audio amplifier. Formula amplifiers feature DC Sensing to allow any amplifier to be easy integrated into an OEM system by simply adapting a RCA cable from the source unit.

On-board Electronic Crossover

Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier. Class SQ: Multi-channel amplifiers utilize the unique MB Quart Class SQ topology. Matched with Q-Stasis the sonic accuracy and clarity exceeds standard Class A/B amplifiers.

Heavy Duty Heat-sink

Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled.Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to product efficient power without taxing the vehicle electrical system.Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier.

  • Maximum Power : 400 Watts
  • Low Frequency Response : 50-250 Hz
  • High Frequency Response : 50-500 Hz
  • Number of Channels : 2
  • Frequency Response : 10-45000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 100x2 Watts
  • Channel Separation : Yes
  • Amplifier Class : A/B
  • Fuse Rating : 15x2 A

Features:

  • Low Noise Preamplifier Circuitry -  Q-stasis Pre Amplifier Stage: Maximum Low Voltage Signal From The Source Unit Comes Into The Amplifier Circuit With Minimal Distortion
  • Rca InputsNickel Plated -  High Temperature Impact Resistant With Hex Screw Terminals That Allow For Secure Connections And Is Erosion Resistant
  • Hi Level Inputs Dc Signal Sense -  The Dc Signal Sense Switch Will Allow The Amp To Turn On When A Signal Is Received On The Rca Inputs, So An Amplifier Remote Turn On Wire Is Not Needed To Turn On The Amplifier. This Feature Can Also Be Turned Off.
  • Operation Mode -  2 Channel Operation Mode Allows Either Stereo Or Mono Bridged Operation
  • Crossover Type -  Variable Electronic Crossovers Allow For Complete Control Of The Sound
  • Electronic Equalizer -  Control Of Amplifier Output With On-board Electronic Crossover To Tailor Specific Frequencies To Speakers And Subwoofers. Check Specifications For Specific Frequencies For This Amplifier.
  • Class / TopologyClass Sq -  Multi-channel Amplifiers Utilize The Unique Mb Quart Class Sq Topology. Matched With Q-stasis The Sonic Accuracy And Clarity Exceeds Standard Class A/b Amplifiers.
  • Output Device Technology -  Fluid-fets: Mb Quart Output Devices, Fluid-fets Are Painstakingly Selected For Their Ability To Efficiently Produce Power And Mimic The Sound Quality Of The Highest End Home Amplifiers.
  • Heat Sink -  Heavy Duty Heat-sink Efficiently Moves Heat From The Mosfet Where It Can Be Cooled
  • Power Supply -  Rugged Mosfet Pulse Width Modulation Power Supply: Allows Amplifier To Product Efficient Power Without Taxing The Vehicle Electrical System

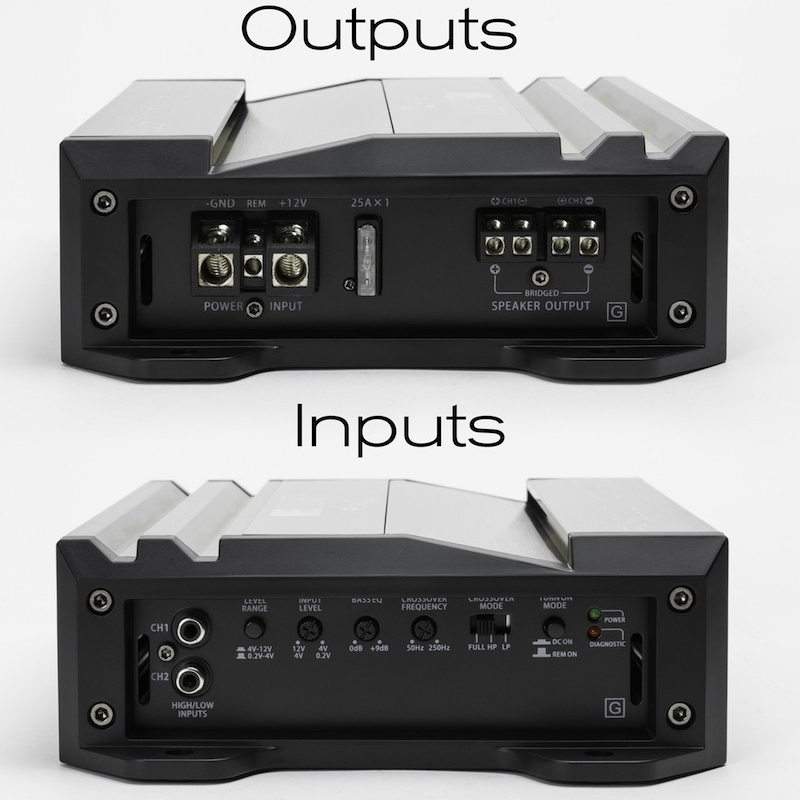

  • Output Connections -  Heavy Duty Connections Allow For Secure Electrical Signal To Pass Into Wiring And Resist Erosion Which Will Add Longevity To The Amplifier
  • Connection Type -  Secure Connection For All Power, Ground And Speaker Connections.
  • Led System Protection Circuitry Diagnostics -  Monitor Overload And Speaker Short Protection With Illuminated Indicators On The Amplifier End Panel



Specifications:

  • Class: Class Sq (Class A/B)
  • Total Channels: 2
  • Power @ 2 Ohms: 2 X 100
  • Power @ 4 Ohms: 2 X 50
  • Mono Bridged @ 4 Ohms: 1 X 200
  • Crossover: Electronic
  • Variable High Pass Crossover 12db Per Octave: Switched, Full / Hpf / Lpf, 50hz - 500hz
  • Variable Low Pass Crossover 12db Per Octave: Switched, Full / Hpf / Lpf, 50hz - 250hz
  • Bass Boost: 0-9db
  • Variable Voltage: .02 - 9v
  • Signal To Noise: >90
  • Frequency Response: 10hz-45khz
  • Total Harmonic Distortion (Thd): <0.5%
  • Speaker Level Audio Inputs: Rca Jack
  • Power Terminal 12v/gnd: 4 Awg
  • Speaker Terminal Wire Gauge: 12 Awg
  • Fusing: 15a X 2



  • UPC: 806576230113
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
