MB Quart  RS1-216

Reference Series 6.5" 110W Peak Power Handling, 4-Ohms, 2-Way Component Speaker System (Grills Included)

Item #56504

Condition:   Brand New

Product Highlights

  • 6.5" Component Speaker System
  • 110W Peak Power Handling
  • 4-Ohm Impedance
  • 2-Way Speaker Design
  • Grills Included

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$167.99

Reg. Price $169.99  Save 1%
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for Learn More


MB Quart Authorized Dealer

Huge Saving on Other items:


MB Quart Banner

MB Quart RS1-216 - Reference Series 6.5" 110W Peak Power Handling, 4-Ohms, 2-Way Component Speaker System (Grills Included)


We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

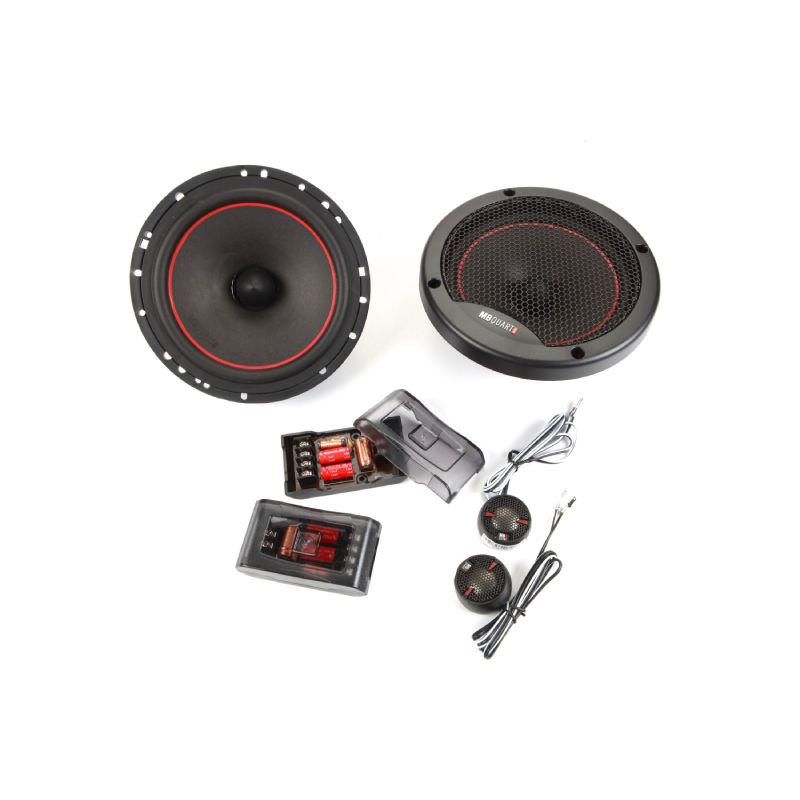

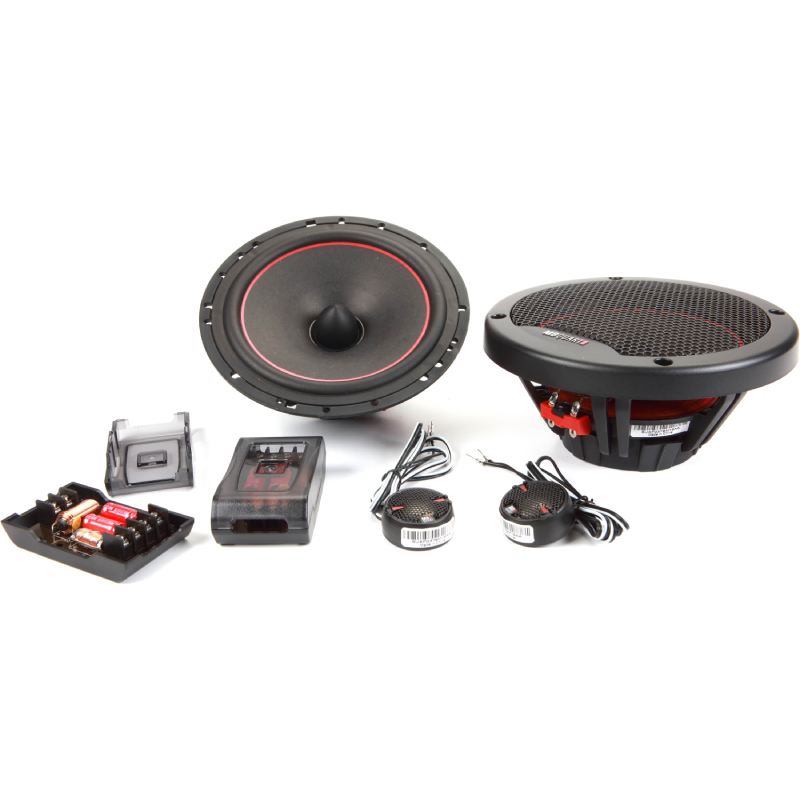

What's Inside?

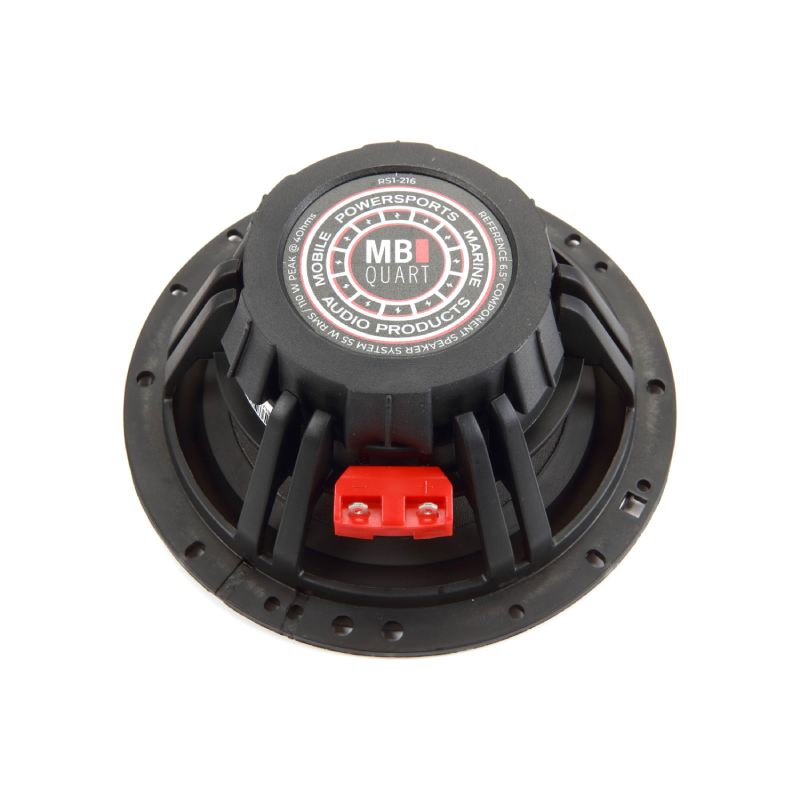

  • •(2) Woofers

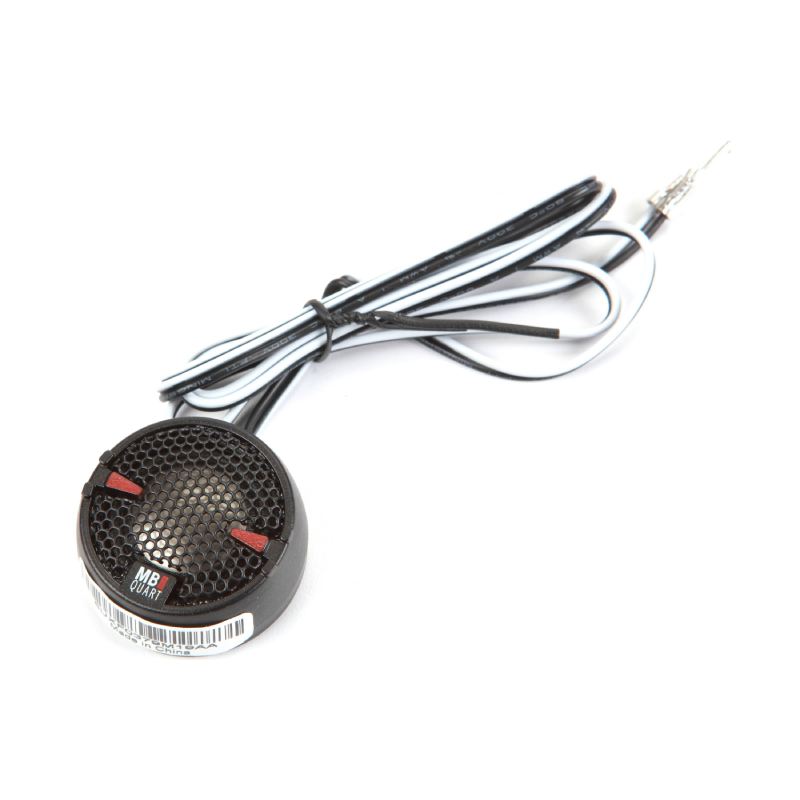

  • •(2) Tweeters (each has a 38" wire attached)
  • •(2) Crossovers

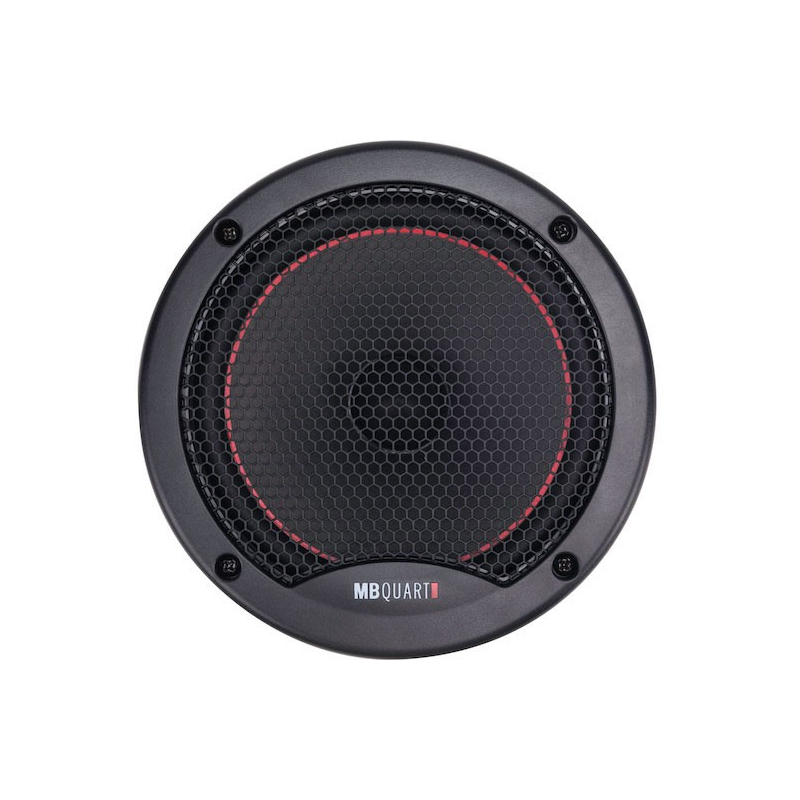

  • •(2) Woofer grilles
  • •(2) Flush-mount trim rings (Tweeter)
  • •(2) Surface-mount covers (Tweeter)
  • •(2) Flat mounting bases (Tweeter)
  • •(2) Angled mounting bases (Tweeter)
  • •(2) Flush-mount clamps (Tweeter)
  • •(2) Adhesive backed tweeter pads
  • •(8) 1-1/8" Screws
  • •(4) 1/2" Flat-head screws
  • •(8) Large speed clips
  • •(4) Small speed clips
  • •(2) MB Quart crossover badges
  • •(2) Adhesive backed hook and loop crossover mounts
  • •(2) MB Quart stickers
  • Owner's Manual
Natural, Rich Sound With Precise High Notes

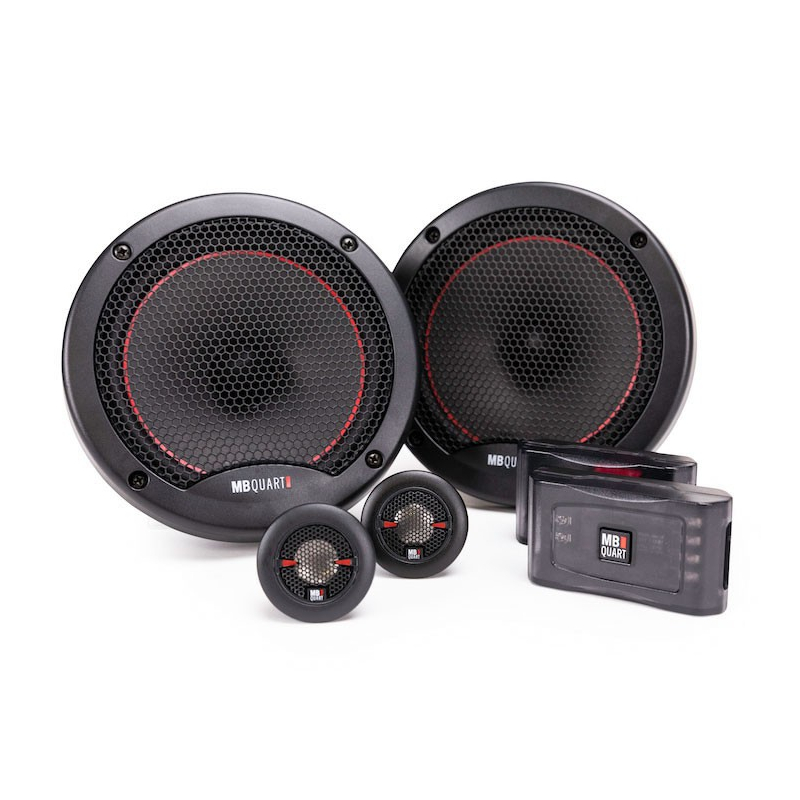

MB Quart's rich history as a German audio pioneer shines through with their Reference Series car speakers. The MB Quart RS1-216 6-1/2" component system features two quality woofers, two 3/4" tweeters, and two external crossovers. An extremely lightweight pulp/bamboo hybrid woofer cone delivers the lower and midrange frequencies with accuracy. MB Quart complements that natural, rich sound with precise high notes from the 3/4" titanium dome tweeters. Additionally, WideSphere™ technology expands the tweeter's dispersion pattern for a wider, more lively soundstage.

Titanium Dome Widesphere™

6.5″ Reference Component 2-Way speakers engineered with .75″ Titanium dome WideSphere™ Technology Tweeters with lightweight craft pulp Bamboo fiber cones mounted to an inert frame (which adds no harmonic distortions). The components system features an audiophile external crossover network. 75” titanium dome tweeters utilizing WideSphere™ Technology for exceptional musical reproduction of high frequencies are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.

Lightweight Curvilinear Craft Pulp

The speaker is engineered with a Lightweight Curvilinear craft pulp with bamboo fiber cone. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.

High Temperature Adhesives

High temperature adhesives are utilized to keep the coupling from cone to surround fused. Adhesives are also impervious to cold weather. Molded Polymer Sealing gaskets are utilized to keep the speaker isolated from the mounting surface and improve protection from water and dust intrusion. High temperature imported wire on Kapton former. The former is lighter than a standard speaker which allows the component to support slightly higher frequency extension and efficiency.

  • Diameter : 6.5 Inch
  • Sensitivity : 87.7 dB
  • Frequency Response : 58-20000 Hz
  • Peak Power Handling : 220 Watts
  • RMS Power Handling : 110 Watts

Features:

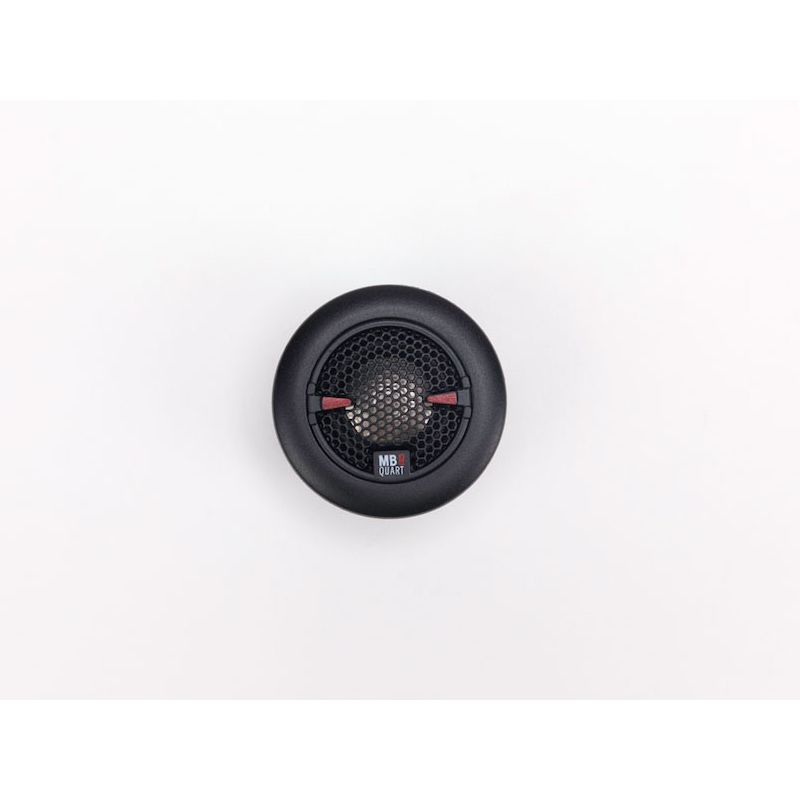

  • Tweeters: .75” titanium dome tweeters utilizing WideSphere™ Technology for exceptional musical reproduction of high frequencies are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.
  • Cone Material: The speaker is engineered with a Lightweight Curvilinear craft pulp with bamboo fiber cone. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.
  • Surround / Cone Coupling: High temperature adhesives are utilized to keep the coupling from cone to surround fused. Adhesives are also impervious to cold weather.
  • Gasket: Molded Polymer Sealing gaskets are utilized to keep the speaker isolated from the mounting surface and improve protection from water and dust intrusion.
  • Voice Coil / Former Assembly: High temperature imported wire on Kapton former. The former is lighter than a standard speaker which allows the component to support slightly higher frequency extension and efficiency.

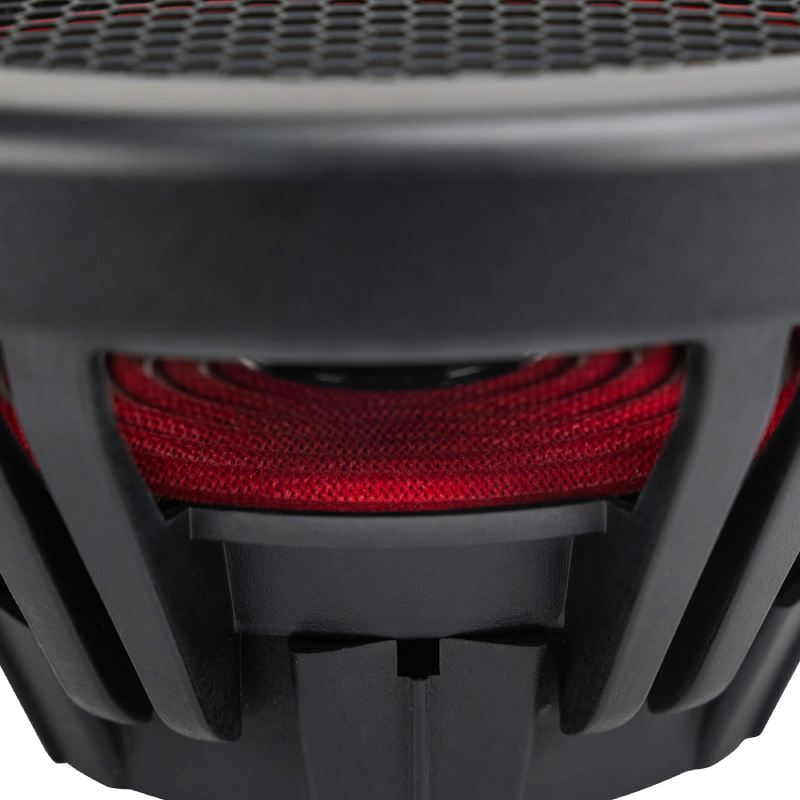

  • Spider: Red woven fiber cotton poly blend spider to stabilize the cone and voice coil in all musical situations.
  • Cooling System: Venting allows air passage through the spider and speaker frame ribs to exchange air over the voice coil.

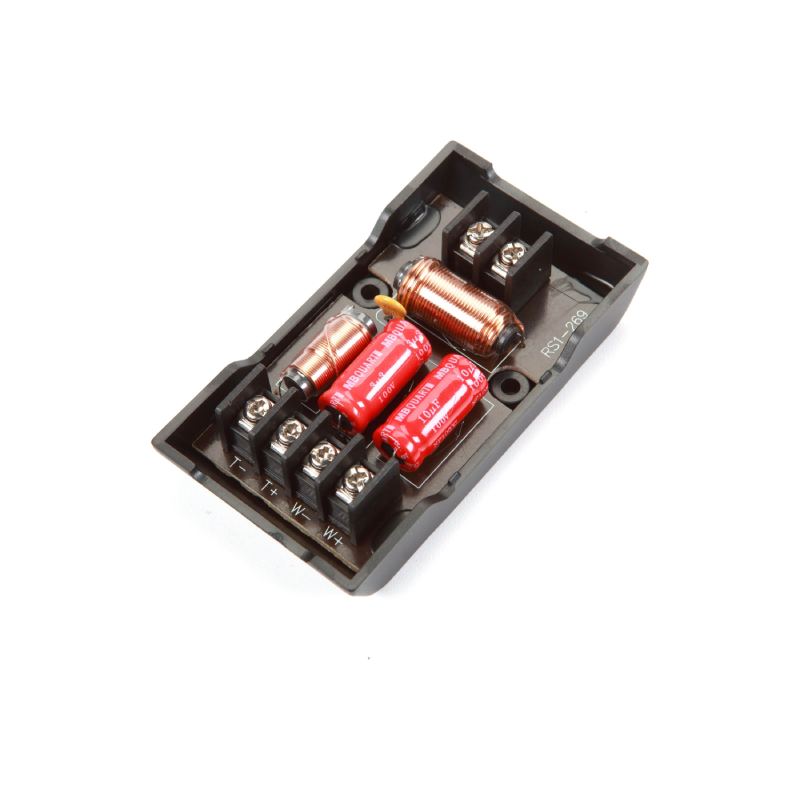

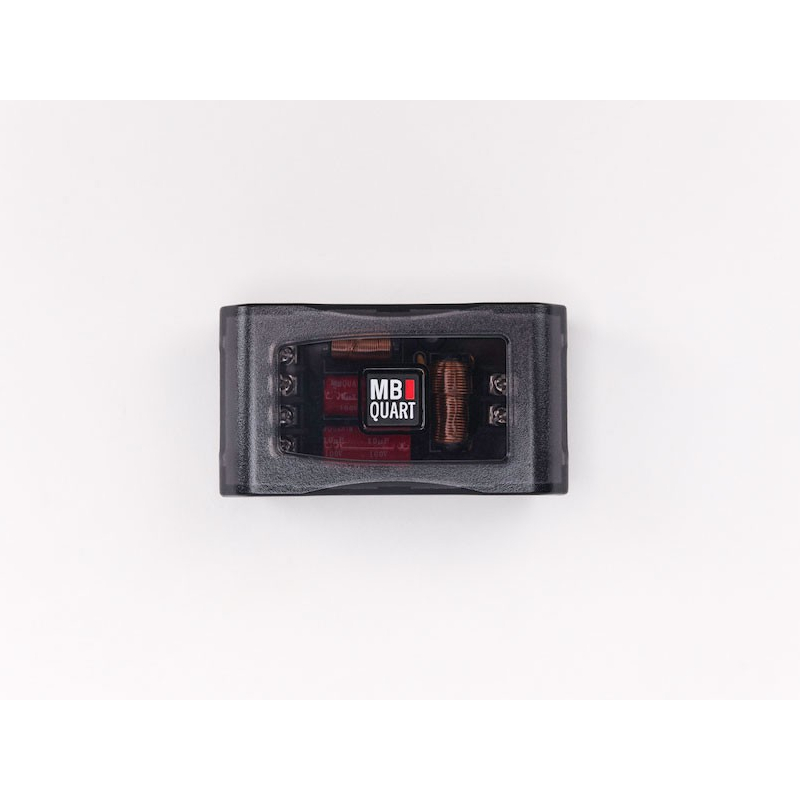

  • Crossover: Reference coax (2-way) designs feature a built-in audiophile crossover which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components for superb sound quality.
  • Frame: Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker.
  • Grills: included



Specifications:

  • Speaker Size: 6.5
  • Design: 2-way
  • Tweeter Design: 3/4" Dome
  • Impedance (Ohms): 4
  • Tweeter Composition: Titanium
  • Woofer Composition: Pulp/Bamboo Fiber
  • Woofer Surround: Rubber
  • Sensitivity (1W at 1 meter): 87.7
  • Sensitivity at 2.83 volts: N/A
  • Frequency Response: 58 - 20k Hz
  • Minimum RMS Wattage: ---
  • Maximum RMS Wattage: 55
  • Peak Power Handling (Watts): 110
  • Top-mount Depth (Inches): 2 1/2
  • Bottom-mount Depth (Inches): 2 5/8
  • Cutout Diameter or Length (inches): 5 5/8
  • Mounting Height (Inches): 0.277
  • UPC: 806576230304
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
