iBeam  TE-360-3D

360-Degree 3D SVM Camera System with DVR

Item #76636

Condition:   Brand New

Product Highlights

  • 360-Degree 3D SVM Camera System
  • Includes DVR

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$727.72

Reg. Price $737.72  Save 1%

Out of Stock Check out other products listed below
iBeam Authorized Dealer

Other products you might be interested in:


Huge Saving on Other items:


iBeam Banner

iBeam 360-Degree 3D SVM Camera System with DVR


We are an iBeam authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

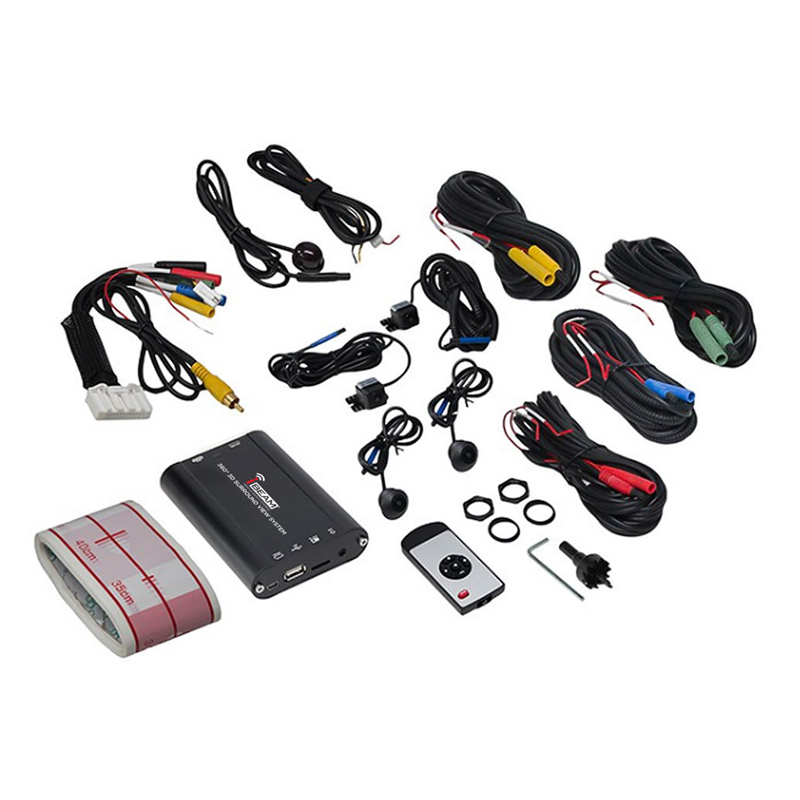

What's Inside?

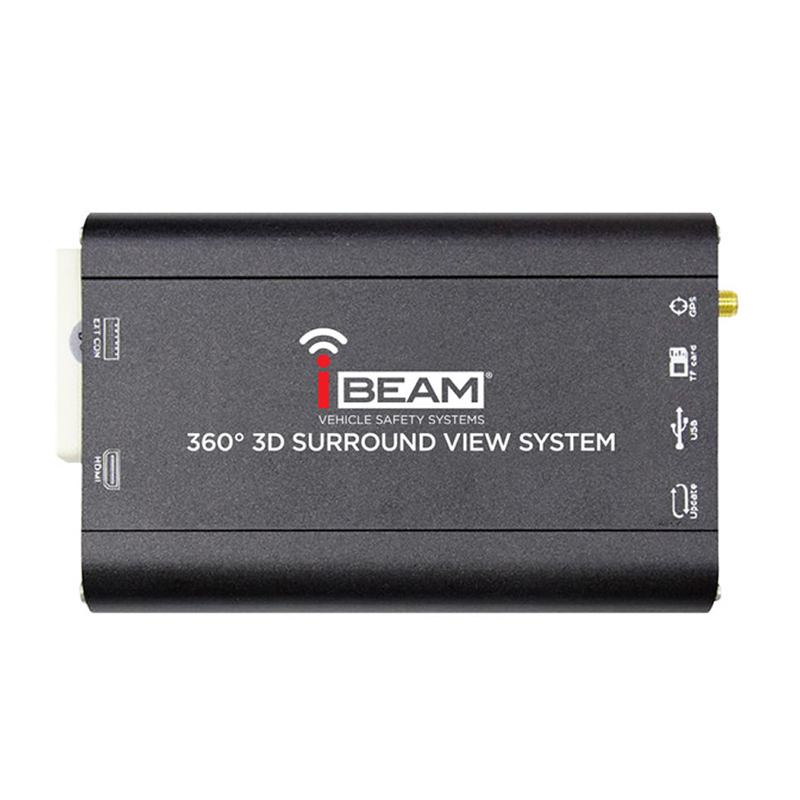

  • • TE-360-3D Interface
  • • TE-360-3D interface harness
  • • Remote Control
  • • Remote Control IR receiver
  • • (4) Cameras
  • • (4) Camera extension cables
  • • 22mm hole-saw
  • • Calibration tape
  • • Side camera adjustment tool
  • • Owner's Manual
iBeam_TE-360-3D-3

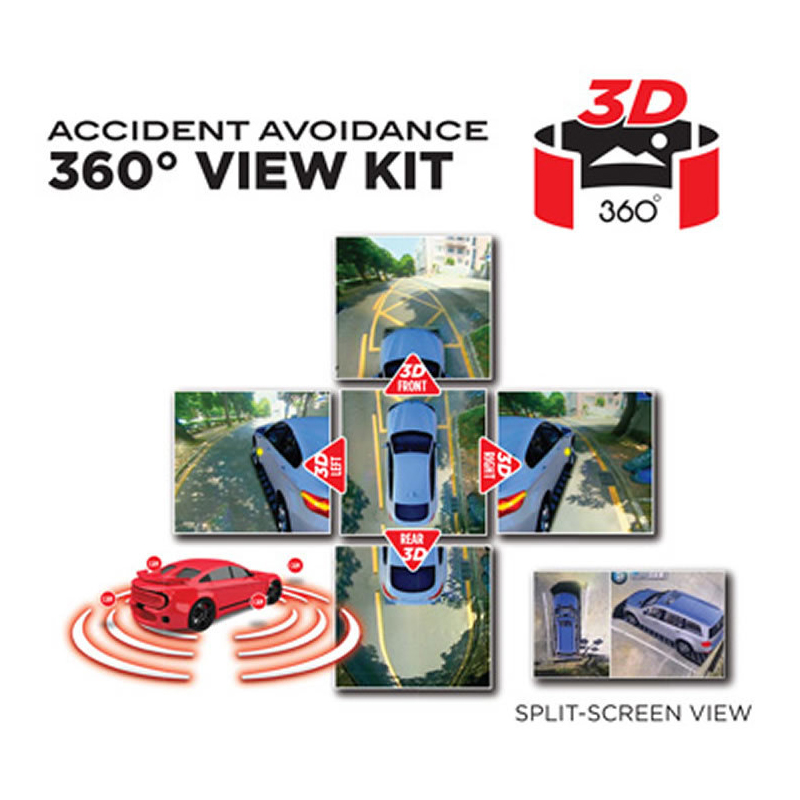

Blends Images from Four Cameras

Our iBeam 360 Degree View 3D Camera System is the best of the best in cutting edge safety equipment. Four cameras mount to each side of the car and the included control processor blends the feeds into one seamless 3D panoramic view. This system is custom calibrated to each specific make and model for optimal image fusion. Integrated turn and reverse triggers provide instantaneous displays of side or rear camera feeds when changing lanes, parking or reversing. This cutting-edge system provides an unobstructed view of vehicle surroundings at all times, while recording all four channels simultaneously. Drivers can also toggle through multiple camera views and are alerted to road hazards to prevent potential collisions. For surveillance purposes, the camera system can also record while the vehicle is parked. For ultimate vehicle safety and security, iBeam’s 360 Degree 3D View Camera System is the top level solution.

Features:

  • Includes (4) high resolution 180-degree fish-eye cameras
  • Cameras have a 0.01 LUX rating that allows for nighttime viewing
  • Exclusive fish-eye distortion correction
  • Seamless 3D & 360 degree video merging
  • Dynamic & intelligent view angle switching
  • Includes calibration tools
  • Independent camera calibration
  • 3D video de-interlacing and noise reduction technology for CVBS signal decoding
  • Digital 1080p recorder supporting up to 32GB USB flash drive or SD card
  • Smart power management to preserve battery power
  • Automatic recording for up to 28 hours
  • SD card sold separately (TE-16SD)
  • Maximum vehicle size 24 ft
  • No Guidelines for reverse view



Specifications:

Camera :

  • Video Interface:  BMW Mini Connector
  • Input / Output Impedance:  75Ω
  • Amplitude:  Typical 1Vpp. 1.2Vpp Maximum
  • Bandwidth:  27M
  • SamplingFrequency:  74.52MHZ
  • Resolution:  1280x720 @ 30fps
  • Signal Standard:  AHD2.0(Nextchip)
  • SNR:  83.5bB



Trigger Input:

  • High Beam:  Optional
  • Left/Right Turn:  Yes
  • Reverse:  Yes



G-sensor:

  • BM250E:  Bosch



Recording:

  • Algorithm:  H.264Baseline @ L3.1
  • Resolution:  1080p @ 15fps
  • Bitrates:  5MBPS, 3GBYTE / Hour
  • Recording Media:  USB/SD Card



Disk Capacity:

  • SD Card:  32GSDIO2.0/SDIO3.0
  • USB:  64G USB2.0



Power Consumption:

  • 4-CH DVR + SVM mode:  490mA
  • Sleep Mode:  <3mA



Dimension:

  • LxWxH:  5x3 1/4x1 (interface)



Weight:

  • .49lb



Environments:

  • Normal Working:  -86°F~ +185°F
  • Storage:  -104°F~ +221°F
  • Relative Humidity:  0~95%



Voltage Tolerance:

  • Working Voltage:  9.5V DC~ 36V DC



  • UPC: 086429344703
  • Weight: 3
