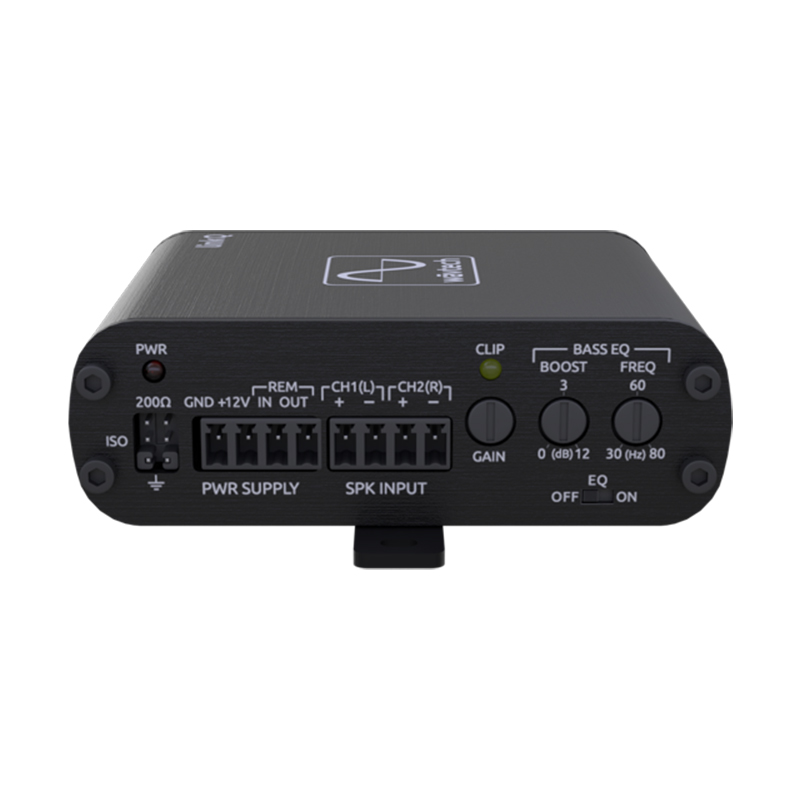

Wavtech linkQ 2-Channel Line Driver

linkQ

Wavtech linkQ

Wavtech 2-Channel Line Driver

The linkQ is the perfect solution for an easy subwoofer upgrade to any OEM audio system. The high-level inputs are designed to accept signal directly from a high power factory head unit or amplifier, simplifying installation. It features an adjustable 1-band paragraphic equalizer, making it easy to correct unwanted equalization that can negatively affect subwoofer performance.


Wavtech linkQ

Some of the amaizing features of this product:

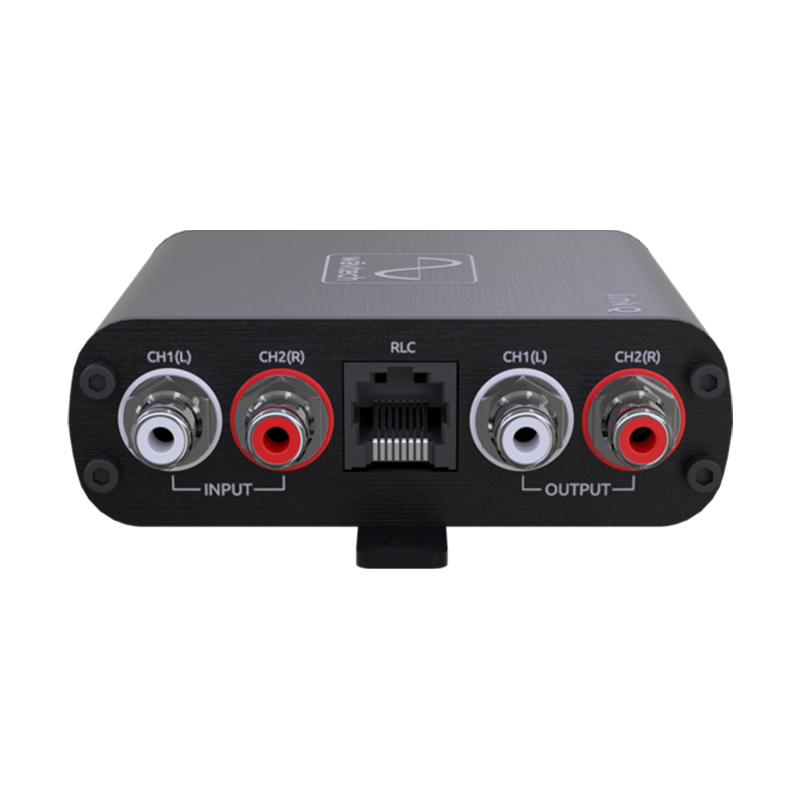

The linkQ has low level (RCA) inputs, so you can use it with an aftermarket head unit as a high output voltage line driver. It can also be used in powersports applications as a source unit. The included remote (RLC) can adjust the level of the subwoofer or serve as a system volume control in power sport applications.



SPECIFICATIONS


  • Number of Channels : 2
  • Output Voltage : 10 Volts

FEATURES


Features:

  • Adjustable Paragraphic EQ

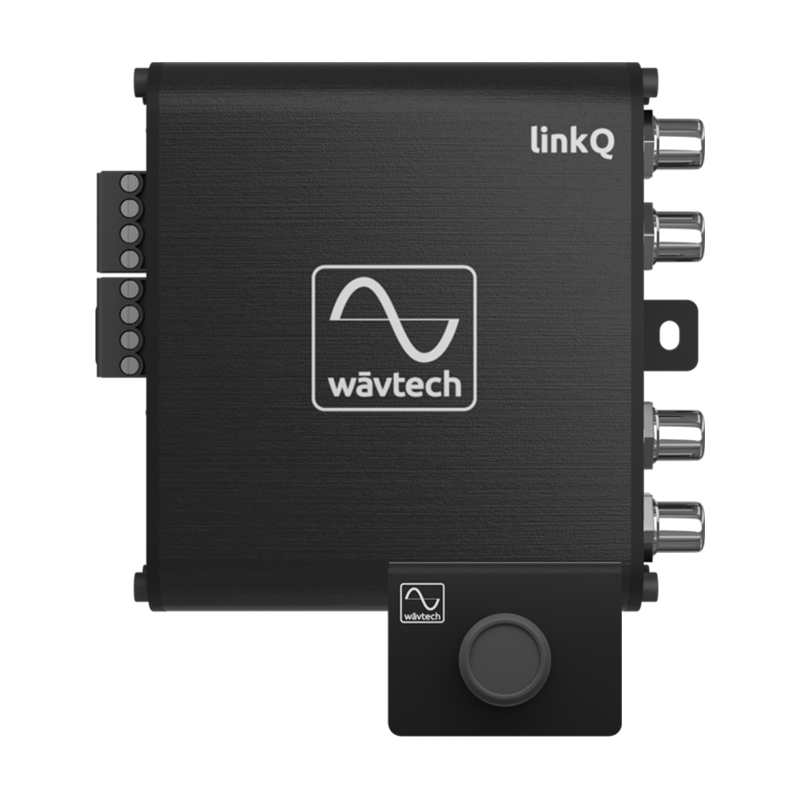

  • Includes Remote Level Control
  • Differential Balanced Inputs
  • Low Impedance Outputs
  • Variable Gain Adjustment w/Clip LED
  • Auto Turn-On via DC-Offset or Audio Signal Detect
  • Generated +12V Remote Output
  • OEM Load Detect Compatible
  • Selectable Ground Isolation
  • Locking Detachable Power/Speaker Terminals
  • Professional Grade Panel Mount RCA’s
  • Compact Aluminum Chassis w/Detachable Mounting Tabs

Specifications

  • Output Voltage (Max): >10Vrms
  • Output Impedance: <50Ω
  • Input Sensitivity
    • SPK: 2-20Vrms, 4-40Vrms
    • RCA: 0.5-5Vrms
  • Max Input Voltage (SPK): 40Vrms
  • Frequency Response: <5Hz to > 100kHz
  • THD+N (SPK/RCA): <0.05% / <0.05%
  • S/N (SPK/RCA): >113dBA / >115dBA
  • Paragraphic EQ (Boost/Freq) 0 to +12dB / 30-80Hz
  • Turn-On Trigger: +12V, DC-offset & Audio Detect
  • Generated +12V Output: >500mA
  • Chassis Dimensions: 1.1”x3.5”x3.1” (29x90x78mm)
  • UPC: 700987201352
  • Weight: 4
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
