Massive Audio  EQ 4

1/2 DIN 4 Band Car Audio Graphic Equalizer

Item #77409

Condition:   Brand New

Product Highlights

  • 1/2 DIN
  • 4 Band
  • Car Audio Graphic Equalizer

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$44.99

Reg. Price $139.42  Save $94.43

Out of Stock Check out other products listed below
Massive Audio Authorized Dealer


Huge Saving on Other items:


PAC Banner

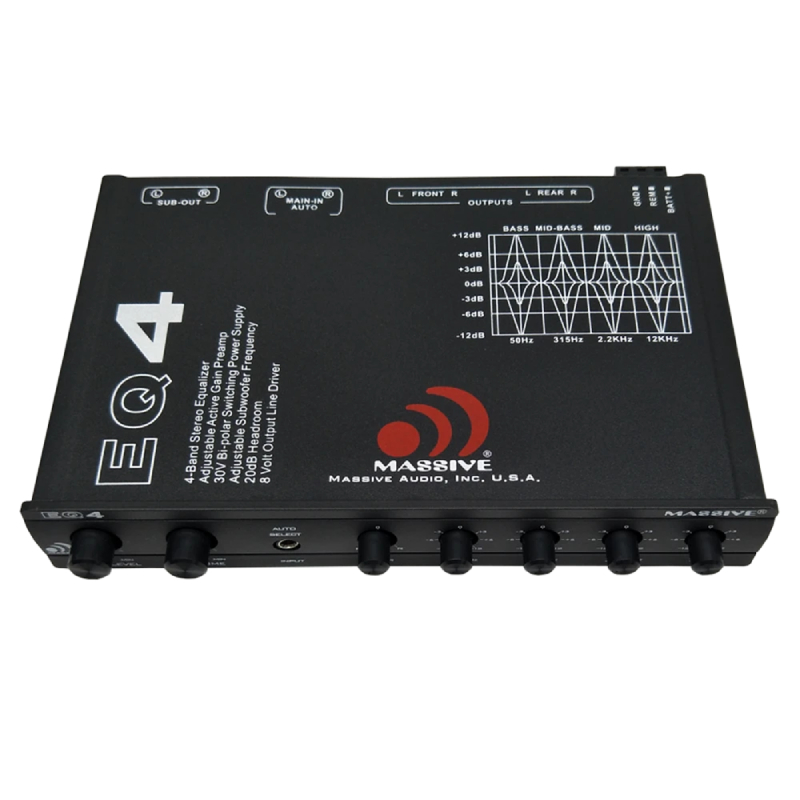

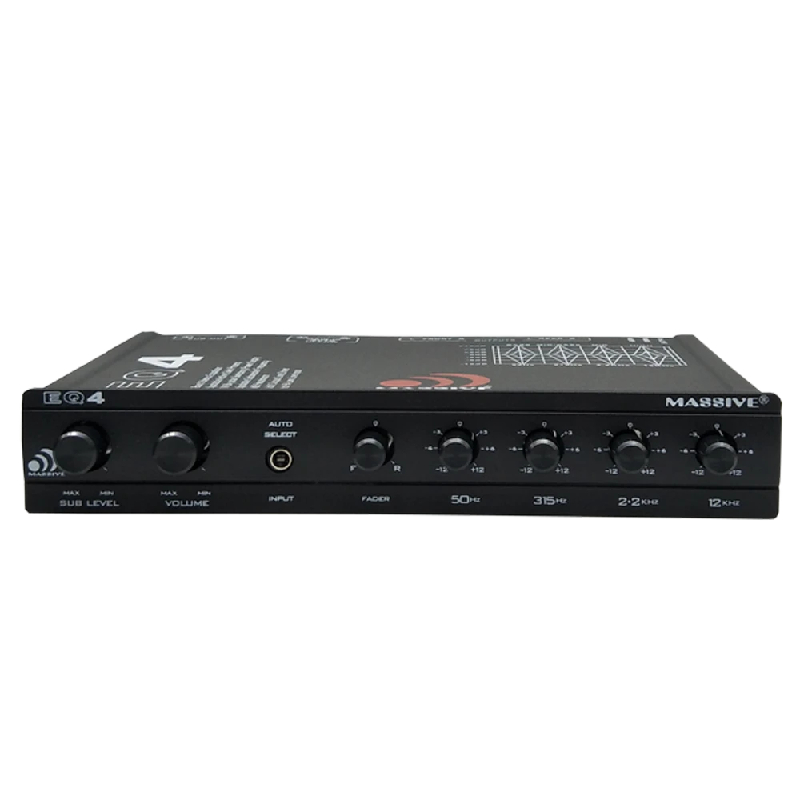

Massive Audio EQ 4 1/2 DIN 4 Band Car Audio Graphic Equalizer


We are a Massive Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

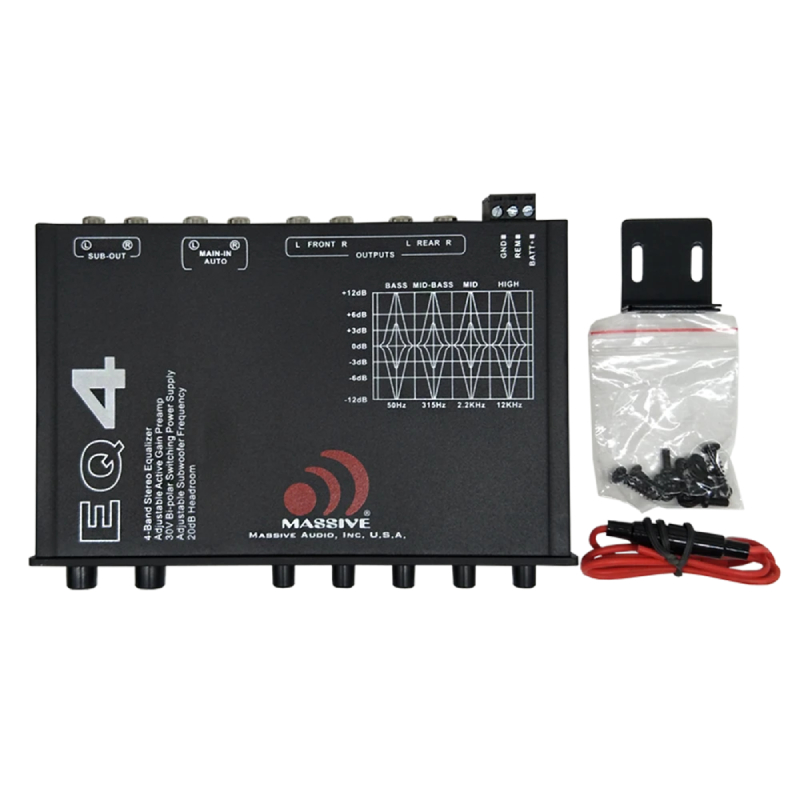

What's Inside?
  • • Band Car Audio Graphic Equalizer
  • • User Manual
Revolutionize Your Car Audio Experience

The Massive Audio EQ 4 1/2 DIN 4 Band Car Audio Graphic Equalizer is a device designed to enhance and adjust the audio output in a car audio system. It is a versatile tool for adjusting and fine-tuning the sound quality in your car audio system. It allows you to customize the audio output by controlling specific frequency bands, boosting or cutting volume levels, and integrating with other audio components.

Unleashes Your Car's Audio Potential with Four Bands of Independent Equalization

The EQ 4 features four bands of equalization, allowing you to adjust different frequency ranges independently. These bands typically include the low bass frequencies, mid-bass frequencies, midrange frequencies, and high treble frequencies. Each band can be adjusted to increase or decrease the volume level within its specific frequency range.

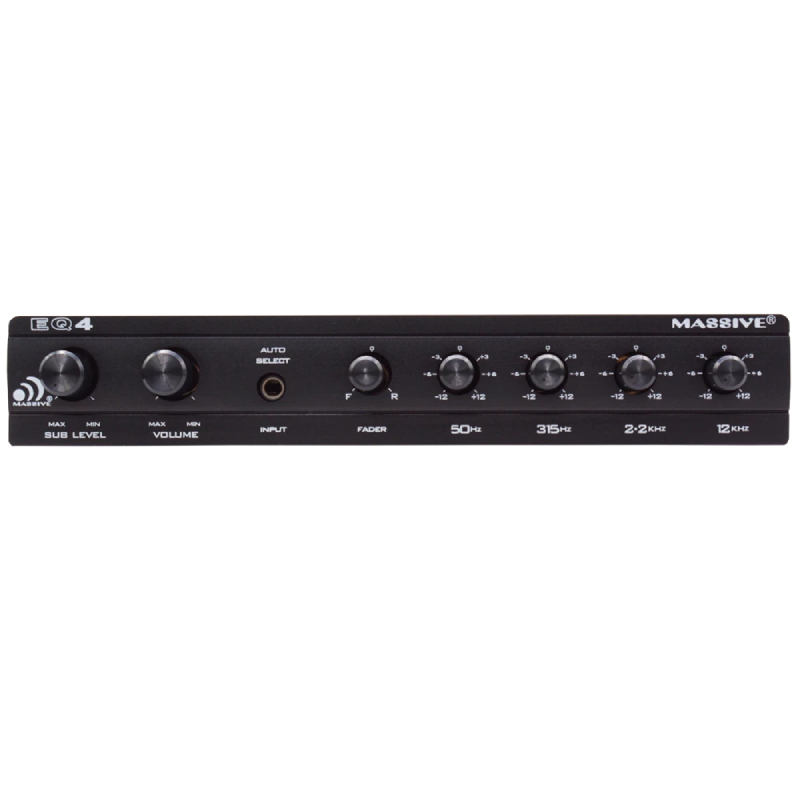

Take Control of Your Car Audio with the EQ 4's Intuitive Graphic Display

The EQ 4 usually comes with a graphic display panel that visually represents the audio frequency response. This display often consists of a series of sliders or bars corresponding to each frequency band. By adjusting these sliders, you can customize the audio output according to your preferences.

: Sculpt and Shape Sound with Precision using EQ 4's Boost/Cut Control for Ultimate Customization

Also, the EQ 4 typically offers a boost/cut control for each frequency band. This control enables you to either boost or attenuate the volume level within a particular frequency range. Boosting a frequency band can emphasize specific audio elements, while cutting can reduce or eliminate unwanted frequencies.

  • Low Frequency Response : 10 Hz
  • High Frequency Response : 50000 Hz
  • Number Of Bands : 4

Specifications:

  • 1/2 DIN
  • 4 Band Graphic Equalizer
  • 50Hz, 315Hz, 2.5KHz, 12KHz
  • Each Frequency Adjustable From -12dB to +12dB
  • * -15dB to +15dB for Subwoofer Frequencies
  • Subwoofer Output Fixed at 120Hz
  • 8 Volt Output Line Driver
  • Auxiliary inputs 3.5mm for MP3, DVD or Phone

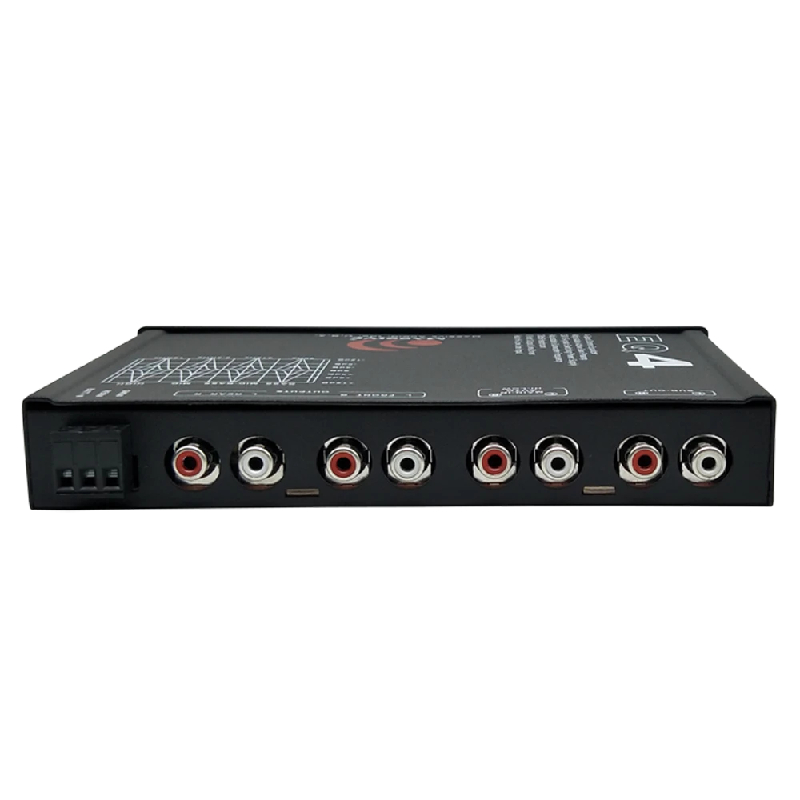

  • Three Stereo RCA Outputs (Front/Rear/Subwoofer)
  • Adjustable Master Volume Level Control
  • Adjustable Active Gain Preamp
  • 30V Bi-Polar Switching Power Supply
  • Frequency Response 10Hz - 50KHz / 100dB S/N
  • 20dB Headroom
  • Adjustable Subwoofer Level Control
  • Input Impedance 20K Ohms
  • Stereo Separation 82dB / 1KHz
  • Operating Voltage 11V - 15V Negative Ground
  • ISO Mounting Holes / Removable Trim Ring
  • 2-Channel RCA Input with Adjustable Gain
  • Dimensions: 7"(W) " 1"(H) " 4 1/8"(D)
  • UPC: 623169650178
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
