Pioneer  TS-WX010A

6-5/8" x 3-1/8" 160W Peak Power Handling Built-In Class D Amplifier Compact Powered Subwoofer

Item #78391

Condition:   Brand New

Product Highlights

  • 6-5/8" x 3-1/8"
  • 160W Peak Power Handling
  • Built-In Class D Amplifier
  • Compact Powered Subwoofer

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$279.99

Reg. Price $340.00  Save $60.01

Out of Stock Check out other products listed below
Pioneer Authorized Dealer


Huge Saving on Other items:


Pioneer TS-WX010A 6-5/8" x 3-1/8" 50W RMS (160W Peak Power) Class D Amplifier Compact Powered Subwoofer


We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

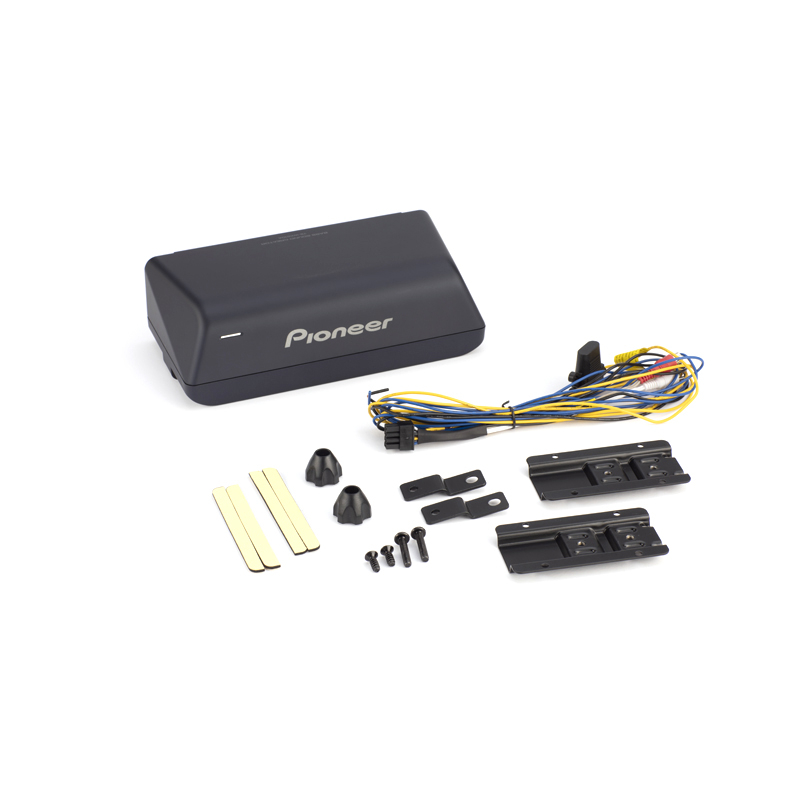

What's Inside?
  • • TS-WX010A Compact Powered Subwoofer
  • • (2) Mounting Brackets
  • • (2) Floor Mounting Brackets
  • • (2) Mounting Nuts
  • • (2) (5 x14mm) screws
  • • (2) (M5 x 25mm)screws
  • • (1) Wire assembly harness
  • • (1) 10A ATO fuse in holder (installed on power wire)
  • • (4) Cushion Tape
  • • Warranty Sheet
  • • Owner's Manual
Able to Produce Powerful and Impactful Bass

Compact in size with exceptionally low power consumption, yet able to produce powerful and impactful bass, the TS-WX010A compact subwoofer is a direct result of Pioneer’s over 80 years’ experience designing and manufacturing loudspeakers, combined with an understanding of the evolving automotive landscape.

High Efficiency

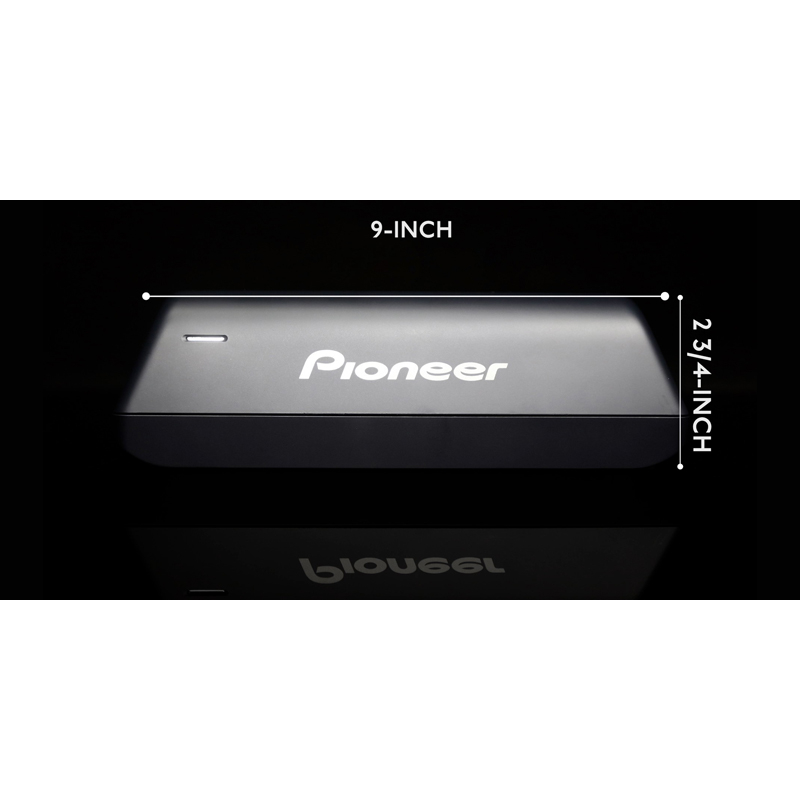

The TS-WX010A compact subwoofer is an ideal upgrade for modern vehicles, especially EVs and hybrid cars, prioritizing low weight, small size, and power efficiency. It's the smallest and lightest powered subwoofer in Pioneer's lineup, measuring 9 inches wide, 4-5/8” deep, and 2-3/4” high, and weighing under 3-1/2 pounds. It's 48% smaller than Pioneer's next smallest subwoofer, the TS-WX130DA.

Allows Installation Inside the Passenger

The TS-WX010A's compact size enables easy installation within most vehicles, allowing it to acoustically blend with the car's speakers, improving sound output and quality. It can be mounted vertically or horizontally, ideally in the passenger footwell, attaching conveniently beneath the dashboard or center console.

Reduced Power Consumption

Designed to be small in size with reduced power consumption while still producing impactful bass output for enhanced sound quality, the TS-WX010A accepts both RCA type line level and speaker level inputs for connection to aftermarket audio systems or integration into factory installed systems, making installation a simple process.

  • Maximum Power : 160 Watts
  • Frequency Response : 20-200 Hz
  • RMS Power Range : 50 Watts

Features:

  • RMS 50W / MAX 160W Class D Amplifier
  • 2- Way Easy Installation (Vertical / Horizontal)
  • Down Firing Subwoofer System
  • Compact Design



Specifications:

  • System Type: Powered
  • Sensitivity (1W/1m): 98 dB (In car, installed at the foot space)
  • Frequency Range: 20 Hz to 200 Hz
  • CTA-2031 Compliant: Yes
  • Warranty: 1 Year
  • Continuous Power handling (RMS) - Watts: 50 Watts
  • Maximum Peak Power Handling - Watts: 160 Watts
  • Built In Amp: Yes
  • Amp Max Power Output: 160 Watts
  • Amp DIN: 50 Watts
  • Input Level (@ Gain Max) RCA: 70mV+70mV/22kOhm
  • Input Level (@ Gain Max) Speaker Line: 1.4V+1.4V/5KOhm
  • Power Source: DC 14.4V
  • Amp Max Current Consumption: 4.2 A
  • Amp Grounding: Negative
  • Shape: Oval
  • Size: 6-5/8" x 3-1/8"
  • Cone Material: Cellulose fiber
  • Drive Cone Material: Aluminum
  • Surround Material: Urethane
  • Surround Type: Rolled
  • Basket Material: Stamped Metal
  • Magnet Material: Ferrite
  • Magnet Weight: 9.5 oz
  • Voice Coil Type: Single Voice
  • Voice Coil Bobbin: Glass imide
  • Voice Coil Wire: Copper
  • Damper: Aramid
  • UPC: 4988028478024
  • Weight: 15
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
