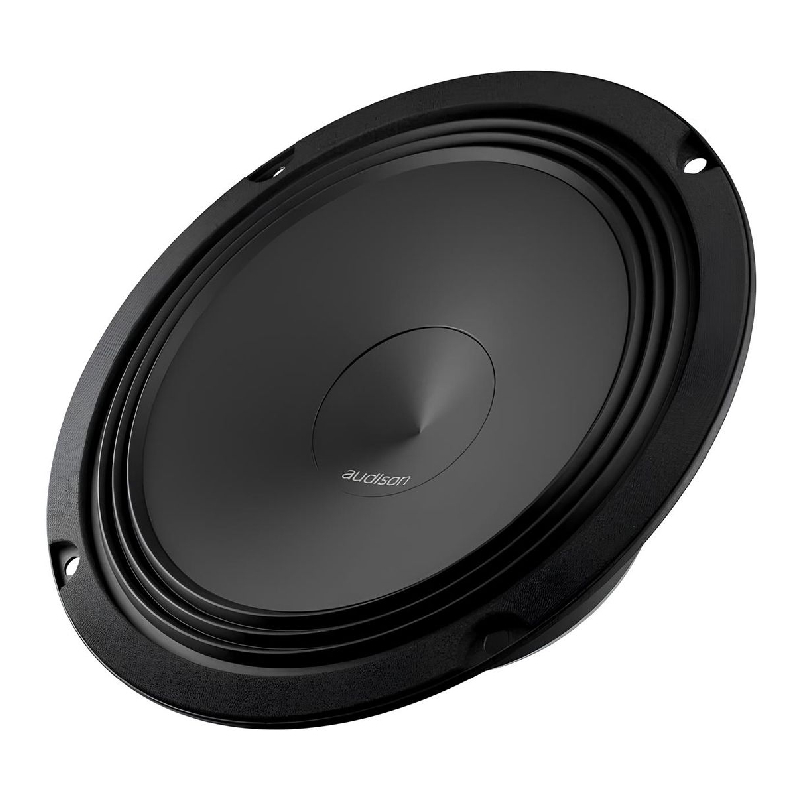

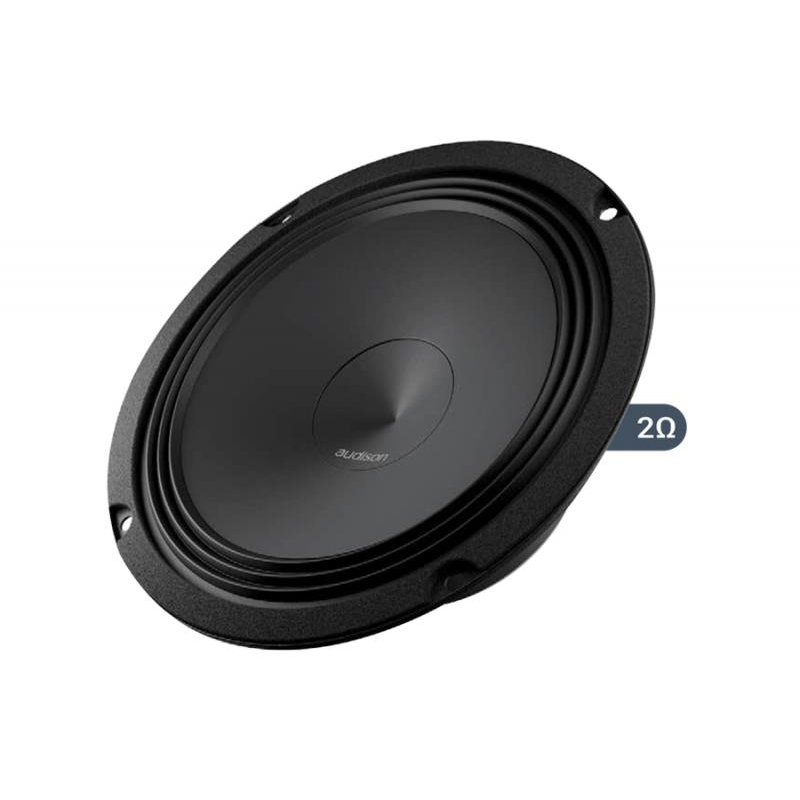

Audison AP6.5 2OHMS - PRIMA Series 6.5" 210W Peak Power Handling, 2-Ohms Midbass Car Speaker
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Ensuring High SPL Values with Minimum Distortion
AP 6.5 Ω2 woofer has been developed with 2Ω nominal impedance with the purpose of exploiting all the power made available by the AP8.9 bit amplifier capable of 65W into a 2Ω load. To maximize the woofer efficiency achieving 95 dB, a 25 mm diameter 10 mm winding height coil, so a more lightweight coil, has been employed, at the same time also providing a linear excursion 2.8 mm higher than the one of AP 6.5 (4Ω), therefore ensuring high SPL values with minimum distortion even at high listening levels. To extend the woofer’s frequency range down to low frequencies up to 50 Hz a 75 Hz resonance frequency has been chosen, achieving excellent low frequency output even without the use of a subwoofer.
- Diameter : 6.5 Inch
- Sensitivity : 95 dB
- Impedance : 2 Ohm
- Frequency Response : 50-5000 Hz
- Peak Power Handling : 210 Watts
- RMS Power Handling : 70 Watts
Features:
- 2 ohms impedance, to fully exploit the 65 W power per channel at 2ohms of the AP8.9 bit amplifier.
- 75 Hz resonance frequency, to extend the frequency range down to low frequencies up to 50 Hz and increase the SPL in the low range.
- 25 mm mobile voice coil to maximize efficiency achieving 95 dB.

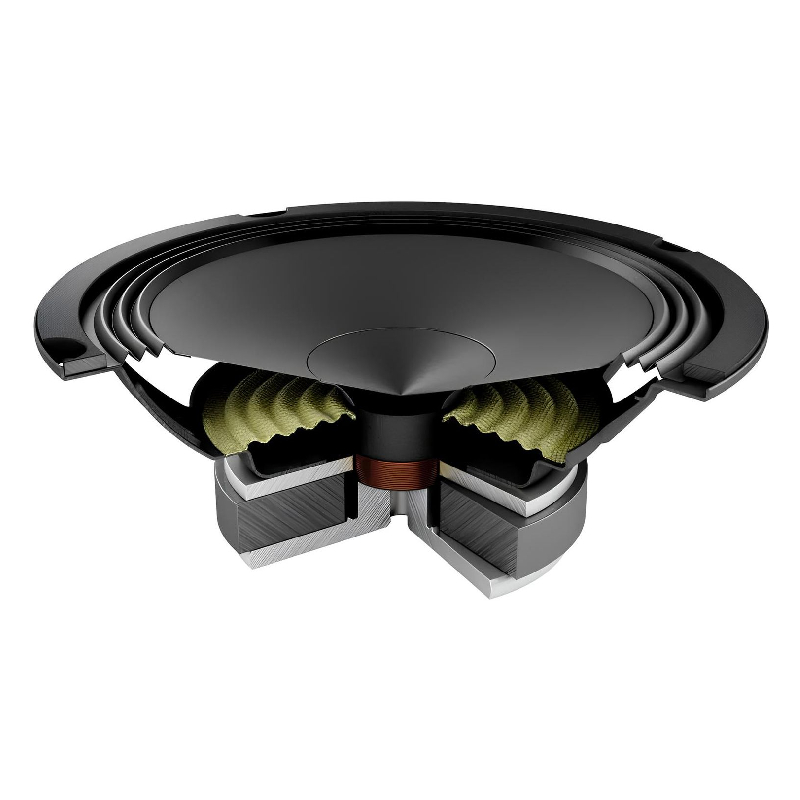

- 10 mm winding height mobile voice coil to increase maximum linear excursion up to 2,8 mm and minimize distortion, even at high listening levels.
- Water-repellent treated paper cone, featuring profile developed with FEM simulation technology and optimized with the Klippel Scan Vibrometer.
- Reduced mounting depth, providing ease of installation in OEM placements.
- TPU (Thermoplastic Polyurethane) surround, featuring the exclusive “Triple Wave” shallow profile, for maximum excursion linearity.
- Compact basket, protected by abrasion-resistant and scratch-proof coating. Damping epoxy glue provides perfect coupling with the motor system.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
Specifications:
- Comp: Woofer
- Size: 165 mm (6,5″)
- Power Handling: 70 W Continuous Power Power, 210 W Peak Power
- Impedance: 2 ohms
- Frequency Response: 50 ÷ 5k Hz
- Sensitivity: 95 dB/Spl
- Magnet: High density flux ferrite
- Dome: Water-repellent treated paper cone
- UPC: 8018823119047
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Audison dealer will have a three (3) year limited warranty from the original date of purchase.
