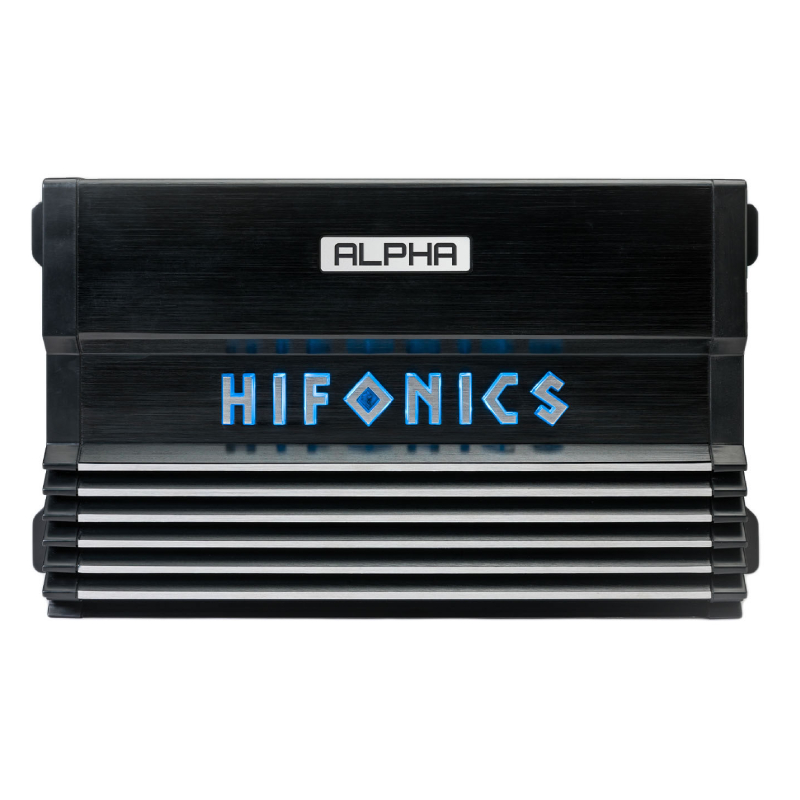

Hifonics A1200.4D Alpha Series 4-Channel 1200W Max Power, Class-D Full Range Car Amplifier
We are a Hifonics authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Full Range Super D-Class Technology
Introducing the Hifonics ALPHA amplifier series: Universal compatibility, delivering 1200 watts across 4 channels with Full Range Super D-Class® technology. Featuring versatile crossover options, bass EQ control, and precise voltage adjustment for optimal sound quality. With enhanced features like signal sense turn-on circuitry, it's backed by a 1-year warranty and offers powerful, distortion-free sound in a sleek black design.
Audiophile-Grade Signal Quality
Experience superior audio clarity with our Hifonics ALPHA amplifier. Featuring a low noise preamplifier circuit and nickel-plated RCA inputs, it ensures audiophile-grade signal quality. Its flexible operation mode allows for four-channel or bridged mono installation, while Accu-Cross crossovers ensure precise signal control. Engineered with Full Range Super D-Class® technology and Ultra-Fi™ MOSFET output, our amplifier delivers powerful, distortion-free sound. Backed by a Twin Turbo Coil PS power supply and secure connection terminals, it offers optimal performance and durability for discerning audiophiles.
Superior Performance
Our amplifier features LED system protection, auto turn-on, full range digital technology, SMT inside, and 300KHz high-speed pulsing for superior performance and reliability.
- Maximum Power : 1200 Watts
- Low Frequency Response : 50-4000 Hz
- High Frequency Response : 20-4000 Hz
- Number of Channels : 4
- Frequency Response : 10-45000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 600 Watts
- Amplifier Class : D
- Fuse Rating : 50 A
Features:
- Low Noise Preamplifier Circuit: Delivers minimal distortion by processing maximum low voltage signals from the source unit.
- RCA Inputs: Features nickel-plated connectors for audiophile signal quality with maximum throughput and noise rejection.
- Operation Mode: Allows flexible installation in four-channel or bridged mono mode on two channels.
- Crossover Type: Accu-Cross crossovers provide complete signal control to all speakers.
- Electronic Equalizer: Tailors specific frequencies to speakers and subwoofers with onboard electronic crossover.
- Class / Topology: ALPHA Full Range Super D-Class® circuitry offers lower distortion and higher efficiency.
- Output Device Technology: Ultra-Fi™ MOSFET produces high power with minimal distortion and efficient cooling.
- Heat Sink: Heavy-duty aluminum alloy dissipates heat efficiently from the MOSFET.
- Power Supply: Twin Turbo Coil PS maintains constant voltage through Ultra-Fi output devices.
- Output Connections: Nickel-plated, high-temperature impact-resistant terminals ensure secure connections.
- Connection Type: Provides secure connections for power, ground, and speaker connections with angled access for easy installation.
- LED System Protection Circuitry Diagnostics: Monitors overload and speaker short protection with illuminated indicators.
- Auto Turn-On: Detects voltage rise over the input signal to automatically turn on/off, eliminating the need for a REM wire.
- Full Range Digital: Focuses on subwoofer frequencies with Super D Class® technology for maximum wattage and musical sound.
- SMT Inside: Surface Mount Technology improves precision and durability for better power and sound quality.
- Additional Features: Includes 300KHz high-speed pulsing for unnoticeable digital switching in the audio bandwidth for music.
Details and Specifications:
- Weight: 10 lbs
- Type: Amplifier
- Brand: Hifonics
- Series: ALPHA
- Category: Mobile
- Condition: New
- Color: Black
- Compatible Vehicles: Universal
- Class: Full Range Super D-Class®
- Total Channels: 4
- Max Power (watts): 1200
- Power @ 2 Ohms (ch x watts): 4 x 300
- Power @ 4 Ohms (ch x watts): 4 x 150
- Mono Bridged @ 4 Ohms (ch x watts): 2 x 600

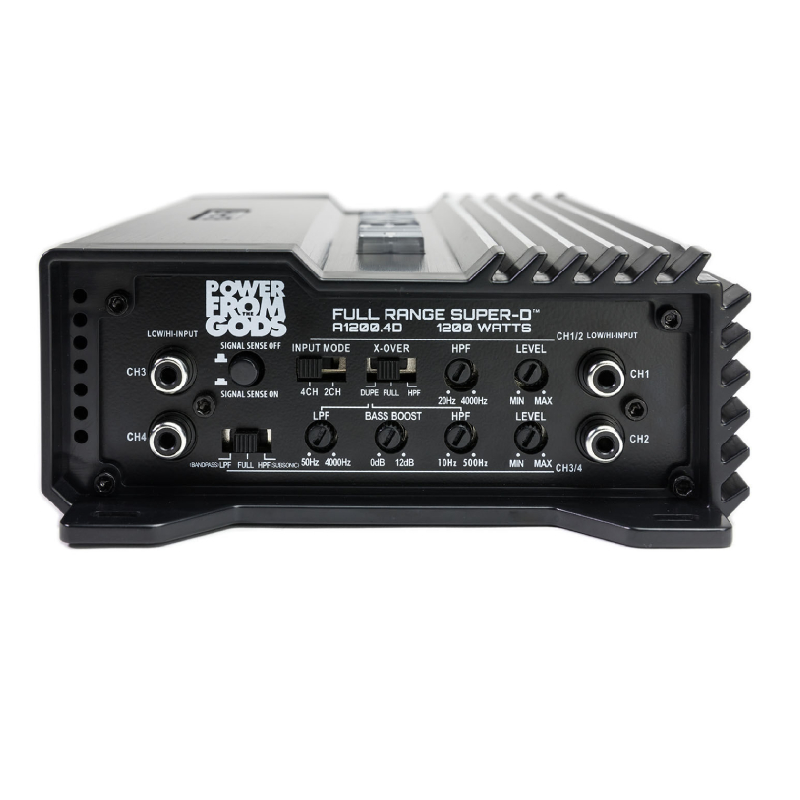

- Crossover:
- 4CH/2CH: DUPE/Full/HPF
- Bandbass: LPF/Full/HPF
- Input Mode: Switched
- Variable High Pass Crossover 12dB per Octave: 20Hz-4KHz, DUPE Mode: 10Hz-500Hz
- Variable Low Pass Crossover 12dB per Octave: DUPE Mode: 50Hz-4kHz
- Tone Control / Parametric EQ: Bass EQ
- Bass Boost: 0-12dB @ 45Hz
- Variable Voltage: 0.2-10V
- Signal to Noise: > 85dB
- Frequency Response: 10Hz-45kHz
- Total Harmonic Distortion (THD): < 0.05%
- Speaker Level Audio Inputs: Yes

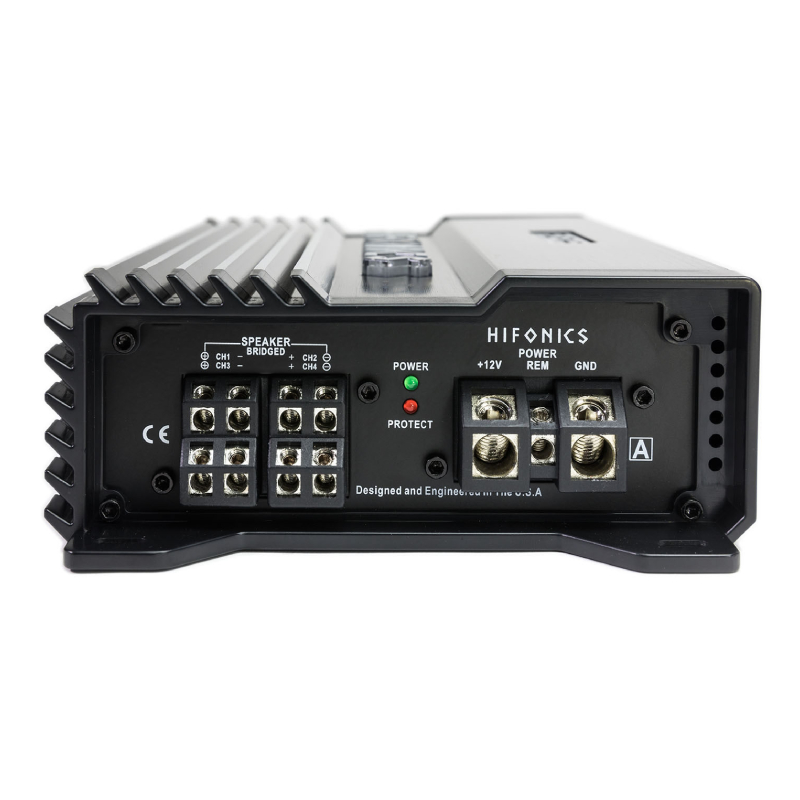

- Power Terminal 12v/GND: 4 AWG
- Speaker Terminal Wire Gauge: 18 AWG
- Fusing: Use External Fuse
- Additional Details:
- TURN ON CIRCUIT: Switched - Remote Turn-On / Signal Sense On
- HEATSINK SIZE: Length 9.25in x Depth 9.25in x Height 2.37in
- UPC: 806576228820
- Weight: 10
