Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

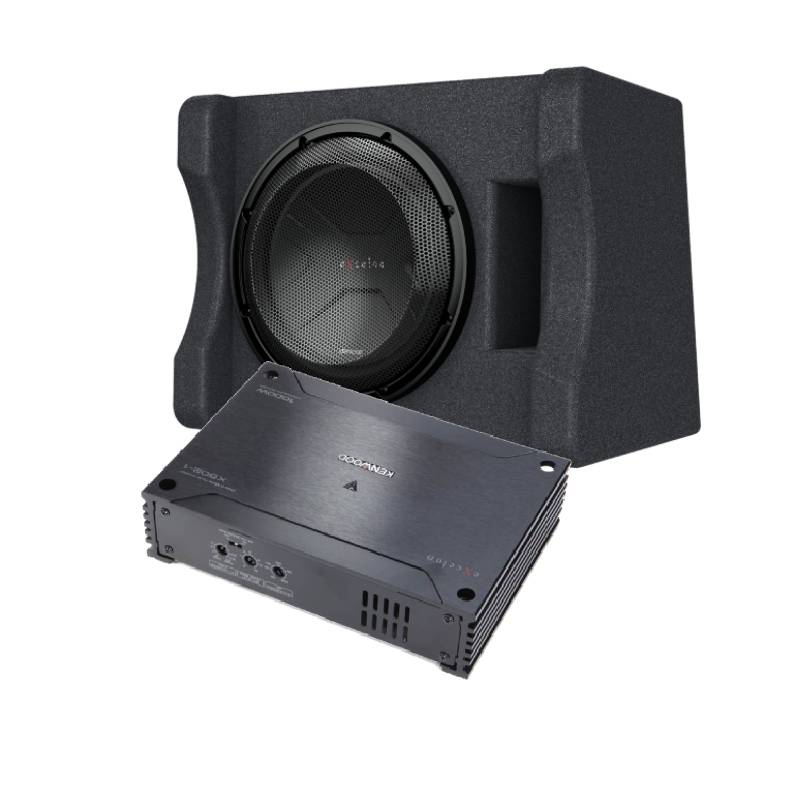

Kenwood X502-1-Bundle4 Bass Packages Include Kenwood X502-1 + Kenwood P-XW1241S
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Kenwood Excelon X502-1
- •Kenwood Excelon P-XW1241S
- •Owner's Manual

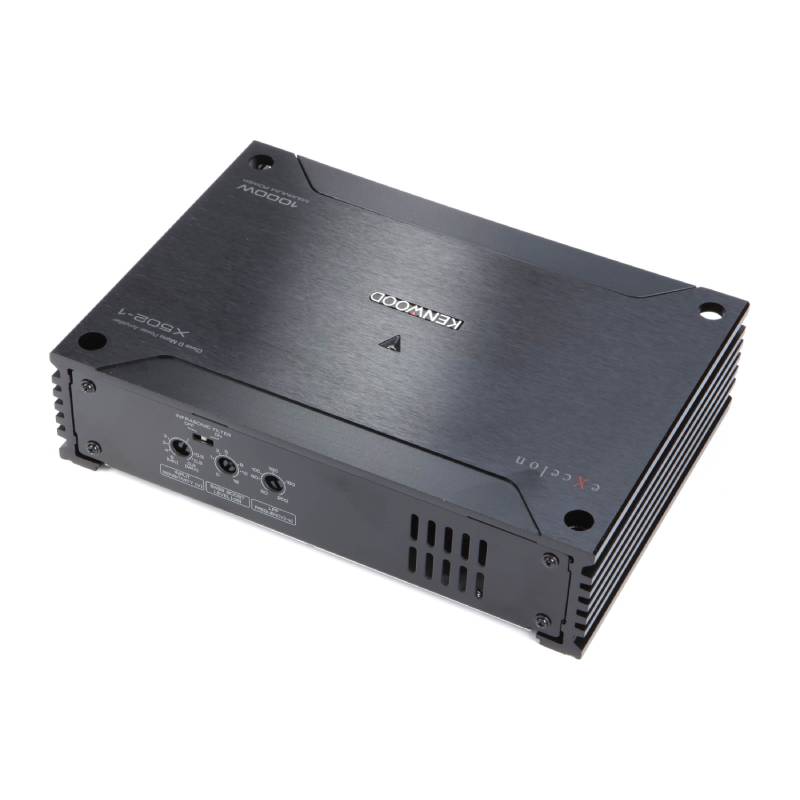

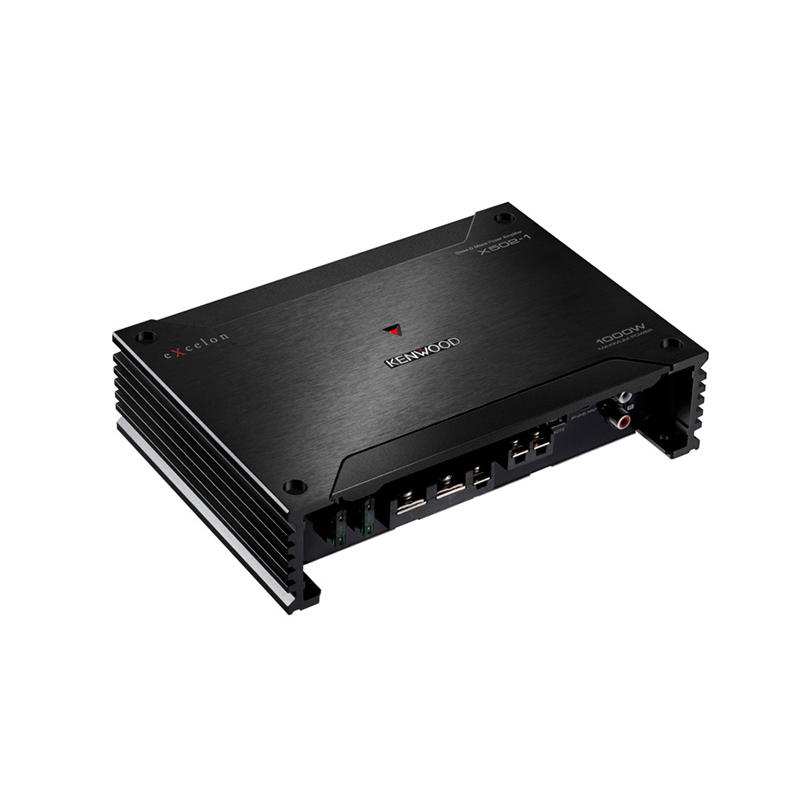

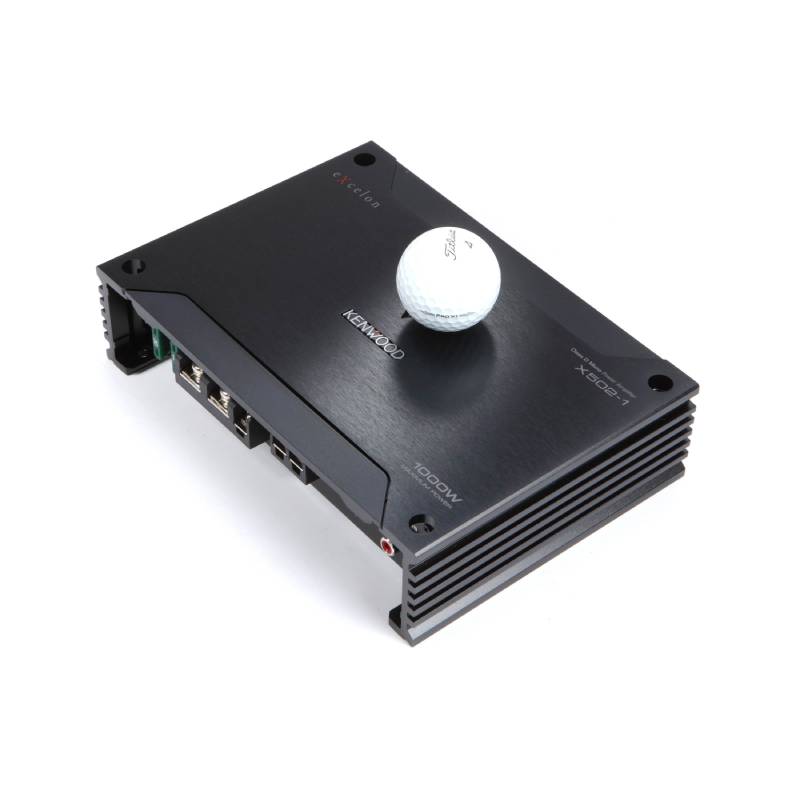

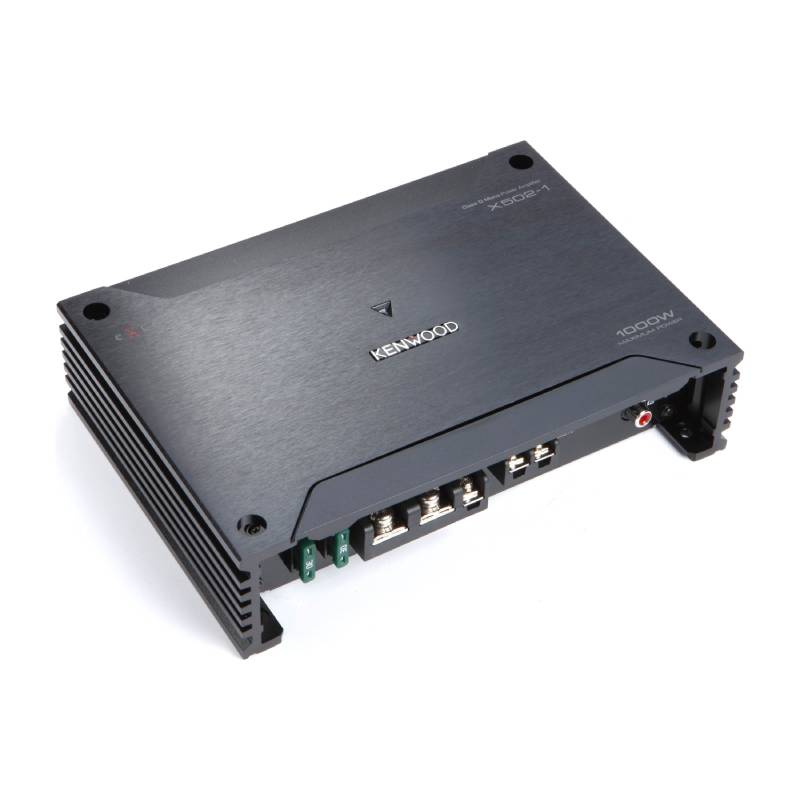

Kenwood Excelon X502-1 Class D Mono Subwoofer Amplifier
Output Coil with Magnetic Shields
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
Kenwood Excelon P-XW1241S Excelon Series Subwoofer
Feature Their Highest Level of Technology
Kenwood's Excelon Series mobile audio components feature their highest level of technology in advanced designs that give you the great sound and quality you expect from Kenwood. Their subwoofer enclosures are built to last, with solid construction and subs that are made to kick out the jams.
Features a Diamond Array
The P-XW1241S comes loaded with one 12" 4-ohm Excelon Series subwoofer. The sub's polypropylene cone features a diamond array pattern to minimize distortion, while the rubber surround and computer-optimized stress-controlled spider keep things on track. The speaker is designed to dissipate heat generated by extended high-powered use, with internal works that direct airflow to avoid overheating.
Kenwood Excelon X502-1 X Series 1000 Watts Max Power Class D Mono Subwoofer Amplifier
CTA-2006 Primary Ratings
- Power Output: 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
- Signal-to-Noise Ratio: 85dBA (Reference: 1Watt into 4Ohms)
- MAX POWER: 1000W
Rated Power Output at 14.4V
- A/B (4 Ohms): -
- A/B (2 Ohms): -
- SUB (4 Ohms): 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
- SUB (2 Ohms): 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
- A/B (Bridged 4Ohms):
Specifications
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
- Frequency Response: 20Hz-200Hz (+0dB, -3dB)
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
- Bridged Connection: -

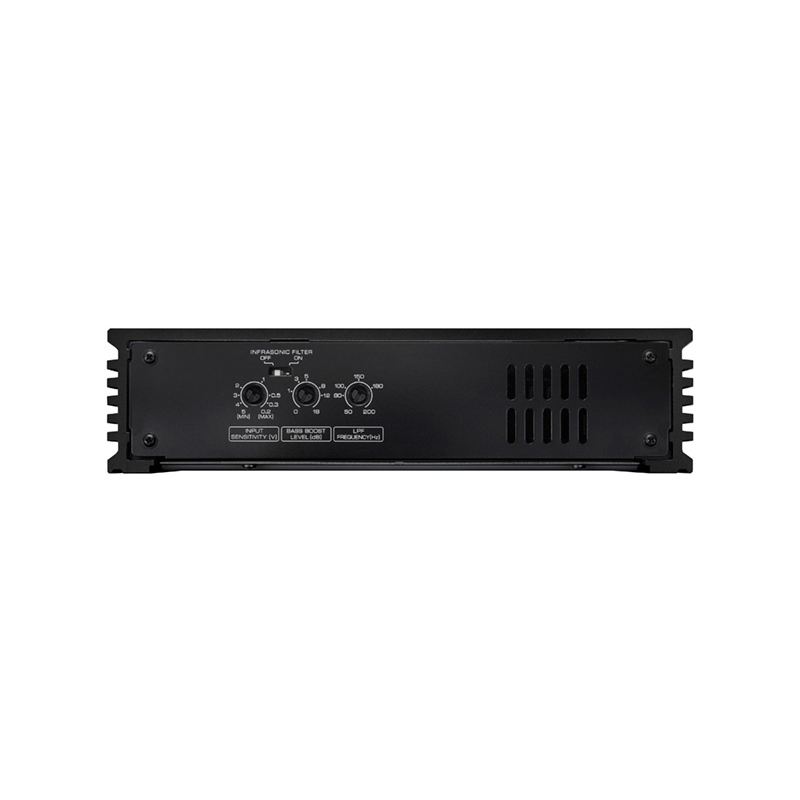

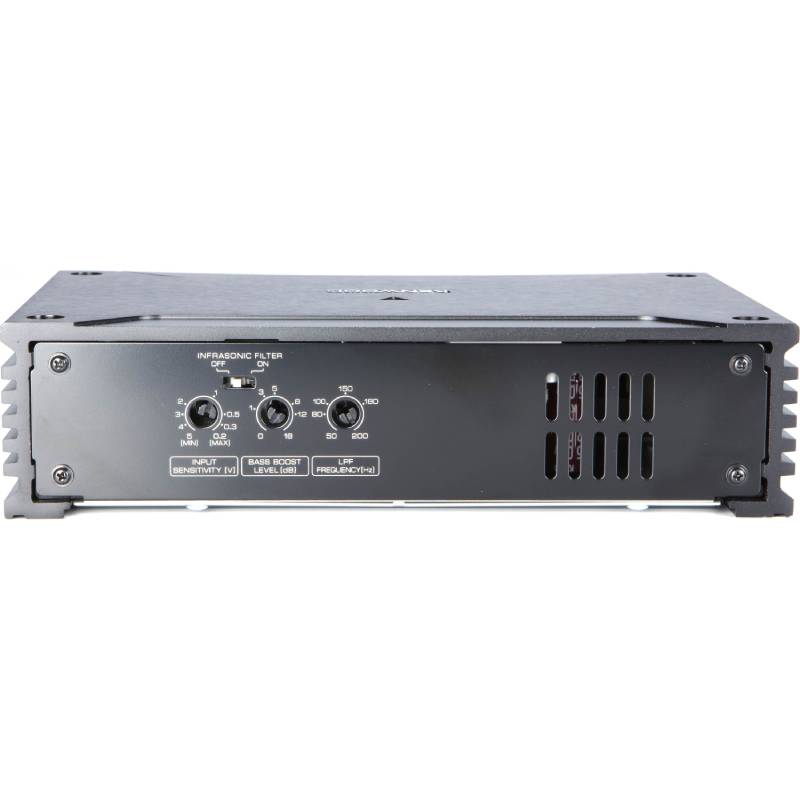

Audio Section
- Low-Pass Filter: 50Hz-200Hz, -24dB/oct
- High-Pass Filter: -
- Bass Boost: 40Hz, 0dB - +18dB
- Infrasonic Filter: 25Hz, -24dB
- RCA Input Sensitivity: 0.2[V] - 5.0 [V]
- Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]

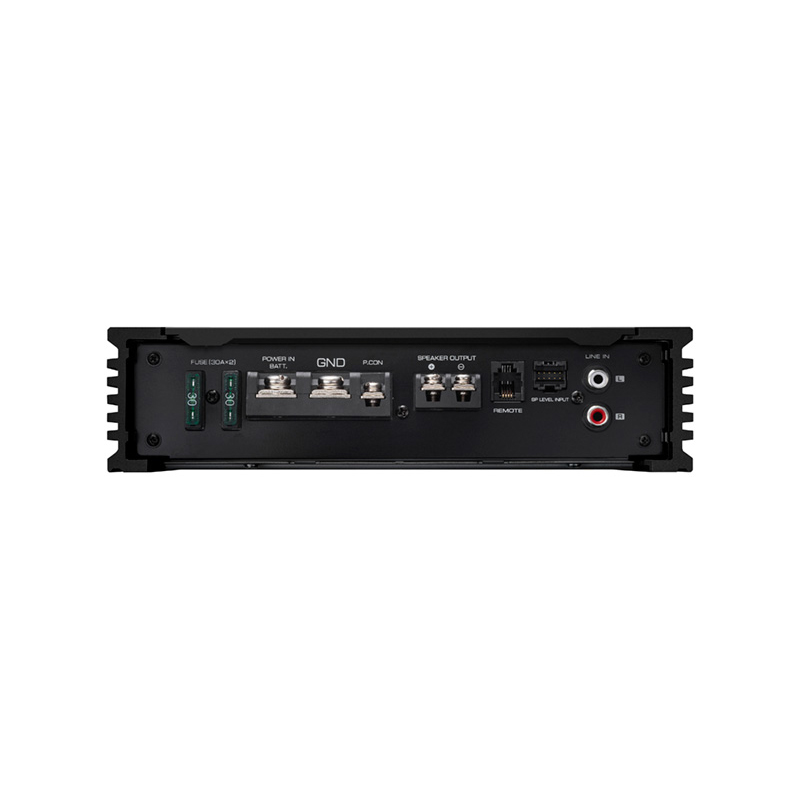

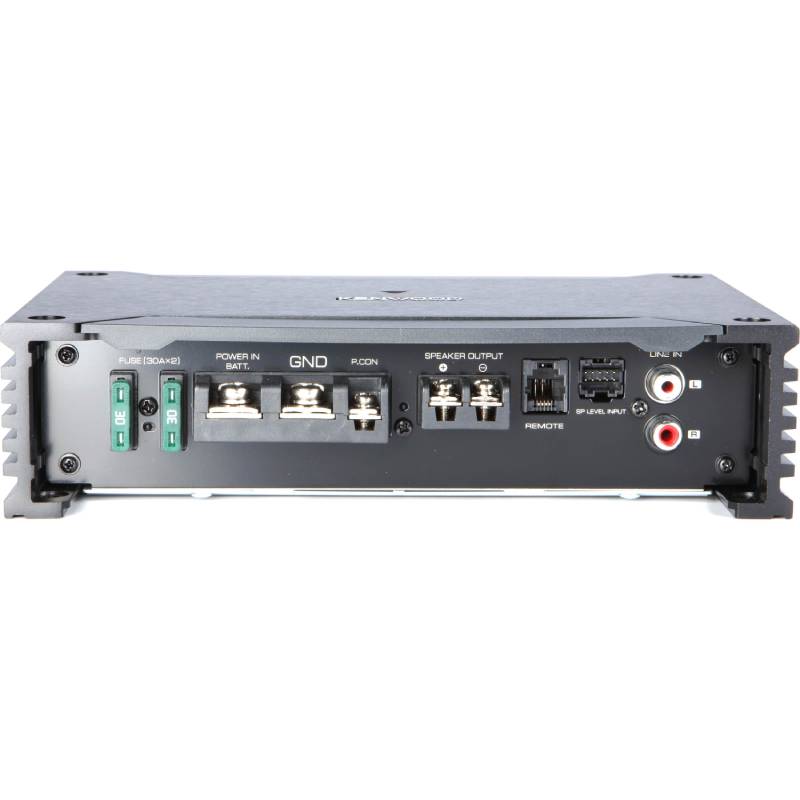

Terminals
- Battery & Ground: M6 Screw Type Terminal Block
- Speaker Output: M4 Screw Type Terminal Block
General
- Dimensions(WxHxD): (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
- Dimensions(WxHxD): (W) 213cm x (H) 53cm x (D) 149cm
- Weight: 3.3 lbs ( 1.5kg)
- Operating Voltage: 14.4V(11-16V allowable)
- Current Consumption: 25 [A]
Key Features
- CTA-2006 Compliant
- 2 Ohms Load Capability
- One Sided Connection
- Speaker Level Input with Signal Sensing Turn-on
- Signal Sensing Turn-On
Accessorries
- Remote Level Control Ready ( Optional KCA-RC01A)
- Terminal Cover
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design

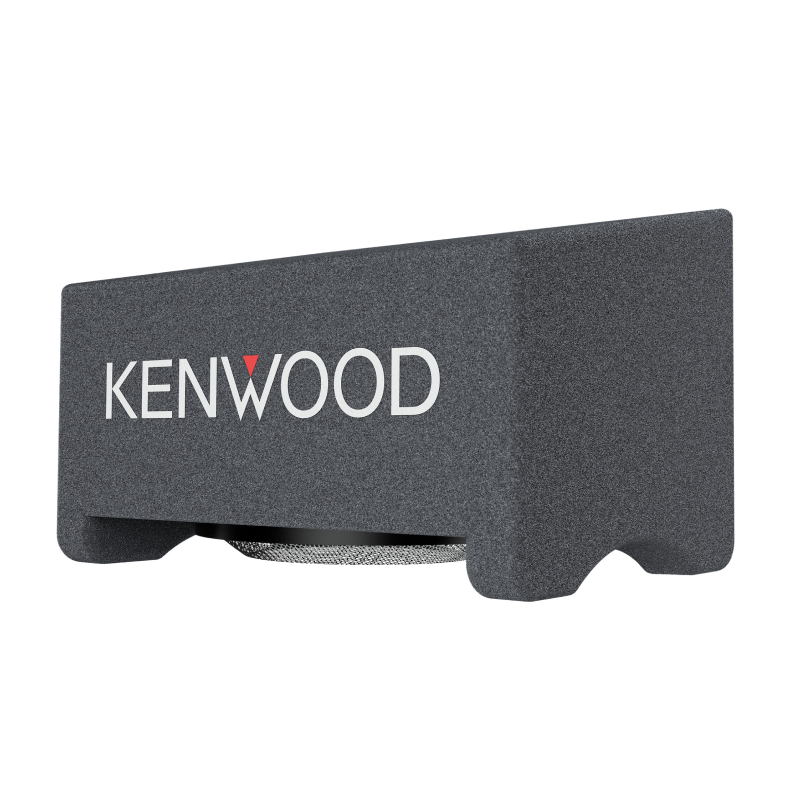

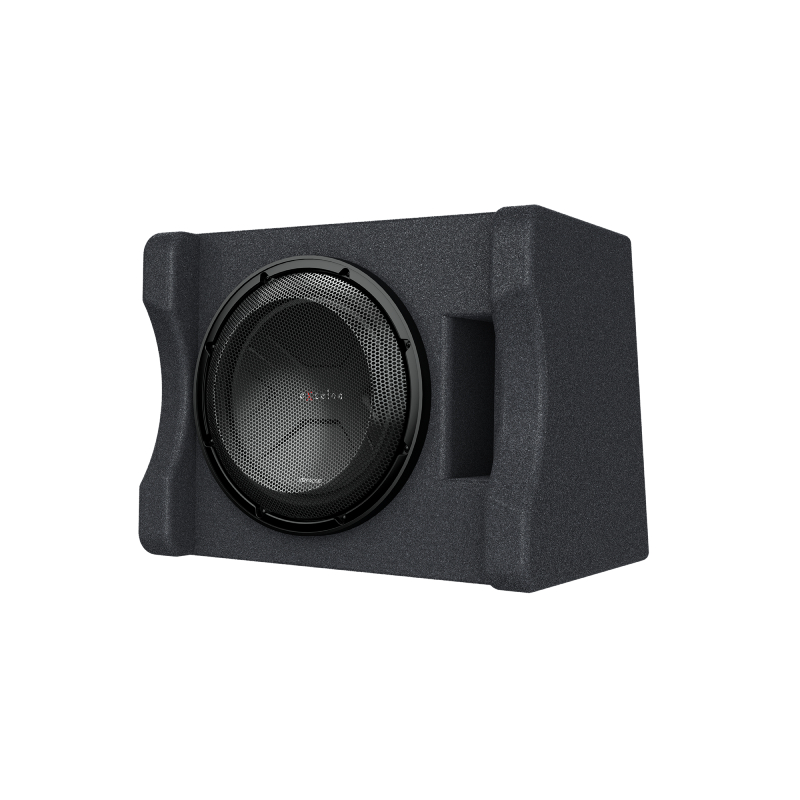

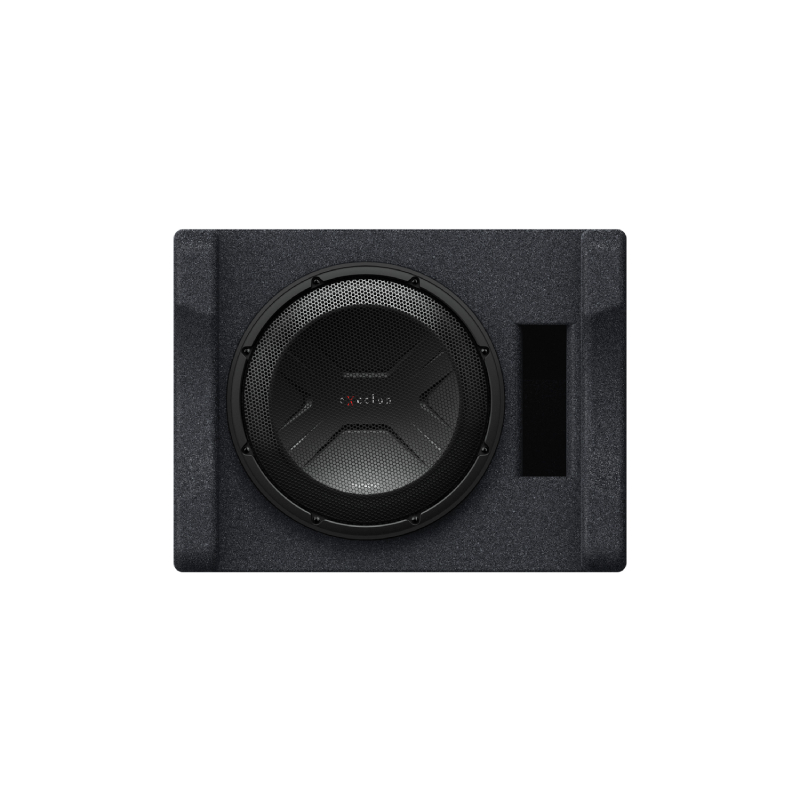

Kenwood Excelon P-XW1241S Excelon Series 12” 300W RMS (2000W Peak Power Handling) Pre-loaded Subwoofer Enclosure
Features:
- ported enclosure with one 4-ohm 12" subwoofer
- polypropylene cone with diamond array pattern and rubber surround
- stress controlled spider
- closed yoke speaker design for airflow control
- 5/8" MDF construction with 3/4" MDF baffle board
- power handling: 300 watts RMS (2000 watts peak)
- frequency response: 30-300 Hz
- can be installed as front-, rear-, or down-firing
- metal grille included
- 4Ω Impedance
- 20-7/8” W x 15-13/16” H x 14-5/8”Bottom Depth / 11-3/8” Top Depth
- UPC:
- Weight: 12
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
