Audison  SR5.600 Hot Deal

SR Series 1010W Max Power, 5-channel Amplifier, Class-D

Item #79291

Condition:   Brand New

2
❮ ❯
1 / 2
Product Highlights
  • Model: SR Series 1010W
  • Max Power: 1010W
  • Channels: 5
  • Amplifier Type: Class-D
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
2 Reviews

$552.49

Reg. Price $715.00  Save $162.51
In Stock
In Stock

Add Extended Warranty
$40 Gift Card
Get a FREE $40 OCS Gift Card with your purchase. Click Here!
  Free 2-Years Warranty Included!

Starting at $50/mo with . Check your purchasing power

No Credit needed for . Learn More

Add to Cart
 Alert me on price change
We Price Match! Call Us! 310-526-8635
Audison Authorized Dealer

Huge Saving on Other items:

Audison Banner

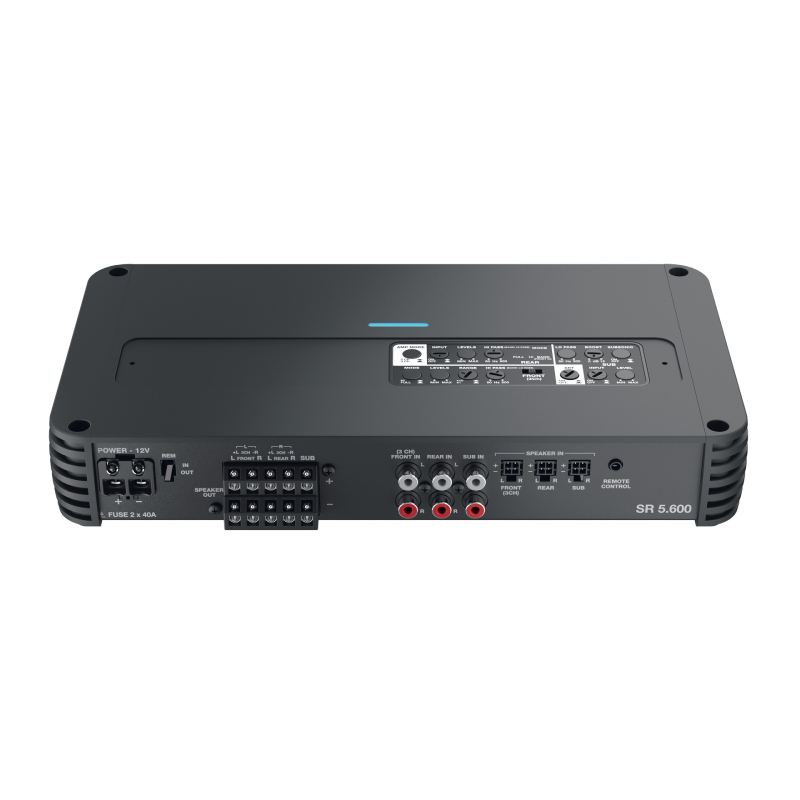

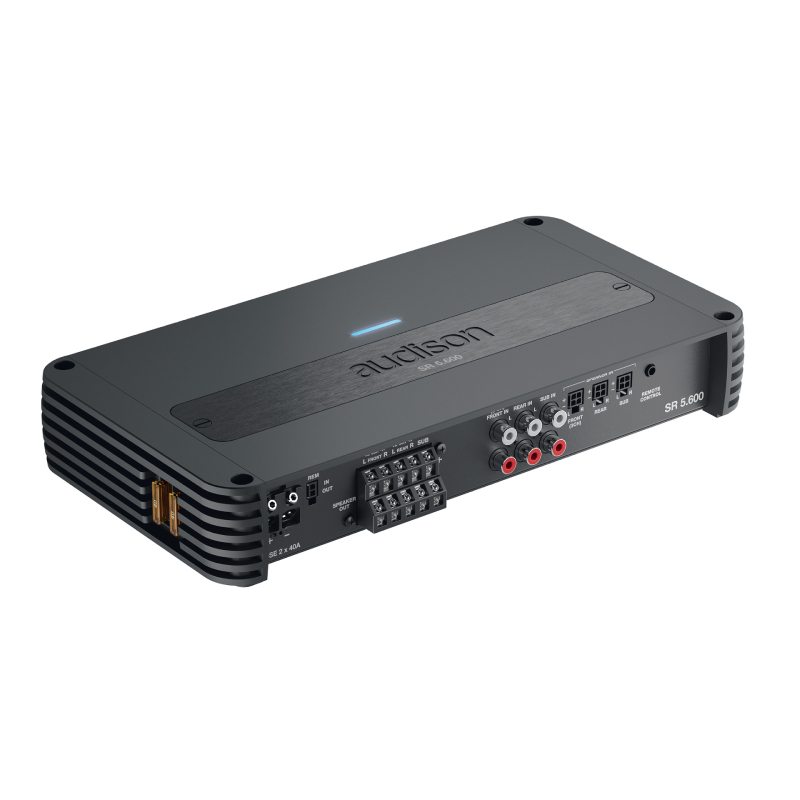

Audison SR5.600 - SR Series 1010W Max Power, 5-channel Amplifier, Class-D

We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 5-channel Amplifier
  • • Owner's Manual
Designed to Deliver Exceptional Audio Performance and Versatility

The Audison SR5.600 is a 5-channel car amplifier designed to deliver exceptional audio performance and versatility. With a maximum power output of 600 watts RMS per channel, this amplifier provides clean and powerful sound reproduction for your car audio system.

The SR5.600 features a compact and sleek design, making it easy to install in various vehicle configurations. It offers a range of connectivity options, including RCA inputs and outputs, allowing you to connect multiple audio sources and expand your system.

This amplifier is equipped with advanced features such as high- and low-pass filters and adjustable bass boost, allowing you to customize the sound output and optimize it for different speaker types. It also includes a mono channel, which can be bridged to power a subwoofer, adding depth and impact to your audio experience

Built With High-quality Components

The SR5.600 is built with high-quality components, ensuring reliability and durability. It incorporates advanced circuitry and efficient power management to minimize distortion and deliver efficient power to your speakers.

If you're looking for a versatile and high-performance amplifier to enhance your car audio system, the Audison SR5.600 offers impressive power output, precise tuning capabilities, and durability, making it an excellent choice for audio enthusiasts seeking premium sound quality in their vehicles.

  • Maximum Power : 1000 Watts
  • Low Frequency Response : 50-5000 Hz
  • High Frequency Response : 50-5000 Hz
  • Number of Channels : 5
  • Frequency Response : 10-35000 Hz
  • Built In Crossovers : Yes
  • Channel Separation : Yes
  • Amplifier Class : D
  • Fuse Rating : 44x1 A
  • XP750-SE OFFER : Yes

Features:

  • Elegant and functional design with rounded corners to minimize space, facilitating installation.
  • Built-in USS (Universal Speakers Simulator).
  • Full built-in crossover section.
  • Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.
  • Balanced high-level inputs for connecting to the OEM head unit speaker output
  • Low-level RCA for after-market speakers.
  • ART (Automatic Remote On/Off) function.
  • Remote IN / OUT socket to allow control of multiple amplifiers.
  • PRE-OUT allows for system expansion.



Specifications:

  • Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 25A
  • Operating power supply voltage:  6.5 ÷17 VDC
  • Idling current: 2.2 A
  • Idling current when off: 0.04 mA
  • Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 44 A
  • Remote IN:  6.5 ÷ 15 VDC (1 mA)
  • Remote OUT:  6.5 ÷ 15 VDC (150 mA)
  • ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable):  1.5 ÷ 7 VDC
  • Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.02 %
  • Damping factor @ 1 kHz, 4Ω, 2 VRMS, FRONT/REAR: 100
  • Damping factor @ 100 Hz, 4Ω, 2 VRMS, SUB: 300
  • Bandwidth @ -3 dB FRONT / REAR; SUB: 10 Hz ÷ 35 kHz; 10Hz ÷ 500Hz
  • S/N ratio (A weighted @ 1 V Input): 105 dBA
  • Pre-In sensitivity: 0.2 ÷ 5 VRMS
  • Speaker-In sensitivity: 0.8 ÷ 20 VRMS
  • Minimum load impedance:
    • 5Ch: 2Ω
    • 3Ch: 4Ω + 4Ω + 2Ω
  • OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
    • 5Ch 75 W x 4 + 330 W x 1 (4Ω)
    • 5Ch 115 W x 4 + 550 W x 1 (2Ω)
    • 3Ch 230 W x 2 (4Ω) + 310 W x 1 (4Ω)
    • 3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω)



  • UPC: 8018823132923
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Maximum Power : 1000 Watts
  • Low Frequency Response : 50-5000 Hz
  • High Frequency Response : 50-5000 Hz
  • Number of Channels : 5
  • Frequency Response : 10-35000 Hz
  • Built In Crossovers : Yes
  • Channel Separation : Yes
  • Amplifier Class : D
  • Fuse Rating : 44x1 A
  • XP750-SE OFFER : Yes

Features:

  • Elegant and functional design with rounded corners to minimize space, facilitating installation.
  • Built-in USS (Universal Speakers Simulator).
  • Full built-in crossover section.
  • Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.
  • Balanced high-level inputs for connecting to the OEM head unit speaker output
  • Low-level RCA for after-market speakers.
  • ART (Automatic Remote On/Off) function.
  • Remote IN / OUT socket to allow control of multiple amplifiers.
  • PRE-OUT allows for system expansion.



Specifications:

  • Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 25A
  • Operating power supply voltage:  6.5 ÷17 VDC
  • Idling current: 2.2 A
  • Idling current when off: 0.04 mA
  • Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 44 A
  • Remote IN:  6.5 ÷ 15 VDC (1 mA)
  • Remote OUT:  6.5 ÷ 15 VDC (150 mA)
  • ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable):  1.5 ÷ 7 VDC
  • Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.02 %
  • Damping factor @ 1 kHz, 4Ω, 2 VRMS, FRONT/REAR: 100
  • Damping factor @ 100 Hz, 4Ω, 2 VRMS, SUB: 300
  • Bandwidth @ -3 dB FRONT / REAR; SUB: 10 Hz ÷ 35 kHz; 10Hz ÷ 500Hz
  • S/N ratio (A weighted @ 1 V Input): 105 dBA
  • Pre-In sensitivity: 0.2 ÷ 5 VRMS
  • Speaker-In sensitivity: 0.8 ÷ 20 VRMS
  • Minimum load impedance:
    • 5Ch: 2Ω
    • 3Ch: 4Ω + 4Ω + 2Ω
  • OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
    • 5Ch 75 W x 4 + 330 W x 1 (4Ω)
    • 5Ch 115 W x 4 + 550 W x 1 (2Ω)
    • 3Ch 230 W x 2 (4Ω) + 310 W x 1 (4Ω)
    • 3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω)



  • UPC: 8018823132923
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
